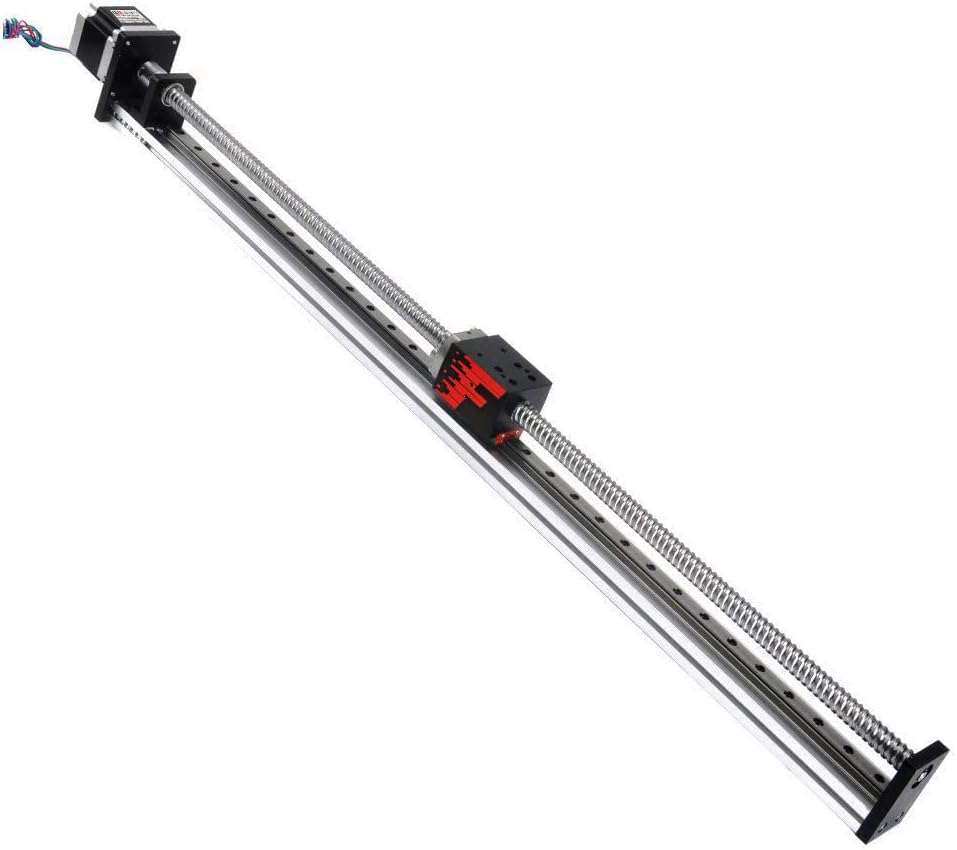

FUYU FSL40 Linear Guide Table Ball Screw Motion CNC Linear Guide Stage Actuator Motorized Nema 23 Stepper Motor[500mm Stroke]

KWD 74
Brand
FUYU
Weight
2.8 kg
– 1 +

Special Features

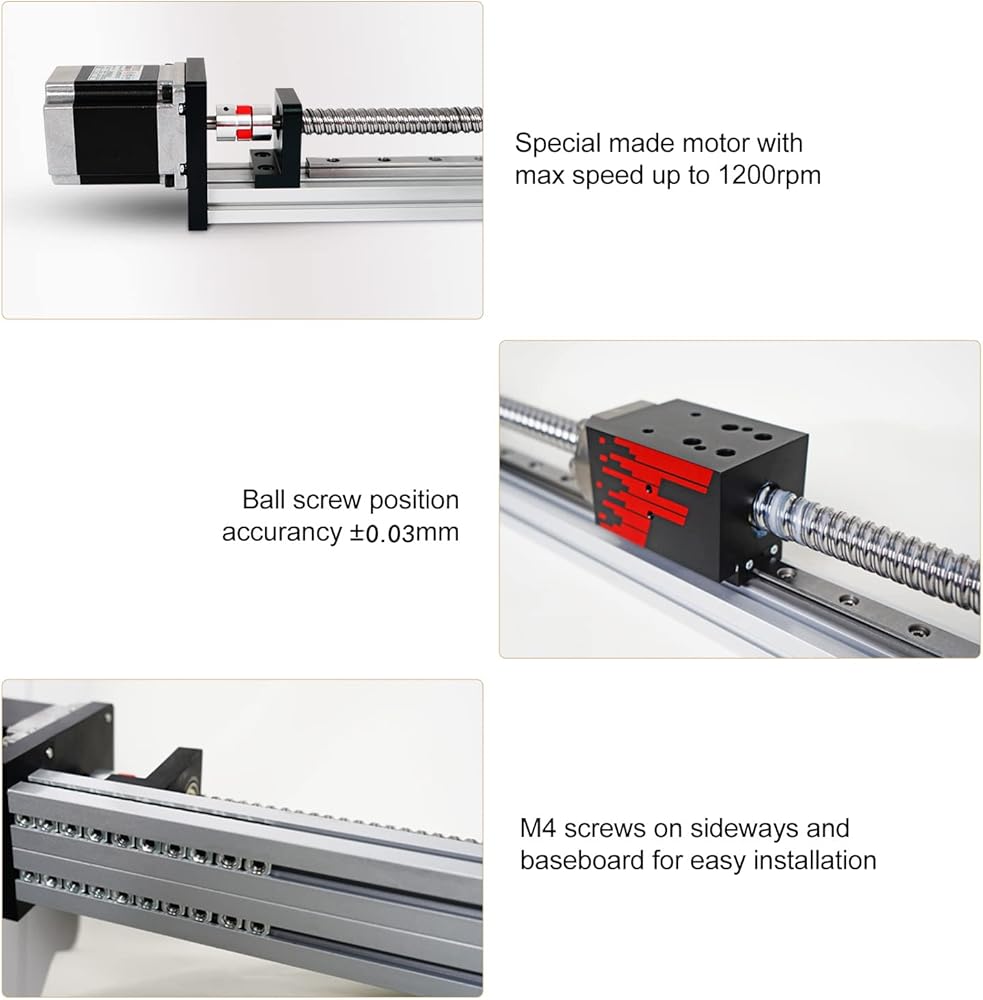

  • Special made nema 23 stepper motor with max speed up to 1200 rpm
  • Quality ball screw with accuracy up to ±0.03mm,also low noise when working

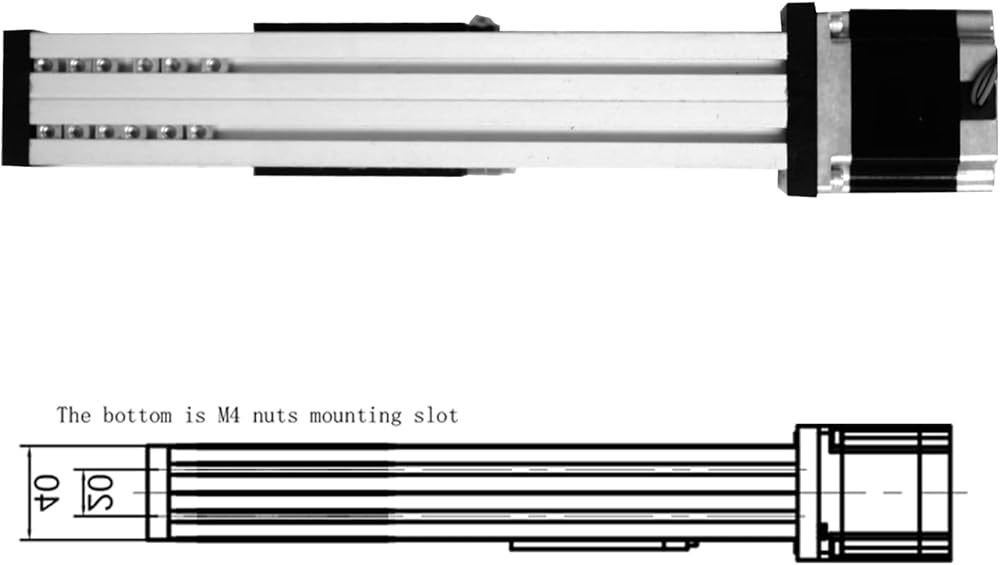

  • M4 screw on sideways to install end stop,and on base board for easy installnation
  • Oxided aluminum avoid rusting,extra support unit enhanced stability
  • have multi length stroke options from 50mm to 1000mm linear guide for cnc device

Description

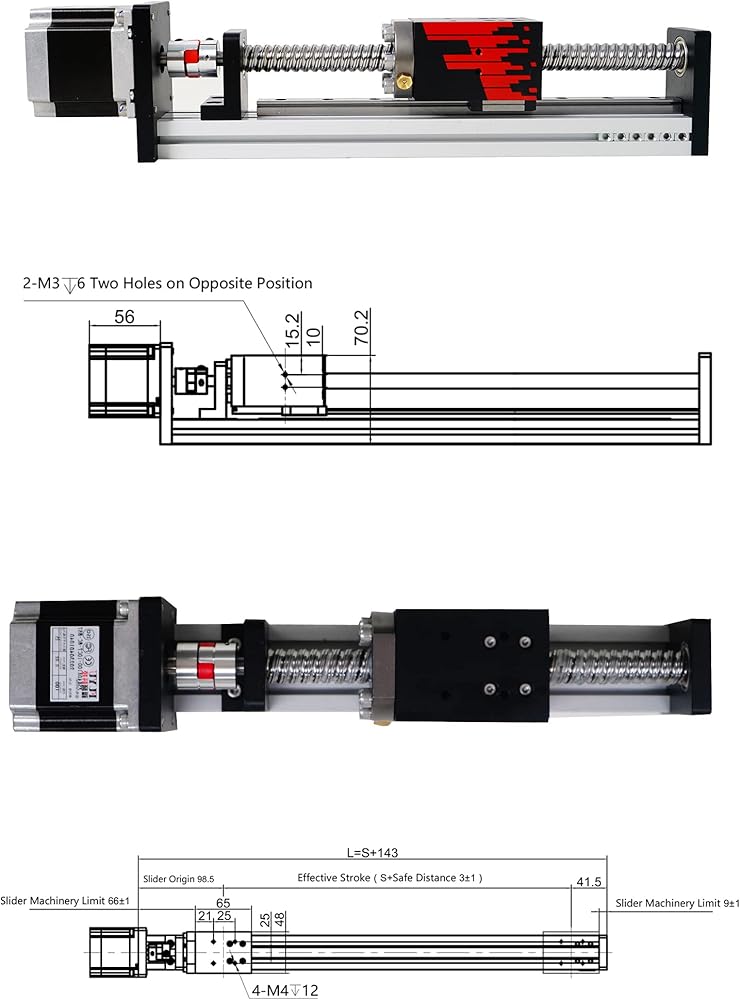

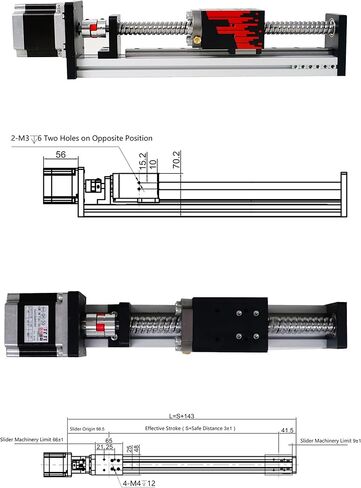

Effective Stroke: 500mm
Total Length: 699mm
Tatal Height: 80mm
Slide Width: 40mm
Maximum Horizontal Load: 25kg
Maximum Vertical Load: 15kg
Max Horizontal Speed: 150mm/s[max loading]
Max Vertical Speed: 88mm/s[max loading]
Ball Screw Model: G1610
Ball Screw Accuracy Class: C7
Stepper Motor Parameter:
Rated Voltage: 1.7v
Step angle:1.8°
Motor flange size: 57mm
Motor length: 56mm
Holding torque: 0.95 N.m
Current: 2.0A
Resistance: 1.32Ω
