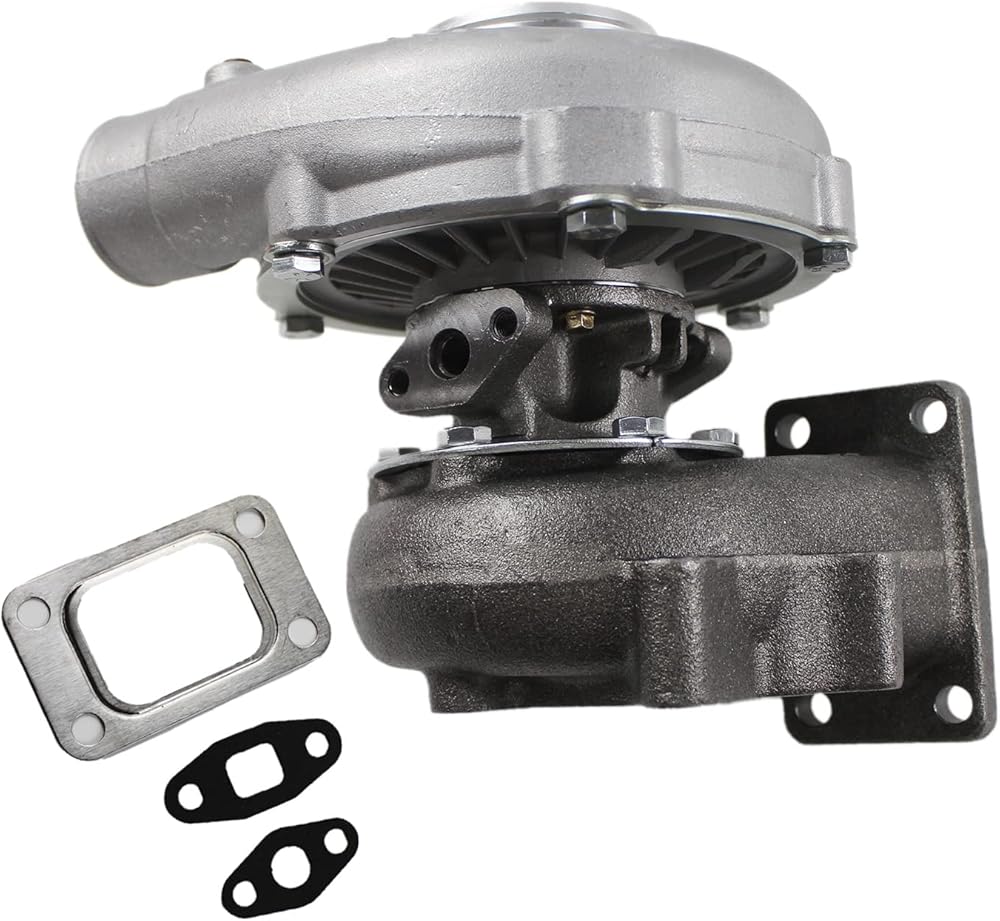

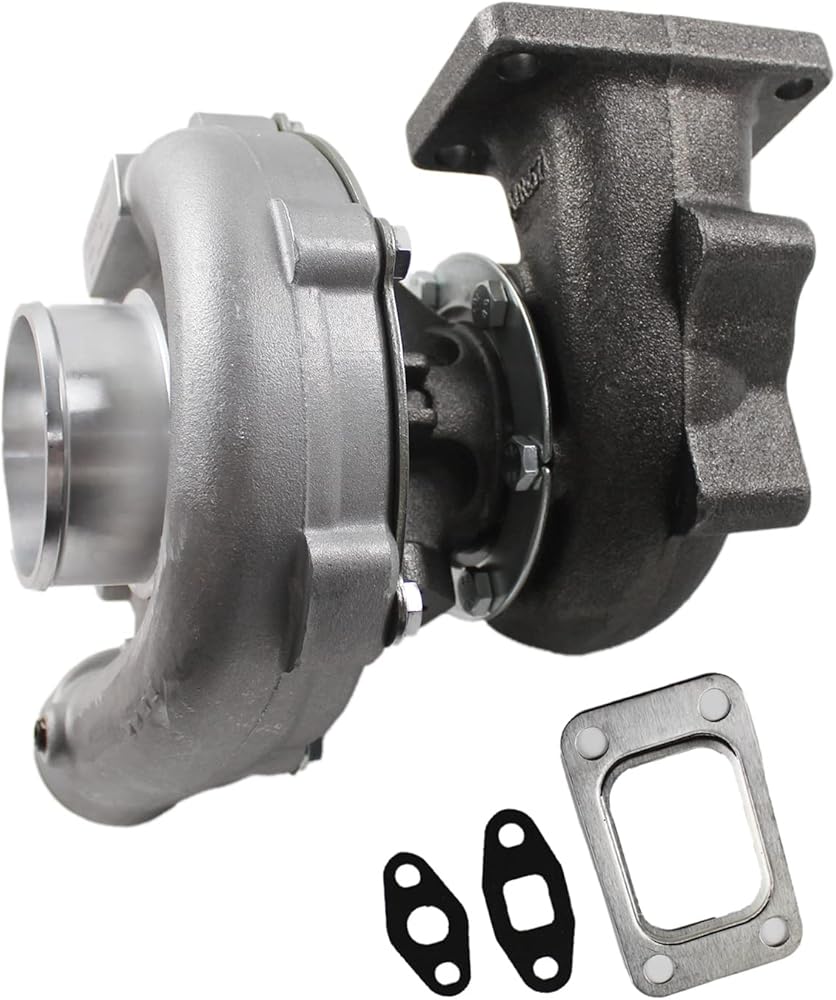

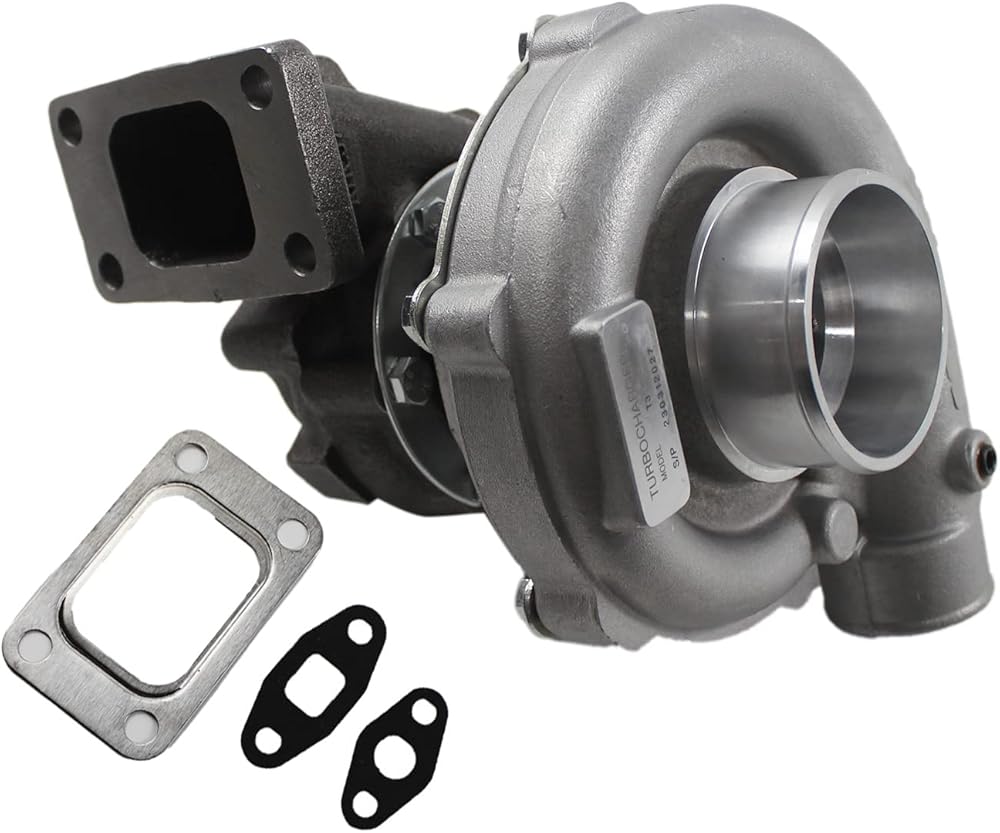

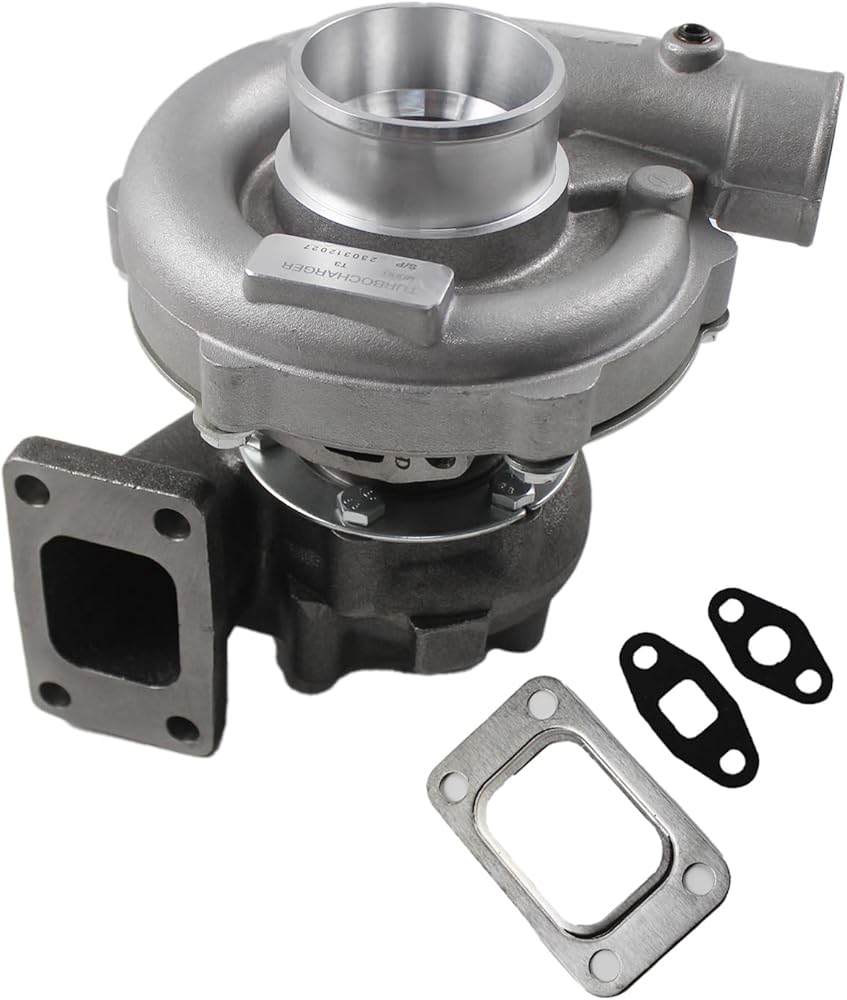

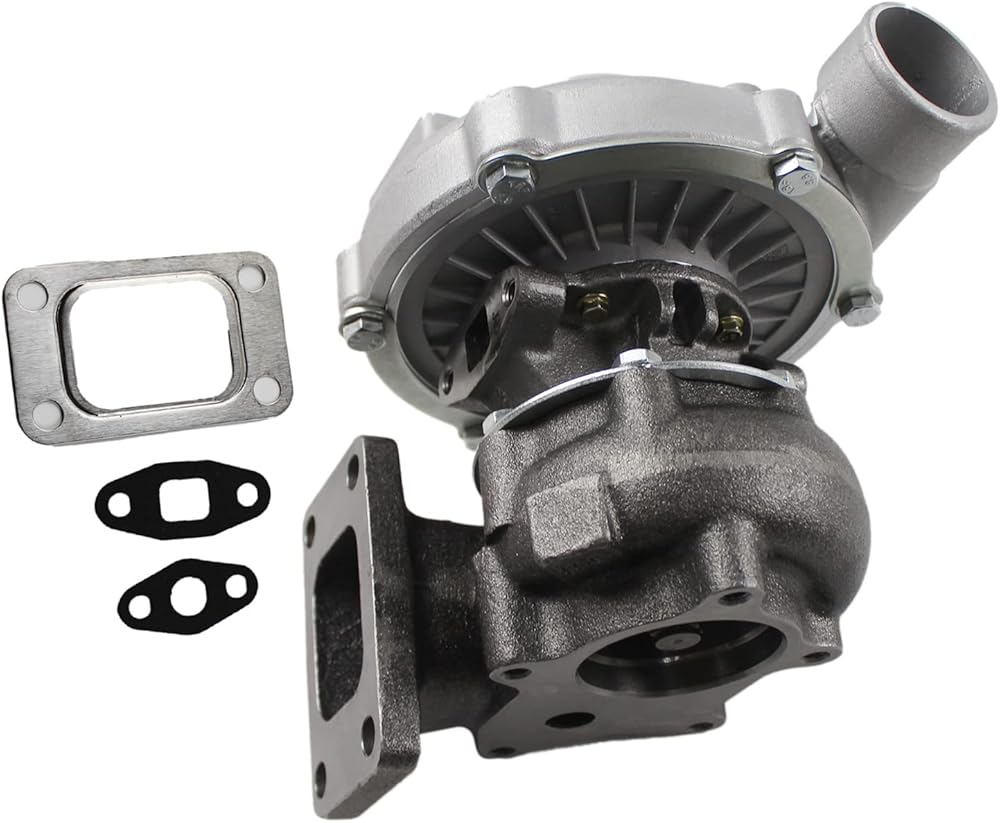

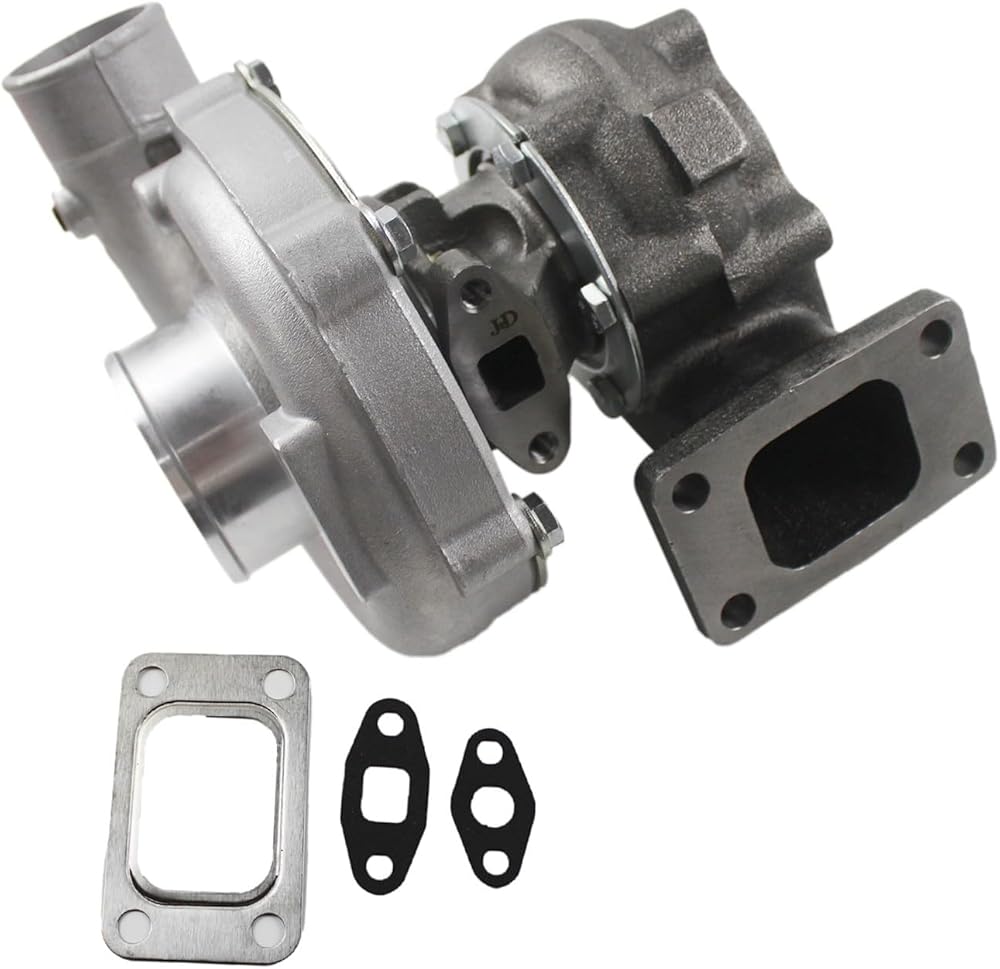

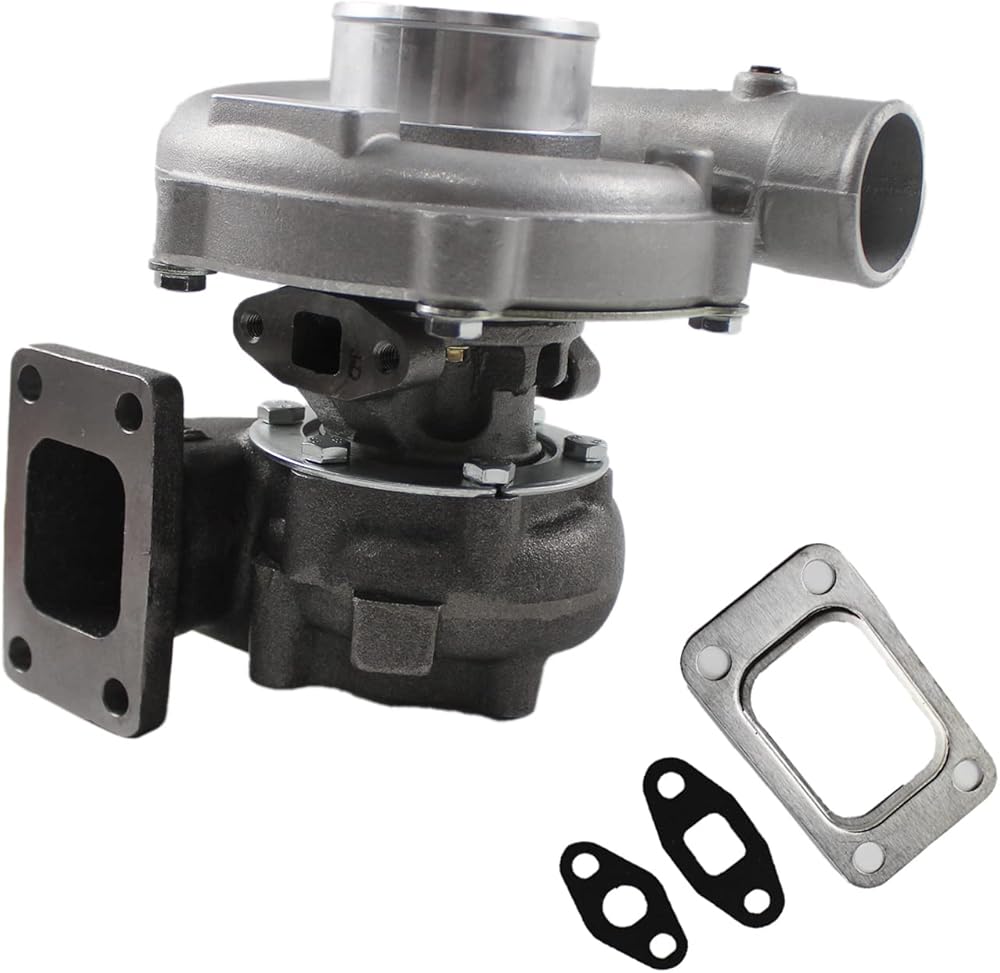

SINOCMP Turbocharger with Gasket, T04E T3/T4 0.57 A/R Engines Oil Cooled Turbo Charger, Compressor Trim 48.1 4/5 Bolt 400+HP Boost Stage III Charger, 1.5L-2.5L Engine Turbocharger Replace in Kuwait SINOCMP Turbocharger with Gasket, T04E T3/T4 0.57 A/R Engines Oil Cooled Turbo Charger, Compressor Trim 48.1 4/5 Bolt 400+HP Boost Stage III Charger, 1.5L-2.5L Engine Turbocharger Replace in Kuwait SINOCMP Turbocharger with Gasket, T04E T3/T4 0.57 A/R Engines Oil Cooled Turbo Charger, Compressor Trim 48.1 4/5 Bolt 400+HP Boost Stage III Charger, 1.5L-2.5L Engine Turbocharger Replace in Kuwait SINOCMP Turbocharger with Gasket, T04E T3/T4 0.57 A/R Engines Oil Cooled Turbo Charger, Compressor Trim 48.1 4/5 Bolt 400+HP Boost Stage III Charger, 1.5L-2.5L Engine Turbocharger Replace in Kuwait SINOCMP Turbocharger with Gasket, T04E T3/T4 0.57 A/R Engines Oil Cooled Turbo Charger, Compressor Trim 48.1 4/5 Bolt 400+HP Boost Stage III Charger, 1.5L-2.5L Engine Turbocharger Replace in Kuwait SINOCMP Turbocharger with Gasket, T04E T3/T4 0.57 A/R Engines Oil Cooled Turbo Charger, Compressor Trim 48.1 4/5 Bolt 400+HP Boost Stage III Charger, 1.5L-2.5L Engine Turbocharger Replace in Kuwait SINOCMP Turbocharger with Gasket, T04E T3/T4 0.57 A/R Engines Oil Cooled Turbo Charger, Compressor Trim 48.1 4/5 Bolt 400+HP Boost Stage III Charger, 1.5L-2.5L Engine Turbocharger Replace in Kuwait SINOCMP Turbocharger with Gasket, T04E T3/T4 0.57 A/R Engines Oil Cooled Turbo Charger, Compressor Trim 48.1 4/5 Bolt 400+HP Boost Stage III Charger, 1.5L-2.5L Engine Turbocharger Replace in Kuwait

SINOCMP Turbocharger with Gasket, T04E T3/T4 0.57 A/R Engines Oil Cooled Turbo Charger, Compressor Trim 48.1 4/5 Bolt 400+HP Boost Stage III Charger, 1.5L-2.5L Engine Turbocharger Replace

KWD 47.500
Brand
SINOCMP
Weight
7.4 kg
– 1 +

Special Features

  • 【Accurate】installation and use our excavator parts. Please find the suitable product based on the old part number and machine model.
  • 【Scientific】products pass professional testing and inspection. Not sure what the construction machinery product will do? The adaptable products, safe using operation and easy installation.
  • 【Quality Assurance】Resistance to friction and wear, safety and long-time uses. We offer repair service or exchange service for free in warranty. Recommended boost pressure 7psi(.5 Bar) to 21psi(1.5 Bar). Boost Horse Power up to 300+HP.
  • 【Use】construction machinery product must be in accordance with operating procedures to avoid accidents. We will provide matching product usage guidance and professional product operation suggestions.
  • 【Performance】Deliver high power output, Improve fuel efficiency, Reducing vehicle fuel consumption, Enhance engine power and torque, Providing more excellent performance, Improve the vehicle acceleration.
  • 【Key】construction machinery equipment meaning of existence? It is to bring convenience to life. In order to avoid the trouble of frequent replacement, strictly require product quality and improve service life.

Description

SINOCMP Product Specification
Fit for: Universal Application ( Modification might be required for some vehicles )
Compatible for 1.5L to 2.5L any 4/6 cylinder engine, Maximum PSI 18 (1.2Bar)
Specification:

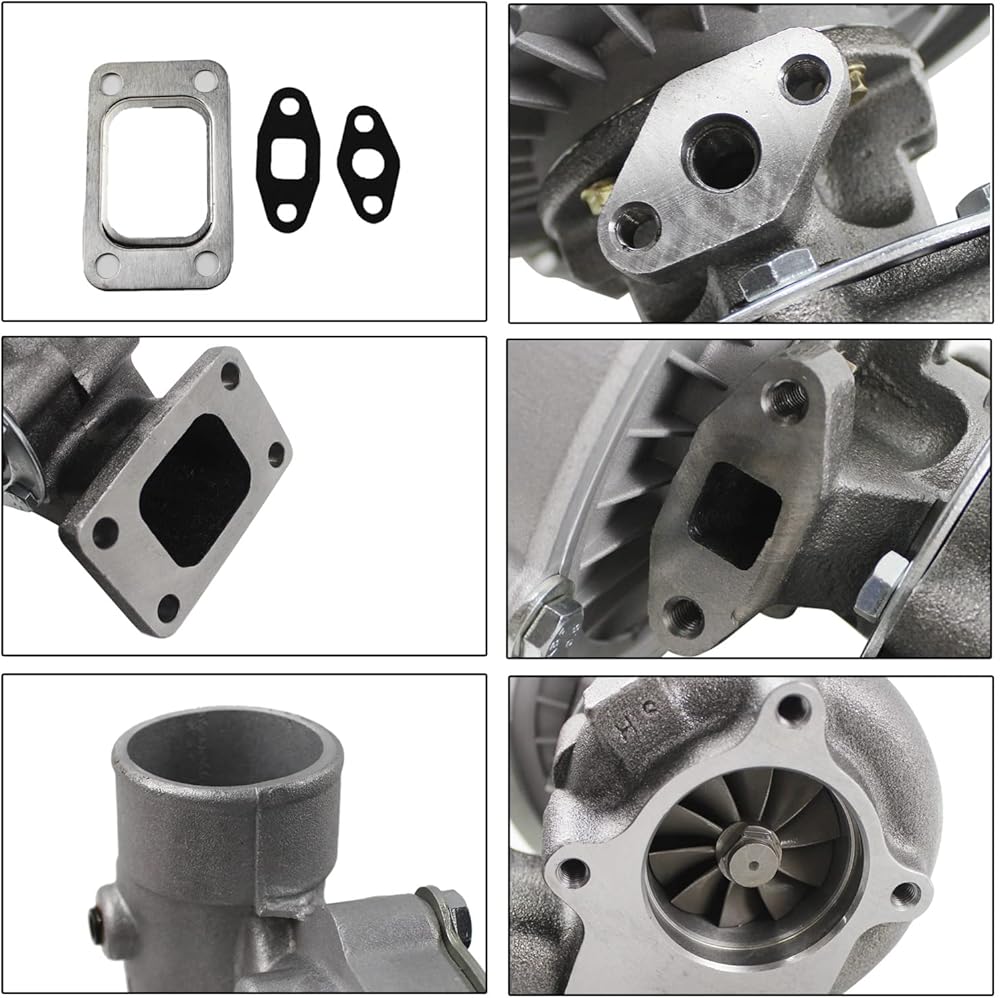

Turbine Intake Flange: T3 T4 4 bolt Flange Patterns
Turbine Exhaust Flange: Standard T3 5 bolt flange pattern
Wastegate: w/o Wastegate
Compressor Trim: 48.1
Compressor A/R: 0.5
Compressor Inducer: 2.07 inch
Compressor Exducer: 2.99 inch
Turbine Trim: 74.2
Turbine A/R: 0.57
Turbine Inducer: 2.55 inch
Turbine Exducer: 2.19 inch
Turbine exhaust inlet: 1.77 inch/3.42 inch
Compressor outlet: 1.65 inch (inside diameter) , 2.047244 inch(Outer diameter)
Compressor inlet: 2.677 inch (inside diameter), 3.0314 inch(Outer diameter)
Oil Inlet: M12*1.25
Oil Outlet: 2*M8*1.25
Cooling Type: Oil Cooled
Bearing Type: Floating Bearing/Journal Bearing
Trust Bearing: 270 degree
Hosepower: Up to 400+HP
Turbo Type: Individual
Universal Fitment: Yes
Finish: Matte

Warranty: 3 month, Replacement parts provide free the first 3 month.
Note: Wire and electrical parts are very easy to short circuit, which will lead to the damage of controller. Please note testing and pay attention to the installation of the monitor and controller.
