ALL-CARB Hydraulic Valve 4 Spool Hydraulic Directional Control Valve Double Acting Control Valve 11GPM 3625PSI SAE Ports in Kuwait ALL-CARB Hydraulic Valve 4 Spool Hydraulic Directional Control Valve Double Acting Control Valve 11GPM 3625PSI SAE Ports in Kuwait ALL-CARB Hydraulic Valve 4 Spool Hydraulic Directional Control Valve Double Acting Control Valve 11GPM 3625PSI SAE Ports in Kuwait ALL-CARB Hydraulic Valve 4 Spool Hydraulic Directional Control Valve Double Acting Control Valve 11GPM 3625PSI SAE Ports in Kuwait ALL-CARB Hydraulic Valve 4 Spool Hydraulic Directional Control Valve Double Acting Control Valve 11GPM 3625PSI SAE Ports in Kuwait ALL-CARB Hydraulic Valve 4 Spool Hydraulic Directional Control Valve Double Acting Control Valve 11GPM 3625PSI SAE Ports in Kuwait ALL-CARB Hydraulic Valve 4 Spool Hydraulic Directional Control Valve Double Acting Control Valve 11GPM 3625PSI SAE Ports in Kuwait

Hydraulic Valve Hydraulic Directional Control Valve Double Acting Control Valve 11GPM 3625PSI SAE Ports

KWD 30.500
KWD 33.500
Brand
marddpair
Category
Fittings
Weight
11 kg
Size4 Spool+11 GPM
Style3625 PSI SAE Ports
– 1 +

Special Features

  • High-Efficiency - The relief valve range is up to 3600 PSI and the maximum flow is up to 11 GPM.
  • Spring Return - All spools are standard double acting with spring return to the neutral position which is ideal for double-acting cylinders.
  • Durable Quality - This hydraulic directional control valve comes with 6 spool, with cast iron construction for long-time use.
  • Double Acting - Hydraulic control valve for operating double acting cylinders.
  • Wide Application - Fit for small tractors, tractors loaders, log splitters, and etc.

Description

Specification:
Max operating pressure: P = 3600psi (250 bar); T = 150psi (10 bar); A , B = 4300psi (300 bar)
Nominal flow: 11gpm (40l/min)
Relief valve: Adjustable
Center system: Open
A, B ports: 1/2" BSPP
P, T, N port: 1/2" BSPP

Features:
Spring center to neutral all spools
Durable cast iron construction provides long-term usage
Compact design use in small tractors, tractors loaders, log splitters, etc
Release valve adjustable

Package:

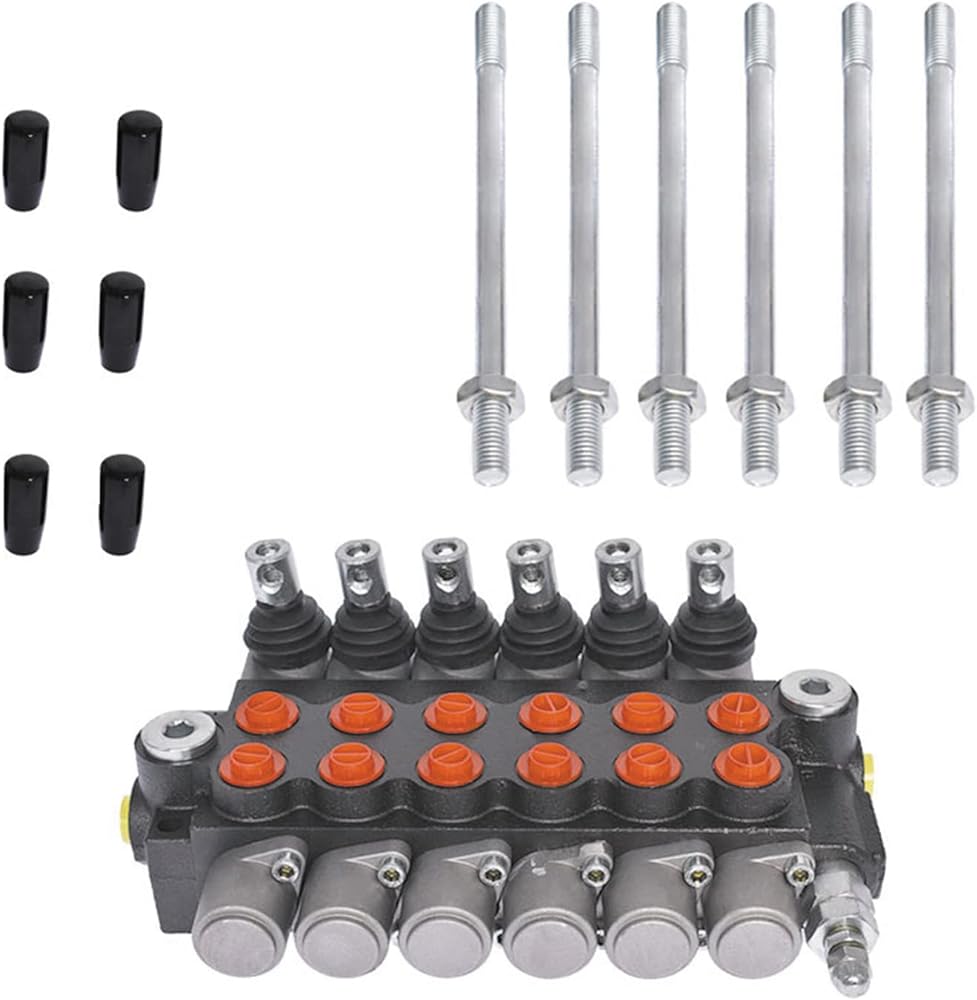

1 x 6 spool hydraulic directional control valve
