2 Pack DC 5-12V/15-160V Stepper Motor Drive,PWM Adjustable Stepper Motor Controller Signal Generator Speed Regulator for Controlling Motor

KWD 8.500
Brand
DWEII
Weight
91 g
– 1 +

Special Features

  • ❃❃PUL + and PUL- pulsed positive and negative; EN + and EN- is to enable the positive and negative terminals; DIR + and DIR- are the positive and negative directions.
  • ❃❃Power supply: 15-160VDC or 5-12VDC. If you are using 5-12VDC power, positive end connect DC 5-12V Input, negative end connect Common Cathode End.
  • ❃❃The controller has high, medium and low total of three types of frequency signals can be used to select jumper. It has simple construction, easy to install.
  • ❃❃3 Frequency: High: 5.8KHZ-127KHZ, Mid: 590HZ-15.8KHZ, Low: 82HZ-2.3KHZ
  • ❃❃ This module is used for driving signal for stepper. If you want to control the stepper motor, must equipped with the drive at the same time. It controls the speed by adjusting the frequency of the potentiometer.
  • ❃❃Frequency of measurement can amount PUL and common cathode terminal (GND) two ports.

Description

Description:

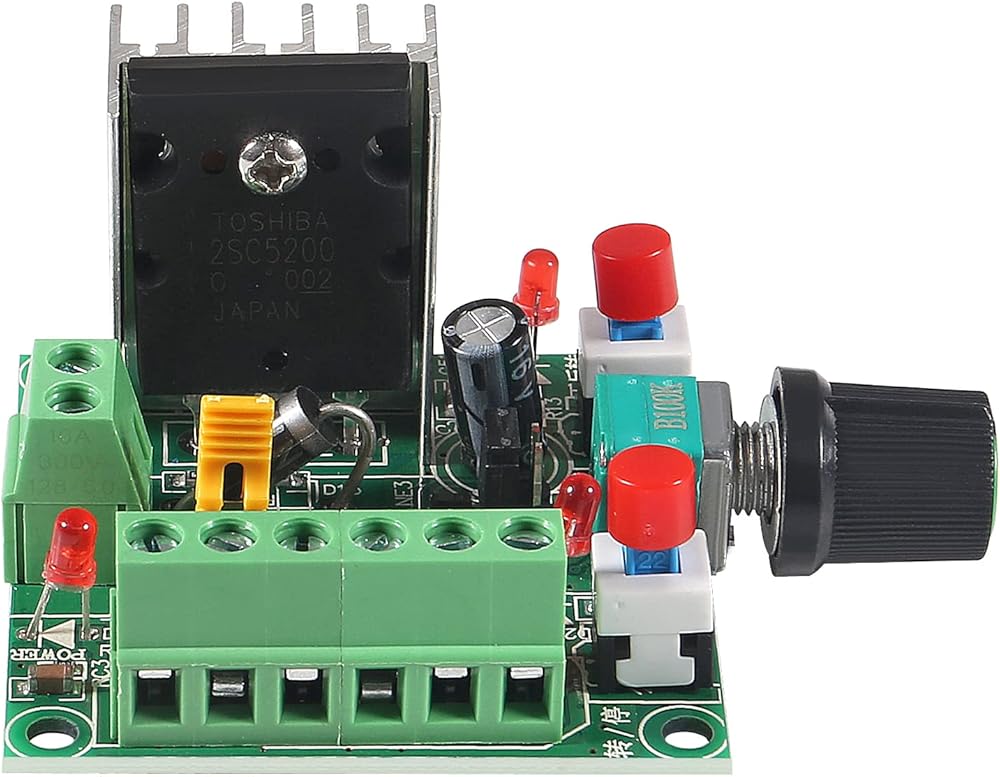

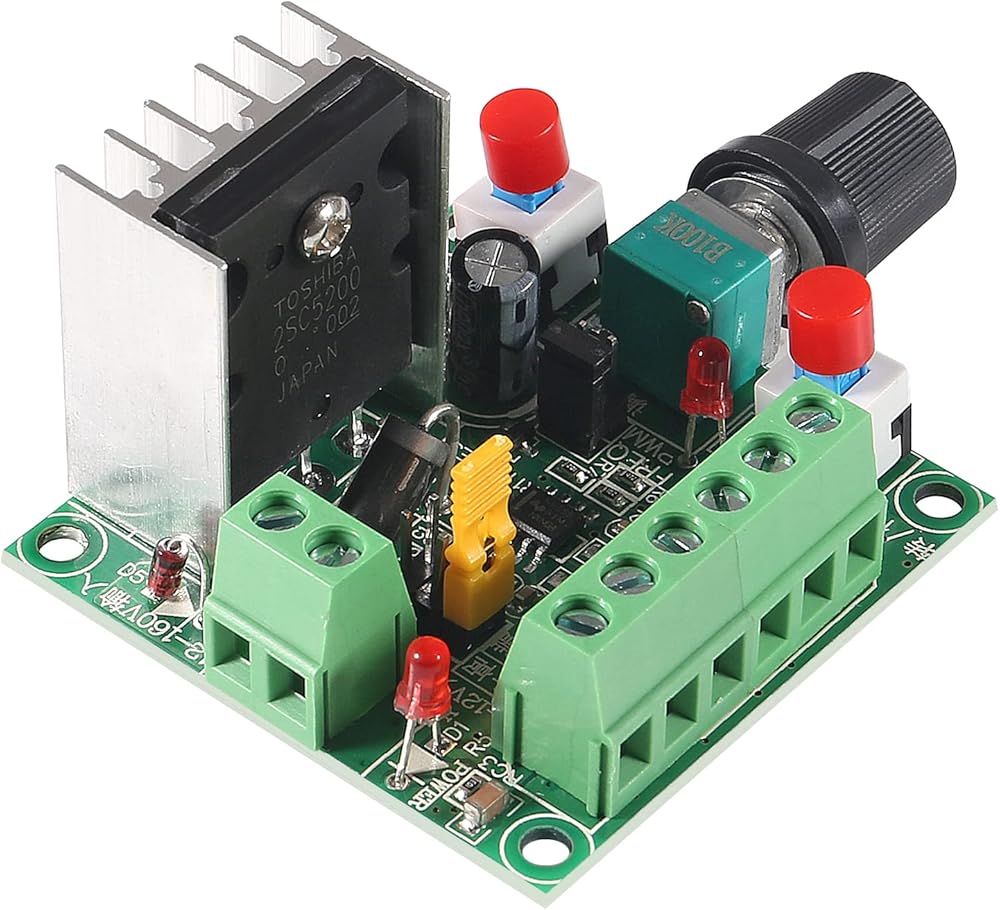

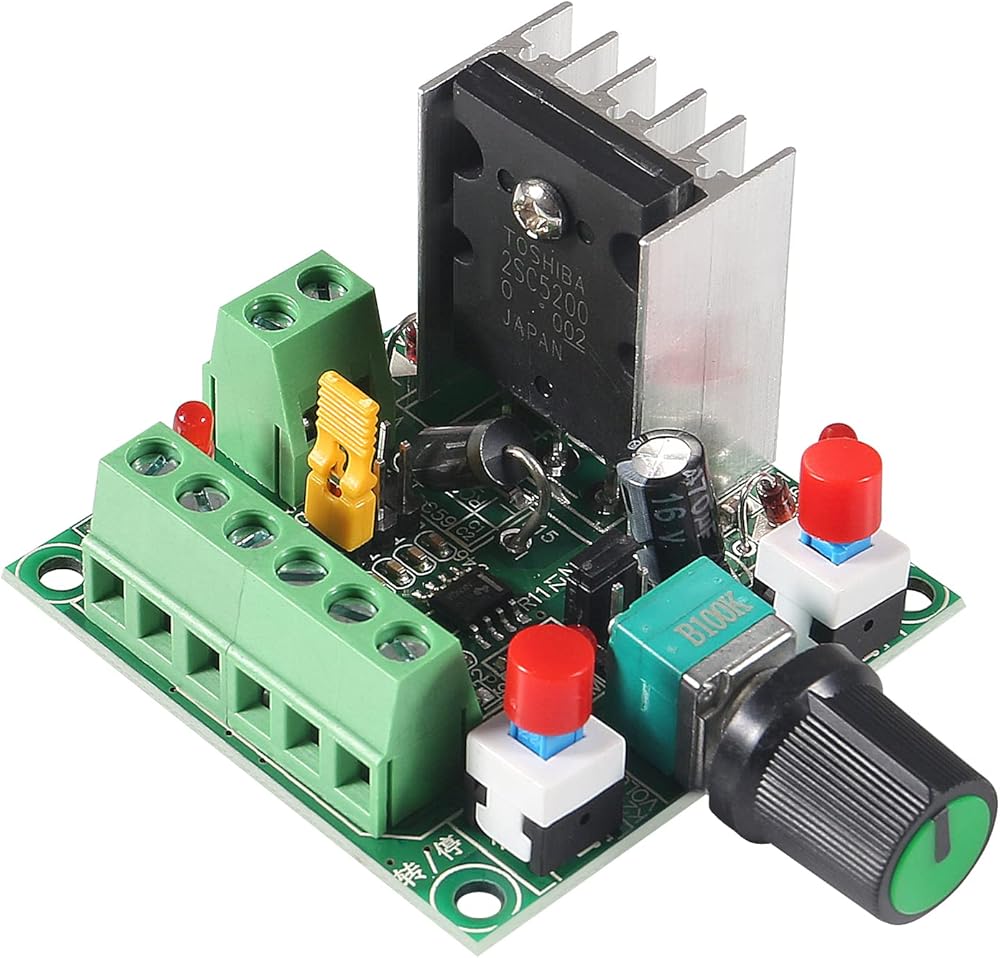

This stepper motor controller board , compared to the last edition, features the ability to generate a PWM signal. Comes with a jumper, you are able to change the the default frequency pulse signal to PWM pulse signal. The motion and reversing of the motor can be controlled by pressing the key. The speed of the motor can be controlled by adjusting the frequency of the potentiometer.

Specification:
Power supply voltage: 15-160V / 5-12V
Frequency: High: 5.8KHZ-127KHZ, Mid: 590HZ-15.8KHZ, Low: 82HZ-2.3KHZ
Size: Approx. 73 x 51 x 37mm / 2.87 x 2 x 1.45inch
Weight: 50g/PCS

Package :

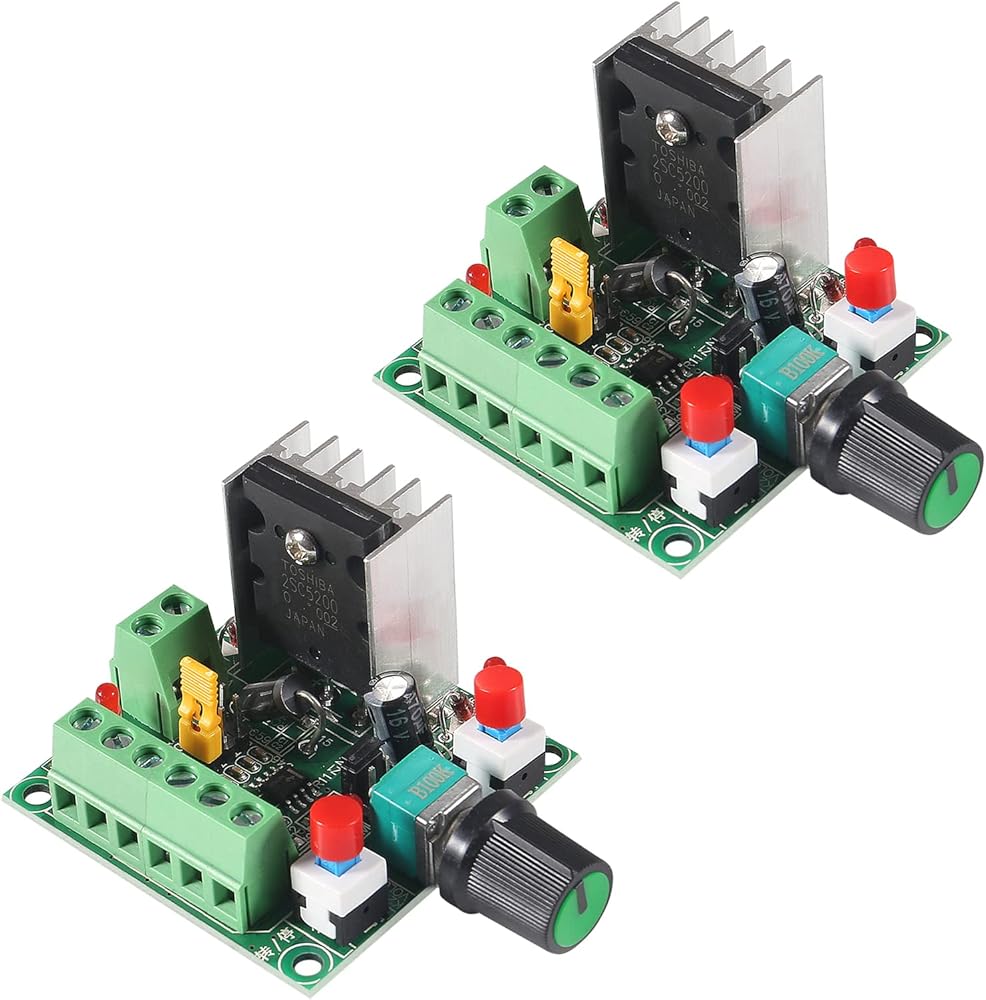

2 x PWM Generator
