Electronics-Salon DIN Rail Mount RJ11/RJ12 6P6C 4-Way Buss Board Interface Module.

KWD 8.500

Weight
93 g
1 +

Special Features

  • DIN Rail Mount RJ11/RJ12 6P6C 4-Way Buss Board Interface Module.
  • Vertical 6P6C jacks. Pitch 5mm/0.197" screw terminal block.
  • Solder connection holes, four (4) per line, supports addition of 0.1" pin headers.
  • High quality DIN rail mount carrier, can support width 35mm / 32mm / 15mm rail, and the carrier can be taken apart for panel mount use.

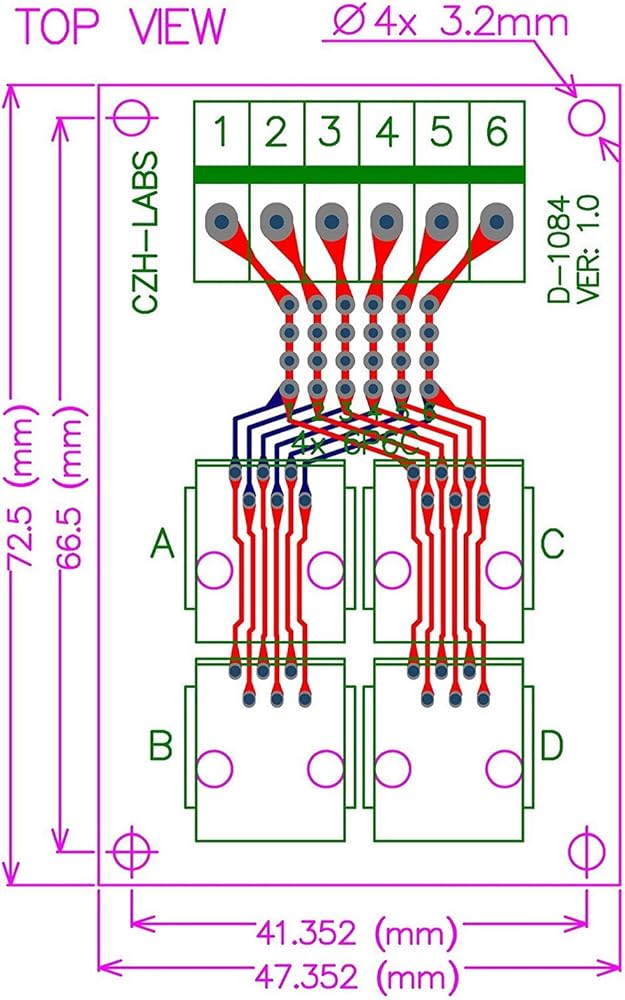

  • FR-4 fiber glass PCB, dual copper layers. Dimensions: 87 x 50 x 40mm(W x L x H).

Description

DIN Rail Mount RJ11/RJ12 6P6C 4-Way Buss Board Interface Module.

Vertical 6P6C jacks.
Pitch 5mm/0.197" screw terminal block.
Solder connection holes, four (4) per line, supports addition of 0.1" pin headers.
FR-4 fiber glass PCB, dual copper layers.
High quality DIN rail mount carrier, can support width 35mm / 32mm / 15mm rail, and the carrier can be taken apart for panel mount use.
Dimensions: 87 x 50 x 40mm(W x L x H).
100% new, never used.

Rated voltage: 100V.
Rated current: 0.5A / per pin.
Operating Temperature: -20ºC to 50ºC

Terminal block specifications:
Wire range: 26 ~ 16AWG.
Strip length: 5mm.
Screws: M2, steel, Cr3+ Zn plated.
Pin header and Cage: Brass.
