BEISUOS Circuit Breaker with Manual Reset,12-48 Volt DC, 0-8 Gauge

Function

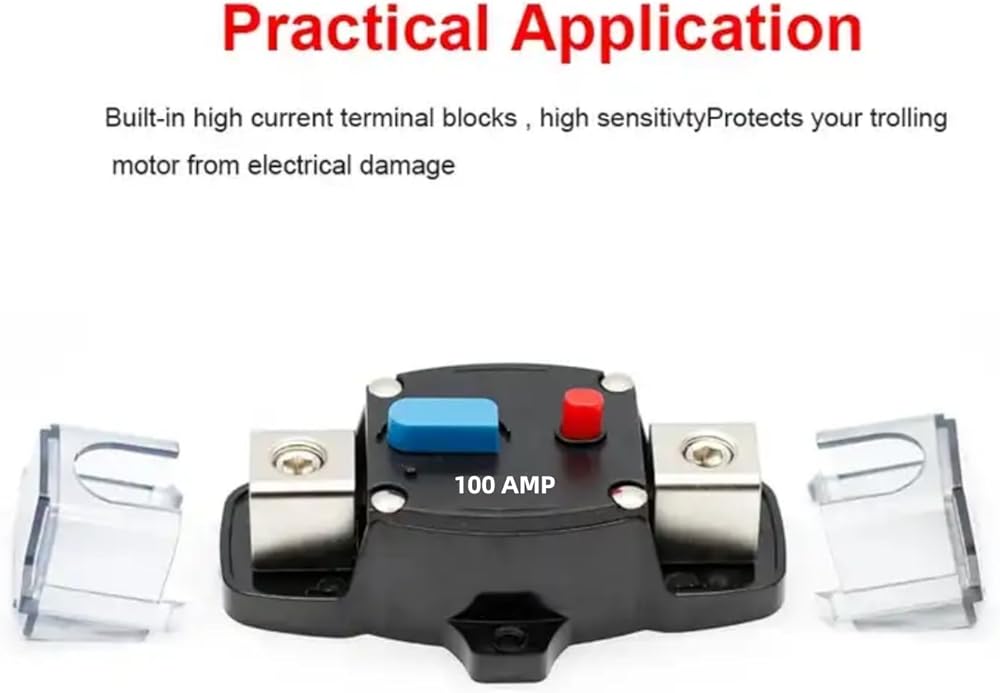

Protects the trolling motor from electrical damage, prevents executive current and stops power surges from damaging Amps.

How to work
1. Circuit break protection: When the current reaches the cut-off value, the long handle automatically bounces and cuts off the power supply. Generally, it trips in a short circuit condition. After the fault is eliminated, press the long handle back to the original position to form a path.
2. Manually cut off the power: We need to disconnect the circuit when refitting, and directly press the oval red button on the insurance. At this time, the long handle automatically pops up to cut off the power. Connect as above, then press the long handle back to its original position.

Specifications:
Voltage: 12-48V DC
Current:50A/60A/80A/100A/150A/200A/250A/300A
Material: Plastic and zinc alloy steel

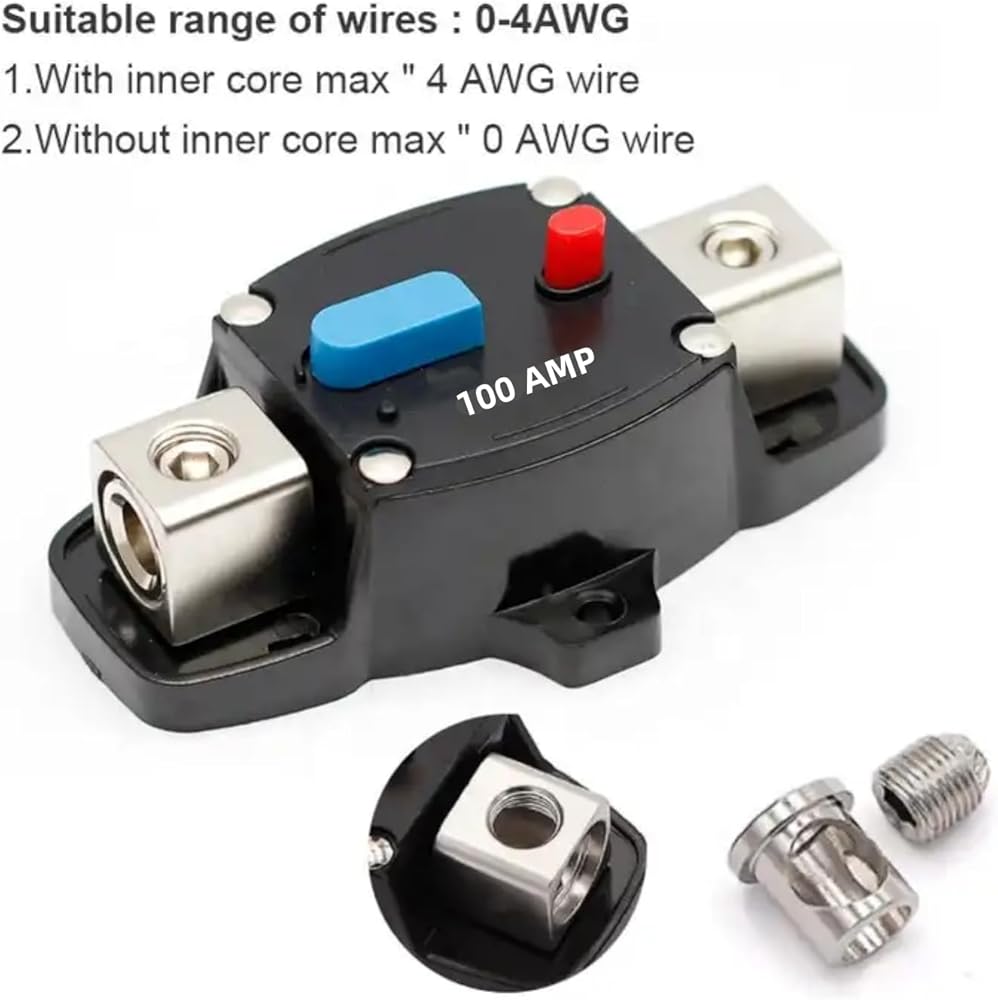

Suit gauge wire: 0-8 AWG
Operating Temperature: -10C to 50C (-14F to 122F)

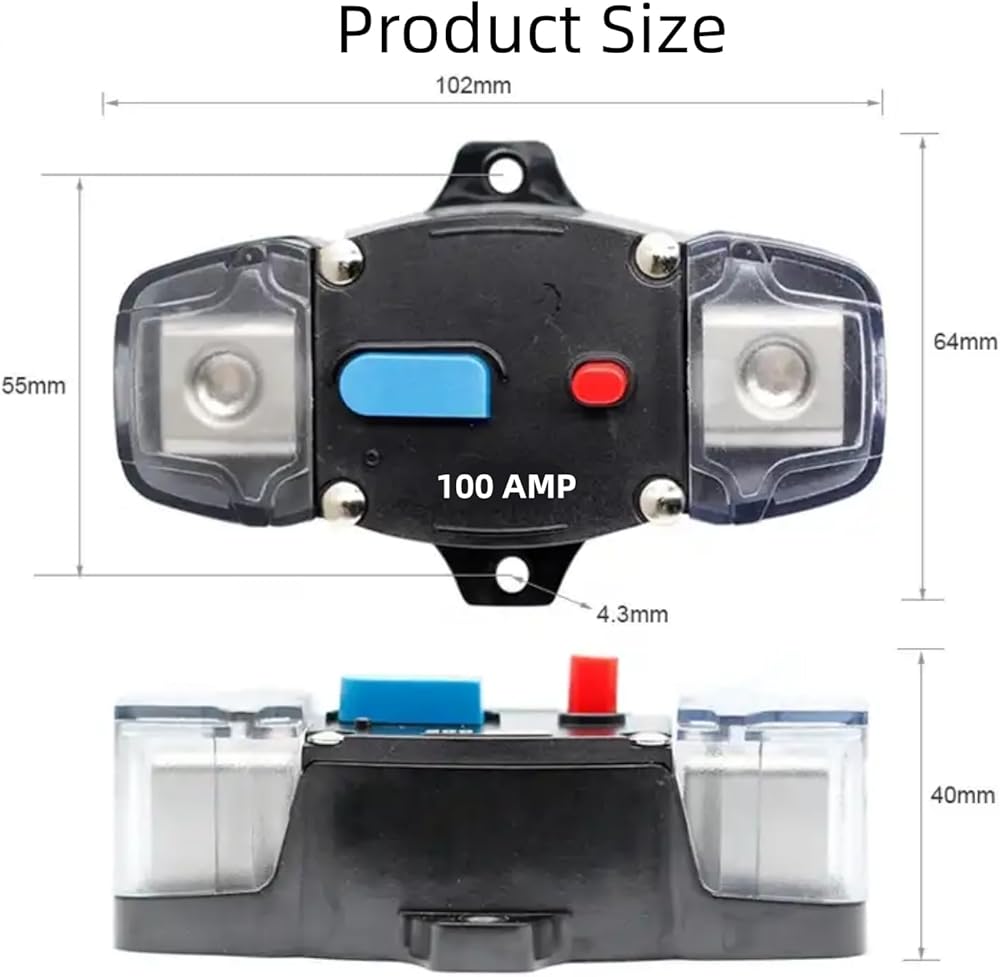

Size: 4.01in (L) x 2.52in (W) x 1.57in (H)
Note:
1. Wiring IN (BAT) incoming, OUT (AUX) outgoing.
2. No need to disassemble or install insurance core when break down. Just switch on or off the device.
3. Please order and use the Circuit Breaker with right work temperature, to avoid it is too heat and stop work.
4. Please correctly push the button to avoid damage the Circuit Breaker.

Package included:

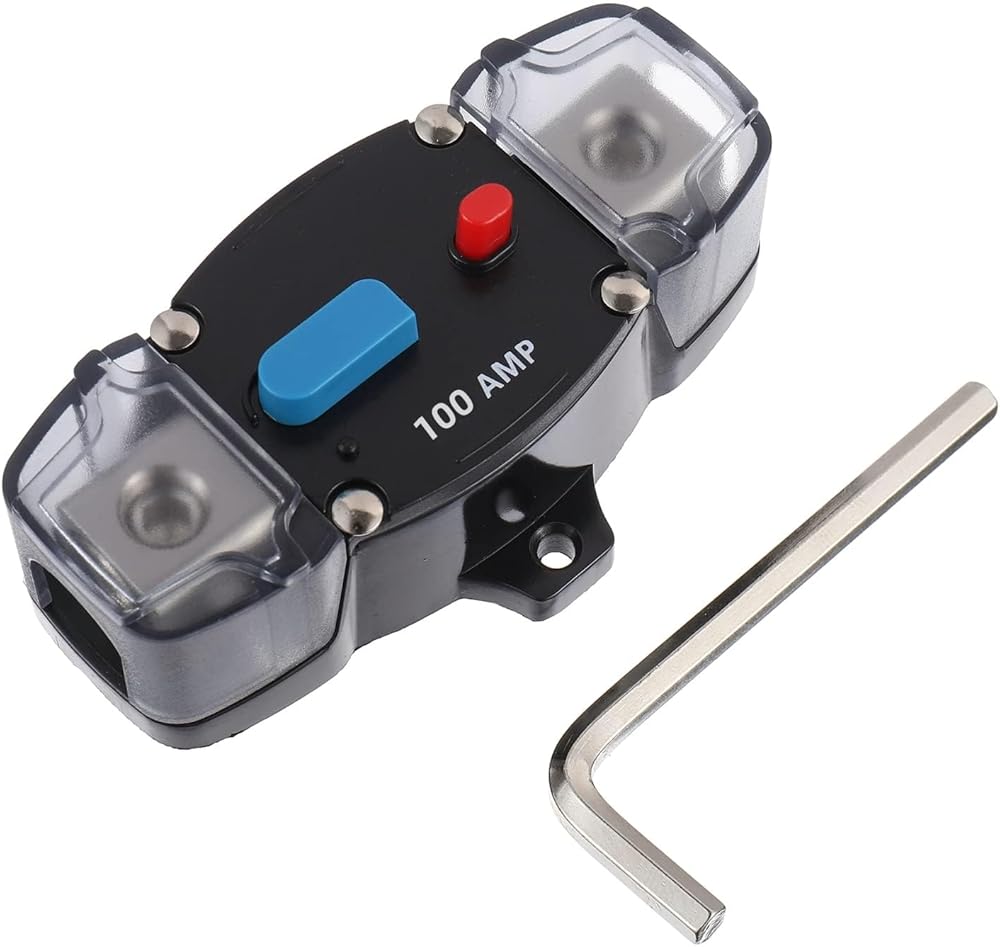

1x Circuit Breaker Car Audio Inline Fuse
1 x Hexagon Wrenches (M5)
