42V 4A Charger Used for 10S 36V Li-ion Battery Pack Aluminum Casing Output DC 5.5 * 2.1mm/5.5 * 2.5mm Connector

KWD 16
– 1 +

Special Features

  • ⭕DC Output Plug by The is Shown in Figure: DC 5.5*2.1mm/5.5*2.5mm, Applicable to Battery Type: 36V Li-ion Battery Pack
  • 🔋AC Input: 100-240Vac, 50-60Hz; DC Output: 42V 4A, Provide: 2* Replace Fuse 1* American Standard Power Cord
  • ⭕Intelligent Charging Mode: Constant Current - Constant Voltage - Trickle to Ensure That The Battery is Fully Charged
  • ✅Over voltage Protection, Over Current Protection, Short Circuit Protection, Reverse Protection

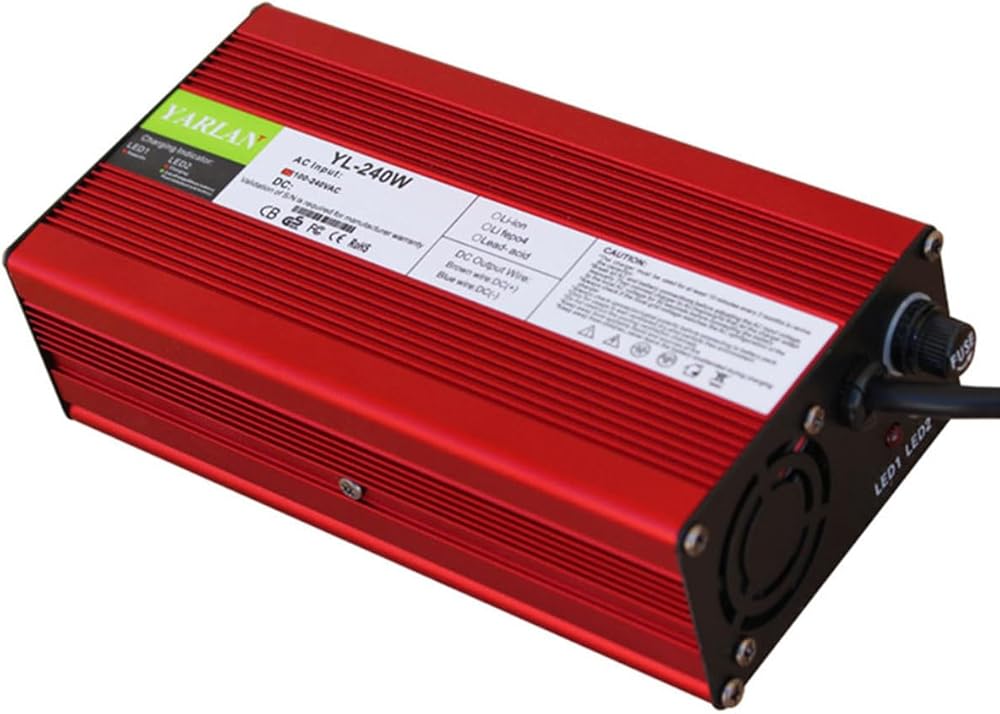

  • ⭕Equipped With LED indicator light and Cooling fan, The Aluminum Shell is Beautiful and Durable, and The Cooling Speed is Faster,Longer service life

Description

Specification:

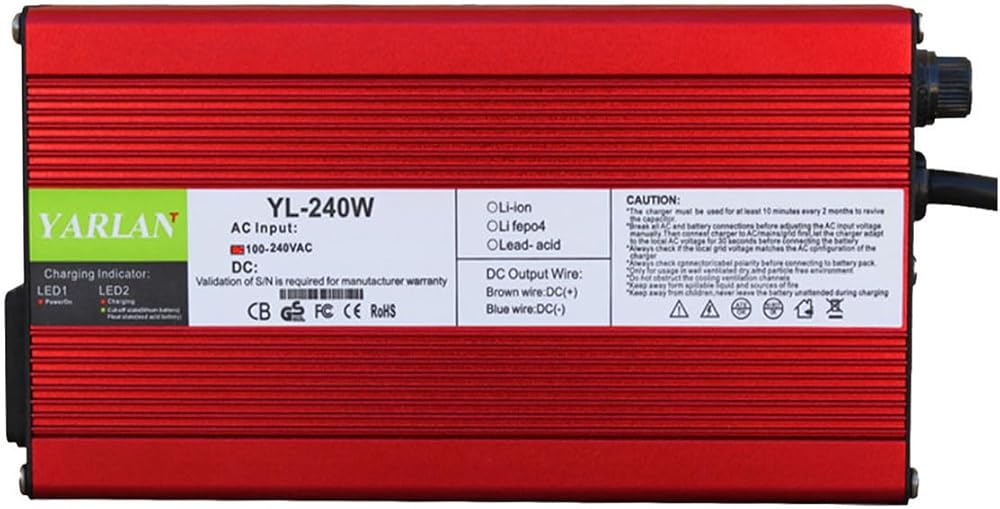

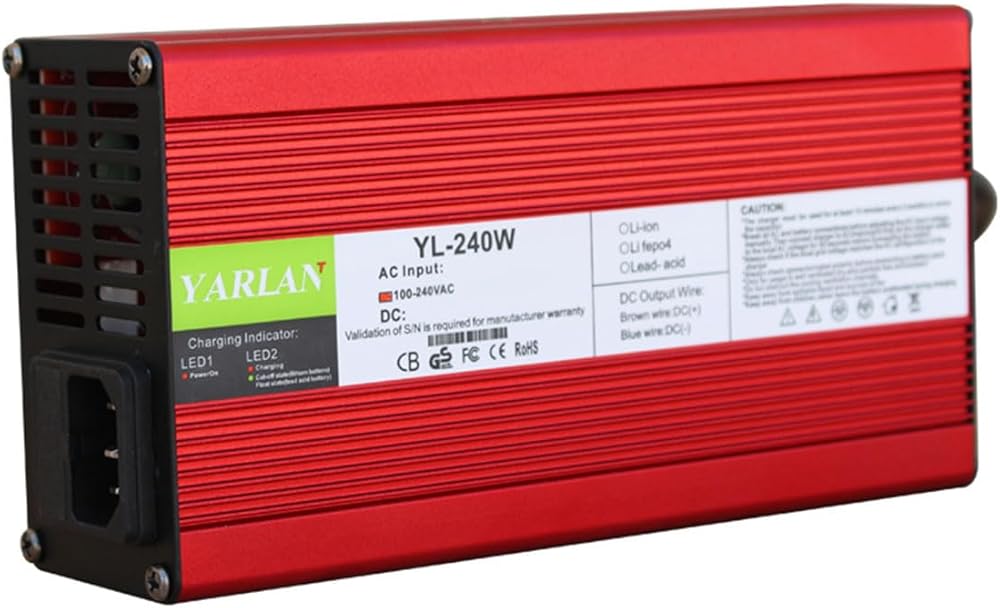

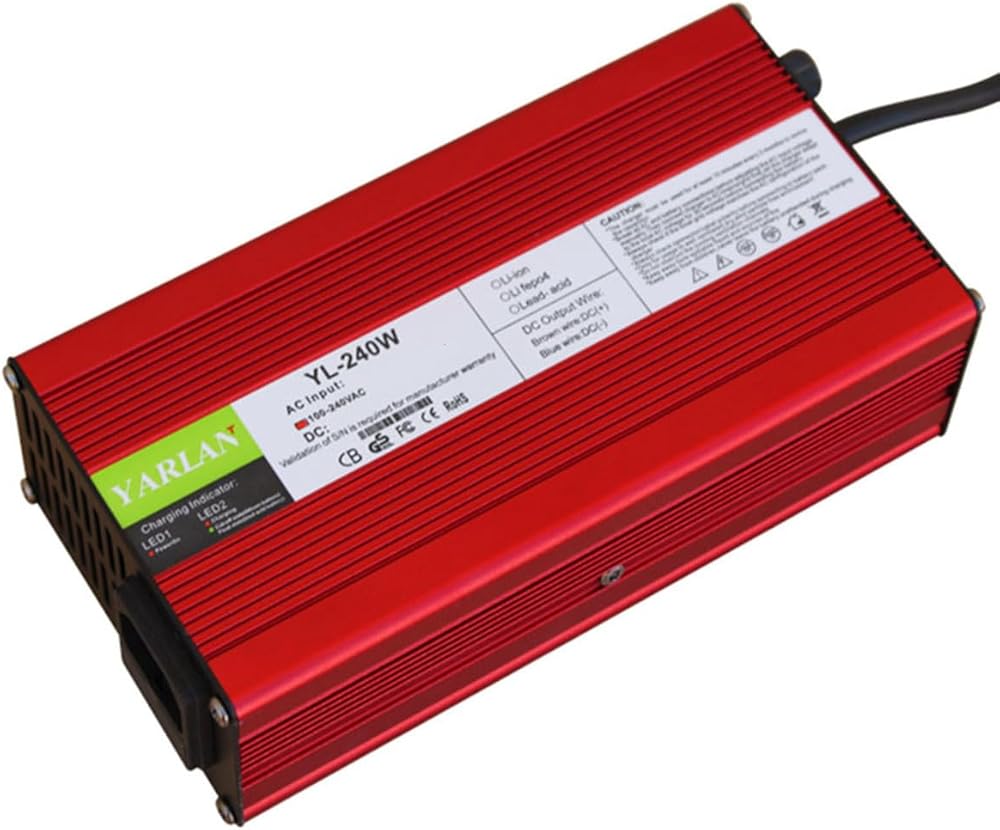

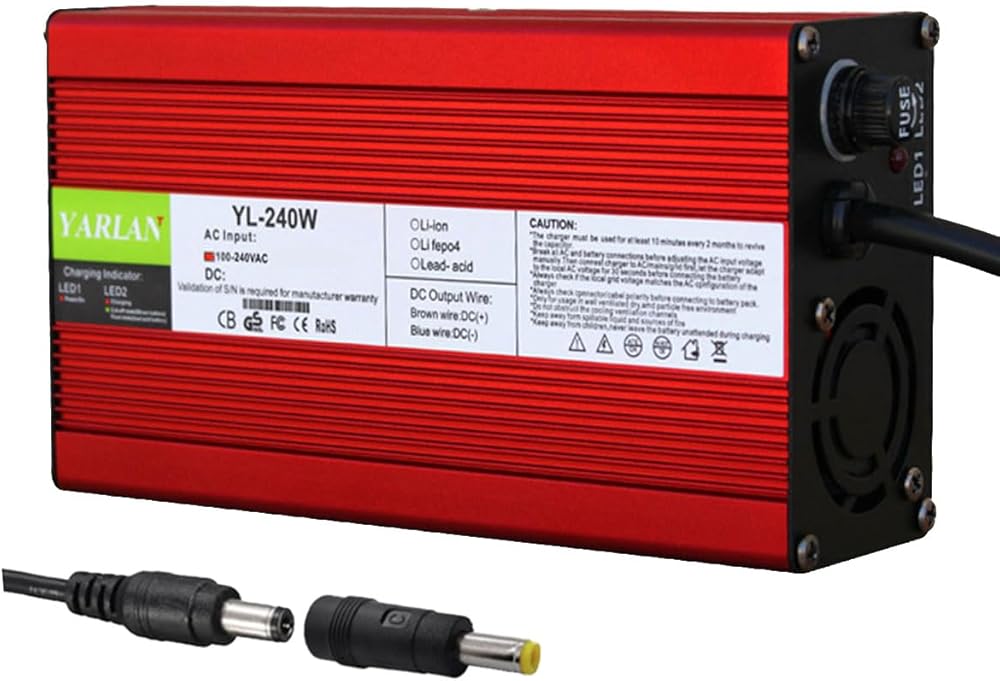

Model: YL-240W
Dimensions: 135x90x50mm
Color/Material: Red/Aluminum Case
Suitable for Battery type: 10S 36V Li-ion battery
AC Input: 100~240Vac, 50/60Hz
Output voltage: 42V
Output current: 4A

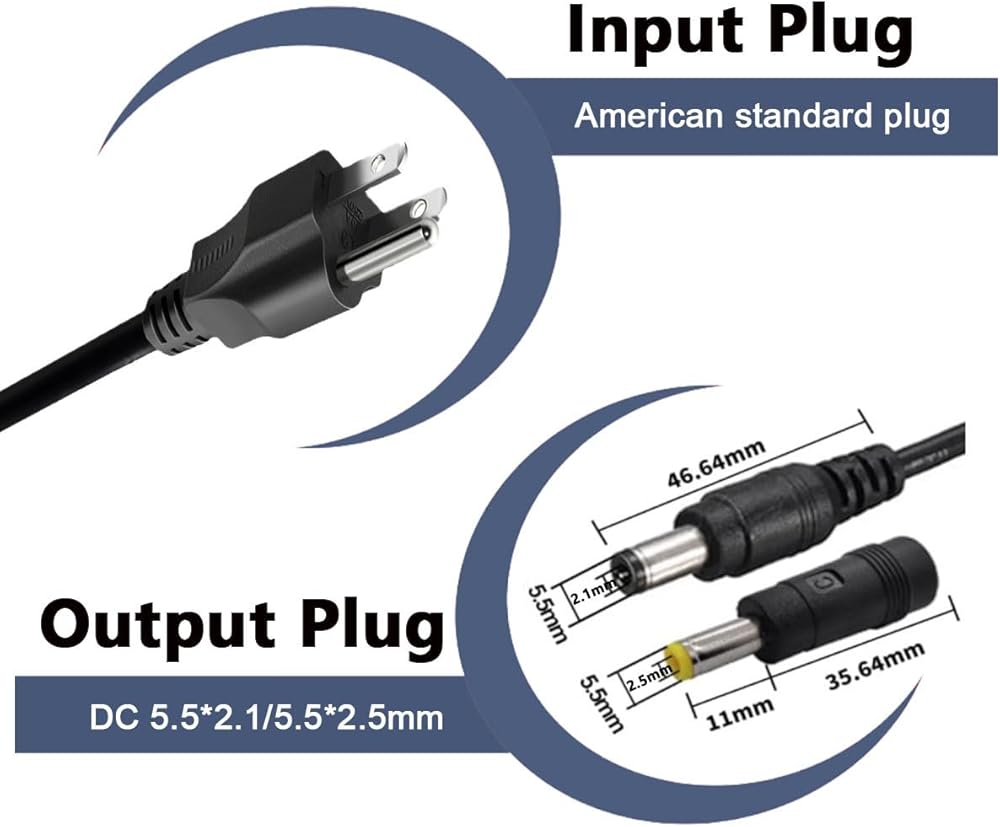

Output plug: DC 5.5*5.1mm / 5.5*2.5mm
Battery Protection: SCP,OVP,OCP,OTP
Charging mode: constant current - Constant Voltage - trickle (floating charge) three-stage intelligent charging
Charging efficiency: ≥85% (full load)
Working temperature: -5 ℃ ~ +40 ℃
Storage temperature: -40 ℃ ~ +70 ℃
AC power cord, DC connector can be customized.
Operating Instruction
1. Before charging, please connect the DC terminal to battery first, and then connect the AC terminal.
2. After charging complete, unplug the AC terminal firstly, and then unplug the DC terminal.
3. No charging or after charging complete, be sure to unplug the DC terminal and AC terminal.
LED Indicator:
LED 1 red: Power on.
LED 2 red: Battery being charged.
LED 2 Flash: Battery will be charged completely soon.
LED 2 green: Battery has been charged completely.
Package:
1* 42V 4A charger
1* US standard power cable
1* Operating manual
2* Fuse for replacing
