✔️Beat Numbers (Frequency Numbers)
Automatic
The following beat numbers are selected by automatic selection mode:
12000、14400、18000、19800、21600、25200、28800、36000、43200
(If the tested beat is not in automatically selection, the instrument will display the closest beat number, but the test result is not correct. At this time, use the manual mode to select the relative beat.)
Manual selection
It can selected out the beat number that automatic selection cannot identify rare beat number.
The following beat are selected by manual selection mode:
3600、6000、7200、7380、7440、7800、9000、9100、10800、11880、12000、12342、12480、12600、13320、13440、13500、14000、14040、14160、14200、14280、14400、14520、14580、14760、14850、15000、15360、15600、16200、16320、16800、17196、17258、17280、17786、17897、18000、18049、18514、19332、19440、19800、20160、20222、20944、21000、21031、21306、21600、25200、28800、32400、36000、43200
✔️Lift Angle
The lift angle is 52° for many common movements, therefore the lift angle value of instrument for factory is set to 52°. This value is required to calculate the amplitude and must be selected according to the watch movement. The lift angle can be set to between 30°and 70°
✔️Specifications
- Measuring possibilities: Rate deviation, amplitude, beat error of mechanical watches and diagram recording of the beat noise.
- Rate deviation measurement: the range of deviation is ± 999 sec / day, precision 1.0 sec/day.
- Amplitude measurement: Numerical display in degrees, resolution is 1°,measuring range: 100°to 360° (the lift angle can affect the amplitude, range: 30°to 70°.Under normal circumstances, the amplitude value do not exceed 360°.)
- Measuring of the Beat error (Frequency error): Numerical display in milliseconds. Resolution is 0.1 milliseconds; the measuring range is 0-9.9 ms.
- Supply voltage: single-phase AC 100 V～240V ± 10% two-line.
- Working environment: 0 ℃ to 50 ℃, relative humidity: 0 to 80% RH

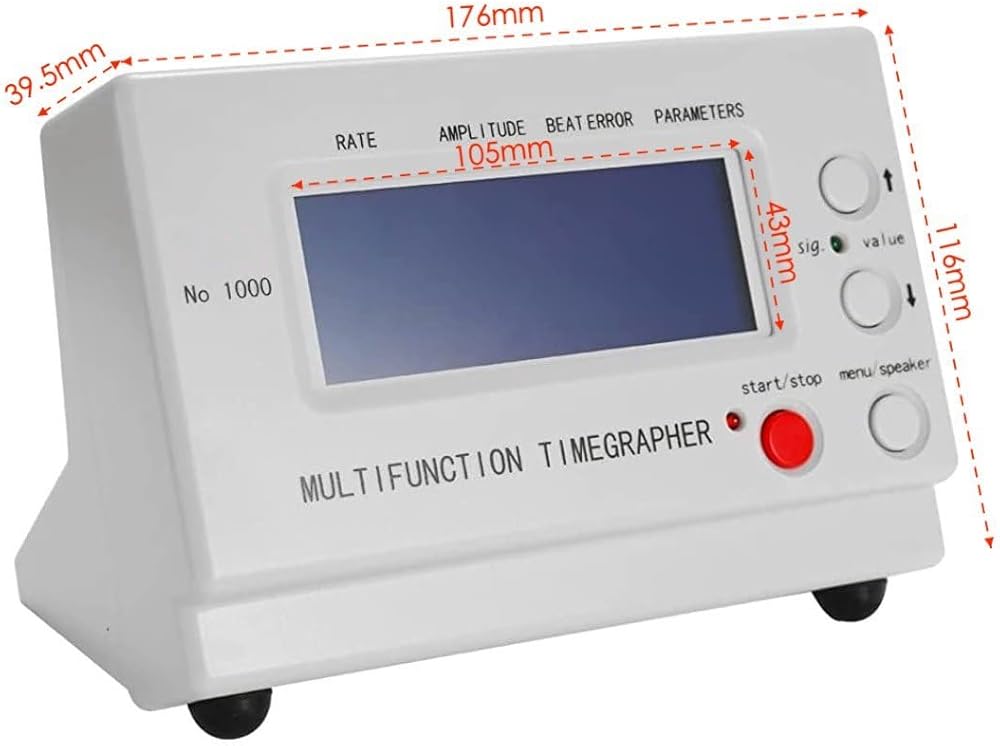

- Dimensions: 173×9.5×11.5mm
- Weight: 402g

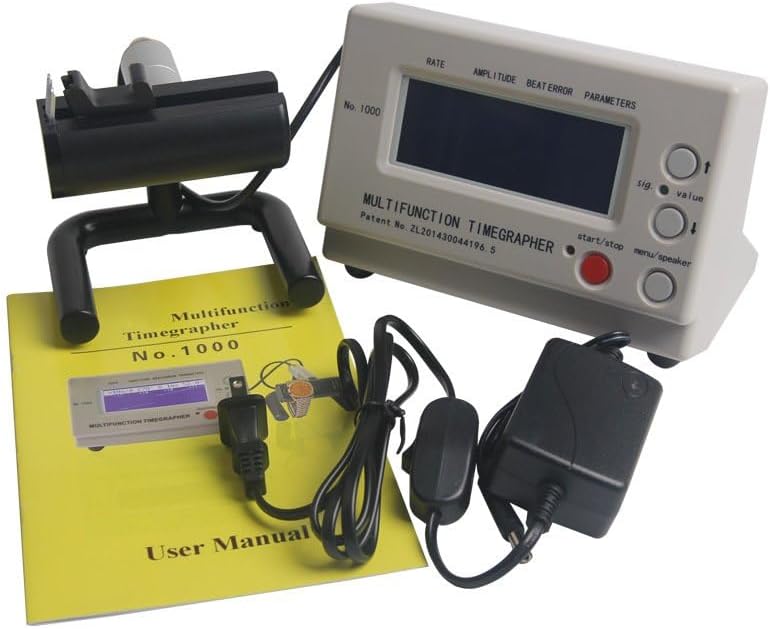

✔️Package Content

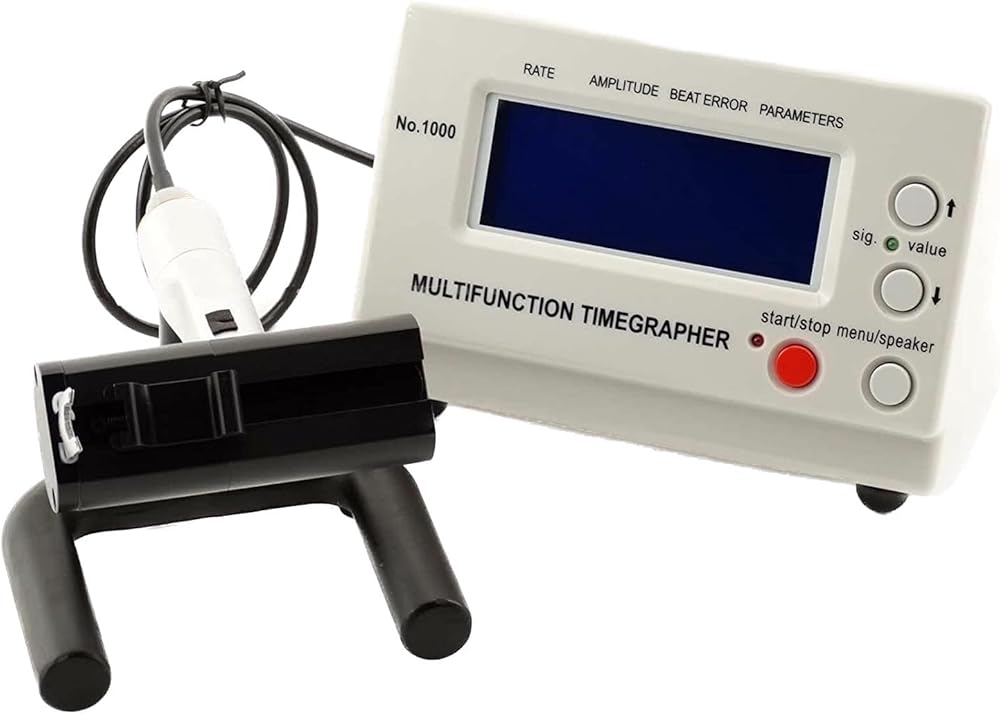

- 1 * Timegrapher

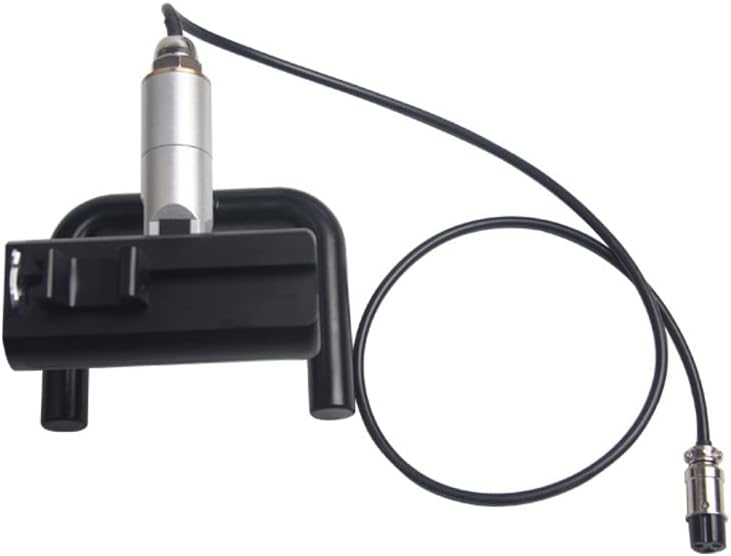

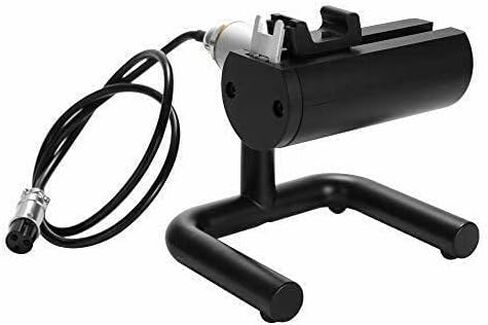

- 1 * Timegrapher Sensor
- 1 * US Adapter
- 1 * User Manual
