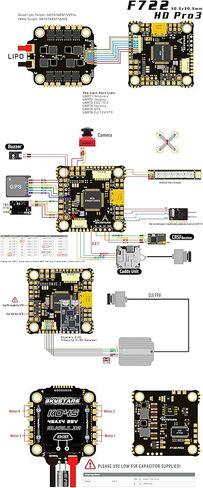

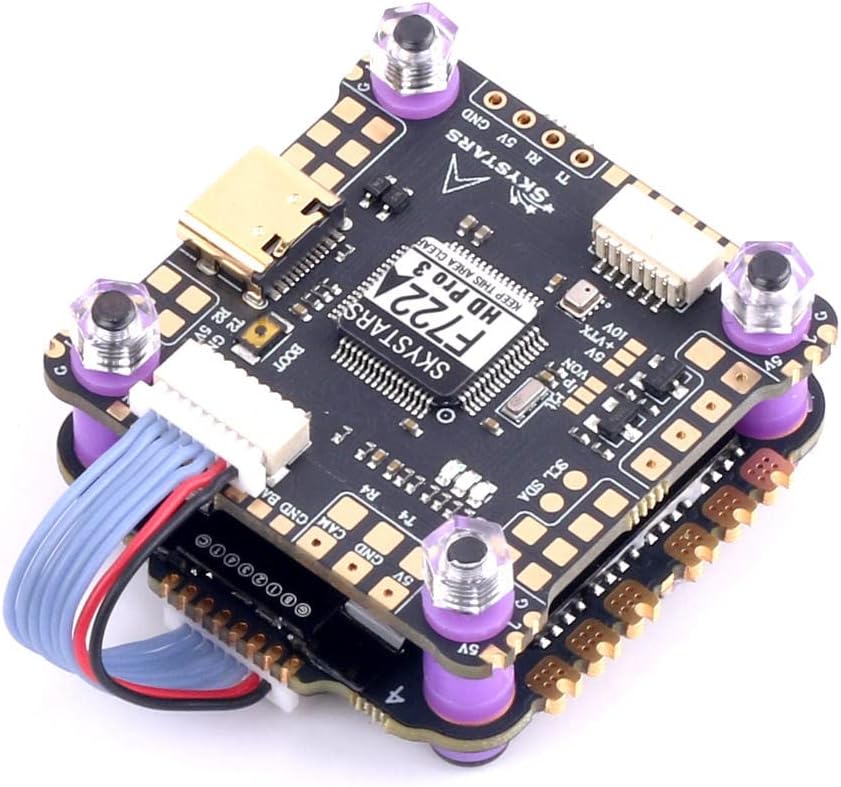

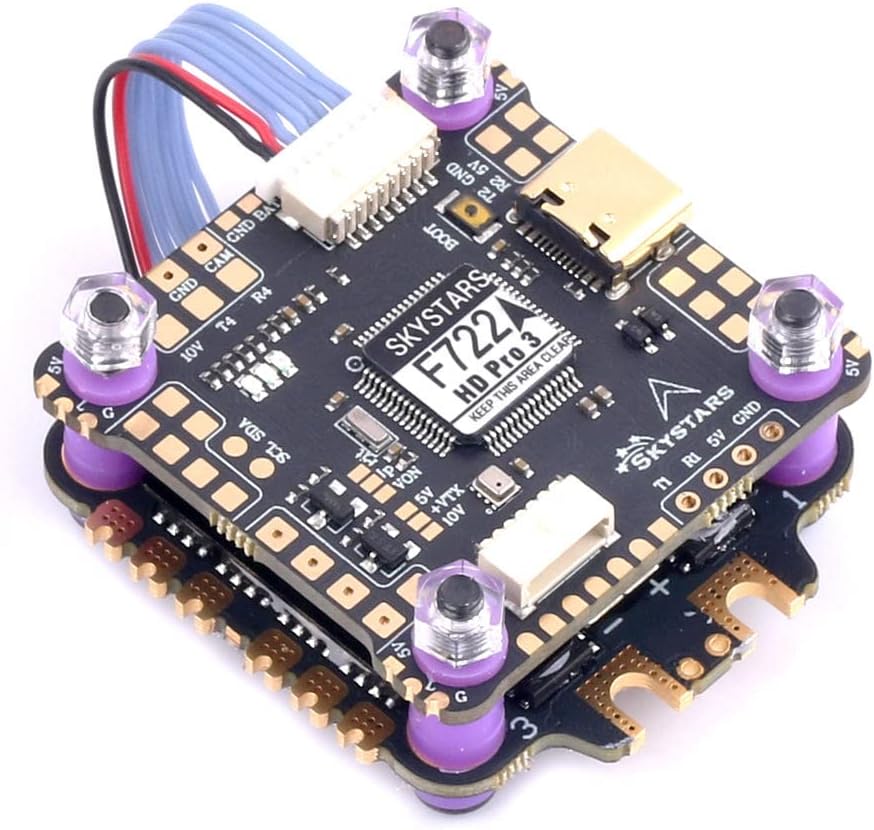

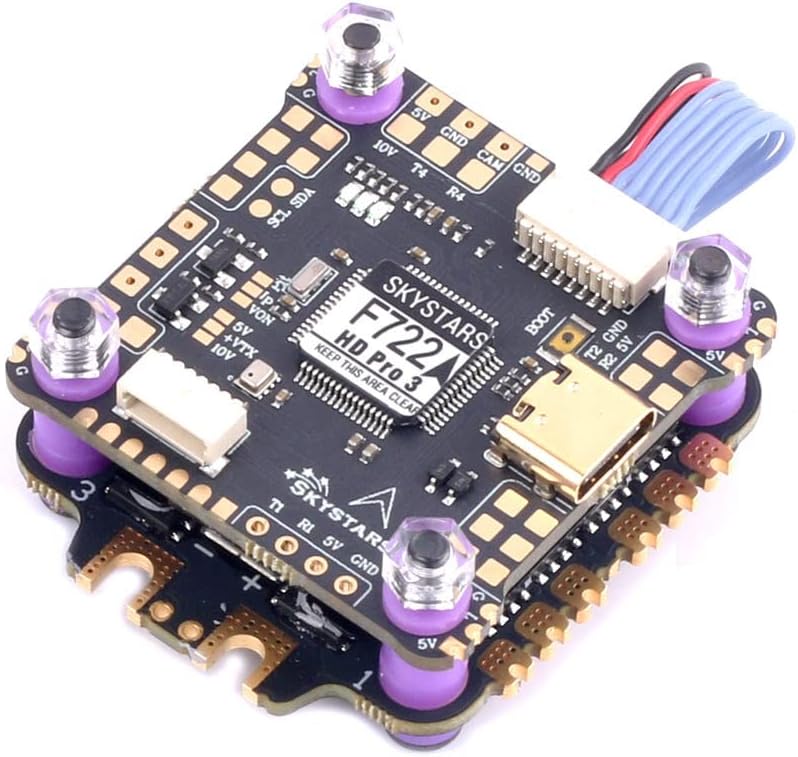

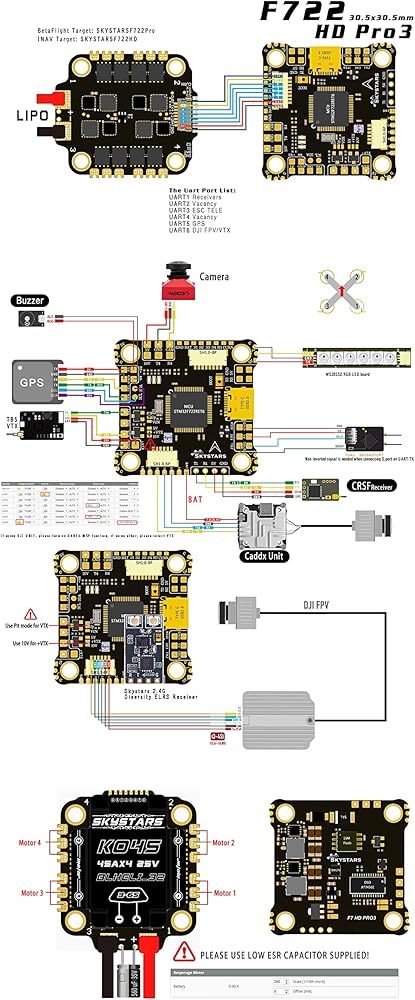

For SkyStars F7HD Pro3 Flight controller and KO60A Blheli-32 32bit 128K 4IN1 ESC fly tower stack

FC Specifications:

MCU: STM32F722RGT6 216MHz
Gyroscope: MPU6000
Baro:Bmp280
OSD: Betaflight SPI OSD DJI HD OSD(UART6)
Black box: 16MB

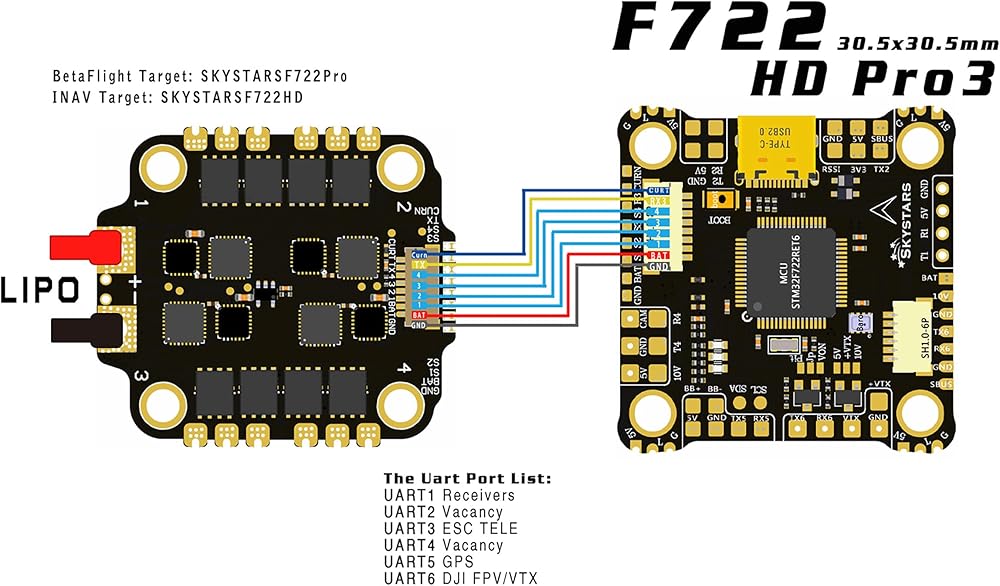

6x Uarts: UART 1/2/3/4/5/6
4x PWM outputs
1x I2C
3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red)
USB Type-C(USB2.0)
1x SH1.0_8pin connector (Gnd/Vbat/S1/S2/S3/S4/Rx3/Curr)
1x SH1.0_6pin connector (R1/G/R6/T6/G/10V)
VTX 10V/Vbat filtered power ON/OFF switch
DJI FPV OSD is supported by any spare UART
LED: 4 LED independent pads, support WS2812 programming lamp output.

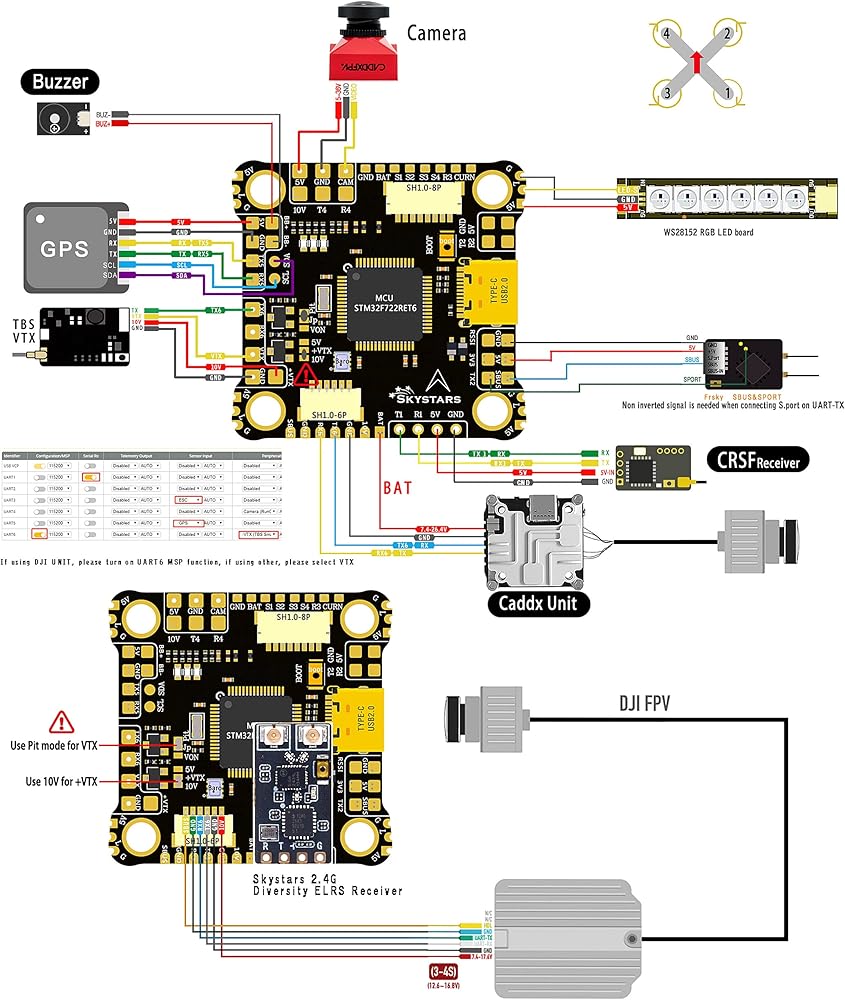

Receiver: Support Sbus, crsf, ibus, SBUS, XBUS, support 3.3v Spektrum satellite receiver, The default receiver input is UART1(You can solder ELRS RX on UART1), F7 has a built-in inverter, which can actually be installed in any spare UART.

Power:

Input voltage: 3-6S
BEC: 5V/10V 3A max dual-channel BEC supports stable power supply on the sky side of DJI
LDO 3.3V: Max.250mA

FC Firmware:

BetaFlight firmware: SKYSTARSF722Pro
INAV firmware:SKYSTARSF722HD

Mounting:

Installation size: 30.5mm ¡Á 30.5mm The installation hole is M4 and supports shock column installation
External size 39mm ¡Á 39mm
Flight control weight: 6.9g
Flight control onboard voltage sensor.

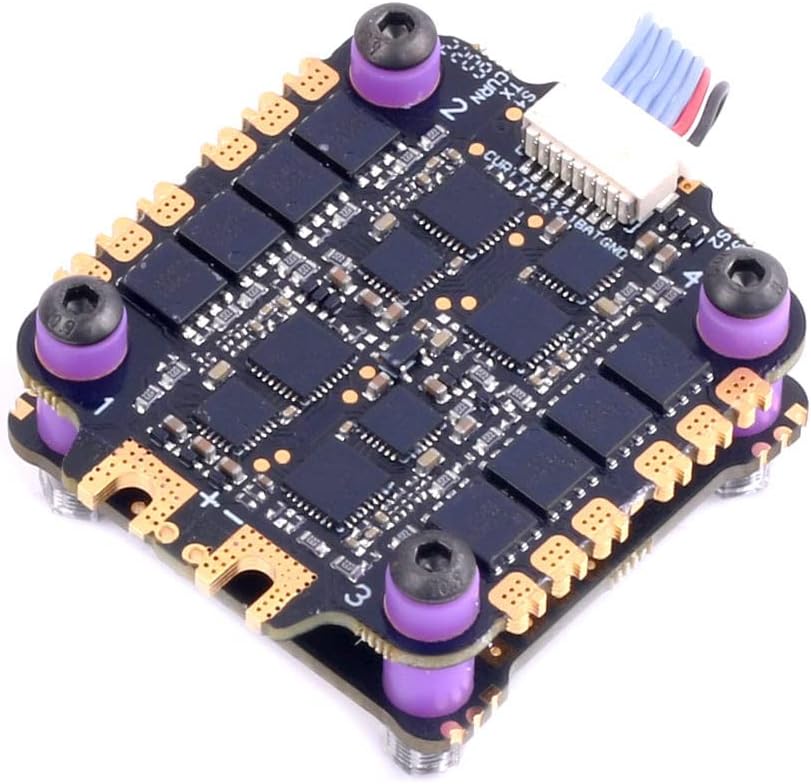

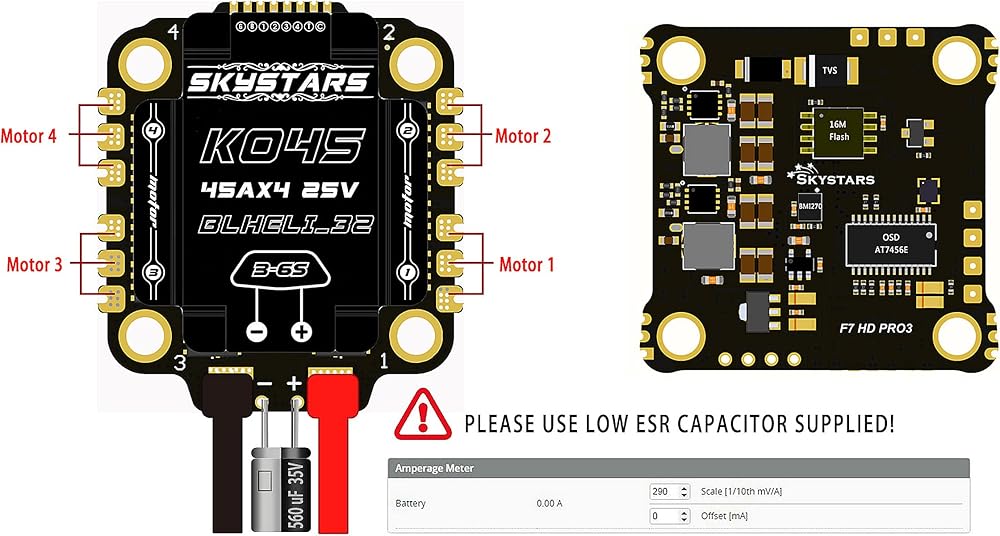

BL32-60A 4IN1 3-6S ESC BLheli32 128K DShot1200 4-in-1 ESC:

Support 128K Dshot1200, Dshot600, Dshot300, Dshot150, Oneshot125, Multishot, PWM control signal
Power supply voltage: 3-6S (12-26V)
Continuous working current: 60A
No built-in 5V BEC output
Firmware: BLHELI 32 ESC
Screw hole spacing: 30.5*30.5MM
Aperture: 4MM
Weight: 14.6g
