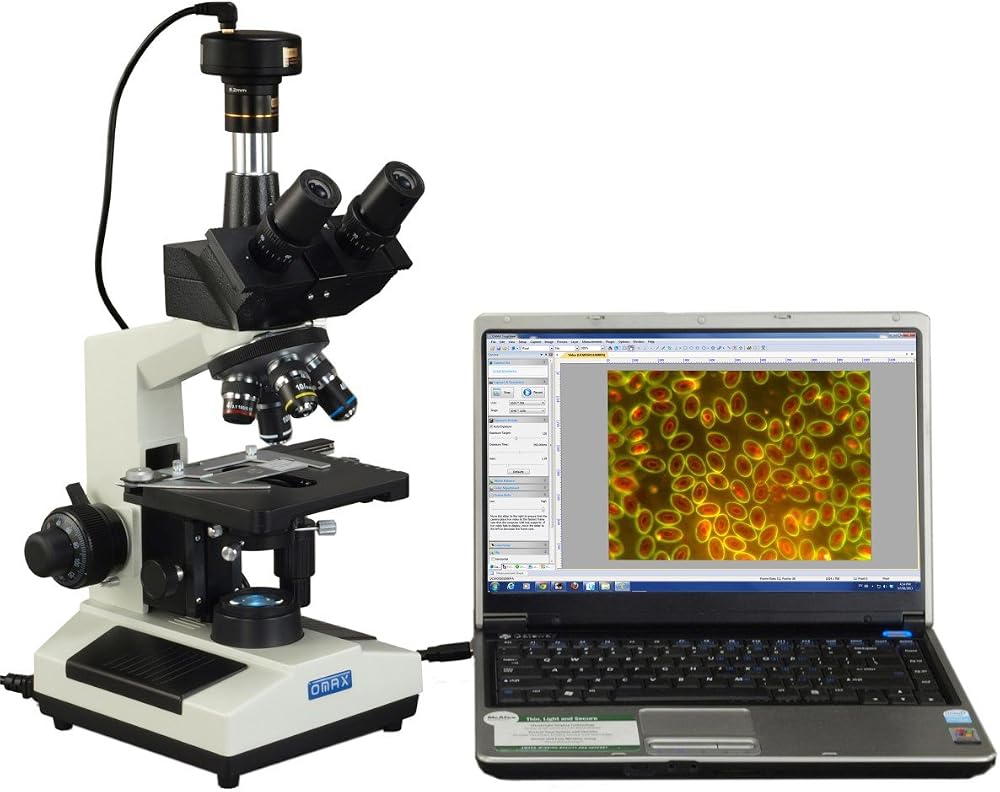

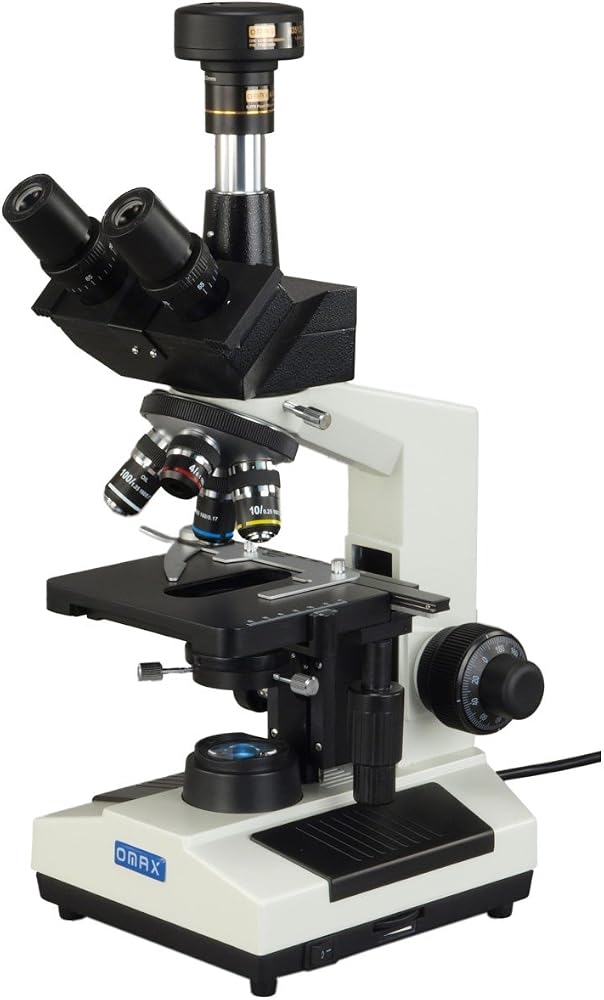

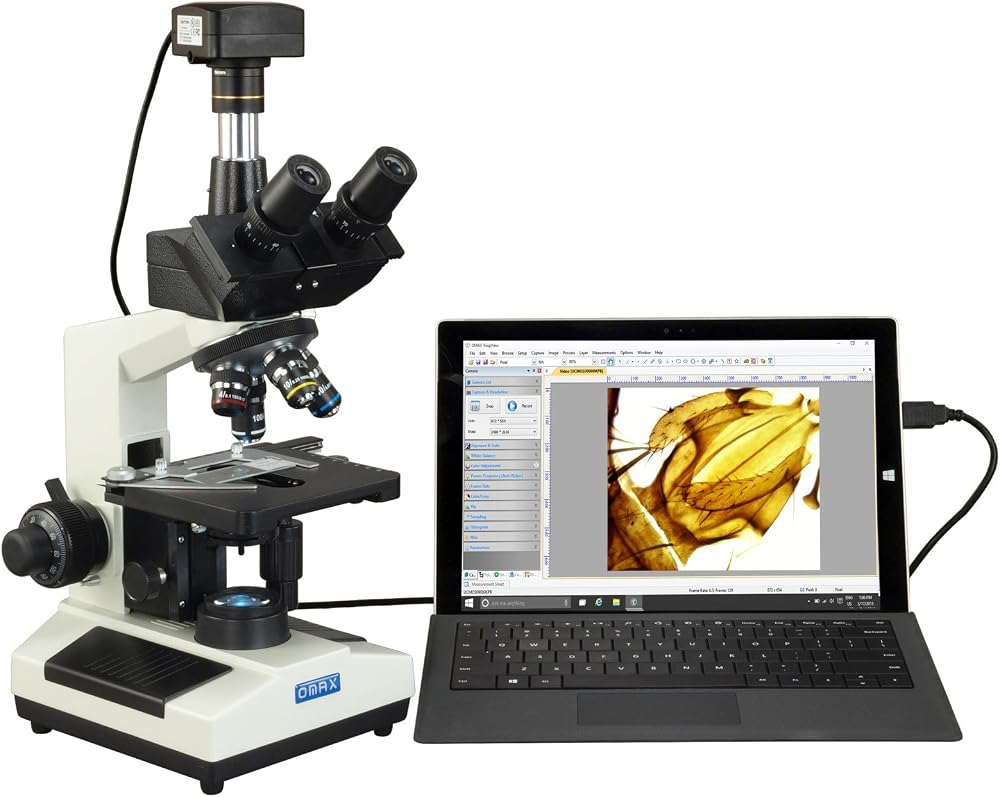

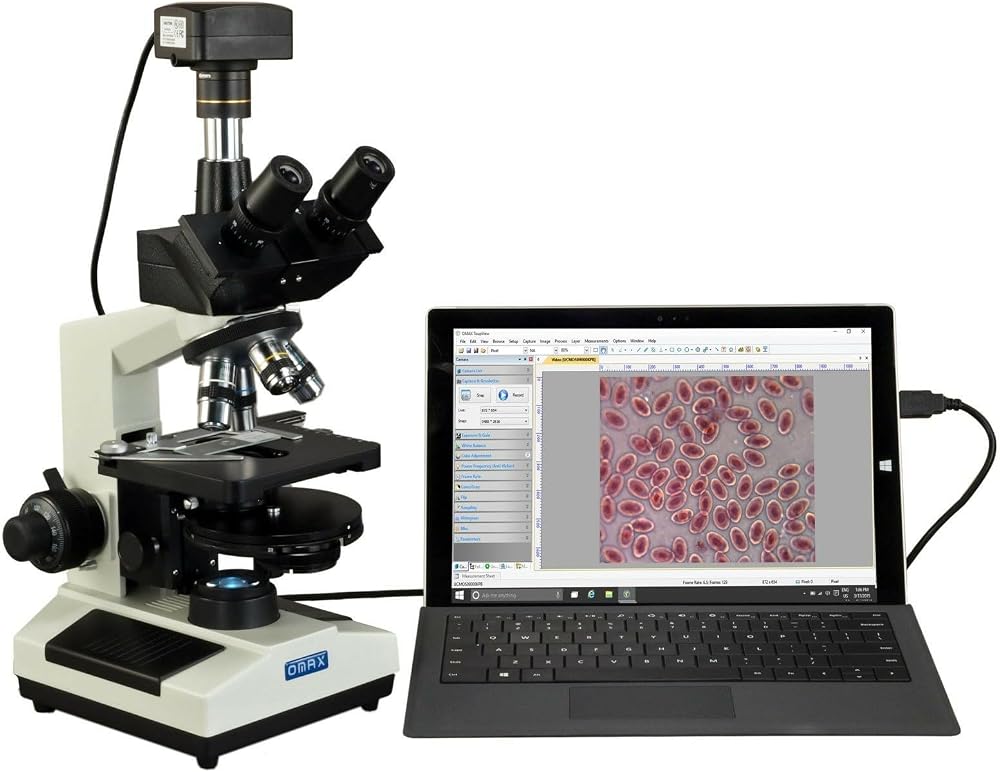

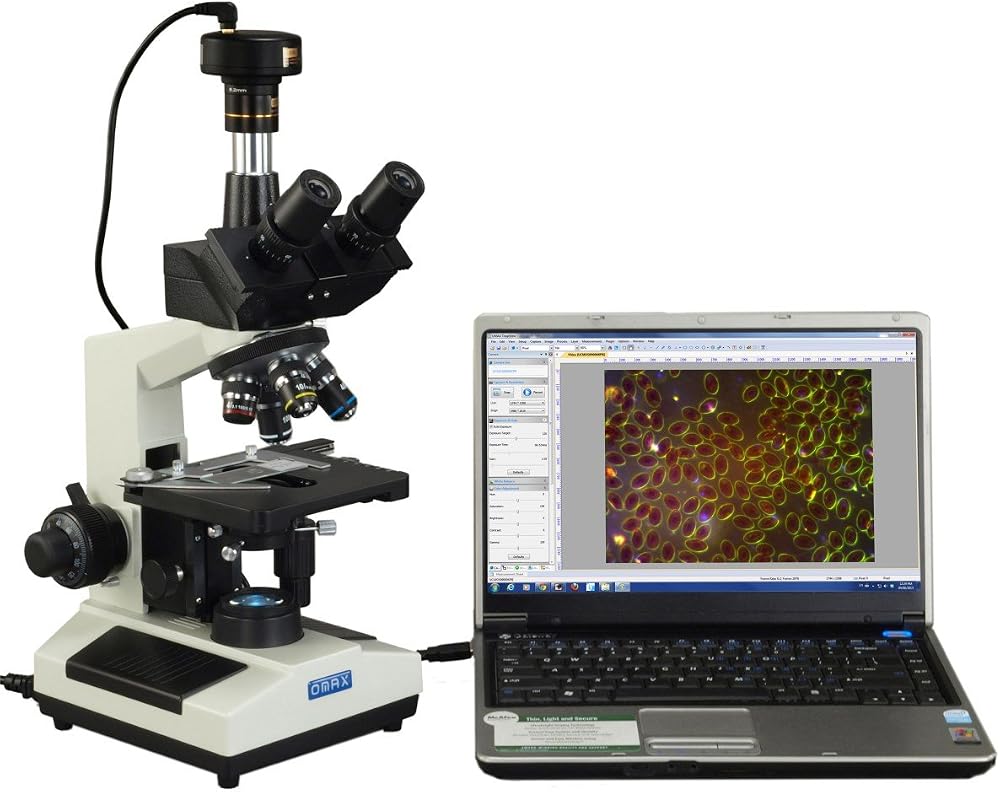

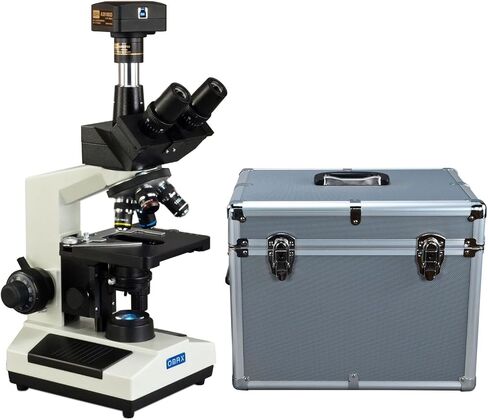

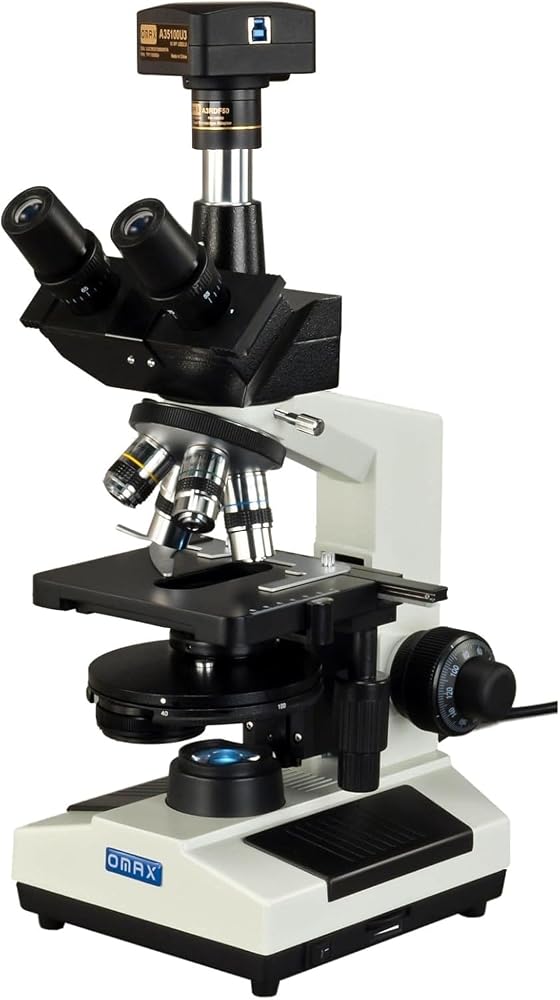

The trinocular compound LED microscope 40X-2500X provides 5MP USB digital imaging system and darkfield & brightfield microscope system. The laboratory microscope features an optical system for simultaneously observing images through eyepieces and an adjustable trinocular port. The 2592x1944 pixels USB digital imaging system that captures still microscope images and live video on computer. The included software is compatible with Windows, Mac OS X and Linux operating systems (see version information below). The Windows software can also be used to make measurements. All lenses are made of high quality optical glass. The high resolution image in the field of view is crystal clear and will satisfy the demands of professionals. This trinocular microscopy is good for teaching, demonstration, clinical examination and research purpose.

Features:5MP color digital camera with 0.5X reduction lens and 0.01mm calibration slide
Advanced oil darkfield NA1.36-1.25 and brightfield Abbe NA1.25 condensers included
Large double layer mechanical stage and sturdy metal framework
Replaceable 3W LED transmitted light with adjustable intensity
45 degree inclined 360 degree swiveling trinocular viewing head

Specifications: Model: M837ZL-A191BD-C50U
Total magnification: 40X-100X-250X-400X-1000X-2500X
Eyepieces: widefield WF10X/18 and WF25X
Objectives: achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil)

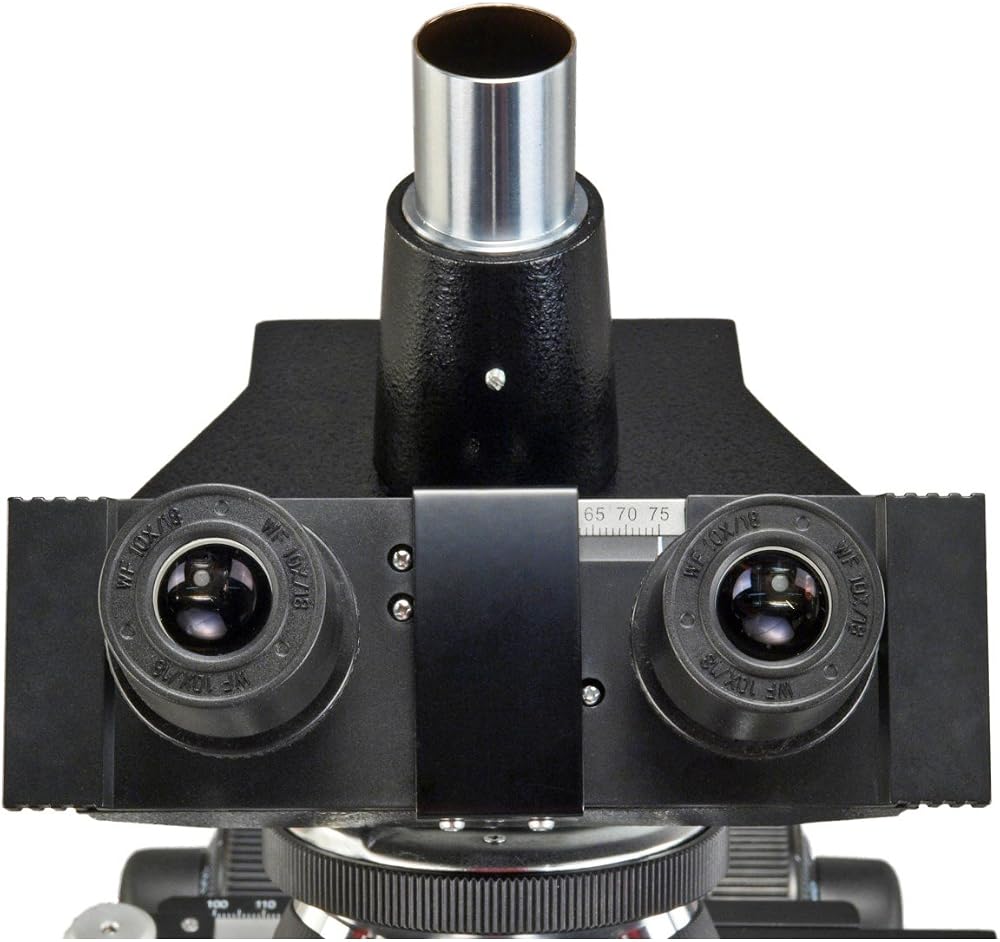

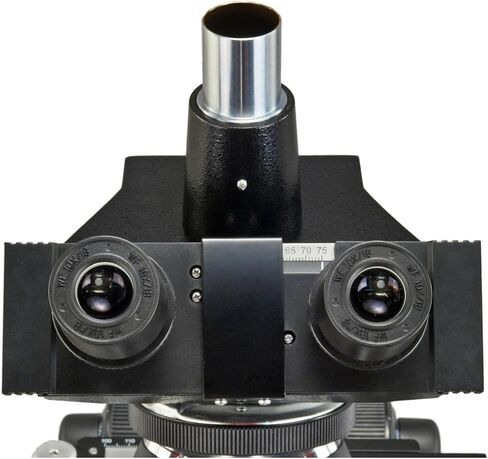

Viewing head: 45°Inclined 360°swiveling trinocular
Interpupillary distance: sliding adjustable 2-3/16" ~ 2-15/16" (55mm ~ 75mm)
Diopter: adjustable on both eyepiece tubes
Nosepiece: revolving quadruple

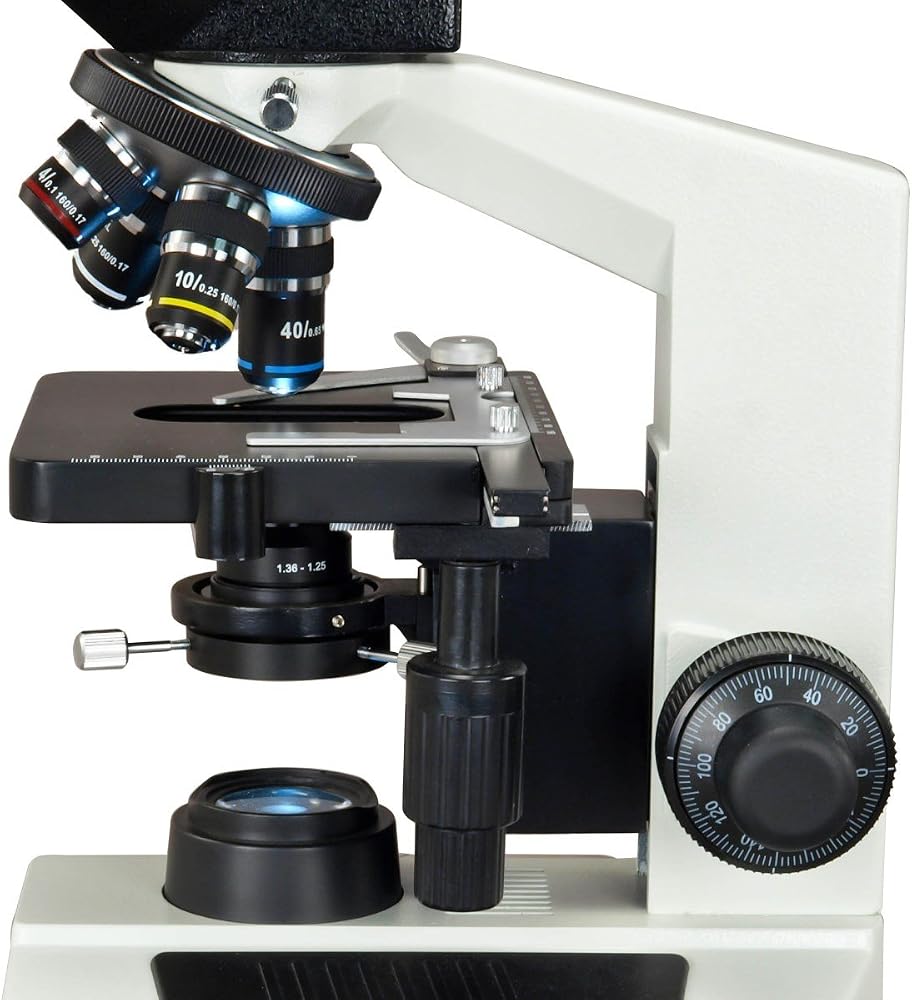

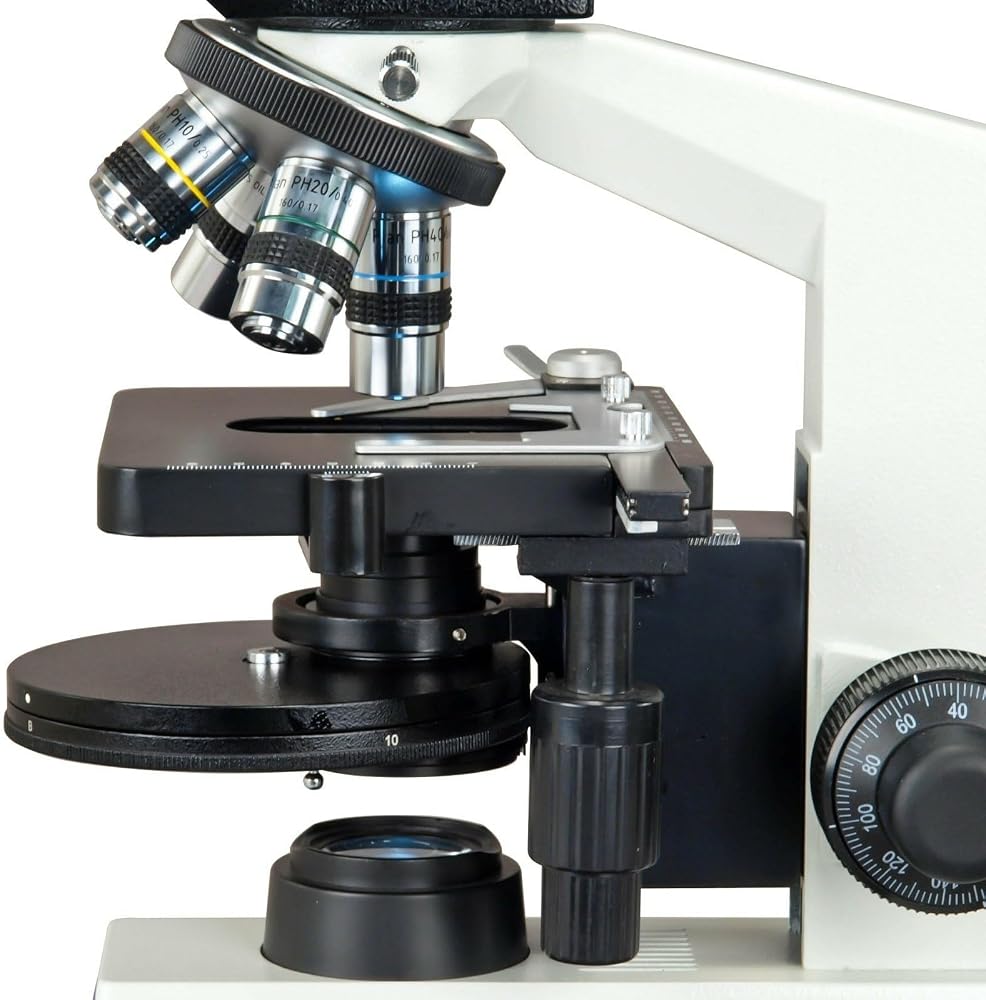

Stage: mechanical stain-resistant double layer, size: 5-1/2" x 5-1/2" (140mm x 140mm), translation range: 3" x 2" (75mm x 50mm)
Photo tube adjustment range: 5/8" (15mm)
Focus: coaxial coarse and fine focus knobs on both sides, rack & pinion adjustment, with tension control
Focusing knob can be locked for observation & transportation
Brightfield condenser: NA1.25 Abbe condenser with iris diaphragm & filter holder, rack & pinion adjustment
Oil darkfield condenser: NA 1.36-1.25 condenser
Black palm rest on the base
Illumination: transmitted (lower), replaceable 3W LED light, variable intensity
Metal mechanical components
Power supply: 100V~240V 50/60Hz worldwide range (US and Canada power plug)
Digital camera:
- true color 2592x1944 pixels (5M pixels)
- 0.5X reduction lens to get larger field of view
- 0.01 mm calibration slide: 1mm/100 division
- Frame speed: 5fps at 2592x1944, 18fps at 1280x960, 60fps at 640x480
- Software compatible with Windows, Mac OS X and Linux operating systems
- Capturing microscope images, recording live video, measuring lengths, angles, areas, editing images
- USB 2.0 cable included
Dimension: 7-7/8 " x 10-1/4" x 16" (20cm x 26cm x 41cm)
Shipping package: 15 lb (7 kg)

Software:

Please check the chart below for computer operating system compatibility

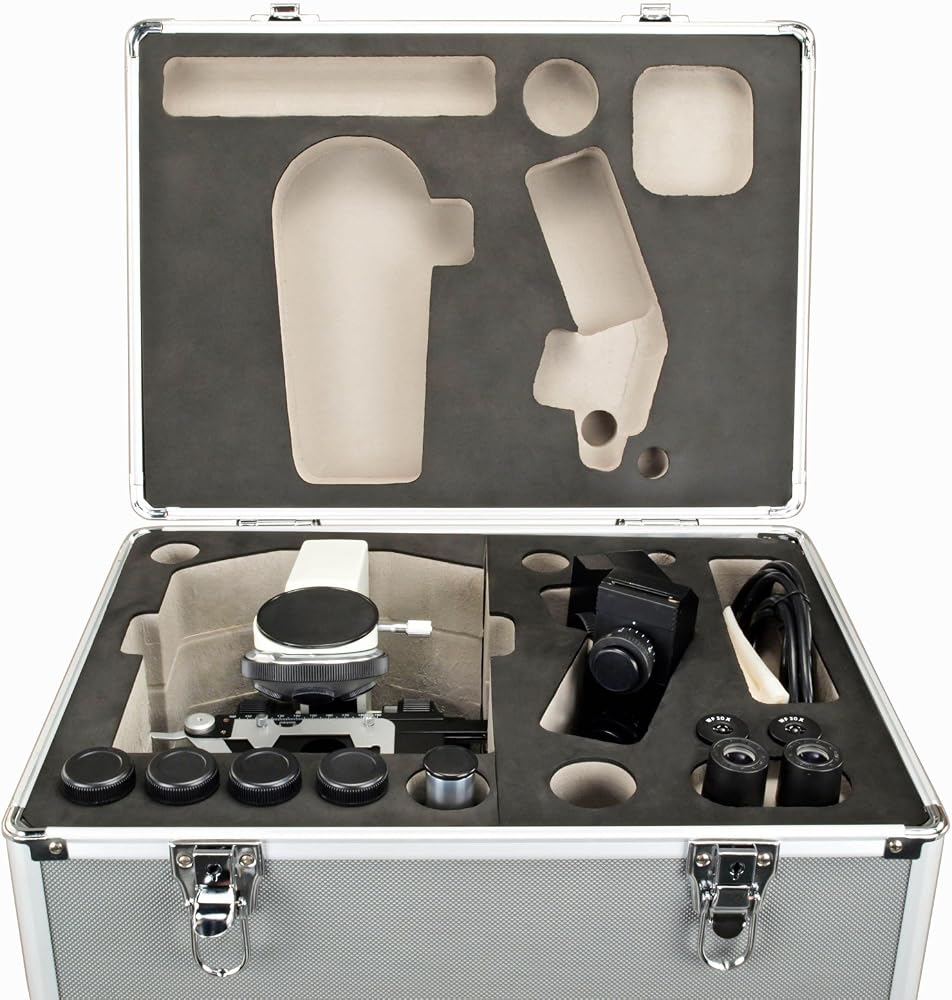

Packing List: Trinocular microscope head
Microscope stand
Photo tube
4 objectives: 4X, 10X, 40X, 100X
A pair of eyepieces WF10X/18
A pair of eyepieces WF25X
A bottle of immersion oil
Power cord (US and Canada standard)
Mirror for power outage
Dust cover
Color filter
Extra fuse
Oil darkfield condenser
5MP digital camera
0.5X reduction lens
1 CD including driver, software and user's instruction
0.01mm calibration slide (stage micrometer)
USB cable
