Wishiot RDS5180 80kg Digital Metal Robotic Servo Motor High Torque Double-Shaft Robot Servo Arm Waterproof IP66 with U Metal Brackets for RC Car DIY Robot (180°) in Kuwait Wishiot RDS5180 80kg Digital Metal Robotic Servo Motor High Torque Double-Shaft Robot Servo Arm Waterproof IP66 with U Metal Brackets for RC Car DIY Robot (180°) in Kuwait Wishiot RDS5180 80kg Digital Metal Robotic Servo Motor High Torque Double-Shaft Robot Servo Arm Waterproof IP66 with U Metal Brackets for RC Car DIY Robot (180°) in Kuwait Wishiot RDS5180 80kg Digital Metal Robotic Servo Motor High Torque Double-Shaft Robot Servo Arm Waterproof IP66 with U Metal Brackets for RC Car DIY Robot (180°) in Kuwait Wishiot RDS5180 80kg Digital Metal Robotic Servo Motor High Torque Double-Shaft Robot Servo Arm Waterproof IP66 with U Metal Brackets for RC Car DIY Robot (180°) in Kuwait Wishiot RDS5180 80kg Digital Metal Robotic Servo Motor High Torque Double-Shaft Robot Servo Arm Waterproof IP66 with U Metal Brackets for RC Car DIY Robot (180°) in Kuwait

RDS5160 Servo 60 kg RC Digital Servo High Torque Mental Gear 180 270 Degree with U-Shaped Mount Disc for 1/5 RC Car Robotics DIY Projects (180) 60KG 180°

KWD 15
Brand
Wishiot
Weight
162 g
Size60KG 180°
– 1 +

Special Features

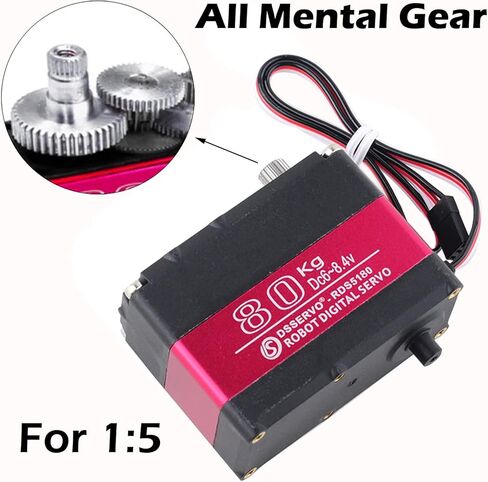

  • Full stainless steel gears, CNC aluminium middle Shell, dual ball bearing
  • The best volts is 7.4V, It's recommended to use 2S battery for power supply 6-8.4V
  • Operating speed (at no load): 0.24 sec/60°@6V / 0.21 sec/60°@7.4V / 0.19 sec/60°@8.4V
  • 80kg Robotic Servo for 1/5 RC car, crawler and robot. Widely used in remote control crawler cars vehicle truck boat aircraft helicopter robot arm ect
  • Please feel free to ask any questions you may have and will respond within 24 hours. We will give you a satisfactory solution

Description

Description

Apply Environmental Condition
Storage Temperature Range: -30℃～80℃
Operating Temperature Range: -15℃～70℃
Operating Voltage Range: 6-8.4V

Mechanical Specification

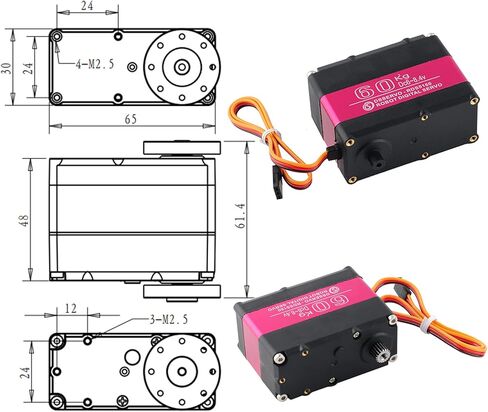

Size: 65*30*48mm
Weight: 163g
Gear ratio: 357
Bearing: Double bearing
Connector wire: 300±5mm
Motor: 3-pole(s)

Electrical Specification
Idle current(at stopped): 4mA@6V / [email protected] / [email protected]
Operating speed (at no load): 0.24 sec/60°@6V / 0.21 sec/60°@7.4V / 0.19 sec/60°@8.4V
Stall torque (at locked): 85 kg-cm@6V / 98 [email protected] / 105 [email protected]
Stall current (at locked): 4.1A@6V / [email protected] / [email protected]

Control Specification
Control System: PWM(Pulse width modification)
Pulse width range: 500～2500μsec
Neutral position: 1500μsec
Running degree: 180°or 270°(when 500～2500μsec)
Dead band width: 3 μsec
Operating frequency: 50-330Hz
Rotating direction: Counterclockwise (when 500～2500μsec)
