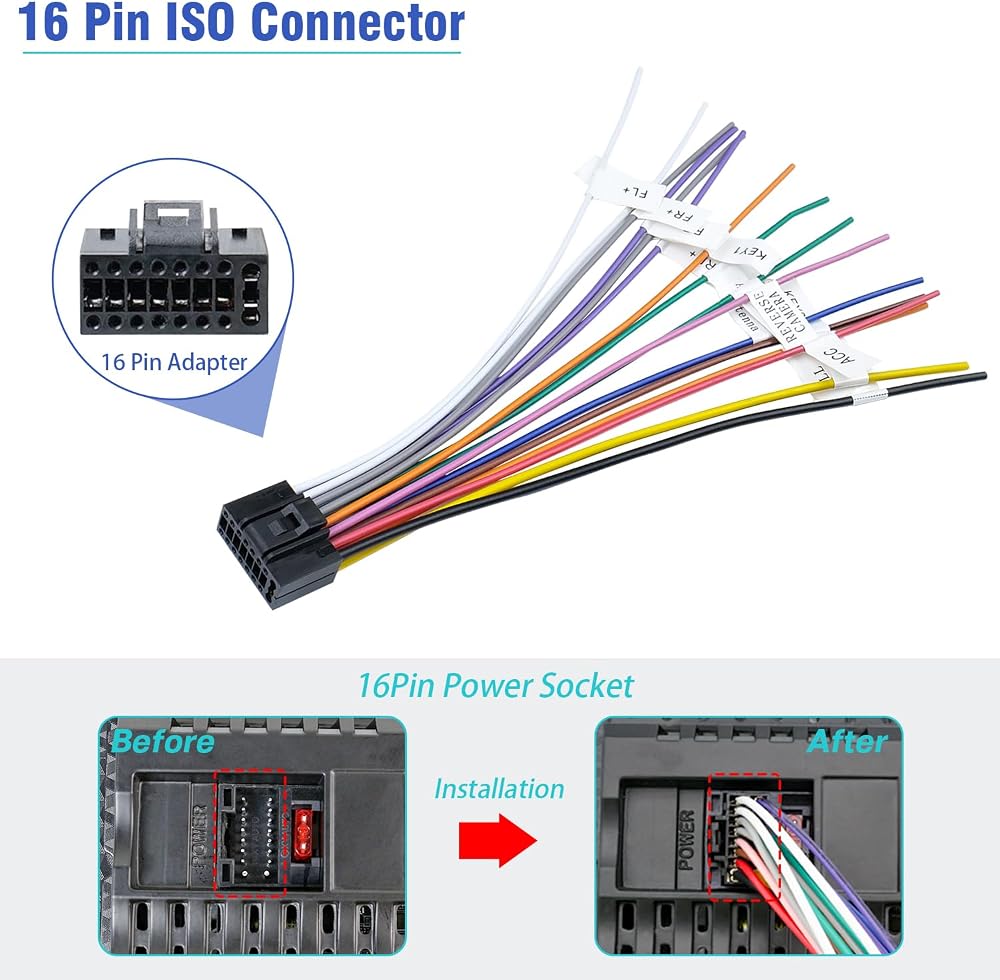

Car Radio Stereo Wiring Harness Adapter,16Pin ISO Connector 16Pin Connector with Full Labels

KWD 3
– 1 +

Special Features

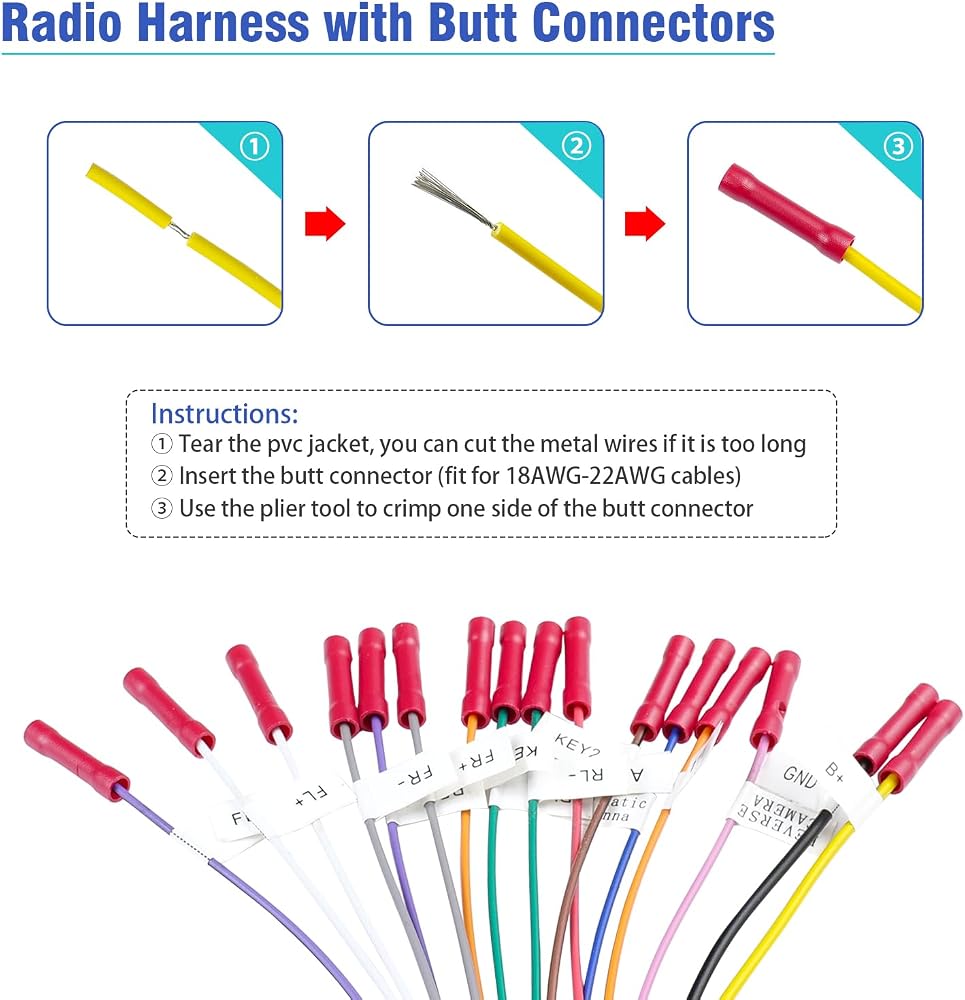

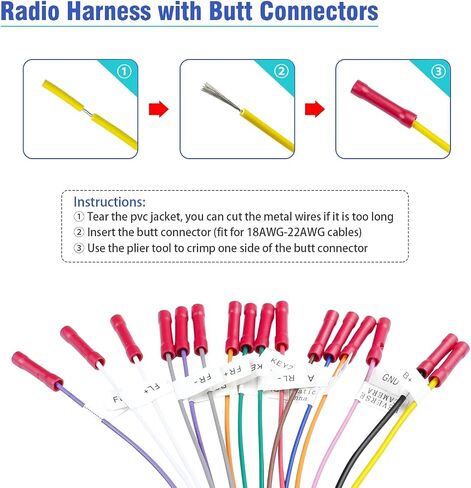

  • Iso Radio Wire Harness with Butt Connectors: Direct connect to your aftermarket android car radio. Included 16 pcs butt connectors for installation, support crimp the tails (not heat shrink). Not require soldering or additional tapes.

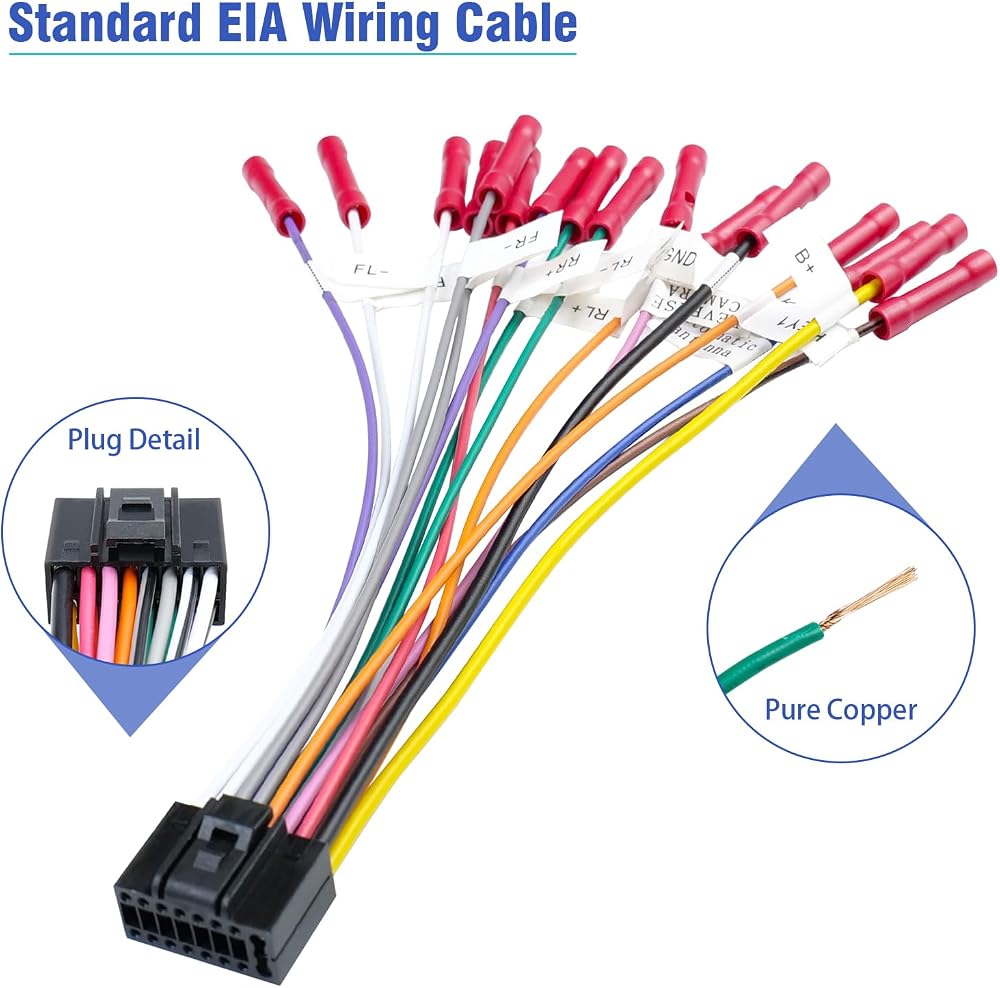

  • Car Stereo Wire Harness Adapter: 16pin android stereo stereo wire cable. It can use for most aftermarket android car stereo with 16 pin power socket, compatible with vehicle equipped with a 4-speaker system (not use for premium AMP system).

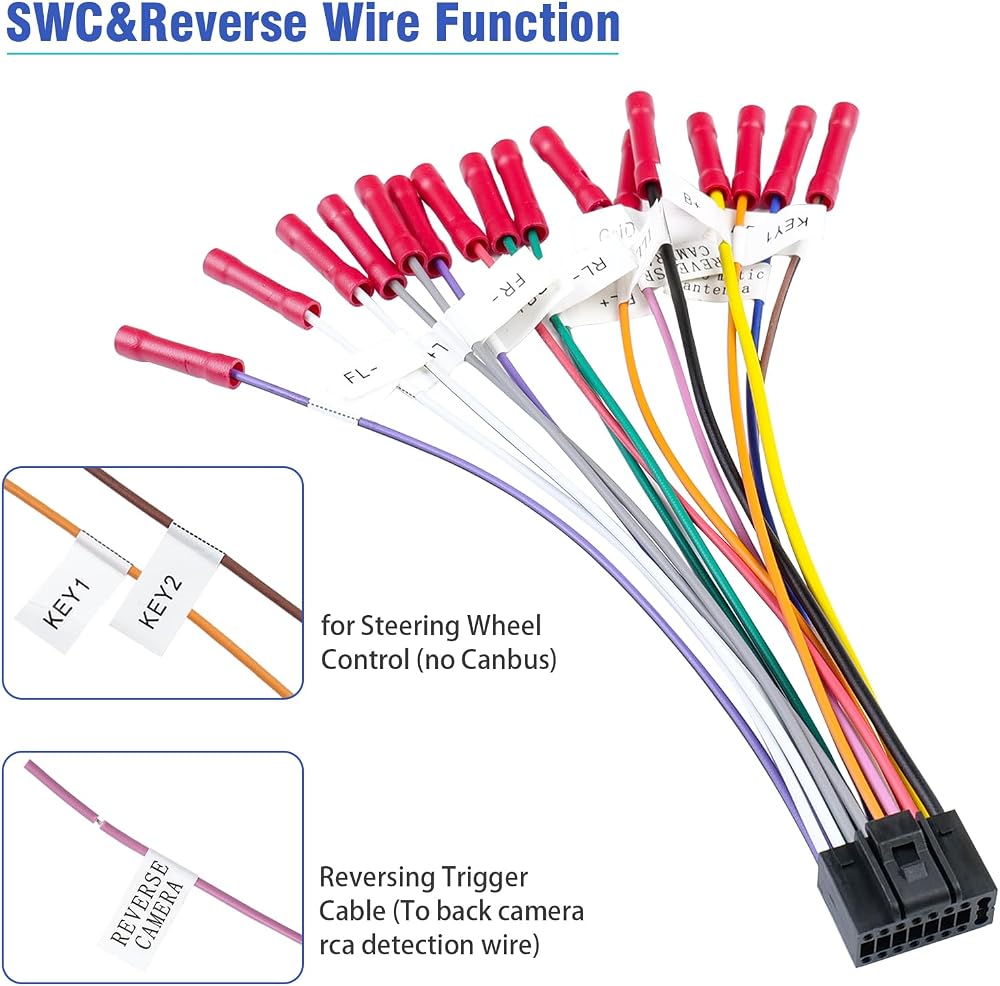

  • With Steering Wheel Control Cables: This iso radio adapter has KEY 1 and KEY 2 wires. It can be connected to the vehicle swc cable, allow you use swc function (not applicable for car with canbus).
  • Reverse Control Wire: Jayubien 16 pin iso stereo wiring harness has the reversing trigger cable to connect with your back camera rca detection cable.

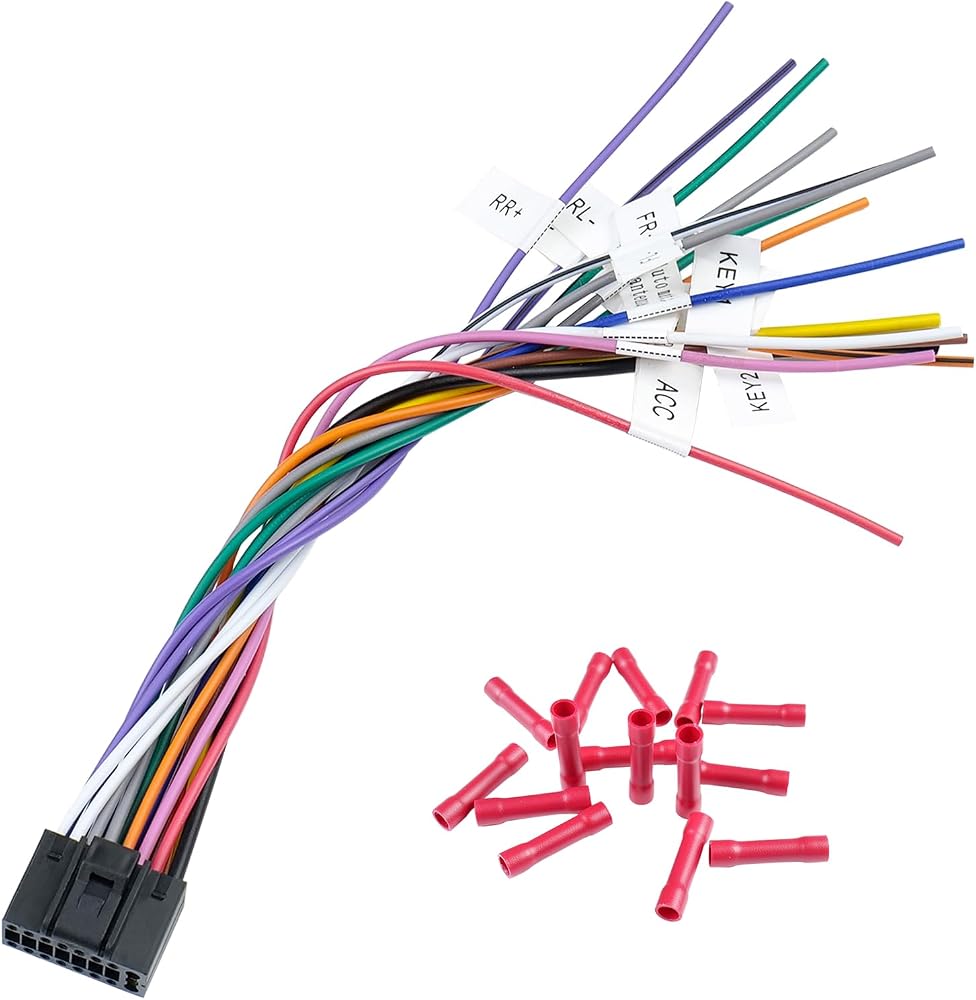

  • Package List: 1 x 16Pin Car Radio Wiring Harness, 16 x Butt Connectors.

Description

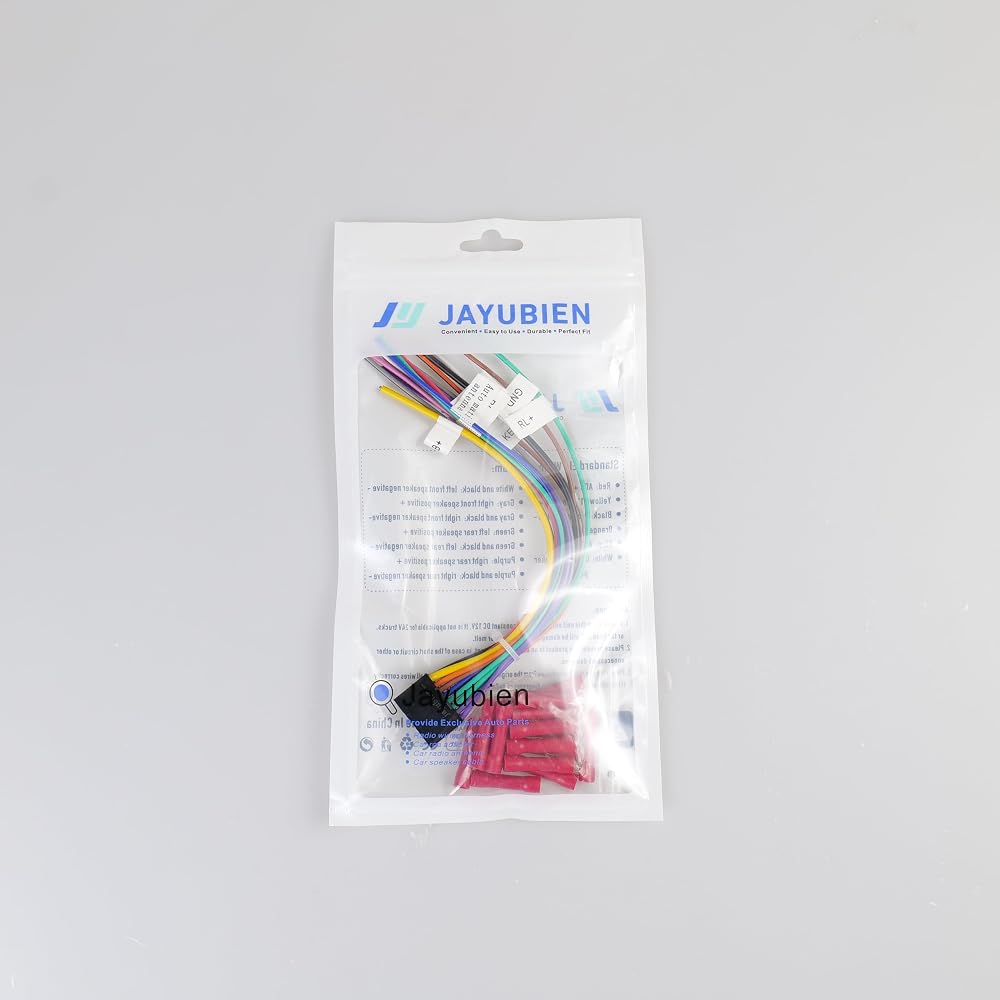

Product Package
1 x 16Pin Wiring Harness for Car Stereo
16 x Butt Connectors

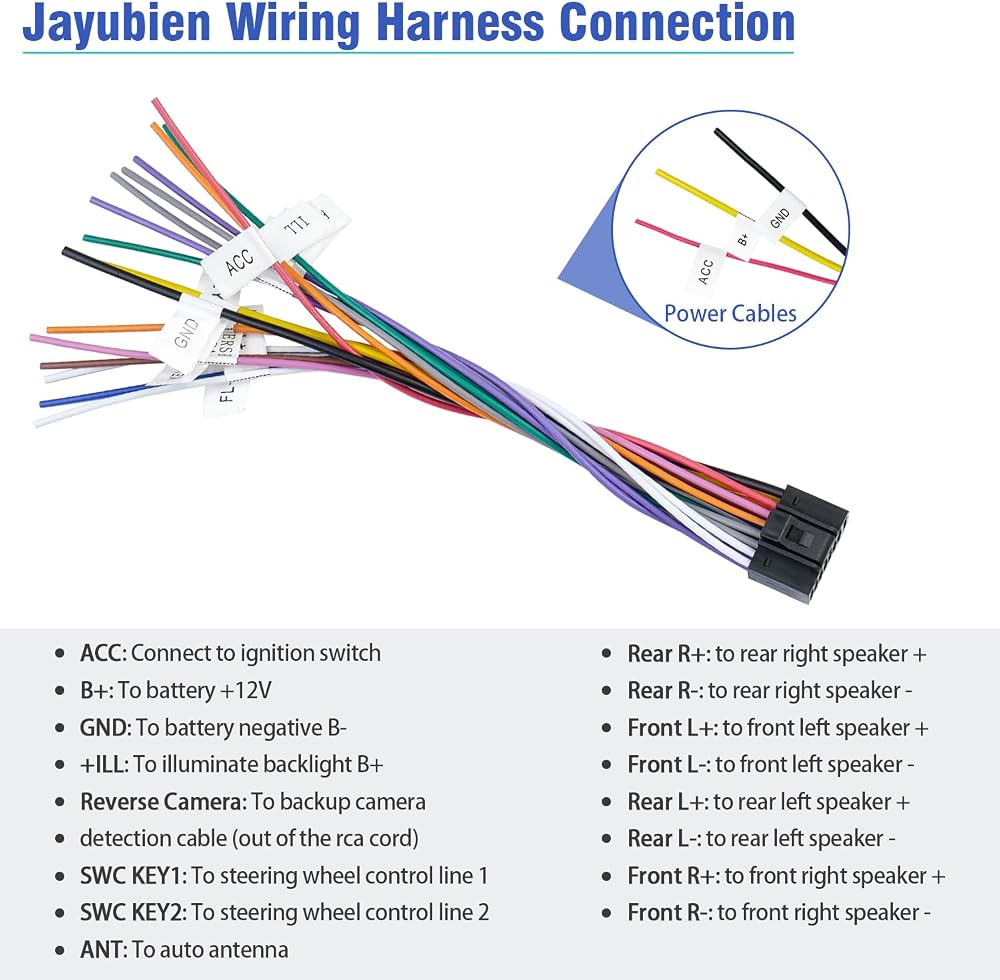

Wiring Connection of Radio Harness
ACC: Connect to ignition switch (red)
B+: To DC+12V (yellow)
GND : To B- (black)
+ILL : To illuminate backlight B+ (orange)
Reverse: To backup camera detection cable (out of the rca cord) (Brown)
KEY1 : To steering wheel control line 1 (pink)
KEY2 : To steering wheel control line 2 (orange)
ANT : To auto ANT (blue)
Rear R+: to rear right speaker + (Purple)
Rear R-: to rear right speaker -(Purple and Black)
Front L+: to front left speaker + (White)
Front L-: to front left speaker - (White and Black)
Rear L+: to rear left speaker + (Green)
Rear L-: to rear left speaker - (Green and Black)
Front R+: to front right speaker + (Gray)
Front R-: to front right speaker - (Gray and Black)

Jayubien Wiring Harness for Car Radio
Work with select universal 16 pin android car stereos
Support the butt connectors
With the SWC/ Reverse/ANT/ILL lines
