DORHEA 2PCS DHT22 AM2302 Digital Temperature and Humidity Sensor, AM2302 Temp Humidity Monitor Sensor Replace SHT15 SHT11 for Raspberry Pi in Kuwait DORHEA 2PCS DHT22 AM2302 Digital Temperature and Humidity Sensor, AM2302 Temp Humidity Monitor Sensor Replace SHT15 SHT11 for Raspberry Pi in Kuwait DORHEA 2PCS DHT22 AM2302 Digital Temperature and Humidity Sensor, AM2302 Temp Humidity Monitor Sensor Replace SHT15 SHT11 for Raspberry Pi in Kuwait DORHEA 2PCS DHT22 AM2302 Digital Temperature and Humidity Sensor, AM2302 Temp Humidity Monitor Sensor Replace SHT15 SHT11 for Raspberry Pi in Kuwait DORHEA 2PCS DHT22 AM2302 Digital Temperature and Humidity Sensor, AM2302 Temp Humidity Monitor Sensor Replace SHT15 SHT11 for Raspberry Pi in Kuwait DORHEA 2PCS DHT22 AM2302 Digital Temperature and Humidity Sensor, AM2302 Temp Humidity Monitor Sensor Replace SHT15 SHT11 for Raspberry Pi in Kuwait DORHEA 2PCS DHT22 AM2302 Digital Temperature and Humidity Sensor, AM2302 Temp Humidity Monitor Sensor Replace SHT15 SHT11 for Raspberry Pi in Kuwait DORHEA 2PCS DHT22 AM2302 Digital Temperature and Humidity Sensor, AM2302 Temp Humidity Monitor Sensor Replace SHT15 SHT11 for Raspberry Pi in Kuwait

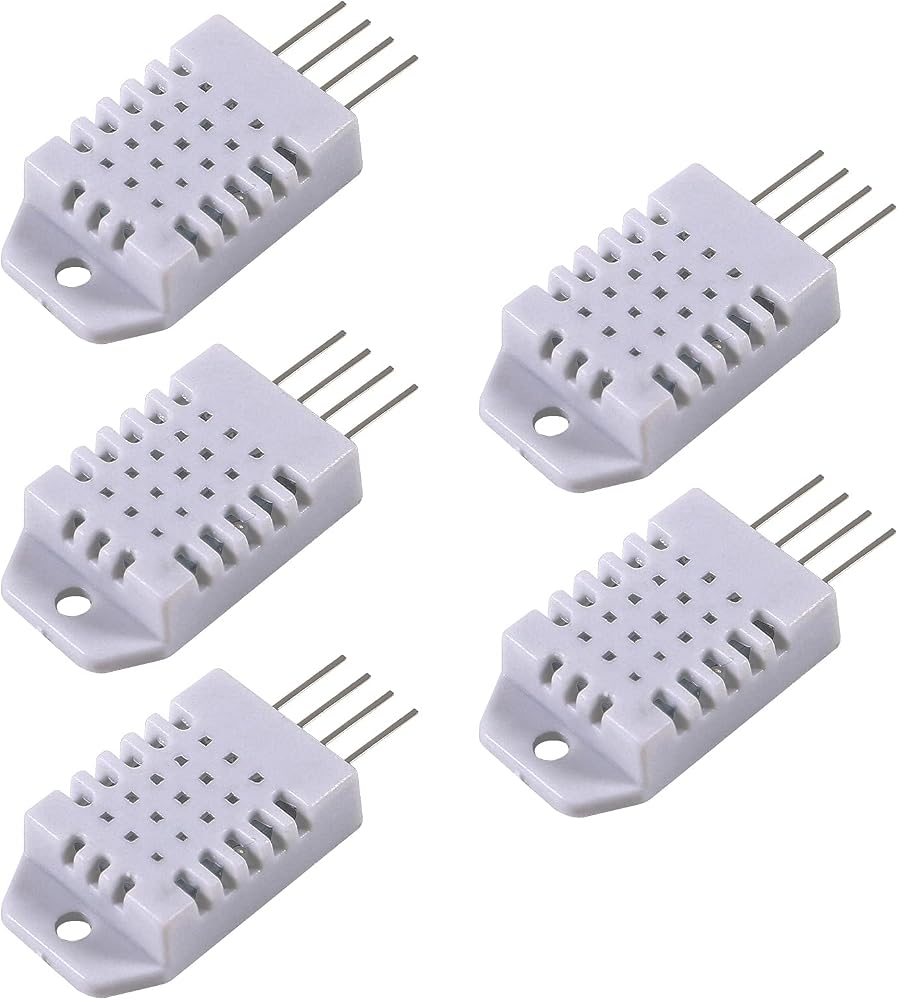

DORHEA 5PCS DHT22 AM2302 Digital Temperature and Humidity Sensor, AM2302 Temp Humidity Monitor Sensor Replace SHT15 SHT11 for Raspberry Pi 5

KWD 3.500

Brand
DORHEA
MPN
14607-1
Size5
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • DHT22 main chip is AM2302 high sensitive temperature humidity sensor. Single-bus digital signal output, bidirectional serial data.
  • 4 Pins Sequence Number: Pin1-VDD(Power 3.3V-5.5V); Pin2-SDA, serial data interface, two-way interface; Pin3-NC, no connect; Pin4-GND(Ground).
  • The DHT22 is a reliable sensor for determining temperature and humidity. The output is serial as a digital bit sequence.The sensor is ideal to monitor the room climate or to build a weather station.
  • Each AM2302 sensor is calibrated in a very accurate humidity calibration room. The calibration coefficients are stored in OTP memory in the form of programs that the calibration coefficients are invoked within the sensor during signal processing.
  • Single-wire serial interface, the system integration becomes simple and quick. Ultra-small size, low power consumption, signal transmission distance up to 20 meters, making it the best choice for all kinds of applications and even the most demanding applications. Products are 4-pin single row pin package, easy to connect.

Description

Type: DHT22/AM2302
Accuracy resolution:0.1
Humidity range:0-100%RH
Temperature range:-40~80℃
Humidity measurement precision:±2%RH
Temperature measurement precision:±0.5℃
4-pin
digital output
Long distance signal transmission
Relative humidity and temperature measurement

The DHT22 is a basic, low-cost digital temperature and humidity sensor
It uses a capacitive humidity sensor and a thermistor to measure the surrounding air, and spits out a digital signal on the data pin (no analog input pins needed)
It's fairly simple to use, but requires careful timing to grab data
AM2302 digital temperature and humidity sensor is a calibrated digital signal
output temperature and humidity composite sensor. It uses a dedicated digital
module acquisition technology and temperature and humidity sensing technology
to ensure that products with high reliability and excellent long-term stability

Application range:
HVAC, dehumidifiers, testing and testing equipment, consumer products, automotive, automatic control, data loggers, home appliances, humidity regulators, medical, weather stations, and other related humidity detection control.

Package Included:
2 x DHT22 temperature and humidity sensor
