Description
The HINYSENO PCIe USB3.1 Type C + A Card is the next generation Universal Series Bus xHCI host controller, bridging PCI Express to USB3.1 Gen-II , compliant with USB3.1 Specification Revision1.0 and Intel eXtensible Host Controller Interface Specification revision1.1,it also supports the new feature of USB3.1 Gen2, named multiple Ins to achieve fully utilization rate of 10Gbps data rate, taking advantage of the available bandwidth of USB3.1 Gen2 bus. The USB3.1 Card application of Desktop PC, Workstations, Servers, etc..

Specification

Support PCI Express Gen-III x2
Support high bandwidth performance with low latency
Support PCI Express Link power management
Compliant with PCI Express Base3.0 Specification
Compliant with Universal Serial Bus 3.1 Specification Revision1.0
Compliant with eXtensible Host Controller Interface specification Revision 1.1
Compliant with USB Attached SCSI Protocol Revision 1.0
Each port transmission speeds up to USB3.1 Gen-II 10Gbps
Each port has its own power supply module, no need extra power
Maximum current 3A/each port
Support 1x USB3.1 type A, and 1x USB3.1 type C
Backward compatible with Legacy USB function and device
Support driver on Windows7,Windows8,Window8.1, Server2012and Windows 10
Support various Linux kernels
Chipset:ASM3142
Package content
1 x HINYSENO PCIe ASM3142 Type-C + Type-A Card
1 x User's Manual

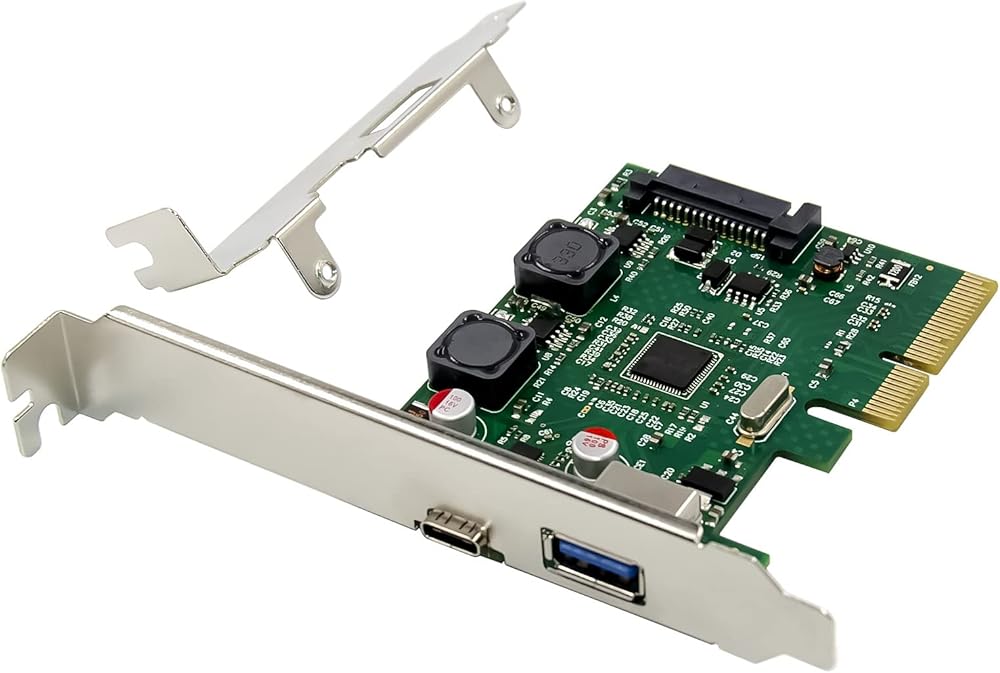

1 x Low profile bracket
1 x Driver Disc
