DB25 Male Solderless Breakout with 5Ft 24AWG Replacement Cable in Kuwait DB25 Male Solderless Breakout with 5Ft 24AWG Replacement Cable in Kuwait DB25 Male Solderless Breakout with 5Ft 24AWG Replacement Cable in Kuwait DB25 Male Solderless Breakout with 5Ft 24AWG Replacement Cable in Kuwait DB25 Male Solderless Breakout with 5Ft 24AWG Replacement Cable in Kuwait

DB25 Male Solderless Breakout with 5Ft 24AWG Replacement Cable Metal Female

KWD 6
Brand
ANMBEST
Weight
200 g
– 1 +

Special Features

  • DURABLE: Pure copper plated joints, fine solder joints, resistance to plug, and good contact to ensure high-quality, durability and a long life.
  • Stable Transmission: This DB25 Solderless Breakout Connector adopts 26AWG double-layer shielded cable and copper crimp terminals, which has stable signal transmission and good shielding effect.

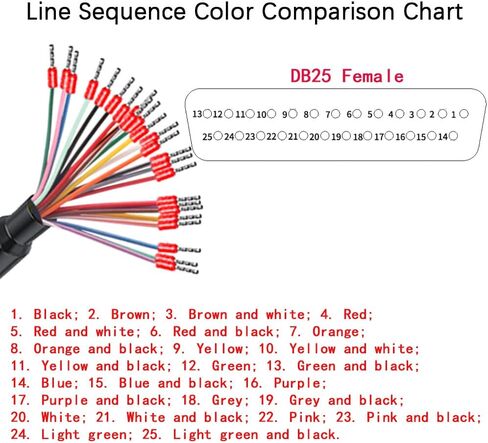

  • DB25 line sequence color comparison table: 1. Black; 2. Brown; 3. Brown and white; 4. Red; 5. Red and white; 6. Red and black; 7. Orange; 8. Orange and black; 9. Yellow; 10. Yellow and white; 11. Yellow and black; 12. Green; 13. Green and black; 14. Blue; 15. Blue and black; 16. Purple; 17. Purple and black; 18. Grey; 19. Grey and black; 20. White; 21. White and black; 22. Pink; 23. Pink and black; 24. Light green; 25. Light green and black.
  • The cable length is 1.5m/5Ft, the compact and simple design is easy to carry and place, easy to use and resistant to bending and stretching.
  • WIDELY APPLICATIONS: It can connect all kinds of rs232/rs485 and other communication protocols devices. Such as computer and tax control machine, digital camera, PLC, PDA, MODEM, set-top box, barcode machine, industrial instrumentation and other equipment for communication.

Description

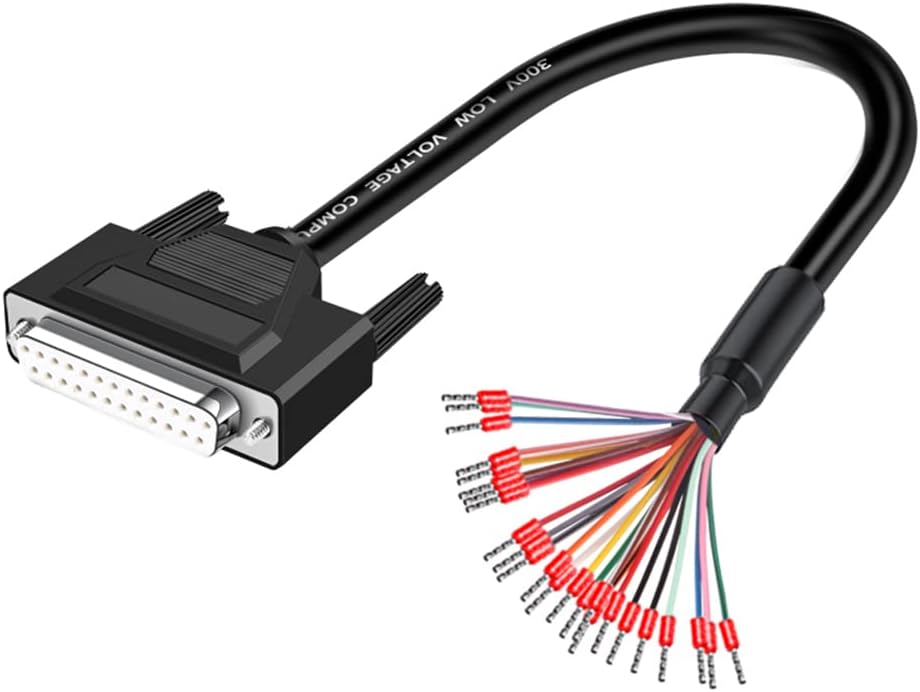

The DB25 solderless breakout connector is a connector that can be attached to a DB25 interface without the need for soldering. It provides easy access to the individual pins, making it easier to connect wires or other components. It also comes with a 5-foot-long replacement cable that uses 26-gauge wire.
Technical Specifications:
Name: DB25 solderless module with cable
Plug type: female
Connector material: pure copper plated joint
Terminal Material: red copper
Housing material: plastic shell
Cable Length: 1.5m/5Ft
Cable Specification: 26AWG
Thickness: 16mm/0.63″
Application: tax control machine, digital camera, PLC, PDA, MODEM, set-top box, barcode machine, industrial instrumentation, etc.
Size: 57 mm×56 mm×16 mm/ 2.24″×2.20″×0.63″
Package includes:
1 x DB25 Female Solderless Connectors with 1.5m Bare Wire End Cable
