LCD Controller Board:
HDMI Board Work for 50Pin Mipi LCD Screen
Input Power Adapter: 5Vdc More than 1A.
Come In Standby Model When Not Input Signal
Standby Model
Audio Input: HD-MI
Apply to：PC i
Board Size: 65mm x 64mm x 3mm

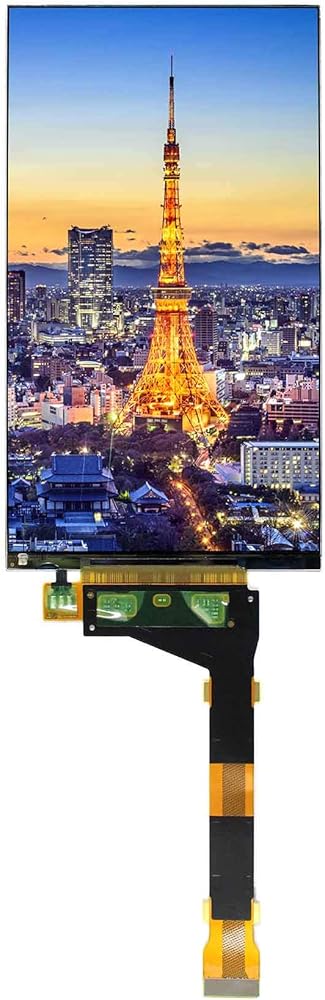

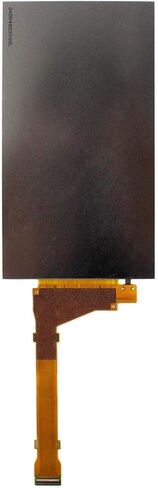

5.5" LS055R1SX04 1440X2560 LCD Screen:
Display New Mode2, Normally Black, Transmissive
Resolution 1440RGB)×2560
Outline Size 70.94 ×128.49×1.45(H×V×D)
Display Area 68.04× 120.96 (H×V)
Brightness 450 cd/m² (Typ.)
Contrast Ratio 1300:1 (Typ.) (TM)
Viewing Angle 80/80/80/80 (Typ.)(CR≥10) [Left / Right / Up / Down]

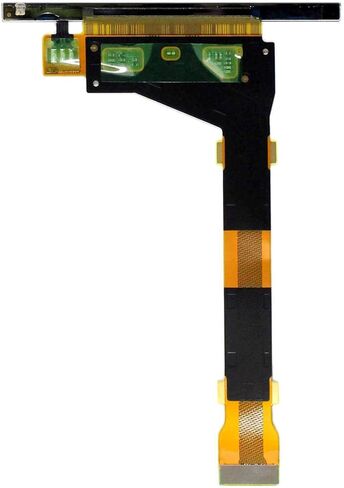

Signal Interface MIPI (2 ch, 4 data lanes) , 50 pins , Connector
Backlight WLED
Input Voltage 1.8/5.75/-5.75V (Typ.)(IOVCC/VSP/VSN)

Instuction:
1. When HD-MI signal is not accept. It shows black Image and LED flashing on main board. Please change HD-MI source for test.
2. When HD-MI accept. It shows correct image and LED is blue.
This Board work with PC. The image not support Scaling. It shows image depend on HD-MI input source.

Turn On：
a、Connect Converter Board With LCD Screen Interface
b、Connect Converter Board With 60Pin Cable
c、Connect Main Board With 60Pin Cable
d、Insert HD-MI Type Cable
e、Turn On 5Vdc or USB as Power Supply

Turn Off：
a、Turn Off 5Vdc or Remove USB Power Adapter
b、Remove HD-MI Cable
c、Disconnect Main Board With 60Pin Cable
d、Disconnect Converter Board With 60Pin Cable
e、Disconnect 60Pin Cable With LCD Screen

For PC:
1. Most of MIPI screen for vertical display. Need to adjust computer graphics mode.
2. Replication Mode - Extended mode - Vertical and Horizontal adjustment.

1. The Main Board Four Locating Holes
