Attention:
1. Please fully read the product manual and precautions before using the equipment;
2. Before using its own tuning, be sure to adjust the radio power to the lowest power, prevents the damage to the radio or tuning;
3. When using or replacing the radio for the first time, it is necessary to recalibrate the standingwave power value of the equipment. When the standingwave power value displayed by the radio and the equipment is inconsistent, the radio shall prevail;

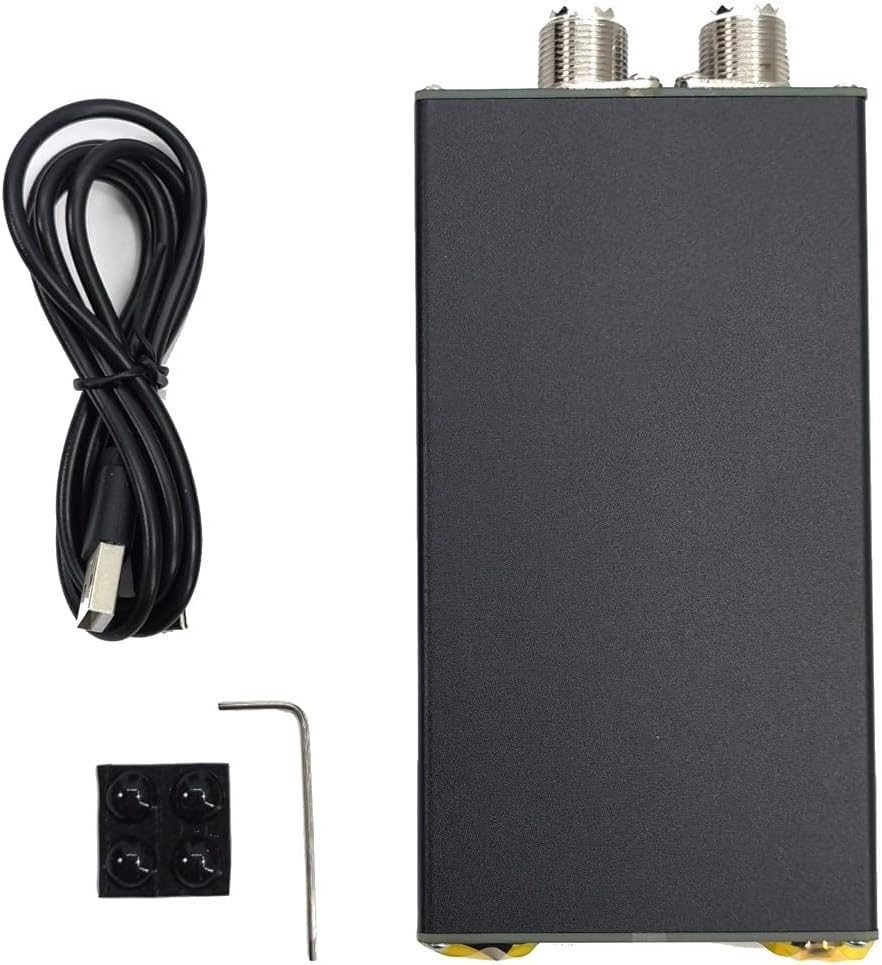

4. Please use the USB Type-C charging cable included with this product for charging;

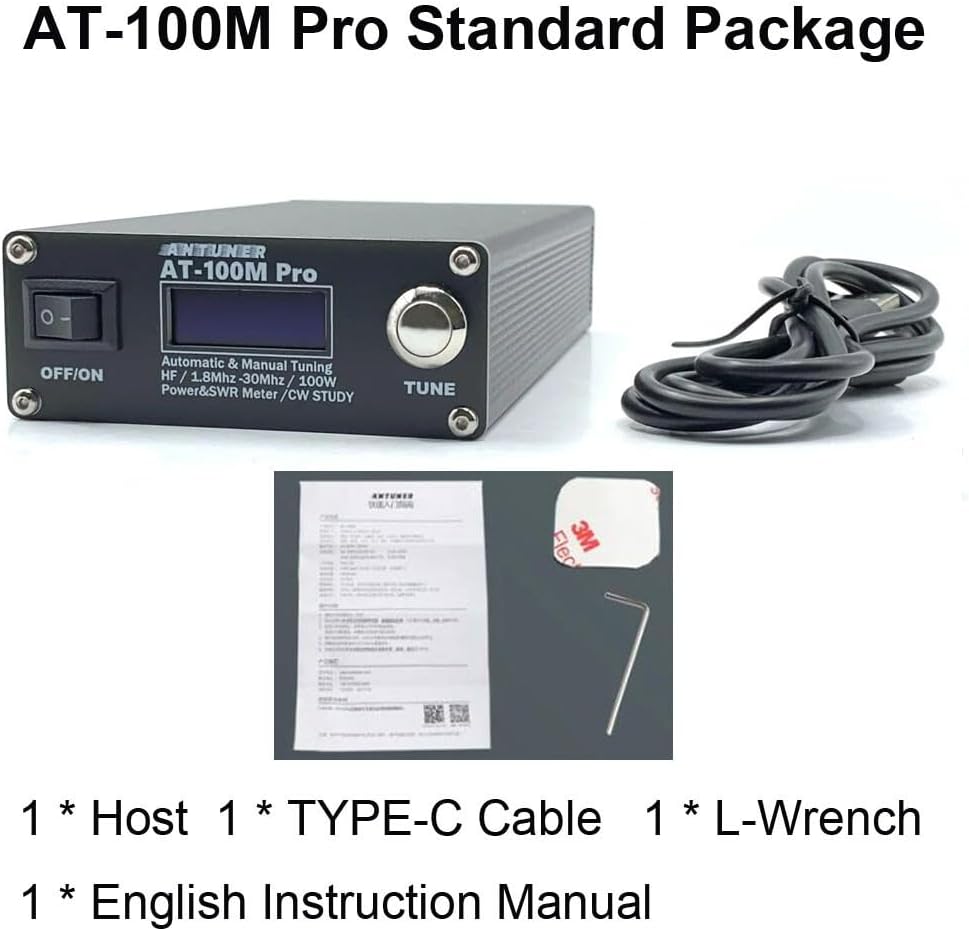

5. Keys are not included in the shipping list.

Specifications:

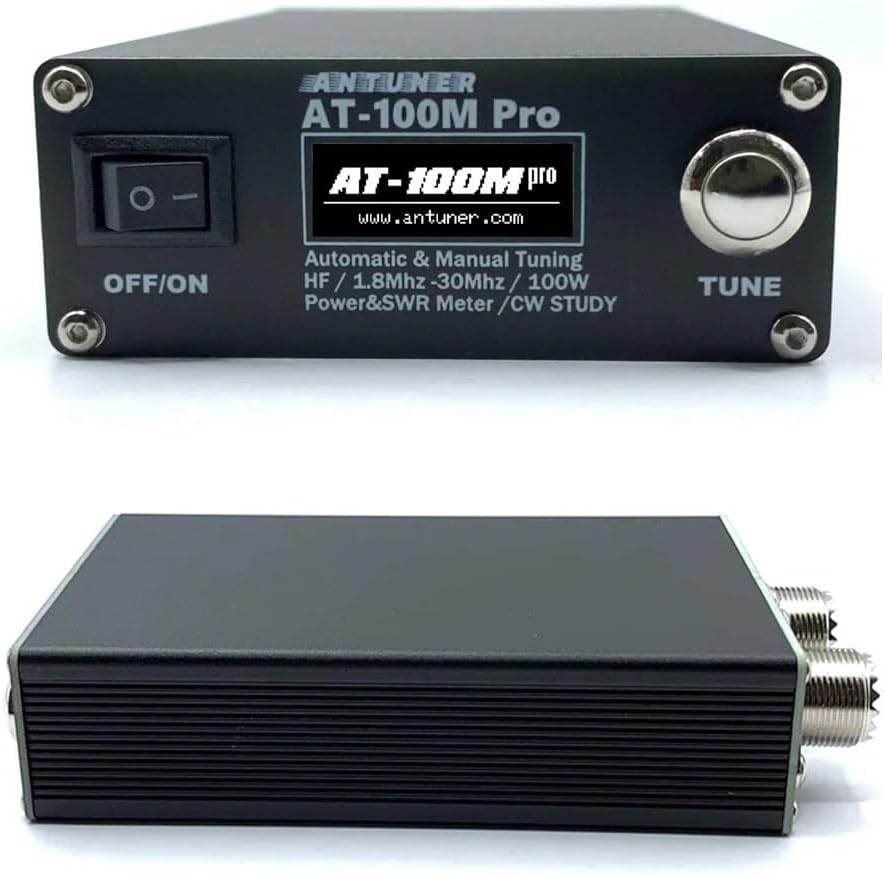

Name: Antenna Tuner
Material: plastics+metal
Battery: 1 * built-in 3300mAh battery (included)
Radio support capabilities: Supports most radio stations and antennas on the market
Frequency/Power: 1.8Mhz-18Mhz SSB/CW 0.1W-100W 1.8Mhz18Mhz Frequency Modulation/AM/FT8 0.1W-50W
18Mhz-30Mhz SSB/CW 0.1W-50W 18Mhız-30Mhz Frequency Modulation/AM/FT80.1W-50W

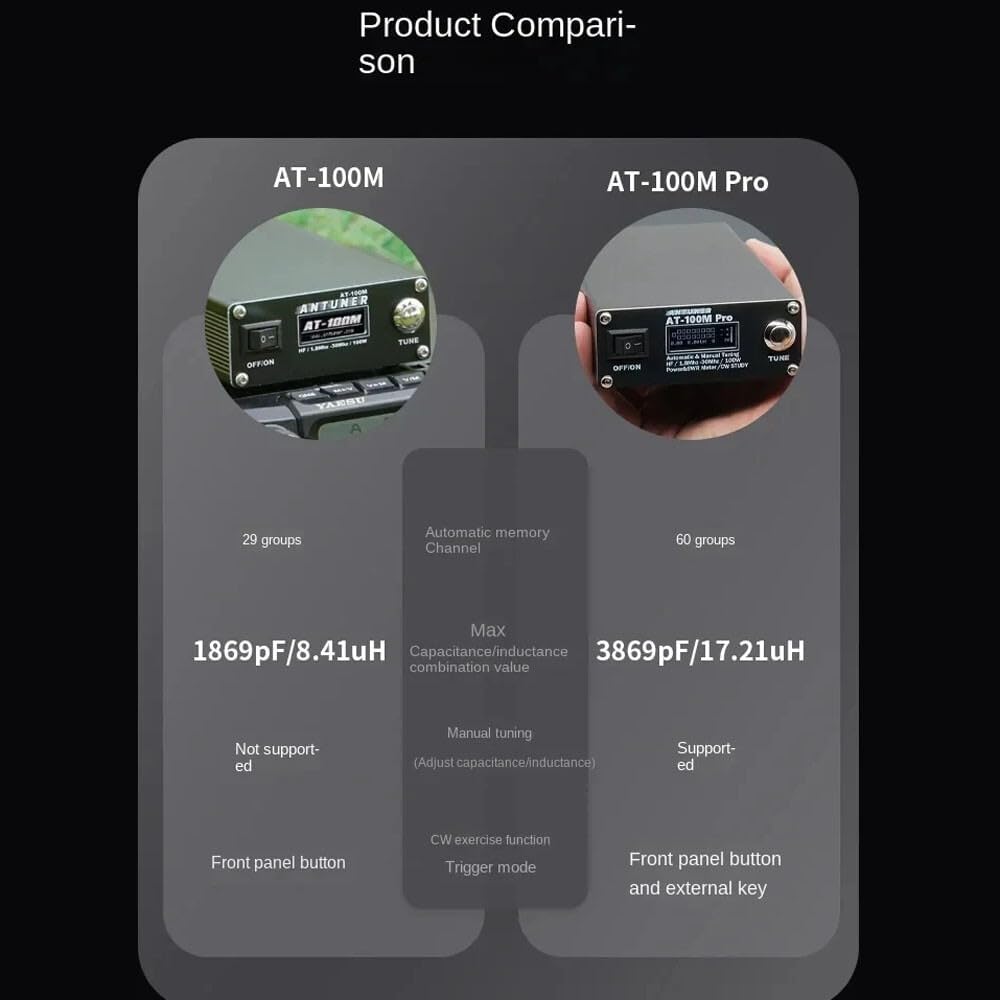

Automatic memory channel: 60 groups
Maximum combined inductance value: 17.21uH
Maximum combined capacitance value: 3869pF

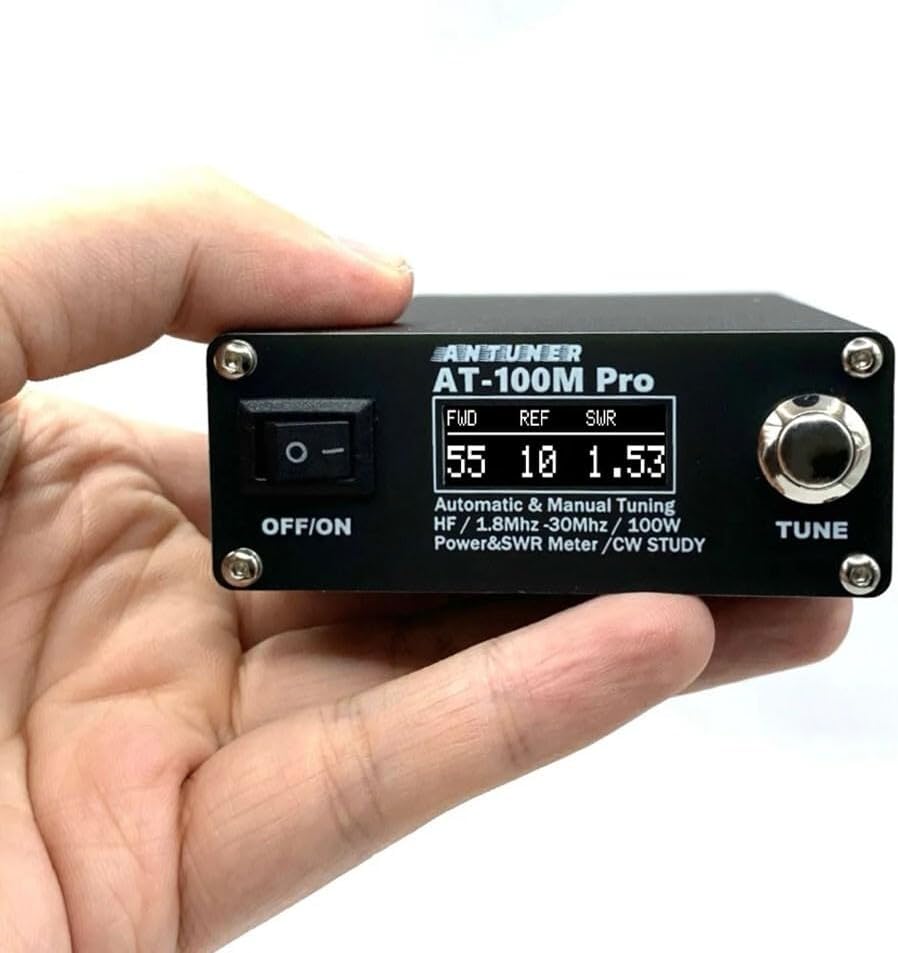

Standing wavemeter: support
Power meter: Support (0.1W-150W)

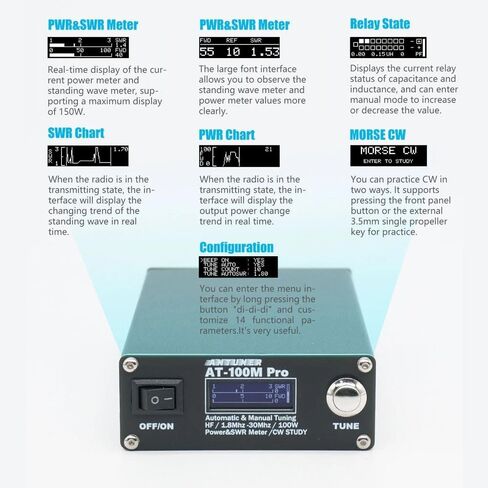

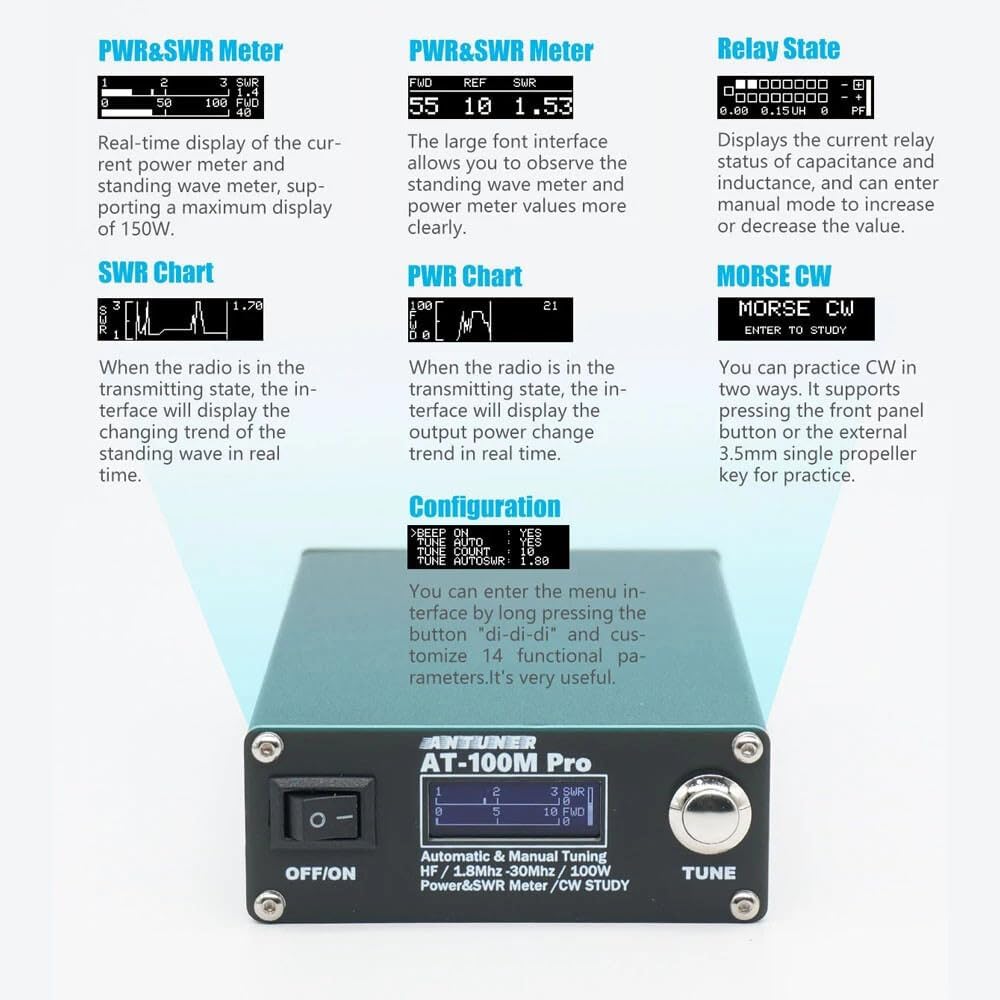

Interactive mode: Bar mode, harge font mode, relay mode, power curve graph mode, standingwave curve graph mode, CW exerciser mode, configuration menu mode
Autotune mode: support
Manual tuning mode: support

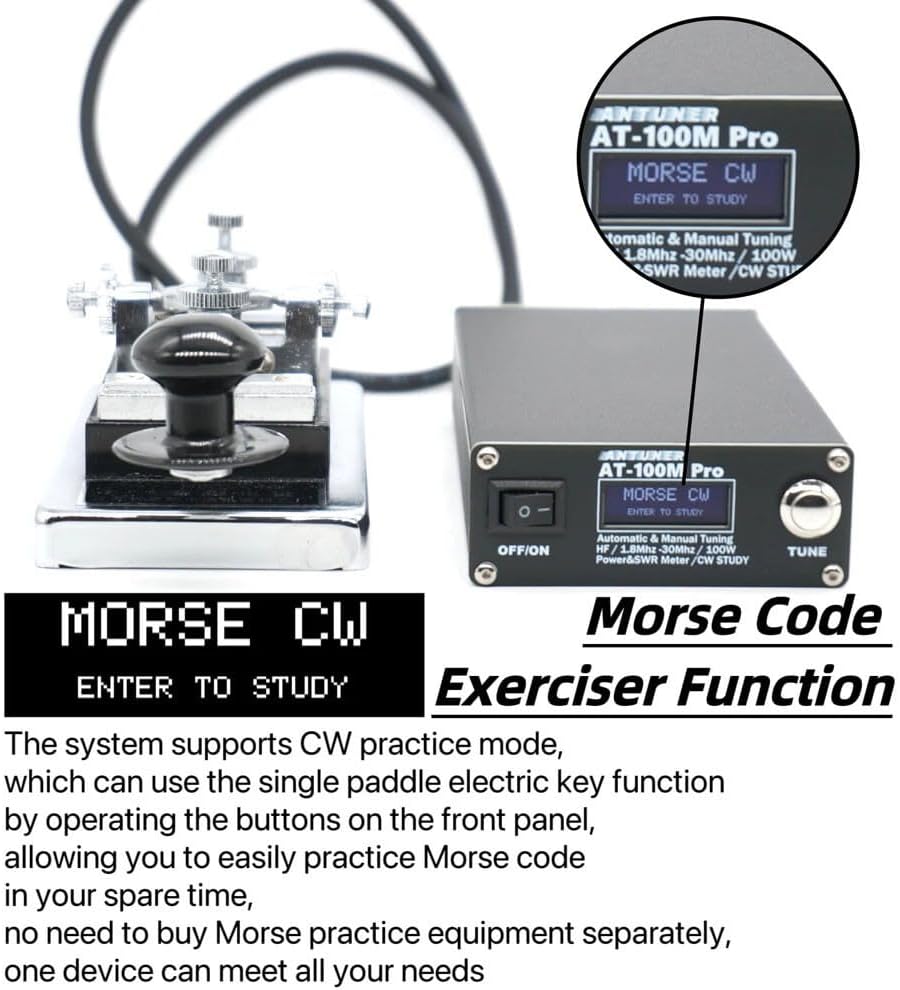

CW exercises: Supports external 3.5mm headphone jack, single paddle CW practice, supports front panel button trigger

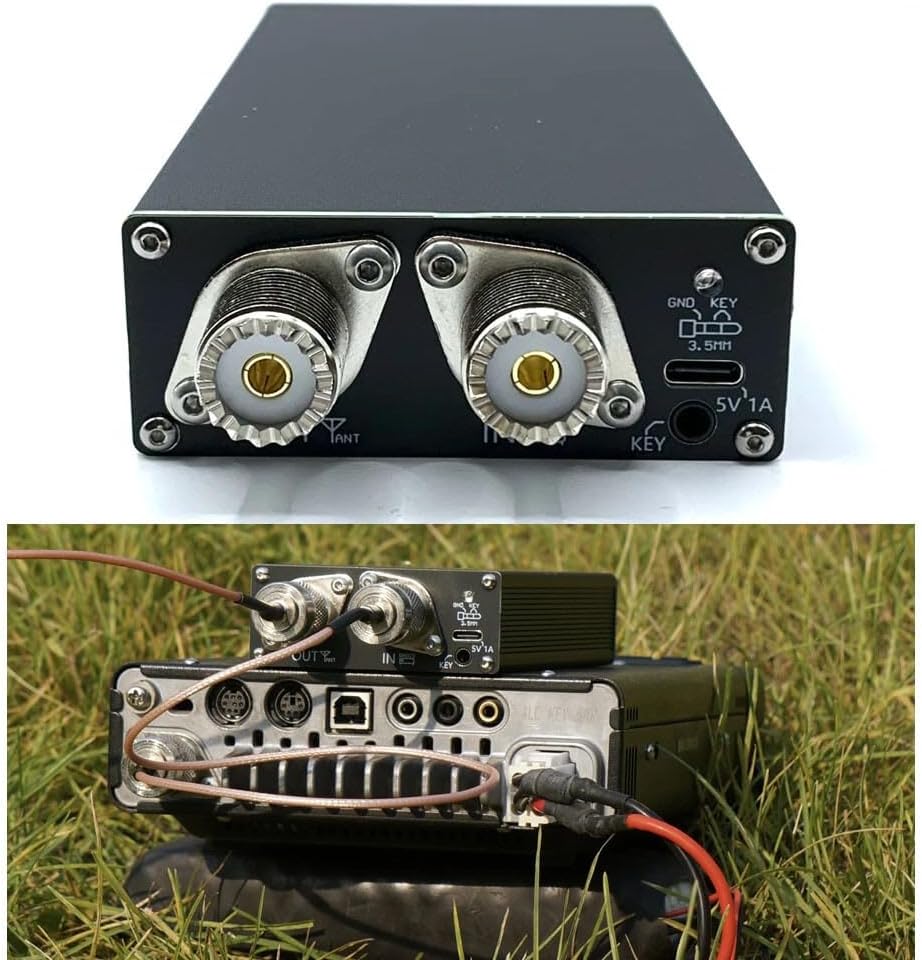

CW propeller interface: 3.5MM headphone jack
Buzzer: Support (automatic prompt when the standingwave exceeds the set value)
Charging interface: USB-TYPE C
Charging time: about 4 hours
Product power: Maximum 5W
Standby time: About 150-200 hours (no tuning action)
Tuning duration: About 10-25 hours (activate 1-3 relays)
Item size: 154 * 74 * 29mm / 6.06 * 2.91 * 1.14in
Item weight: 400g / 0.88lb
Package size: 250 * 125 * 40mm / 9.84 * 4.92 * 1.57in
Package weight: 490g / 1.08lb
