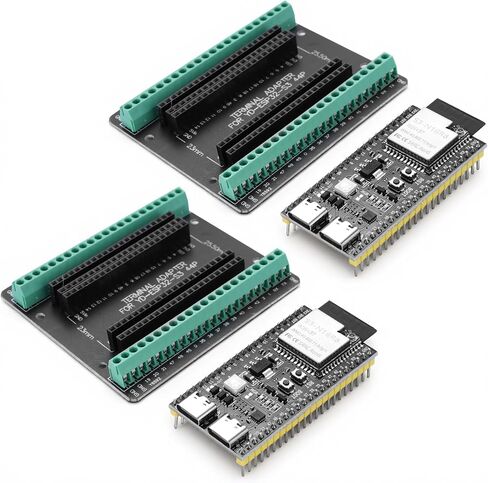

2 Pack ESP32-S3 DevKitC-1 N16R8 Development Board, Dual-Core LX7, 16MB Flash + 8MB PSRAM, WiFi Bluetooth 5.0, USB-C, External Antenna Support, Compatible with Arduino IDE for IoT & Embedded Projects in Kuwait

2 Pack ESP32-S3 DevKitC-1 N16R8 Development Board, Dual-Core LX7, 16MB Flash + 8MB PSRAM, WiFi Bluetooth 5.0, USB-C, External Antenna Support, Compatible with Arduino IDE for IoT & Embedded Projects 2 Pack

KWD 8.500
Color2 Pack
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • ⚡ High-Efficiency Dual-Core Processing：Powered by a 32-bit LX7 dual-core processor, this development board delivers fast and reliable performance with optimized power consumption. Ideal for embedded systems, real-time data processing, and advanced IoT applications.
  • 📶 WiFi & Bluetooth 5.0 Dual Connectivity：Supports 2.4GHz WiFi (802.11 b/g/n) and Bluetooth 5.0 (LE & Mesh), enabling stable and efficient wireless communication. Built-in low-power architecture ensures reliable operation across various connected device scenarios.
  • 📡 External Antenna Interface for Better Signal：Designed with an external antenna connector, allowing users to enhance signal strength and extend communication range. Suitable for complex environments requiring stable long-distance connectivity.
  • 🚀 Optimized Wireless Performance：Supports advanced WiFi features such as WMM, A-MPDU, A-MSDU, and block acknowledgment to improve data transmission efficiency and multitasking capability under high-load conditions.
  • 💾 Expanded Memory for Advanced Development：Equipped with 16MB Flash and 8MB PSRAM, providing sufficient storage and processing capacity for complex firmware, data-intensive tasks, and scalable project development.

Description

PRODUCT SPECIFICATIONS

CORE PROCESSING & PERFORMANCE
32-Bit Xtensa LX7 Dual-Core Processor running up to 240 MHz
Built-in AI vector instructions for neural network acceleration, DSP processing, voice recognition, and image applications
Ultra-low-power ULP co-processors designed for battery-powered IoT projects

MEMORY & STORAGE
16MB SPI Flash storage for firmware, UI assets, and local data logging
8MB Octal PSRAM for multitasking and large buffer management
512KB internal SRAM and 384KB embedded ROM

WIRELESS FEATURES
2.4GHz Wi-Fi supporting IEEE 802.11 b/g/n standards
Bluetooth 5.0 BLE with Mesh and Long-Range support
Onboard PCB antenna plus external IPEX antenna connector

USB & INTERFACES
Dual USB Type-C ports for programming and USB OTG applications
CH343P high-speed USB-to-UART bridge chip
Up to 45 programmable GPIO pins
Supports SPI, UART, I2C, I2S, TWAI, PWM, ADC, and touch sensing

ONBOARD COMPONENTS
PWR, TX, and RX status indicator LEDs
Built-in WS2812 RGB LED mapped to IO48
Reset and Boot buttons for firmware flashing

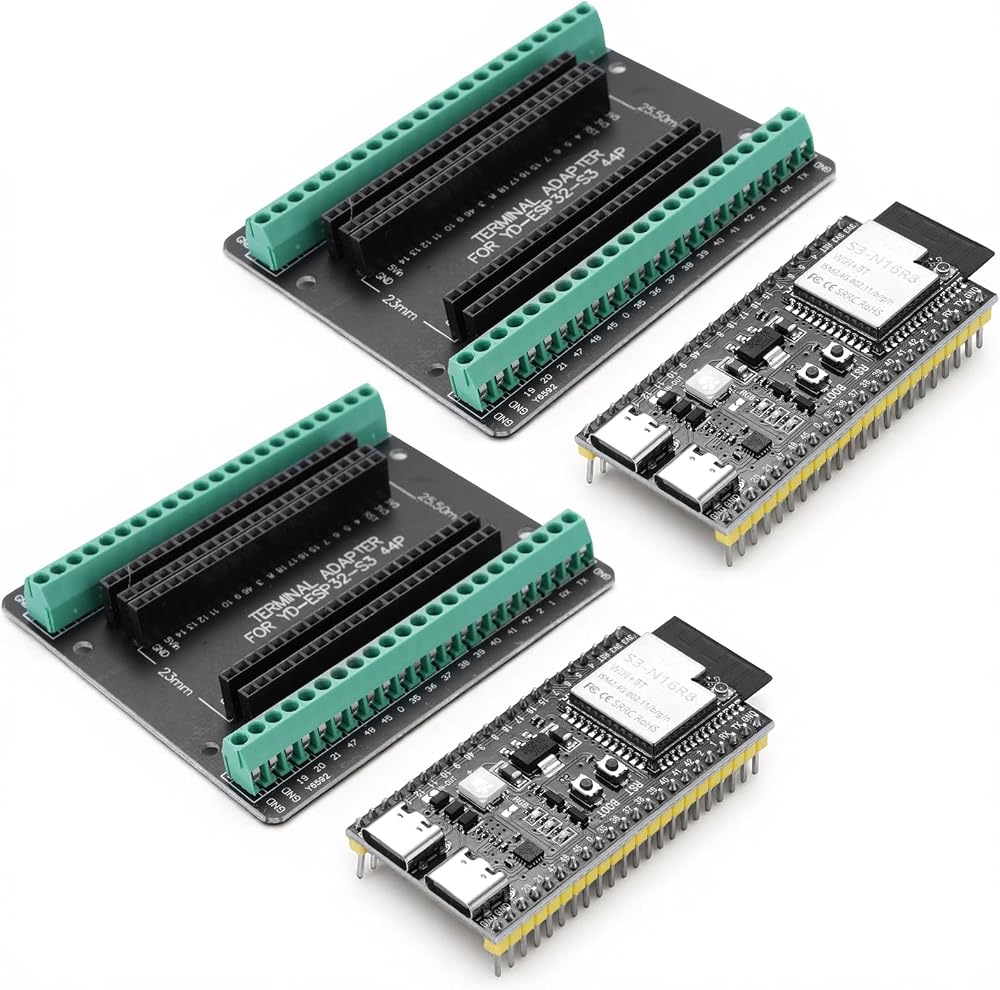

TERMINAL ADAPTER BOARD
Includes custom 44-pin screw terminal adapter board
Solderless design for rapid prototyping
Clearly labeled GPIO terminals for easy wiring

DIMENSIONS
ESP32-S3 Core Board: 57mm × 28mm / 2.24in × 1.10in
Terminal Adapter Board: 80mm × 70mm / 3.15in × 2.76in
