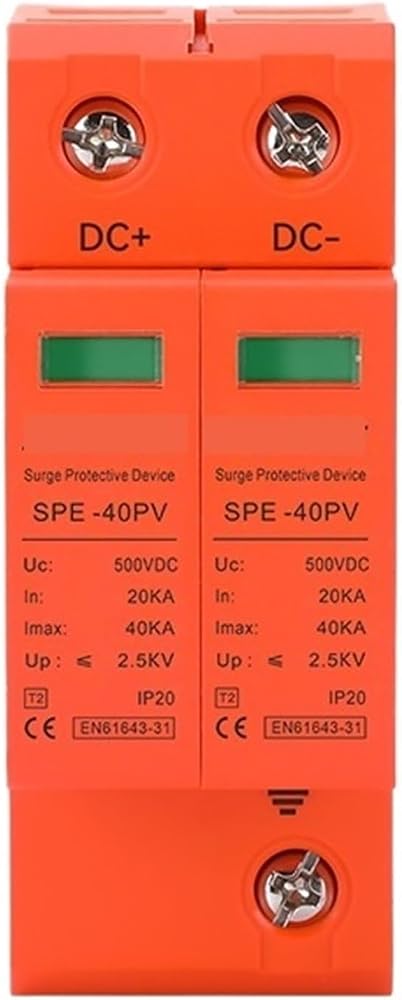

2P 3P 4P 20KA T2 DC SPD Surge Protector Device Lightning Protection 400V 600V 800V 385V 220V For Pv
Type : Earth Leakage
Type : Circuit breaker
Model Number : SPE-20
Rated Voltage : 220/380V
Certification : CE
SPD Type : Type 2
Max. continuous operating voltage : 500Vdc/600Vdc/800Vdc/1000Vdc/1200Vdc
Nominal discharge curent(8/20us) : 20kA
Max.discharge current (8/20us) : 40KA
Voltage Protection level : 2.2kV
Short-circuit current rating : 25kA
Response time : 25ns
Thermal Disconnection Device : Insertion
Max. Backup Fuse : 63A gPV FUSE
SPD configuration : DC
Mounting : 35mm DIN rail
Enclosure Material : Thermoplastic,conform to UL94 V-0
Operating Temperature Range : -40°C-80°C
Protection rating : IP20
Normal/fault Display : Green / Red
