5-Position Dichroic Filter Wheel, Telescope Filter Holder with Sm1 and M4 Mounting, Magnetic Holders for 36 X 25mm Optics Up to 1.1mm Thick, 45° Optical Imaging and Spectral Experiments

KWD 275
Brand
AMQYDT
Category
Telescopes
– 1 +

Special Features

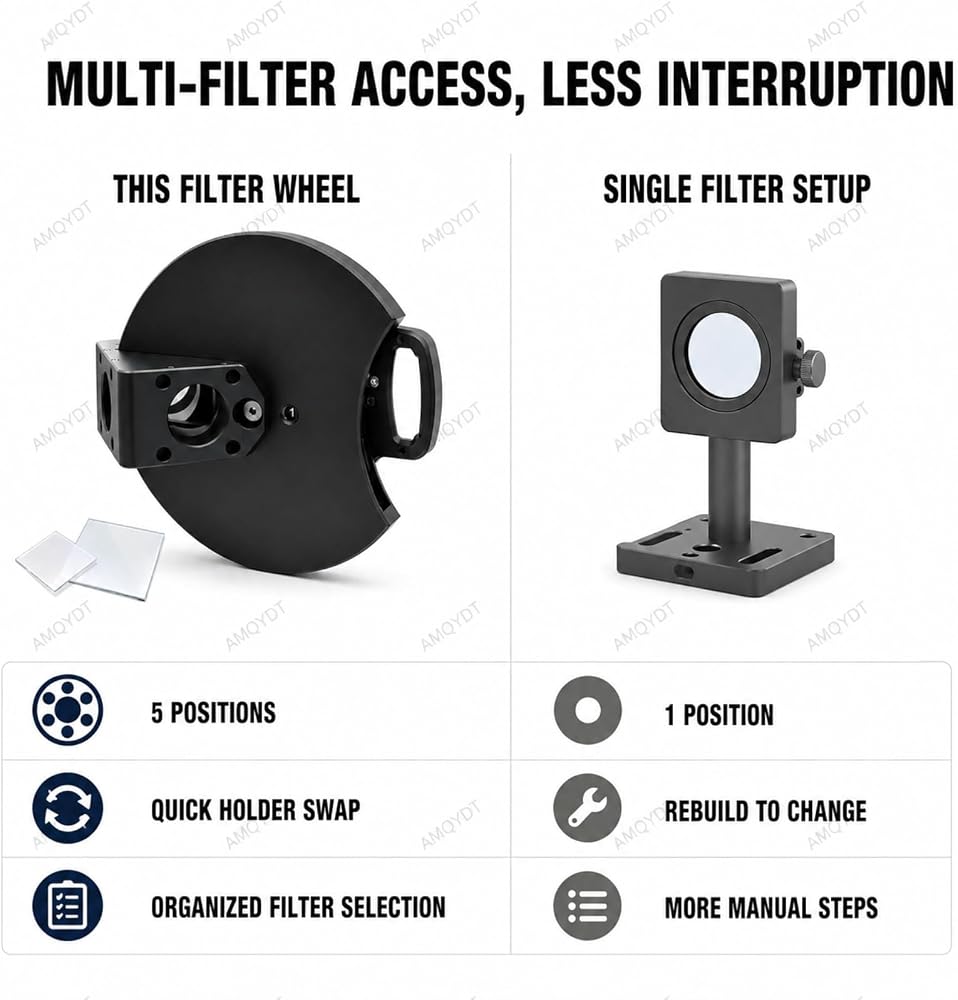

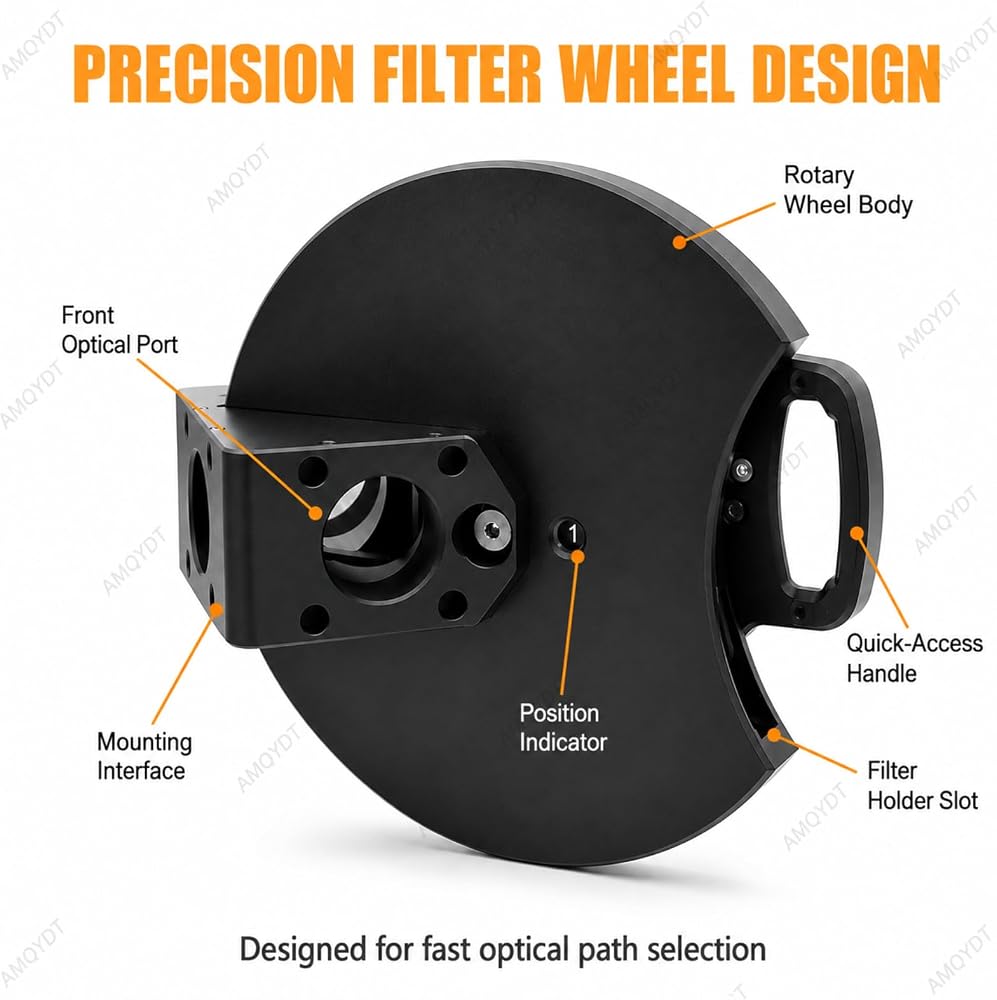

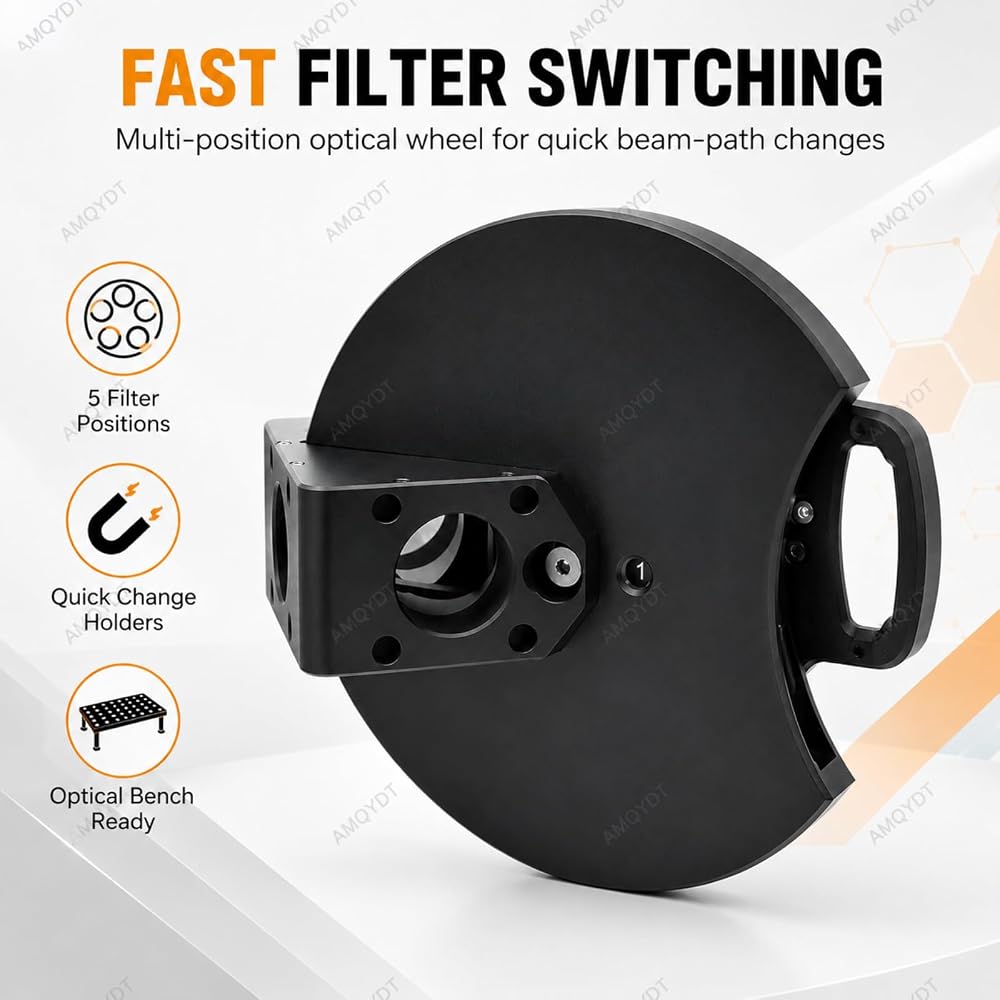

  • 【5-Position Filter Switching】: The rotating dichroic filter wheel holds up to five compatible rectangular optical components, allowing quick selection between filters for multi-wavelength imaging, spectral separation, and optical experiments.
  • 【30mm Cage and SM1 Compatibility】: Designed for standard 30mm cage systems with an SM1 (1.035"-40) threaded interface and M4 mounting holes, supporting integration with compatible lens tubes, cage assemblies, and optical setups.

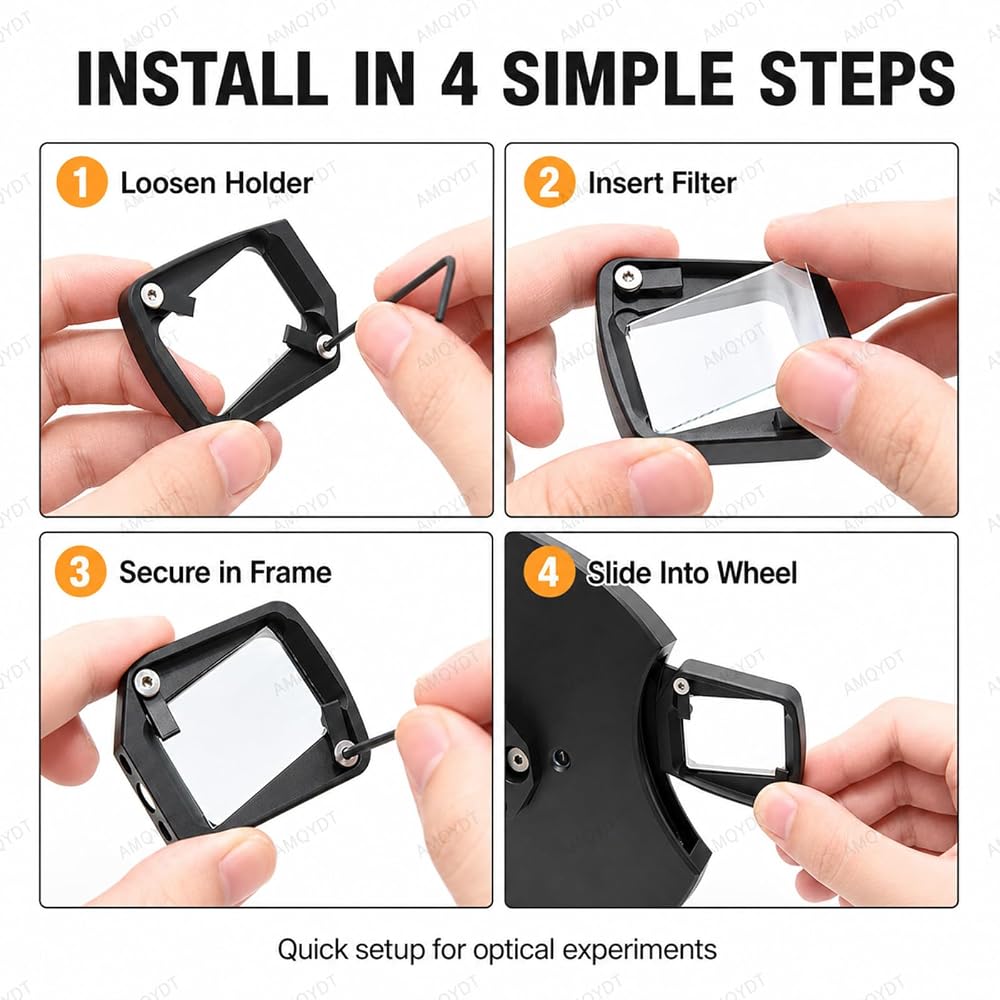

  • 【36 x 25mm Magnetic Holders】: Magnetic clamps secure up to five compatible 36 x 25 mm rectangular filters or optical components with a maximum thickness of 1.1 mm while allowing individual elements to be removed or replaced.
  • 【45° Optical Mounting】: The filter positions are arranged at a 45-degree angle for compatible dichroic optics, supporting transmitted and reflected optical paths in imaging, wavelength-selection, and spectral experiments.

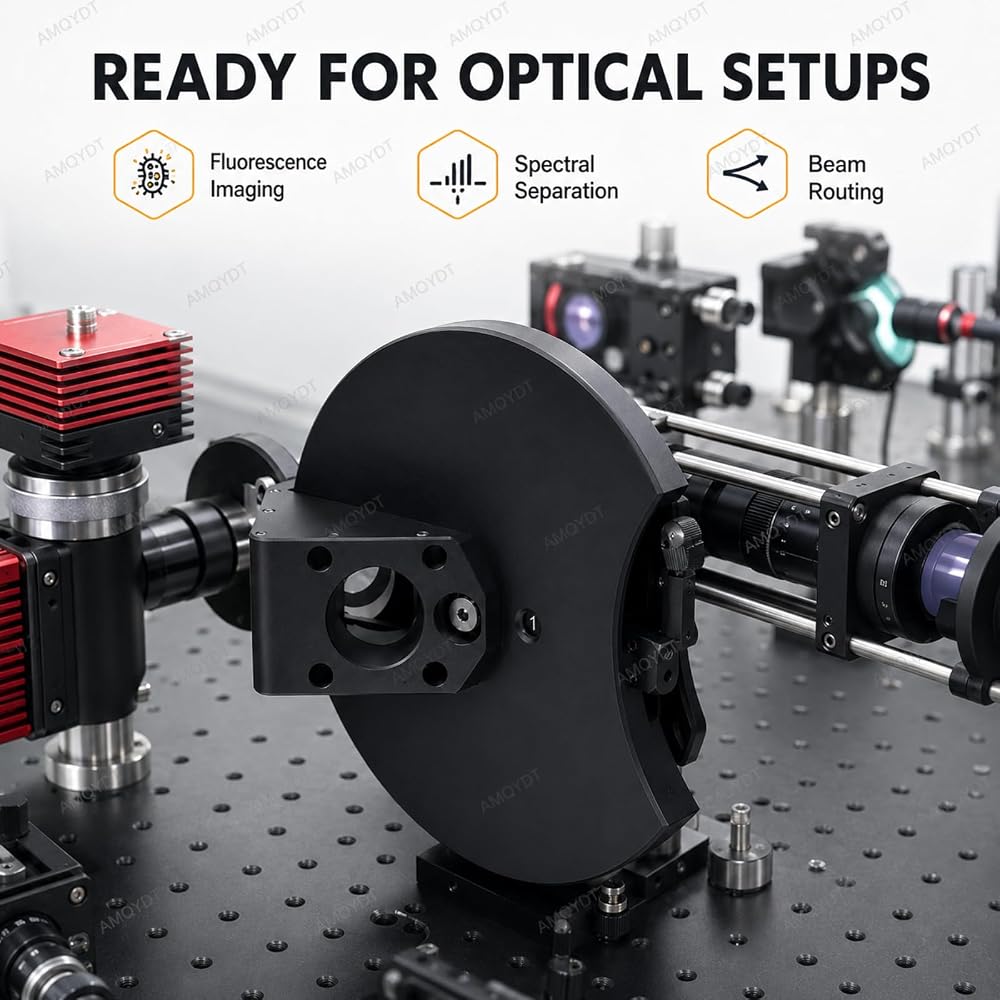

  • 【Flexible Optical Integration】: Multiple mounting points support horizontal or vertical installation within compatible optical assemblies, making the wheel suitable for telescope imaging, laboratory optics, photonics setups, and other multi-filter systems

Description

Specifications:

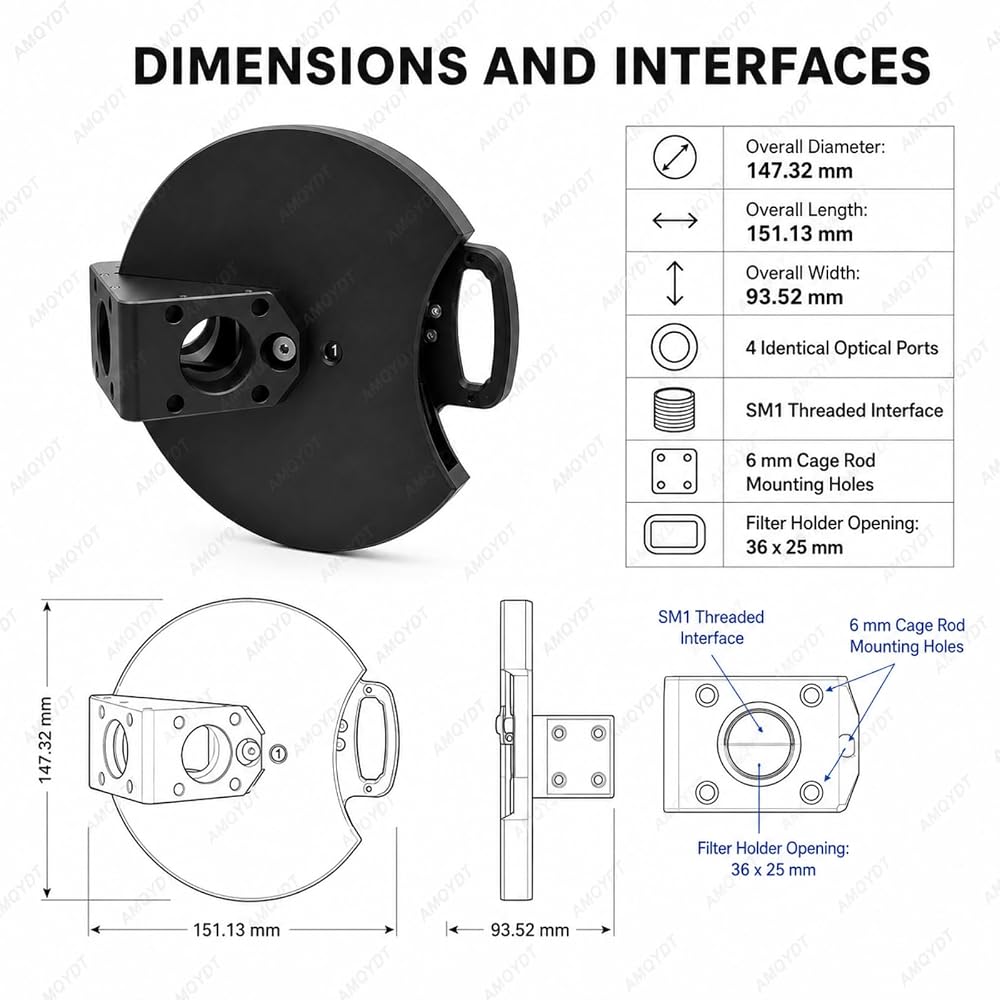

Dimensions: 151.2 × 147.3 × 93.5 mm
Mounting Components: Accommodates 5 optical elements, each measuring 36 × 25 mm with a thickness of Port Aperture: SM1 (1.035”-40) internal thread, 4 mounting positions
Cage Rod Mounting: 6.02 mm diameter, 30 mm spacing, 4 mounting positions
Screw Hole Type: 2 × M4
Weight: 659.4 g

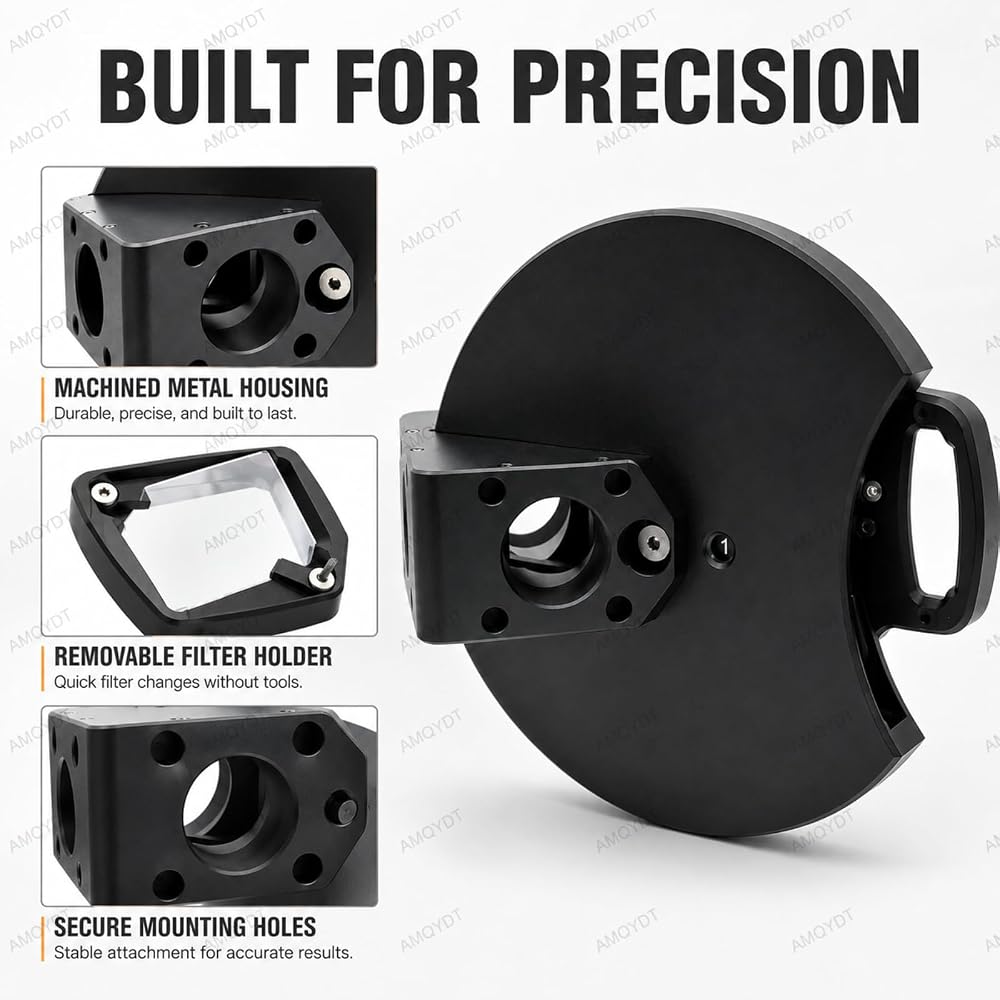

Material: 7075 aluminum alloy
Built-in components: Includes 1 spectral beam splitter

Package Contents:
Dichroic filter wheel for telescopes *1

Notes:
1.Manual measurement, please allow slight errors on size.
2.The color may exist a slight difference due to different screen displays.
