Description:

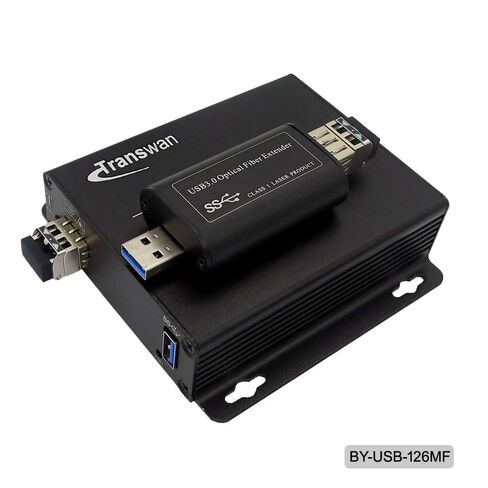

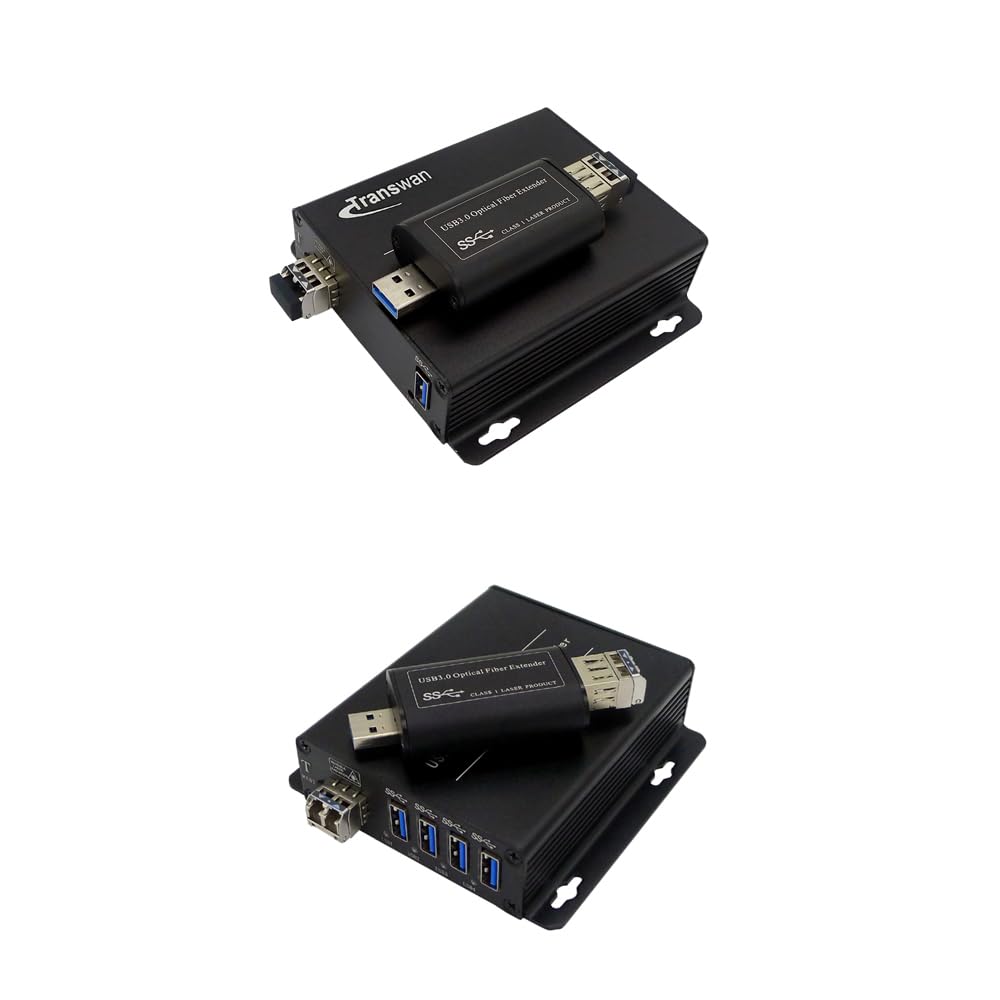

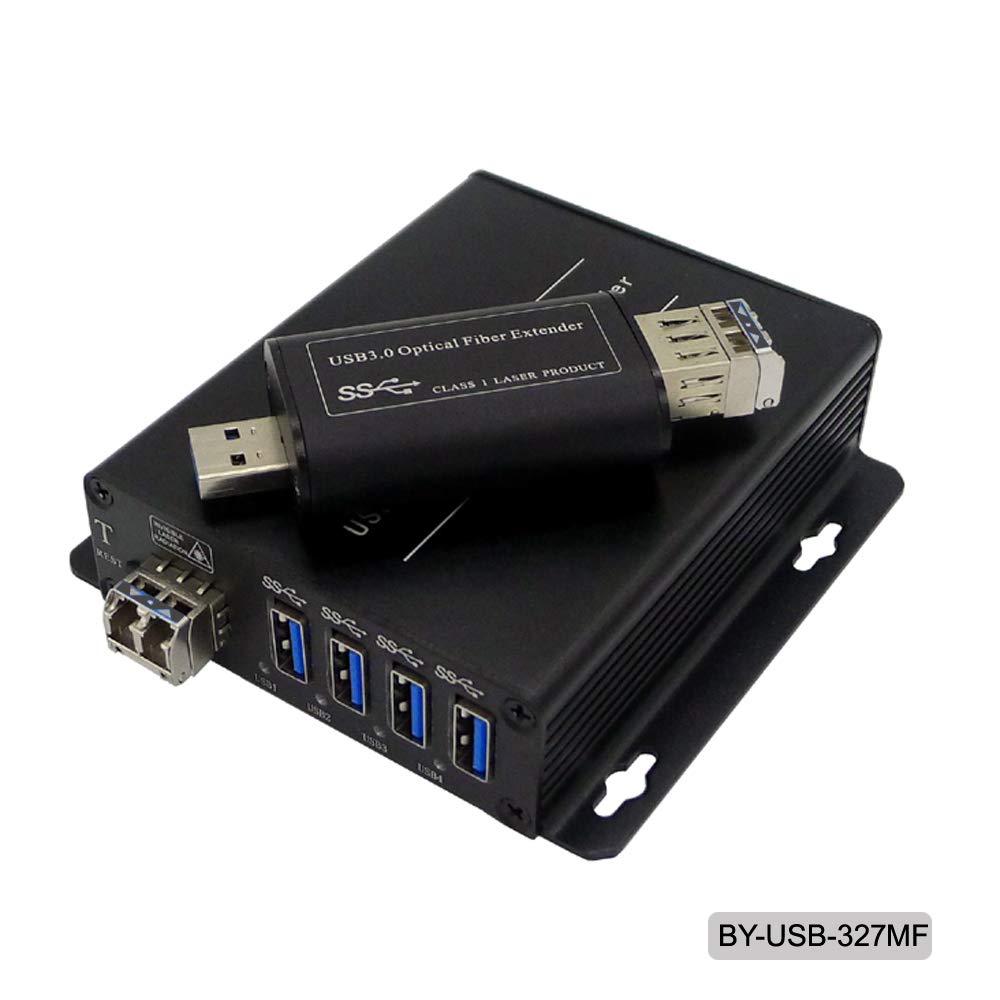

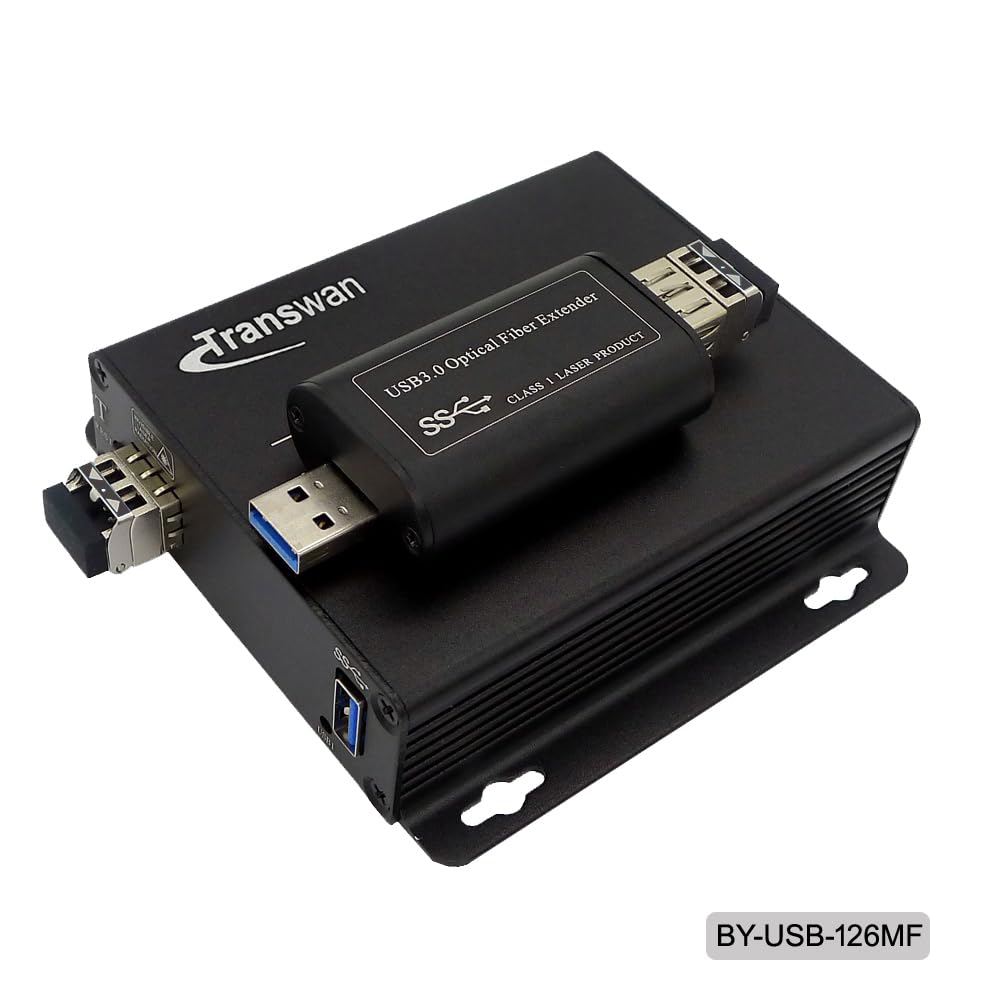

USB 3.0 To Fiber System includes a transmitter（client-side） and a receiver（host-side), which can extend the Super Speed USB 3.0 to a remote location over 2 core (OM3/OM4/OM5) multimode fiber cable, Max distance 100 Meters, BY-USB-327MF also can split 1 USB 3.0 interface to 4 USB 3.0 interfaces.

Note: 1）The transmitter is Backwards compatible with USB 2.0 and USB 1.1

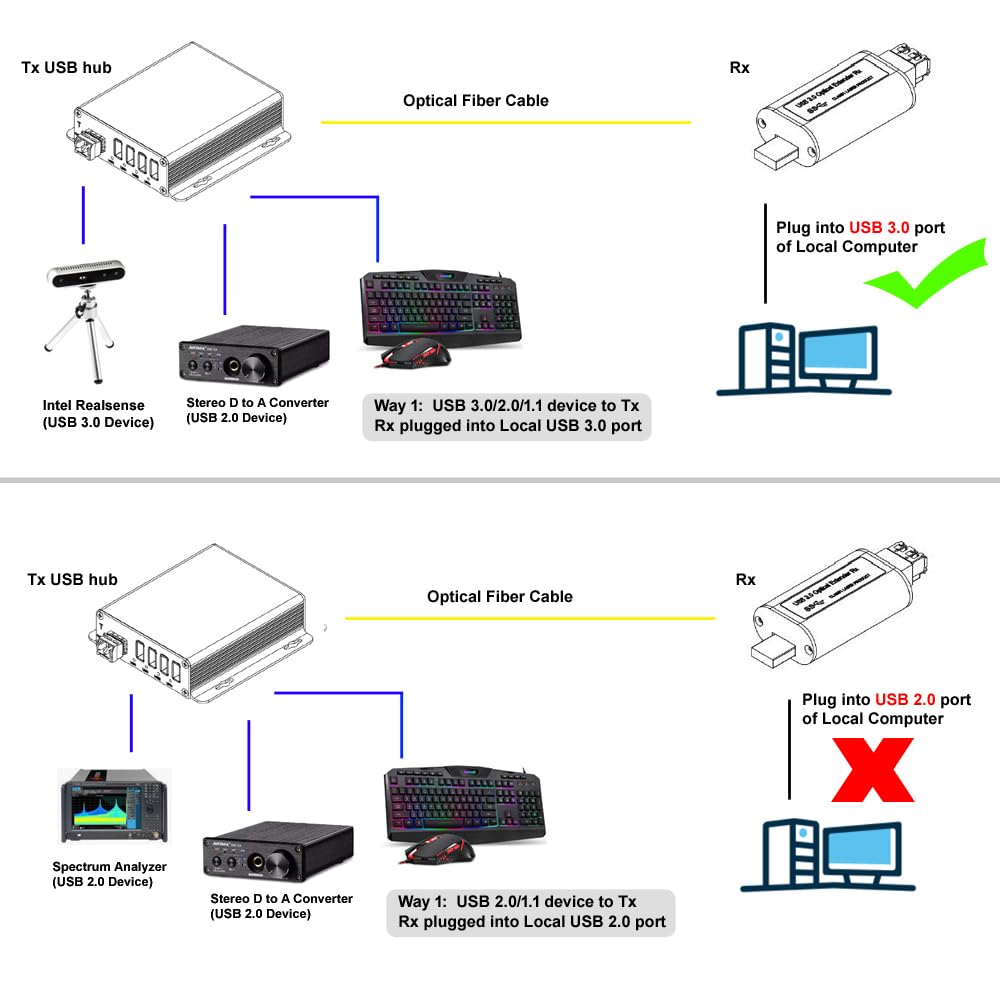

2) The receiver must be inserted into USB 3.0 port the host computer.
3） BY-USB-327MF, 4 Ports of the hub share the 5 Gbps Capacity of 1 port at the local side, so it allows only 1~2 USB ports (like USB 3.0 Camera) work at the FULL speed at the SAME time, but for U disc, each of 4 ports can work at the SAME time.

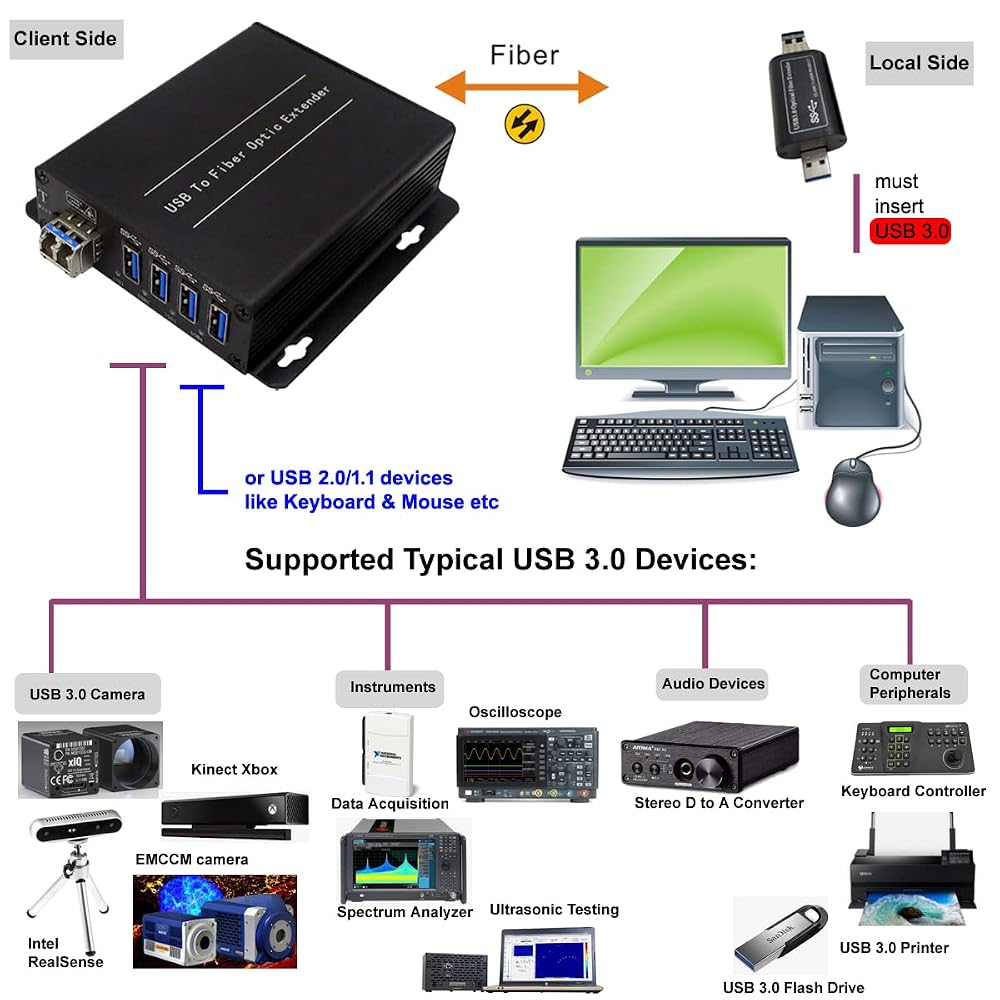

Supported Typical Devices:
1). USB 3.0 Camera:
RealSense, XiQ USB 3.0 Camera, Kinect Xbox, EMCCM camera etc
2). Instruments:
Data Acquisition, Spectrum Analyzer, Oscilloscope, Ultrasonic Testing etc
3). Aduio Devices:
Stereo D to A Converter etc
4). Computer Peripherals:
Keyboard Controller, USB 3.0 Printer, USB 3.0 Flash Drive etc
5.) USB 2.0/1.1 Devices like Keyboard and Mouse & Audio devices

SPECS:
Optical Connector: 2 x LC
Light Wavelength: 1310nm or 850nm
Support Multi-mode Fiber(two strands) types: 50/125μm (OM3/OM4/OM5)

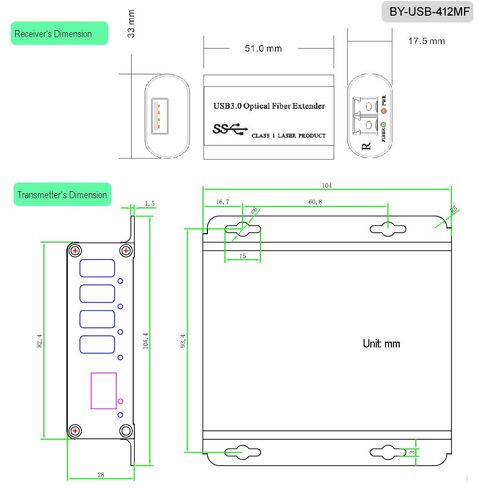

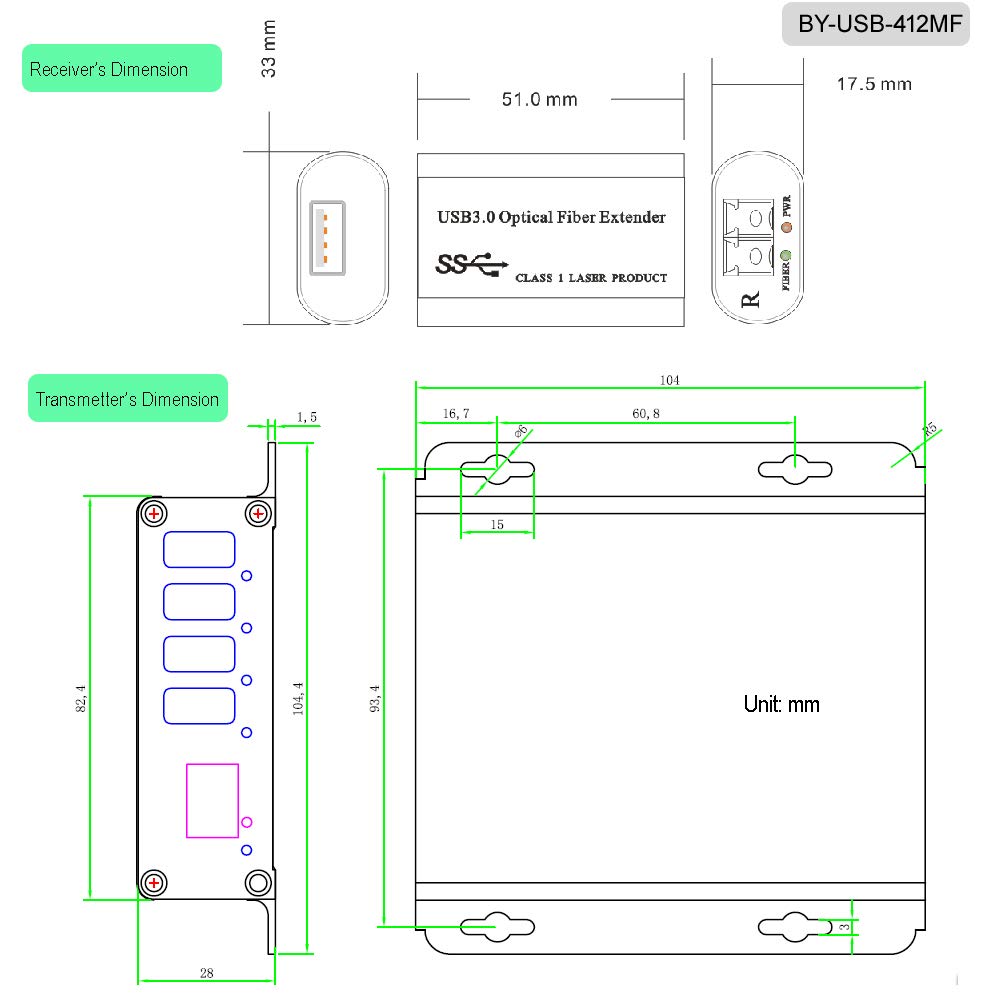

Physical Size (L× W ×H):
1) Transmitter: 104 x 104 x 28 mm ; 2) Receiver: 51 x 33 x 17.5 mm
Case:Aluminum
Color:Black
N.W.:0.5Kg
Power Voltage:5~12V DC
Sender power consumption: Receiver power consumption: Environment Working temperature:0℃-50℃
Storage temperature:-40-85℃
Humidity:0-95% (non-condensing)

Package:
1. 1 x transmitter (client side)
2. 1 x receiver (host side).
3. 1 x Power Supply Adapter DC 5~12V with US/EU/UK/AU plug.
4. 1 x OM3 Fiber Cable 10 Meter Length
5. 1 x Manual.
6. 2 x Alternative SFP Units, if to use, need to change Tx & Rx SFP at the same time
