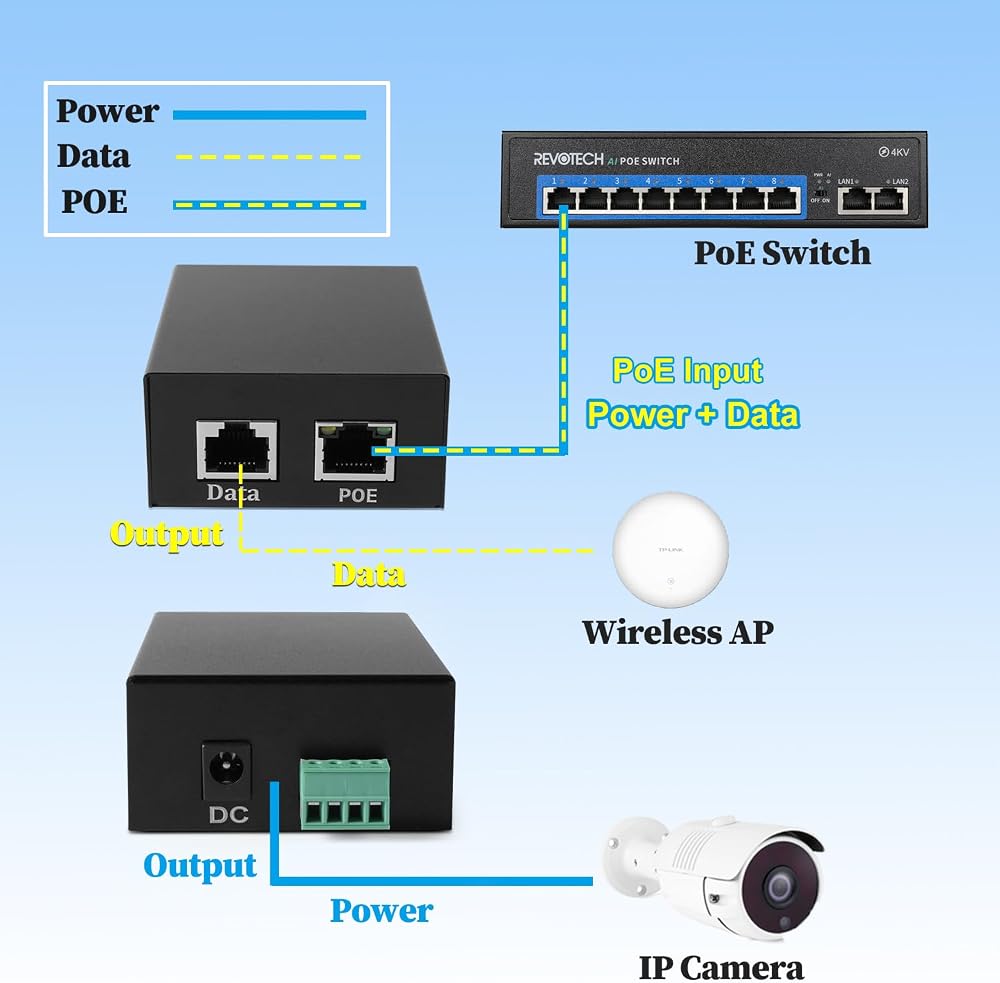

PoE splitter it is an economical and practical PoE remote power equipment base on IEEE802.3af/at/bt standard. It can separate the power and data via cable transmission.Proper matching use with poe switch or PSE injector which meet standard IEEE802.3af/at/bt,Provides power and data at the same time for the terminal device does not support PoE.
PoE splitter, output voltage of 24V use with the power supply equipment, It helps to expand wireless city, Security monitoring and other poe practical place, and is not restricted by layout of power line.

Specifications：
Support international standard IEEE802.3 af/at/bt(50W);
Support 10/100/1000Mdata transmission
PD support 44V-57V voltage transmission,Automatically detects power supply from PSE power supply module
24V power output,easy to access Poe network for non-poe terminal
Support the isolation circuit protection,can effectively protect electrical equipment.
Support the short circuit,overvoltage protection

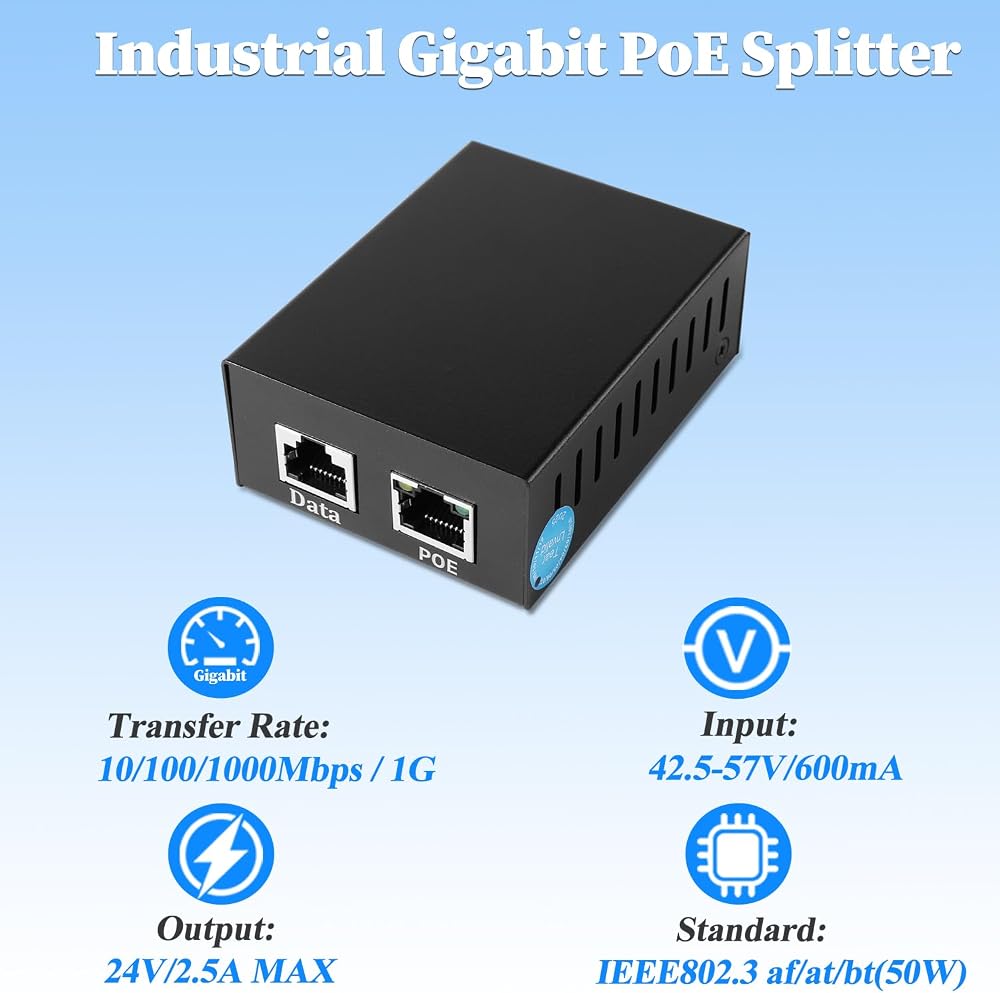

Model: PS2450G
Transfer Rate: 10/100/1000Mbps
Power: Input 42.5-57V/600mA , Output 24V/2.5A MAX
Standard: IEEE802.3 af/at/bt(50W)
TRNF: 1/2(+),3/6(-);4/5(+),7/8(-)

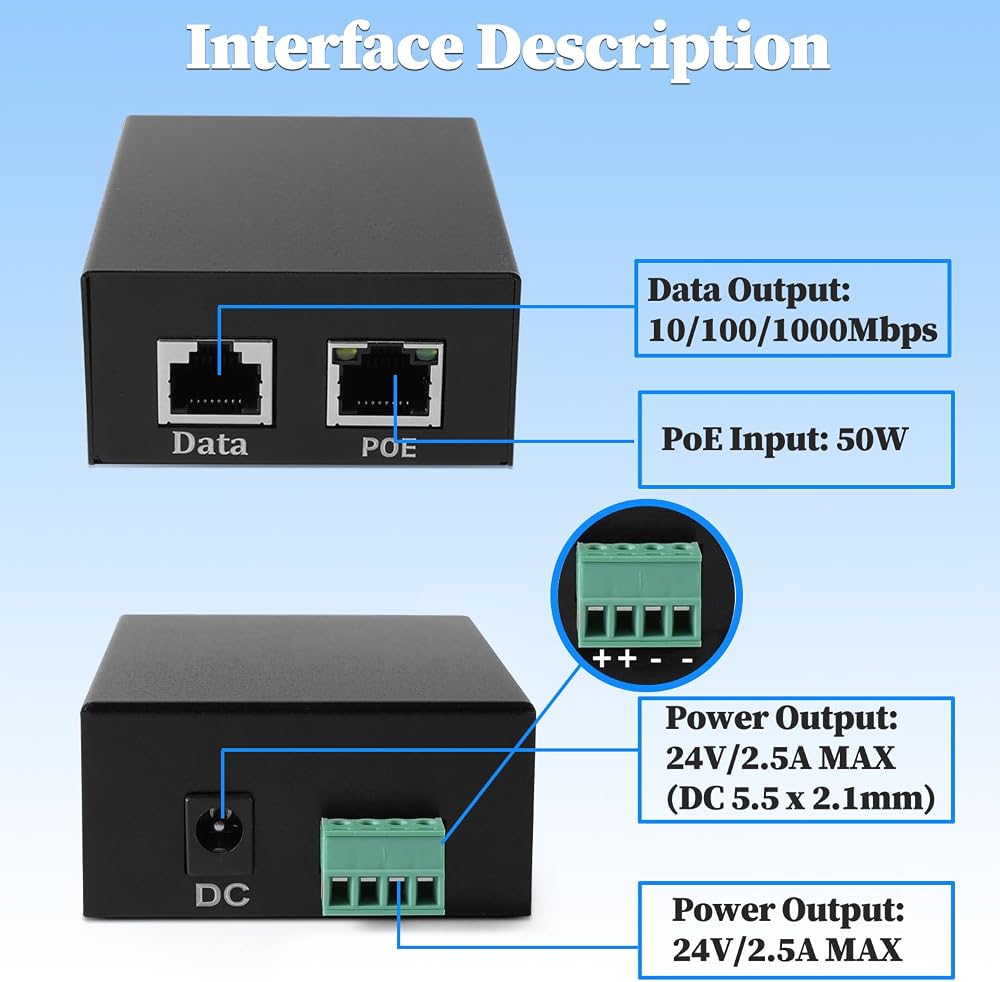

Interface Type: 1 Input RJ45 port, 1 output RJ45 port, 1 DC output
Standard:IEEE 802.3 I, IEEE 802.3 u, IEEE 802.3 x, IEEE802.3 af ， IEEE802.3at， IEEE802.3bt
LED: Yellow PoE lamp
Temperature: Work within -40~85°,Storage within -40~85°
Humidity: Work within 10%~90% (Non-condensing), Storage within 5%~95% (Non-condensing)
DC Plug: 5.5 x 2.1mm

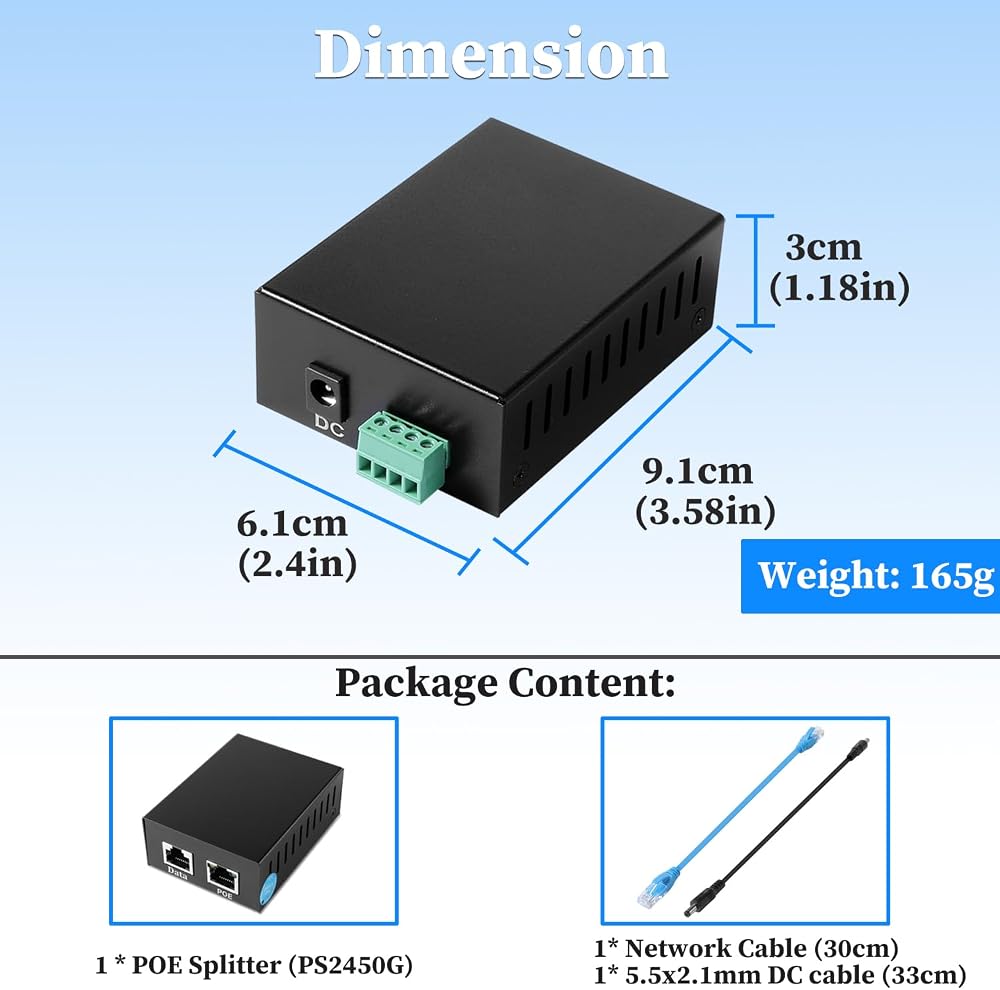

Dimension: 9.1 x 6.1x 3cm
Weight: 165g

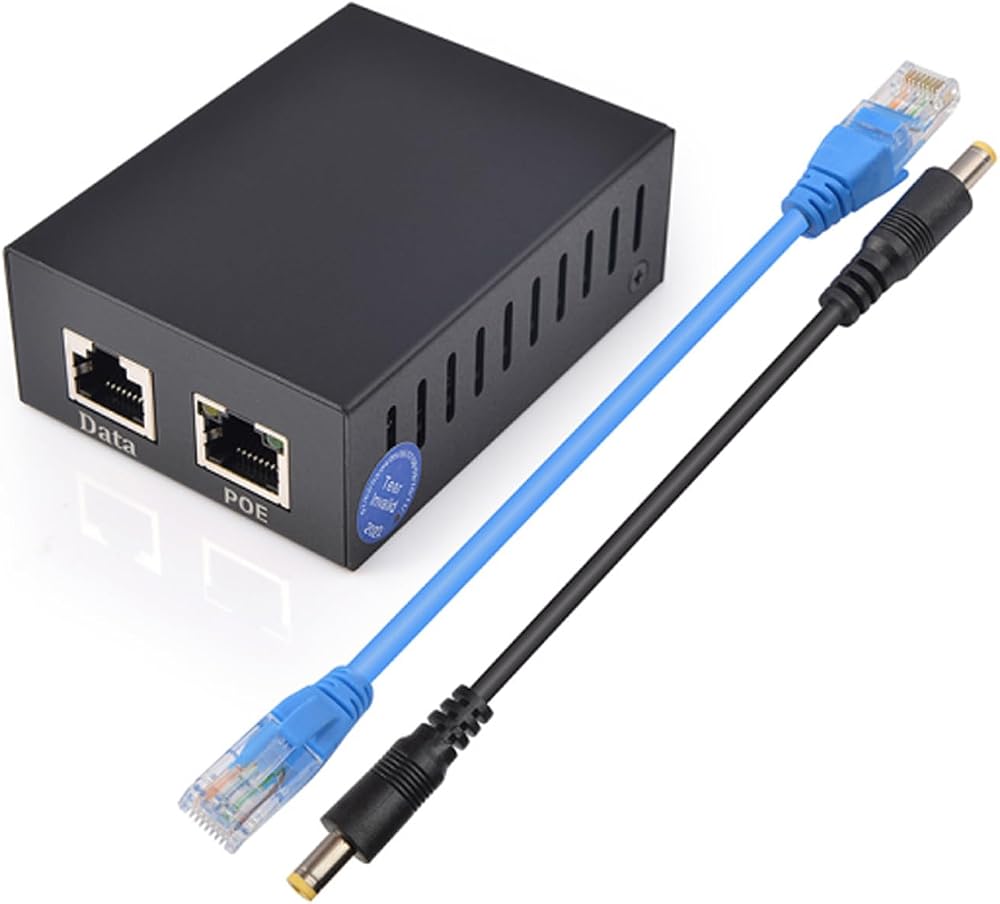

Package Content:
1 * POE Splitter (PS2450G)
1* Network Cable (30cm)
1* 5.5x2.1mm DC cable (33cm)
