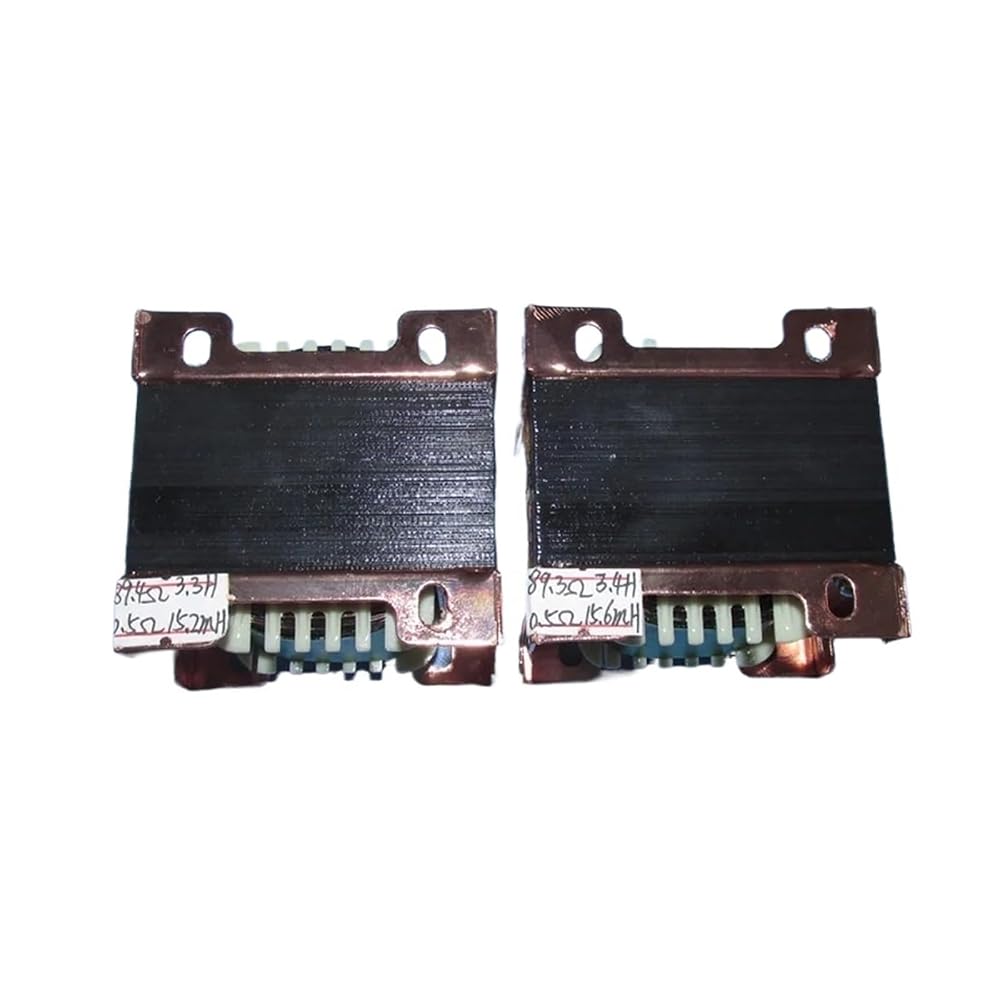

Amplifier Output Transformer 5W 1.3K：8Ω Single-Ended Output Transformer, Frequency Response: 20Hz-20Kz -2dB, Suitable for 6C19 Amplifier(1.3K of 4 ohm) in Kuwait

Amplifier Output Transformer 5W 1.3K：8Ω Single-Ended Output Transformer, Frequency Response: 20Hz-20Kz -2dB, Suitable for 6C19 Amplifier(1.3K of 4 ohm)

KWD 91
Brand
CAARLA
Color1.3K of 4 ohm
– 1 +

Special Features

  • This transformer simplifying assembly while maintaining stable inductance for signal
  • Crafted with robust materials and precise winding to withstand prolonged use in output audio transformer applications without sacrificing tone
  • Serving as a reliable step down transformer for various industrial electronics and audio amplifier projects requiring stable alternating current supply without fluctuation issues
  • Ensuring safe operation in demanding business environments while maintaining consistent performance under continuous heavy load conditions
  • This unit withstands high temperatures and voltage spikes effectively, minimizing eddy current loss to provide long lasting durability for critical electrical equipment that requires uninterrupted power delivery daily

Description

Match 6C19, 1.3K 8 (2.7K 16) 5W amplifier single-ended output transformer:
Appearance size: 68X65X58mm
Iron core size: 66X35mm
Power: 5W (20Hz)
Impedance: 1.3K 8 (2.7K 16)
Copper resistance: primary 1.3K 105 inductance 4.6H. Secondary 8 inductance 15.6MH, copper resistance 0.6
Frequency response: 20Hz-20Kz -2dB.
Heavy contract: 2.056KG /

The characteristic curve of 6C19 is as follows
The main parameters of 6C19
Parameter Symbol Index
Filament voltage Uf 6.3V
Filament current If 1A
Internal resistance Ri 300
Transconductance S 7.5mA / V
Maximum anode current Imax 140mA
Maximum anode power dissipation Pmax 11W
Overall appearance size: 80 * 72 * 68mm, iron core 76X40mm. Input voltage: 220V / 235V optional, primary and secondary with shielded leads, secondary high voltage output 100V-110V 0.2A, filament voltage 6.3V 3A group, filament voltage 3.15V-0-3. 15V 1A group. The power is about 85W. About weight: 1.5KG.
==========
High-concerned chemical : None
Coil Number : Autotransformer
Phase : SINGLE
Origin : Mainland China
Use : AUDIO
