High Accuracy Digital Radius Gauge,Electronic Inside and Outside Radius Gage with Data Transfer Function,for Mechanical Parts,Wooden Molds

KWD 128.500
– 1 +

Special Features

  • 【Material】: The probe and housing are made of hard aluminum alloy, which is more corrosion-resistant and has a longer service life than ordinary plastics

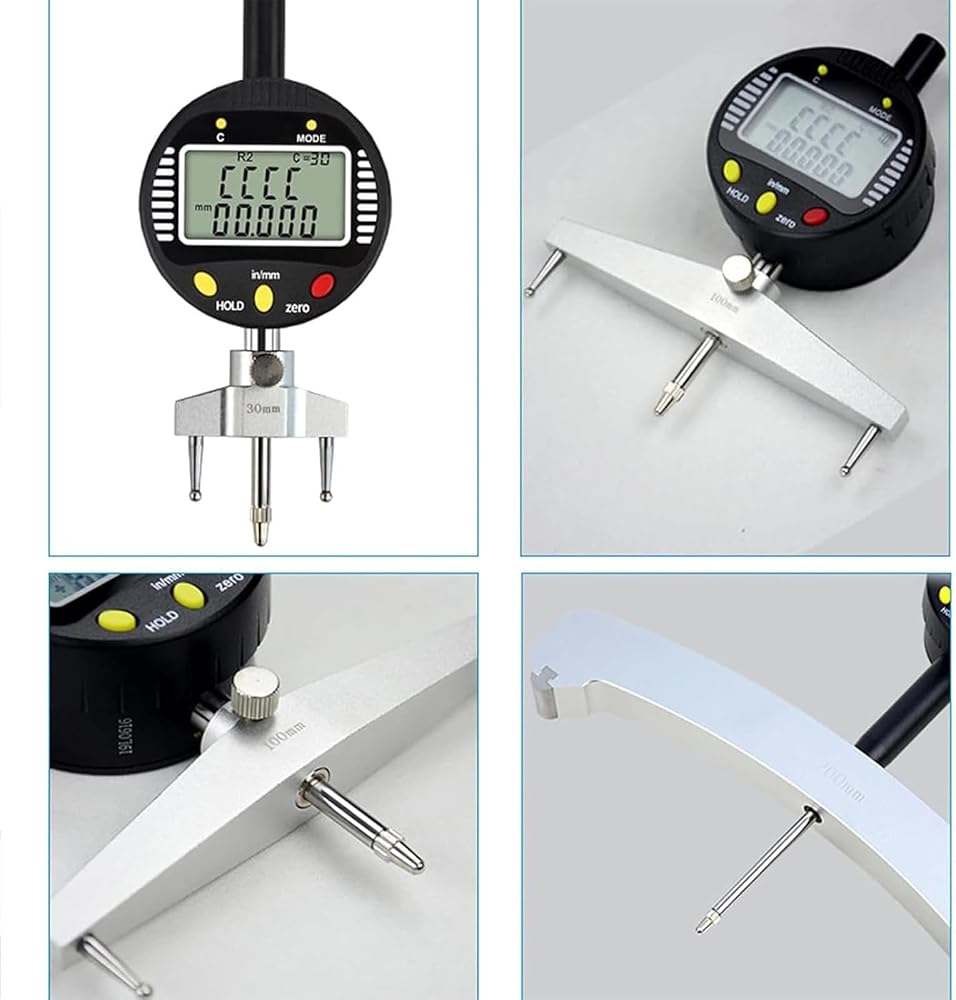

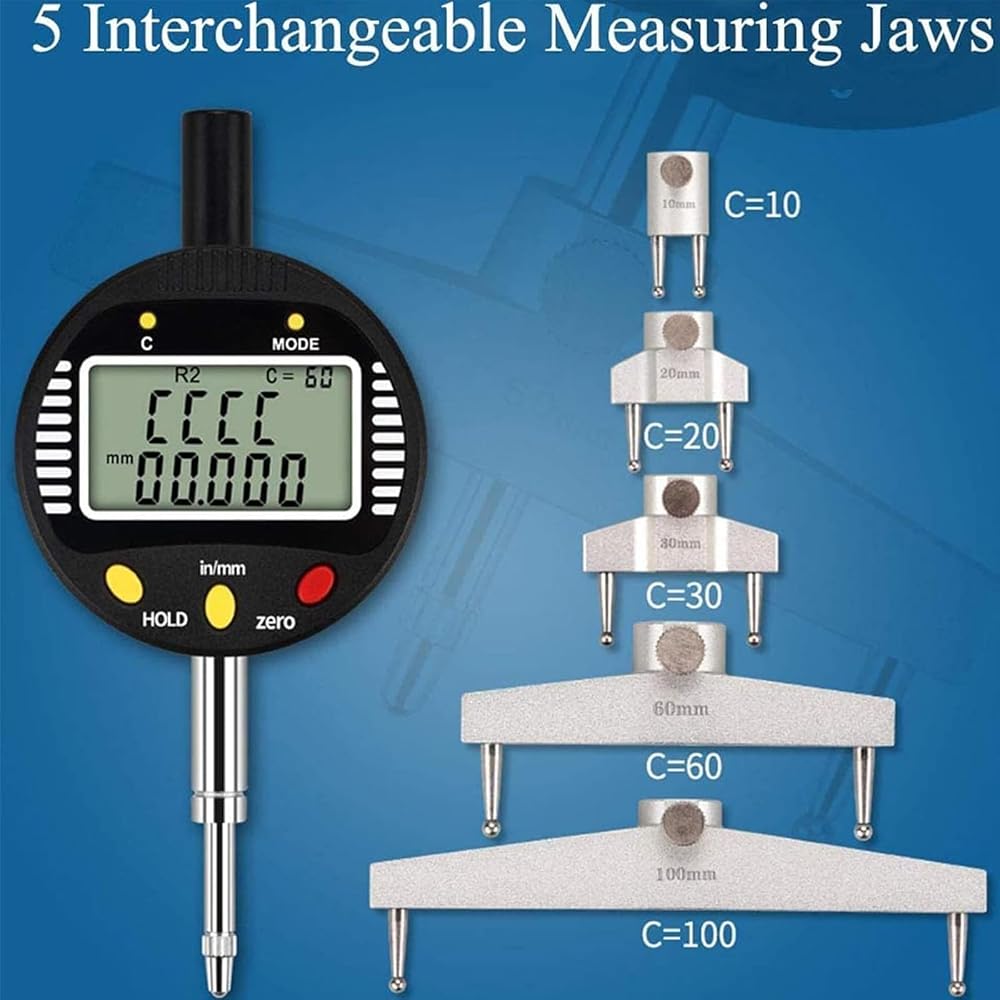

  • 【Interchangeable measuring jaws】: The gauge has 5 interchangeable measuring jaws, with sizes of 10mm, 20mm, 30mm, 60mm and 100mm, allowing you to choose the most suitable option according to your specific measurement needs. This ensures that every measurement is accurate and efficient

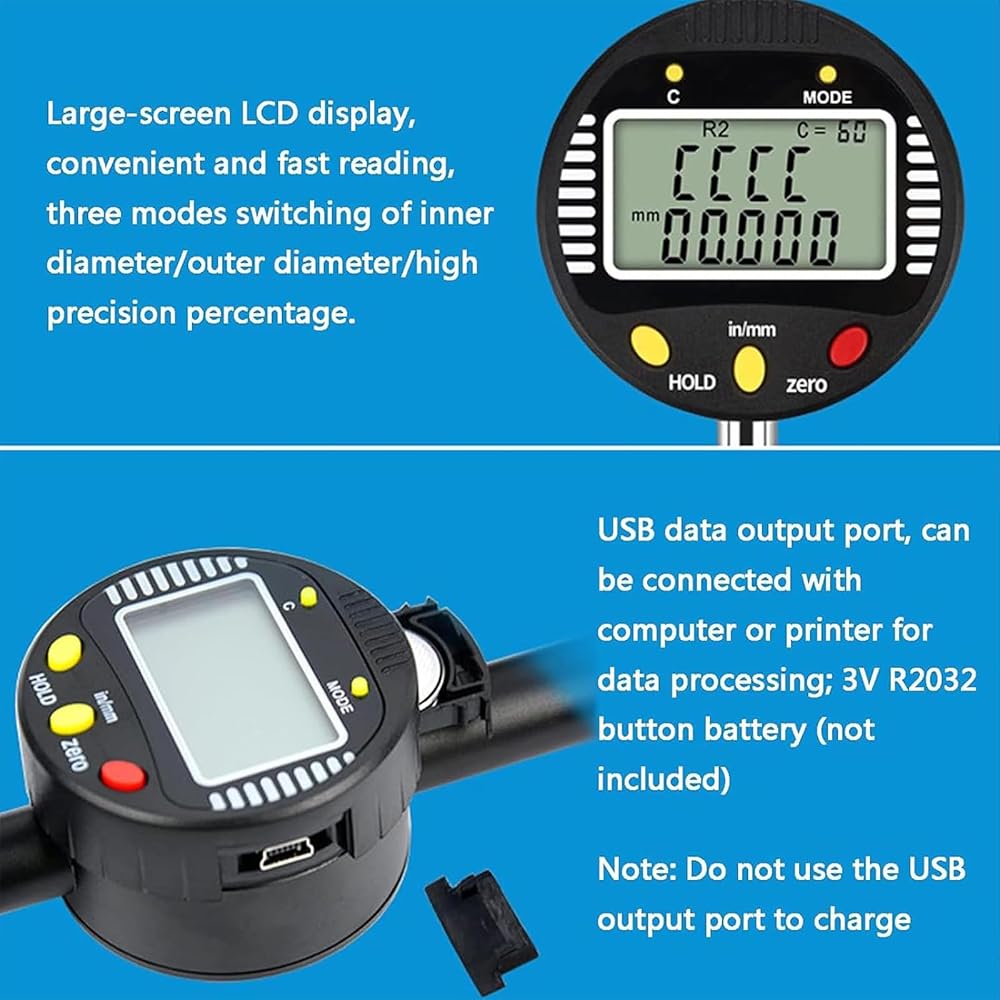

  • 【Convenient data transmission】: With data output, it can be easily connected to a computer or printer for data processing. Please note that this port should not be used for charging

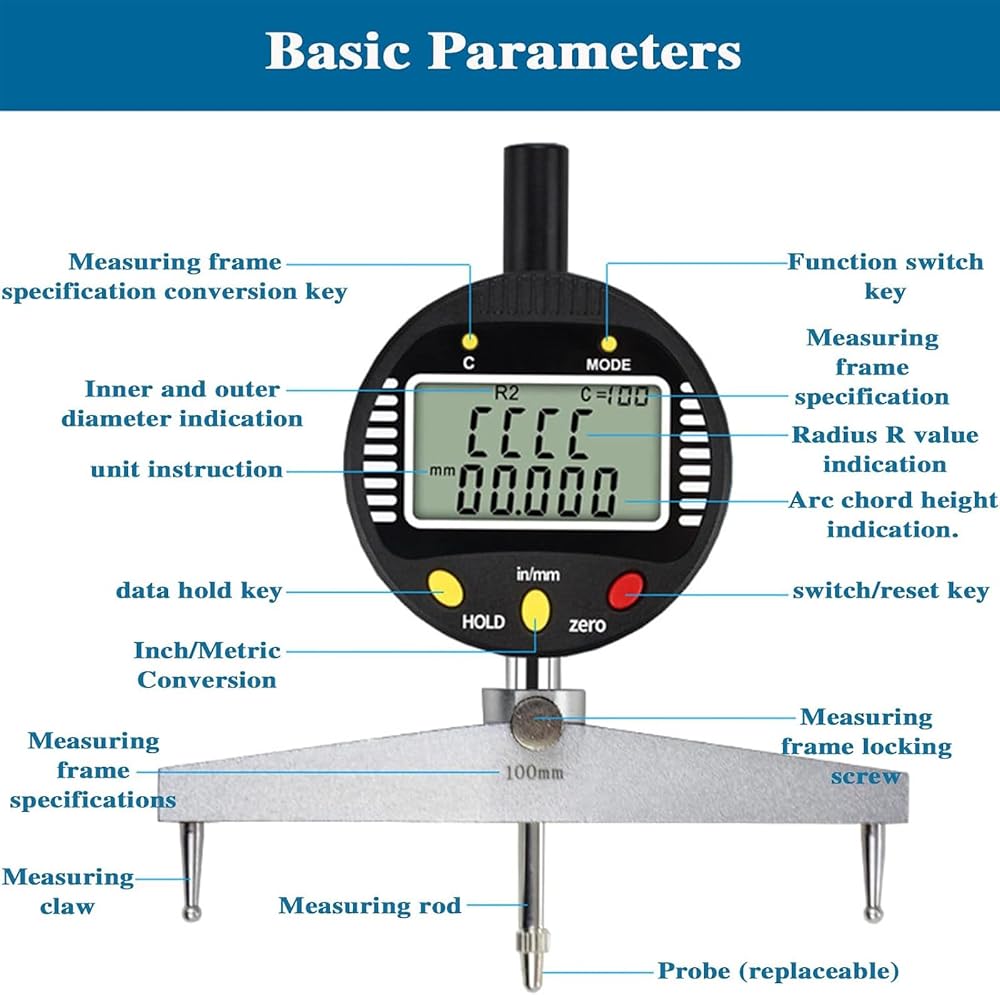

  • 【LCD display】: The measurement results are clear at a glance and display: inner diameter, outer diameter, measuring jaws, radius R value, metric and imperial units, length, bowstring height, easy to save current data, unit conversion (mm/inch) and reset

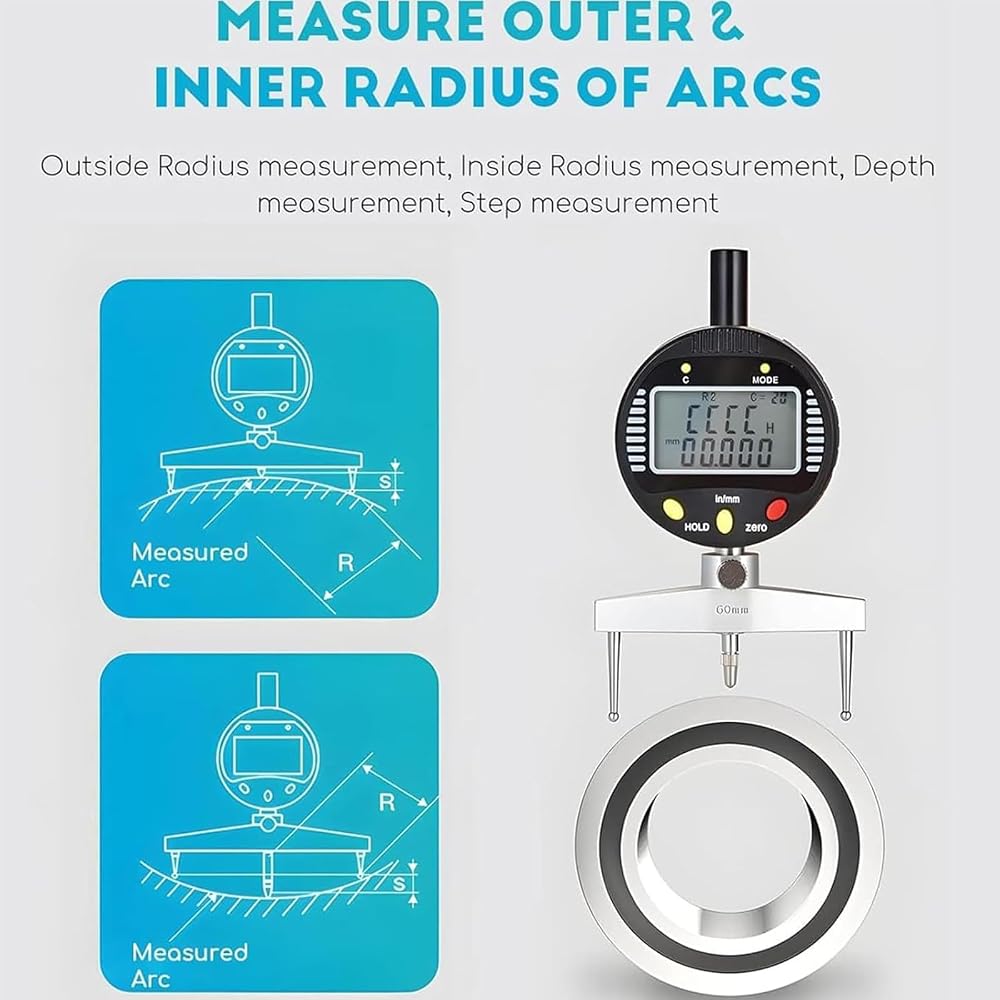

  • 【 Wide application】: It can measure the outer radius and inner radius of the arch. And it has a data output port, which can import data into a computer. It is very suitable for daily arc measurement, such as for mechanical parts, wooden molds, structural steel molds, etc.

Description

Use multiple measuring claws, and choose measuring claws of different spans for different bending radii and measurement accuracy

Specifications:
Product name: Digital radius gauge
Material: aluminum alloy
Measuring range: 0-12.7mm
Accuracy: 20μm
Resolution (mm/inch): 0.005/0.0005"
Radius accuracy: Display range: Length displacement 0-13mm
Radius range: 5-700mm
Displacement measurement error: △s≤0.02mm
Radius measurement error: △r≤0.01*r/s
Working temperature: 0±40℃
Temperature influence: Relative humidity ≤80% is not affected

Packing list:
1 * Digital radius gauge
5 * Measuring claws

Tips:
1. Do not charge with output port

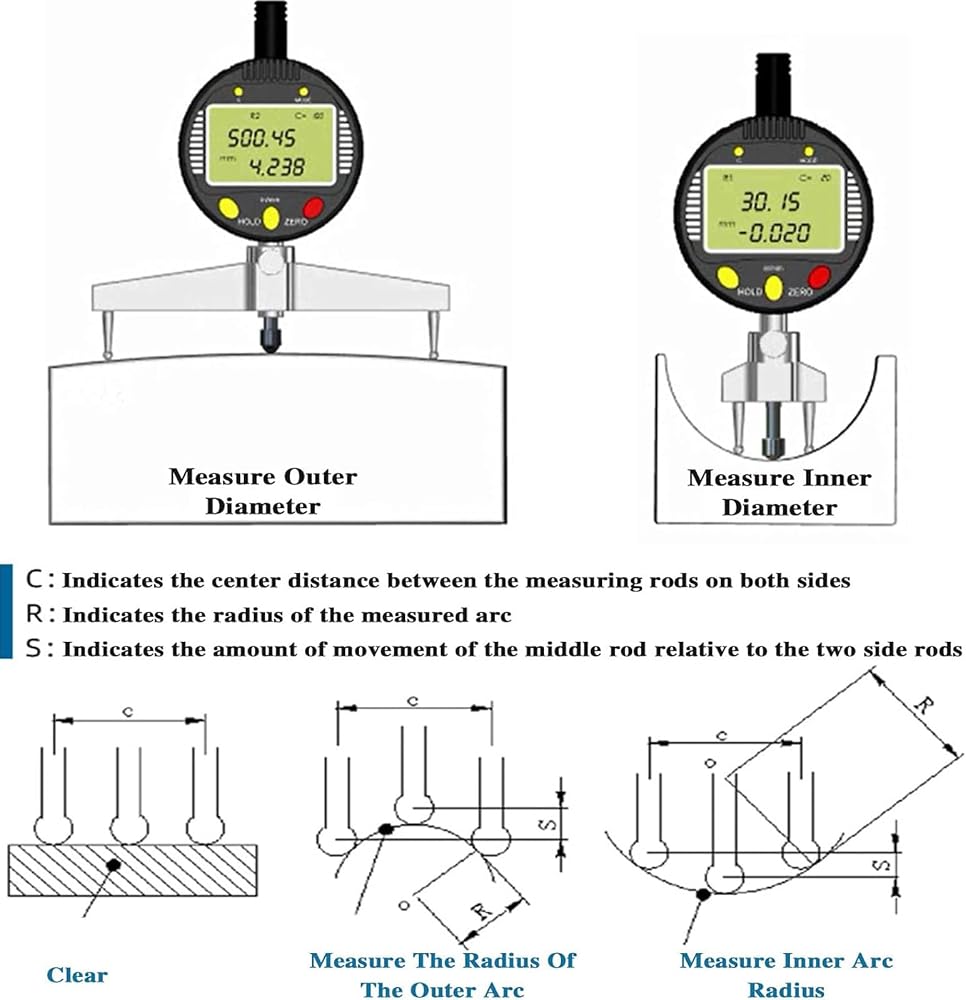

2. R is the radius to be measured, and S is the corresponding displacement value

We are committed to providing the best service to our valued customers. We sell high-quality products at the best prices and excellent services. Your questions will be answered within 24 hours. If you have any questions, please feel free to contact
