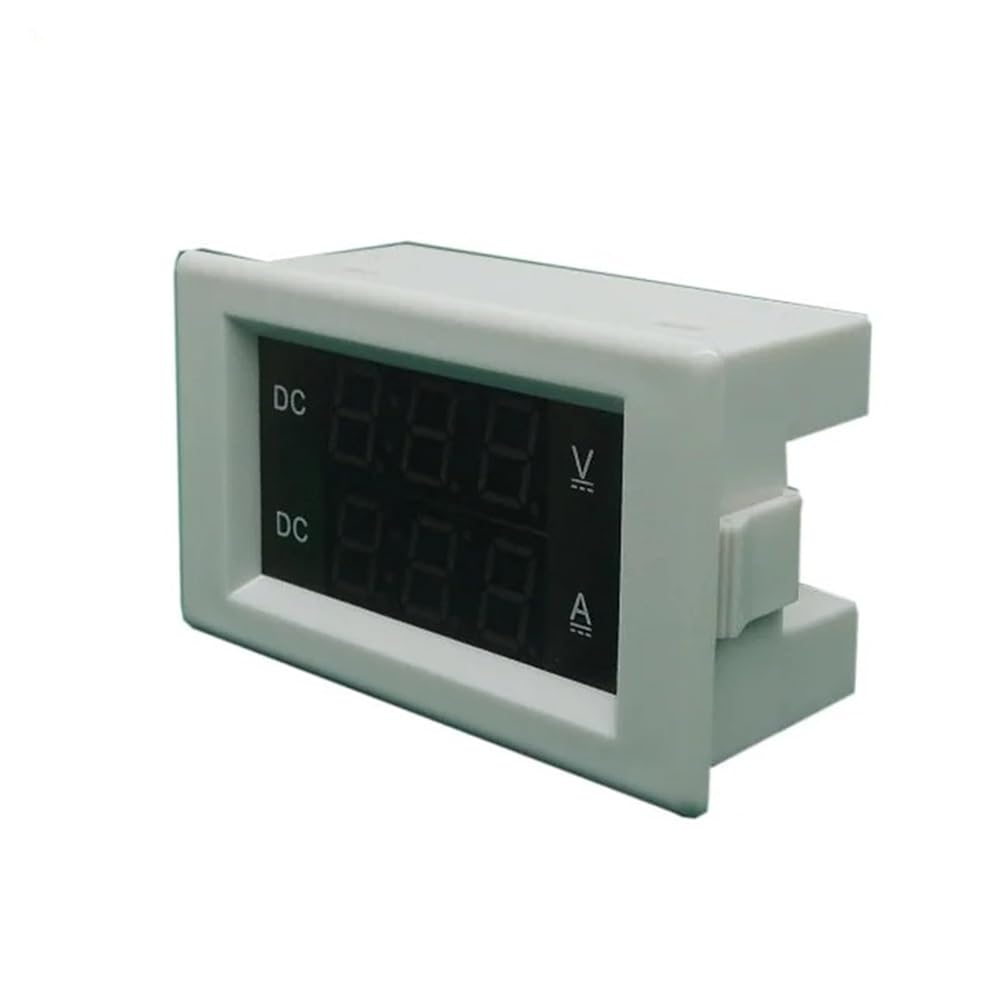

DC 3.5-30V 4.5-100V LED Digital Voltage and Current Meter DC

Dimensions: 70 x 40 x 30 mm
Mounting opening: 68 x 38 mm
Measurement rate: 500mS/time
Measurement accuracy: 1% (±2 digits)
Wide power supply range: DC3.5~30V/4.5-100V, with reverse polarity protection.

Test terminal: three-wire terminal
COM: Test common terminal (COM is the common negative pole of the voltmeter and ammeter)
V+: Test positive voltage input
A+: Test positive current input, can only be connected to the negative pole of the load and the negative pole of the load power supply
Size: 70*40*30mm
Working temperature: -10~50 degrees
Supply voltage: No additional power supply required
Accuracy level: 1% (±2 digits)
: YB4835VA

Installation opening: 68*38 mm
Display type: 0.39" LED, red for voltage, green for current
Measurement rate: 500mS/time
Test voltage: DC 3.5-30V 4.5-100V
