RF Low Pass Filter 1MHz-1GHz 50 Ohm LC Module for Ham Radio and RF Power with for sma Interface(LPF-500MK) in Kuwait RF Low Pass Filter 1MHz-1GHz 50 Ohm LC Module for Ham Radio and RF Power with for sma Interface(LPF-500MK) in Kuwait RF Low Pass Filter 1MHz-1GHz 50 Ohm LC Module for Ham Radio and RF Power with for sma Interface(LPF-500MK) in Kuwait

RF Low Pass Filter 1MHz-1GHz 50 Ohm LC Module for Ham Radio and RF Power with for sma Interface(LPF-500MK)

KWD 13
Brand
Tufgo
Weight
29 g
SizeLPF-500MK
– 1 +

Special Features

  • 【Sturdy and 】Made of materials, this RF Low Pass Filter LPF Filter is sturdy and , long-lasting performance.
  • 【Wide for frequency Range】Covering a for frequency range from 1MHz to 1Ghz, this Amateur Radio Low Pass Filter Module is suitable for various applications in amateur radio and telecommunications.
  • 【Multiple Options】Choose from a range of models including LPF-1MK, LPF-5MK, LPF-10MK, LPF-30MK, LPF-40MK, LPF-50MK, LPF-100MK, LPF-500MK, and LPF-1GK to fit your specific needs and requirements.
  • 【Low Insertion Loss】With low insertion loss and high attenuation, this filter provides optimal signal and effectively filters out unwanted frequencies.
  • 【Compact and Lightweight】Measuring 62 x 25 x 12mm, this LPF Filter Module is compact and lightweight, making it and integrate into your setup.

Description

Product Description:
* and
* Made of materials, sturdy and
* 1M-1G RF Low Pass Filter LPF Filter Amateur Radio Low Pass Filter Module

Version introduction:
- LPF-1MK: 1MHz LC LPF, DC-1M. Insertion loss 1M-1.2dB, 2M-48dB, 3M-80dB.
- LPF-5MK: 5M LC LPF, DC-5M. Insertion loss 5M-2.7dB, 10M-50dB, 15M-78dB.
- LPF-10MK: 10M LC LPF, DC-10M. Insertion loss 10M-1.8dB, 20M-49dB, 30M-65dB.
- LPF-30MK: 30M LC LPF, DC-30M. Insertion loss 30M-1.3dB, 60M-50dB, 90M-67dB.
- LPF-40MK: 40M LC LPF, DC-40M. Insertion loss 40M-1.8dB, 80M-58dB, 120M-65dB.
- LPF-50MK: 50M LC LPF, DC-50M. Insertion loss 50M-1.4dB, 100M-53dB, 150M-65dB.
- LPF-100MK: DC-100M LC LPF. Insertion loss 100M-1.5dB, 200M-55dB, 300M-55dB.

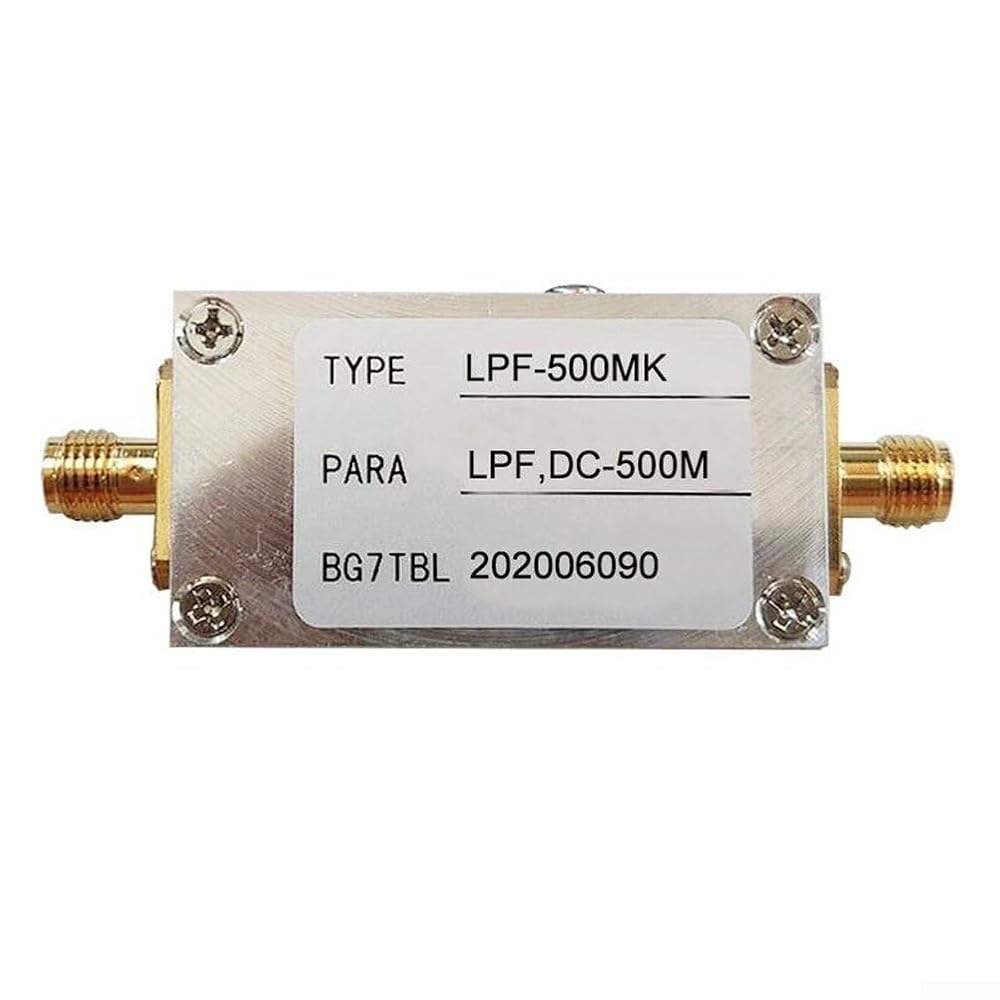

- LPF-500MK: DC-500M LC LPF. Insertion loss 500M-1.1dB, 1G-60dB, 1.5G-60DB.

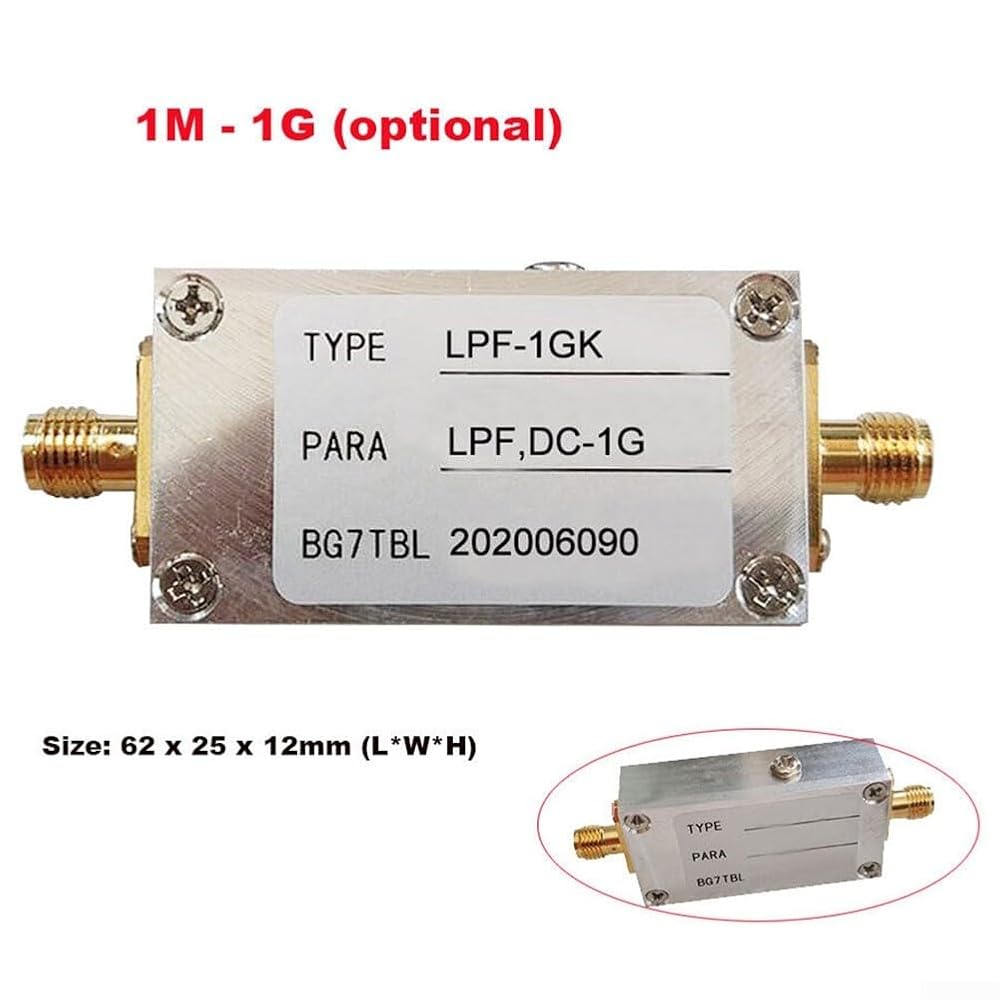

- LPF-1GK: DC-1G LC LPF. Insertion loss 1G-1.1dB, 2G-49dB, 3G-60DB.

Specification:

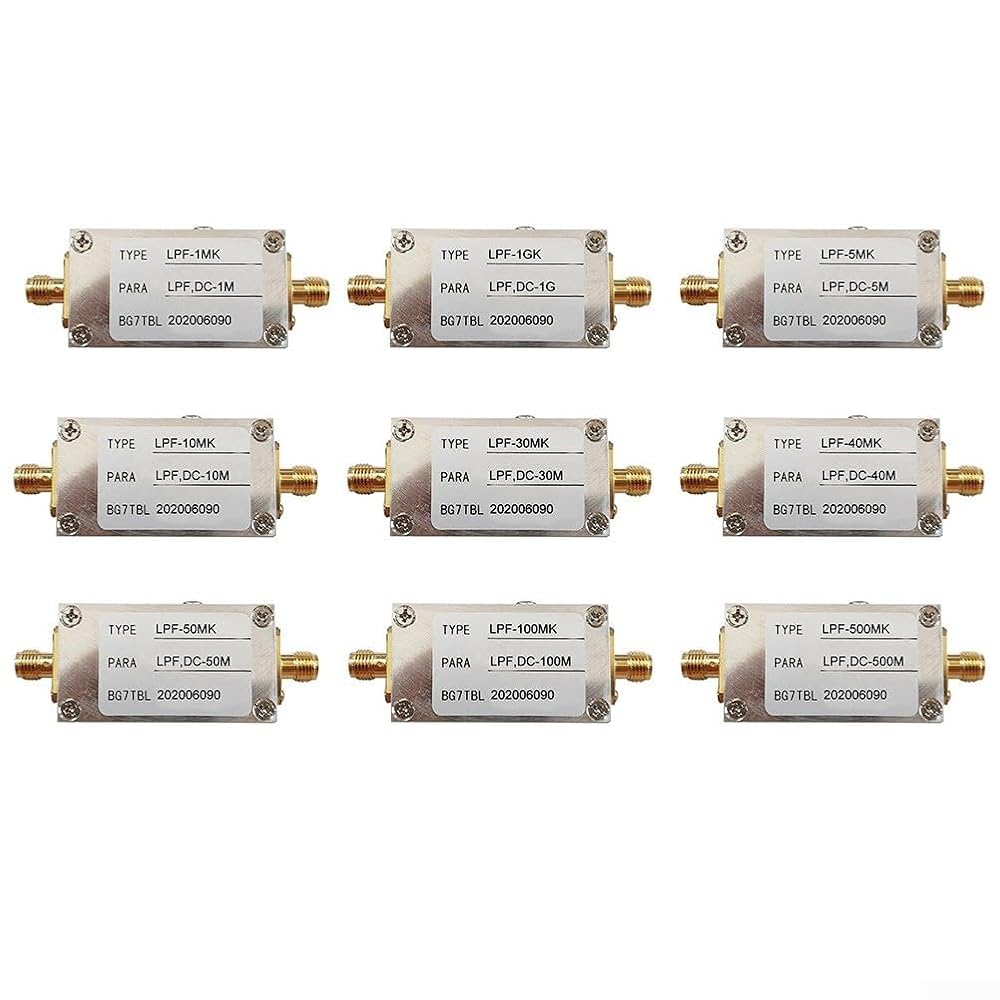

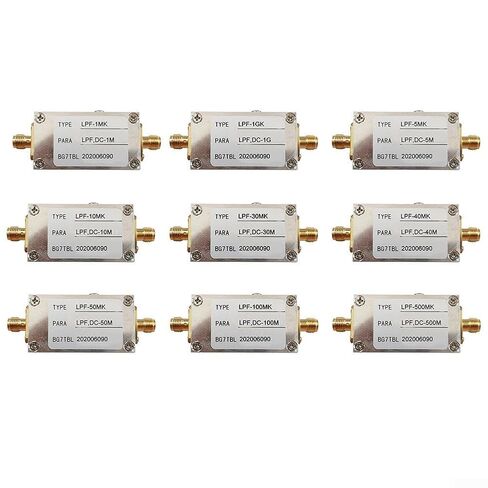

Model (optional): LPF-1MK, LPF-5MK, LPF-10MK, LPF-30MK, LPF-40MK, LPF-50MK, LPF-100MK, LPF-500MK, LPF-1GK
Input/output impedance: 50 ohms
Interface: for SMA, nickel plated or gold plated
Product size: 62 x 25 x 12mm (length*width*height)
Net weight: 30 grams
Tunertechnology：DAB

Package Included:
1 x low pass filter
