**Professional Welding Inspection Tool for Precise Fillet Weld Measurement**
This stainless steel weld gauge is engineered for professionals requiring precise dimensional measurement of fillet welds. It addresses the need for accurate, on-site inspection of weld angles, widths, and heights, ensuring quality control and adherence to welding standards in industrial and fabrication environments.
**Accurate and Easy-to-Use Inspection in Three Steps**

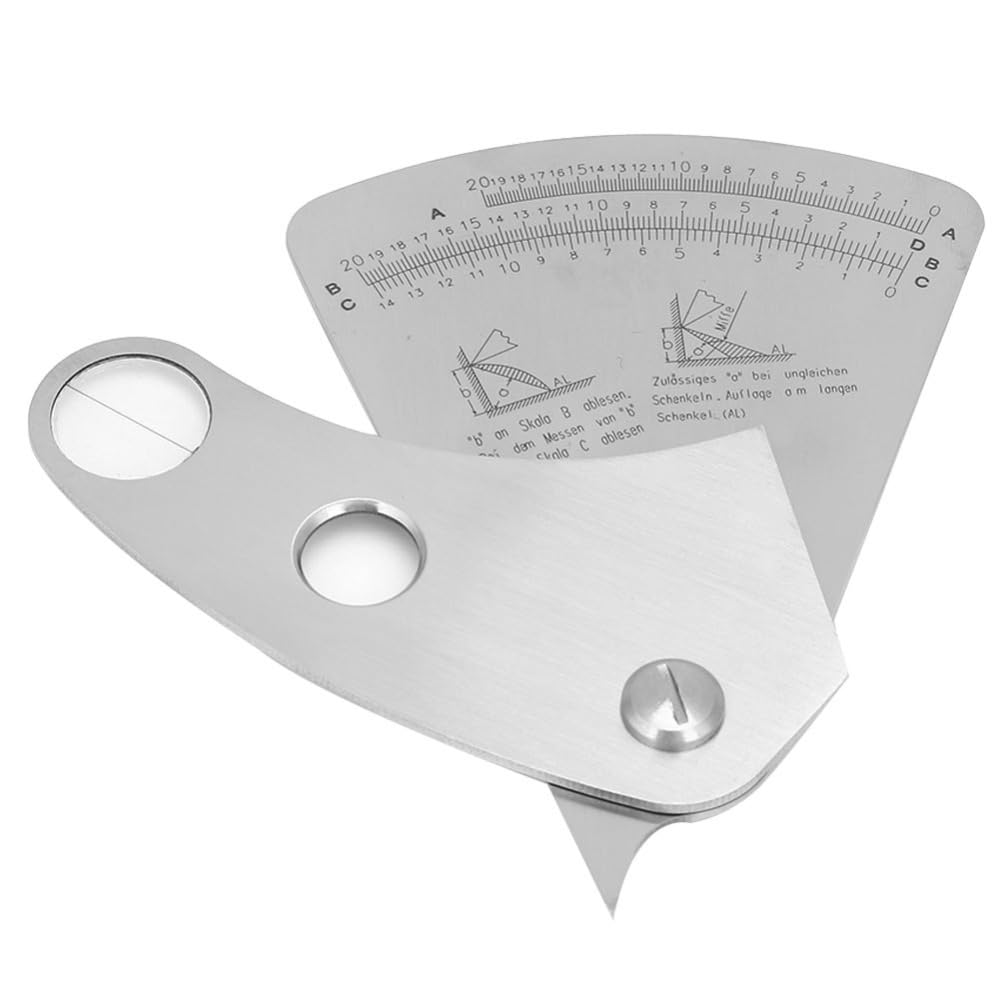

1. **Align and Measure Angle:** Place the fan-shaped edge against the weld toe. The clearly engraved angular scales allow you to quickly read the fillet weld angle directly.
2. **Check Weld Size:** Use the precision-machined steps and notches along the tool's edges to gauge the weld leg length (width) and throat thickness (height) against your specifications.

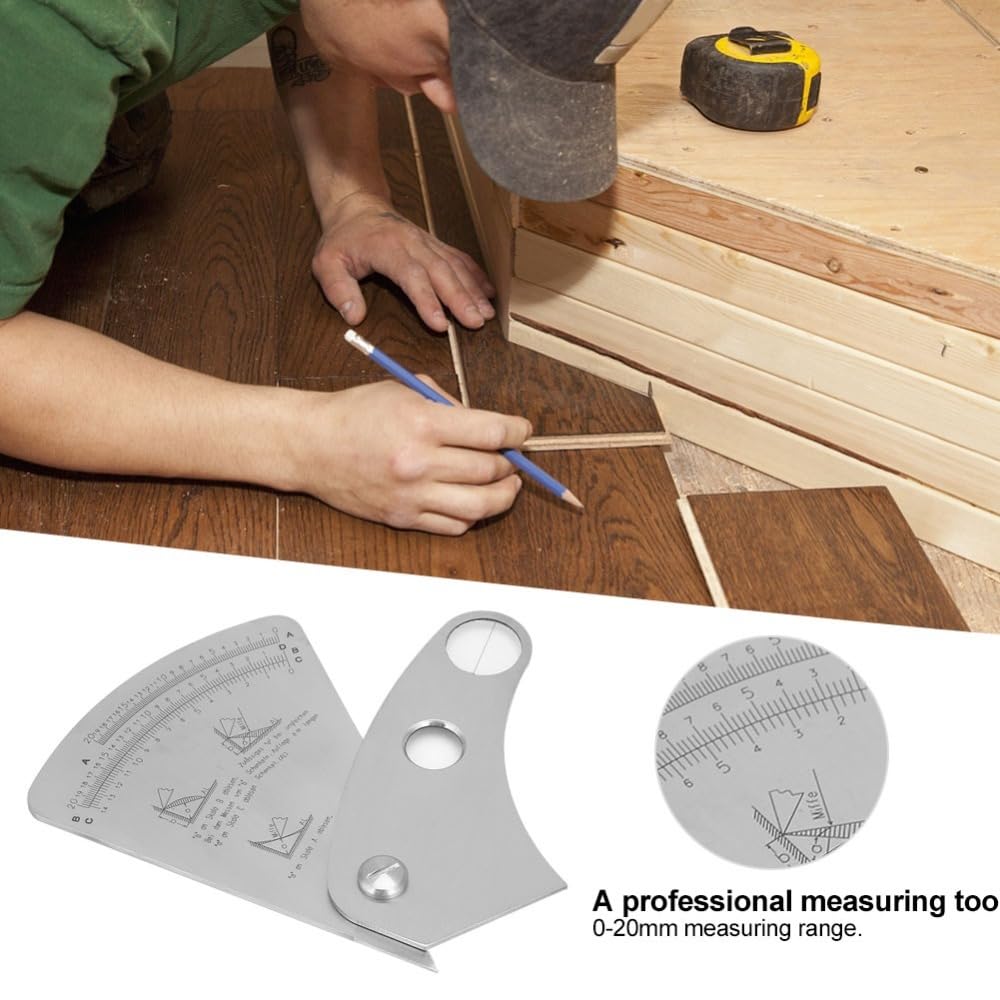

3. **Verify with Standard Range:** The tool's 0-20mm (0.00-0.79in) measuring range covers common fillet weld sizes, providing a reliable reference for pass/fail assessment during your welding inspection process.
**Key Specifications and Data**
| Attribute | Specification |
| :--- | :--- |
| **Material** | Stainless Steel |
| **Model** | HFG26 |
| **Primary Function** | Fillet Weld Measurement |
| **Measurement Range** | 0 - 20 mm (0.00 - 0.79 in) |
| **Scale Accuracy** | 0.01 mm Graduation |

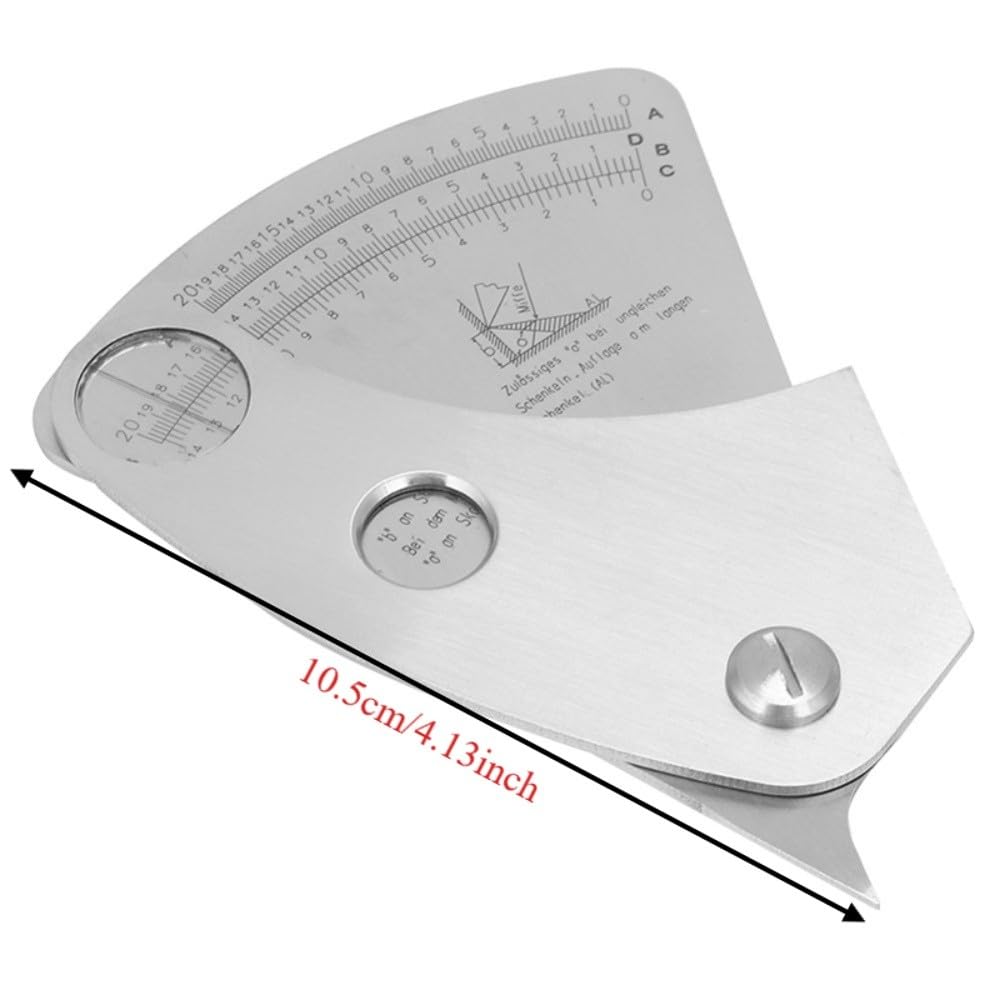

| **Tool Dimensions** | 105 mm Length (4.13 in) |
| **Color / Finish** | Silver |
**Package Contents**

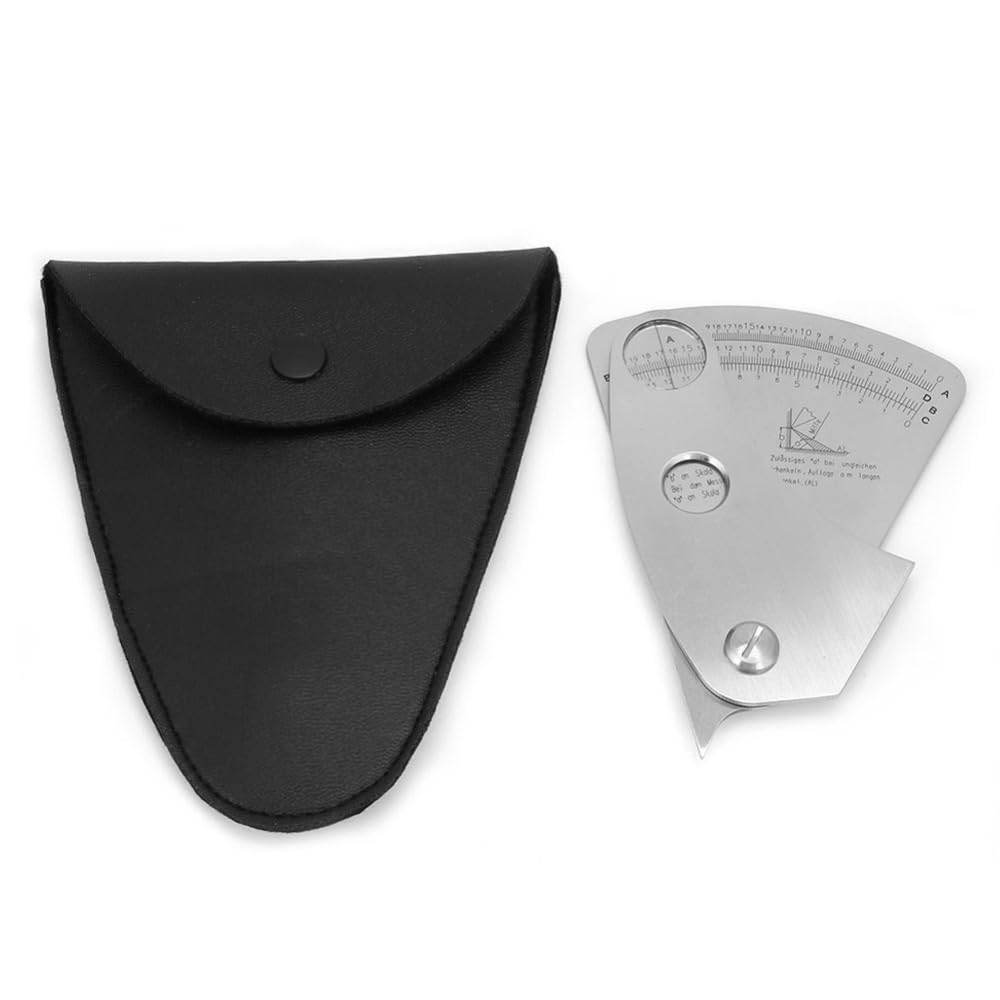

You will receive: 1 x Welding Inspection Gauge.
**Important Notes**
Slight color variations may occur due to monitor settings and lighting conditions during photography.
Manual measurement with caliper gages may have a small tolerance; please allow for a minimal deviation.
