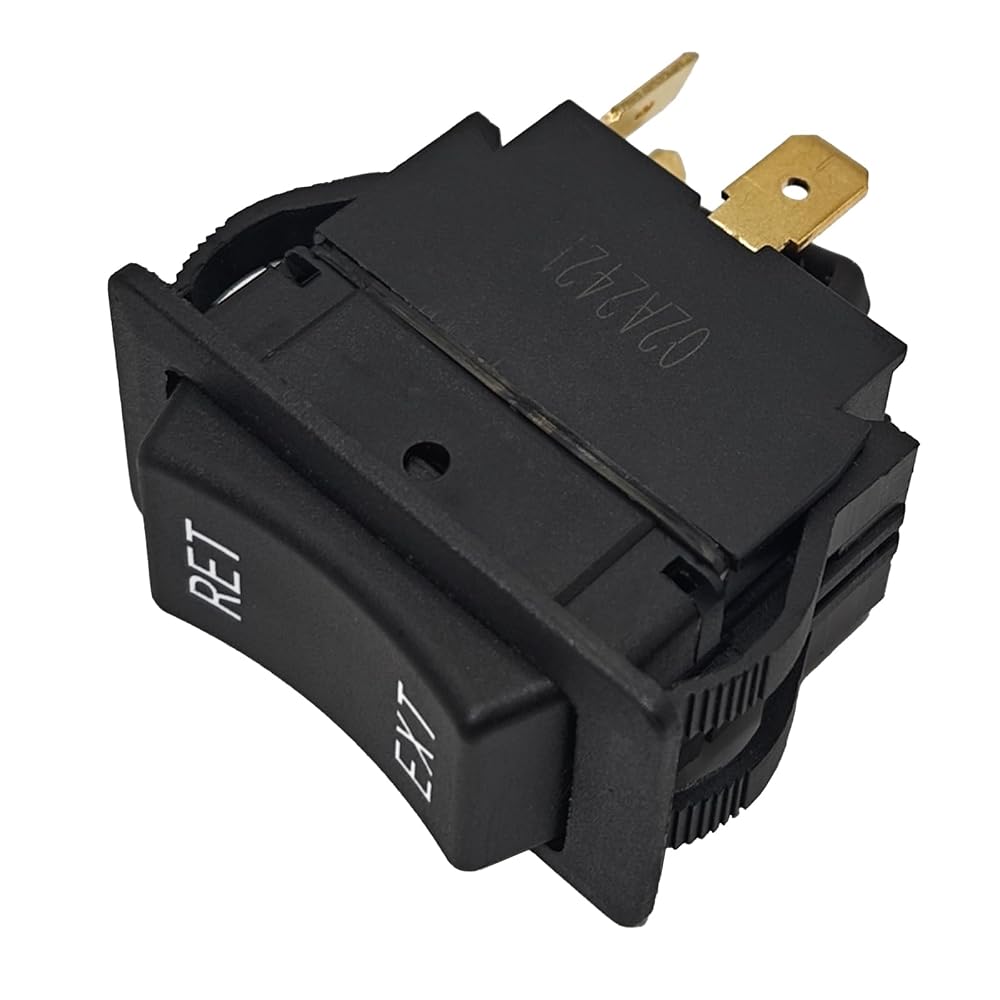

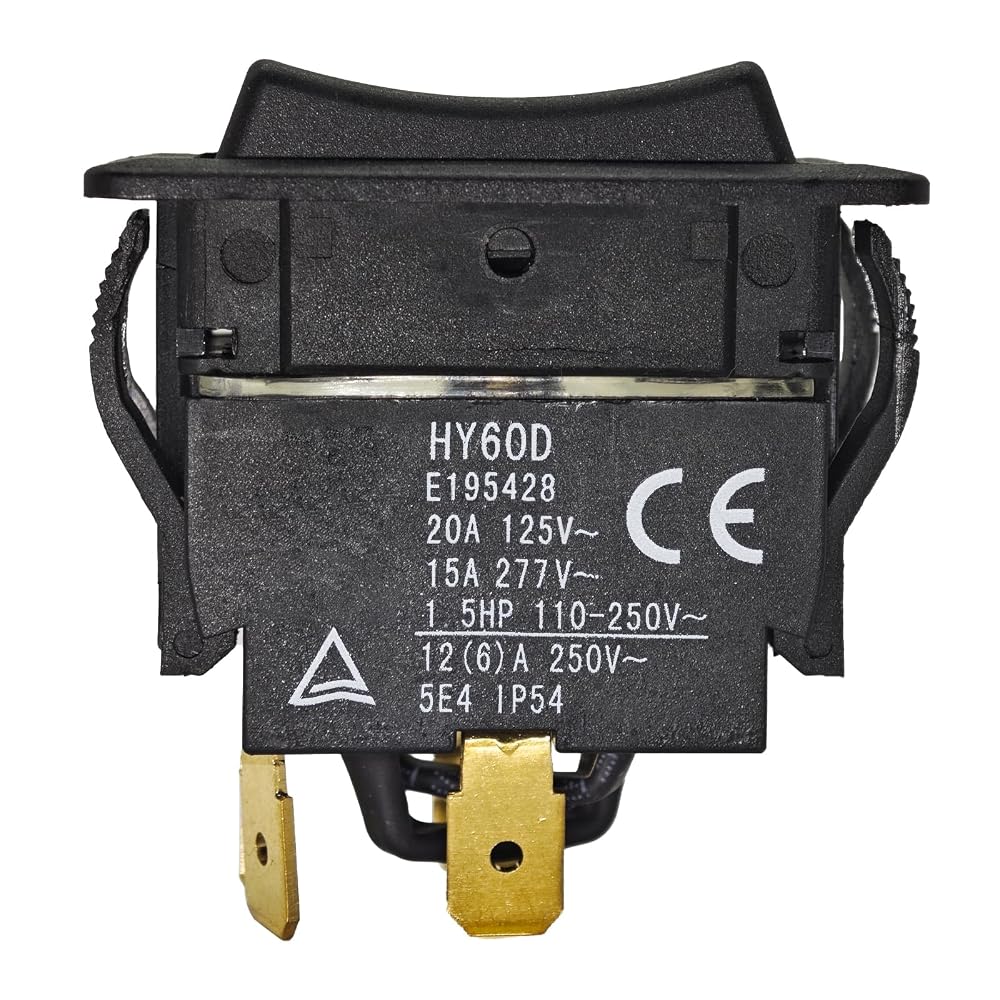

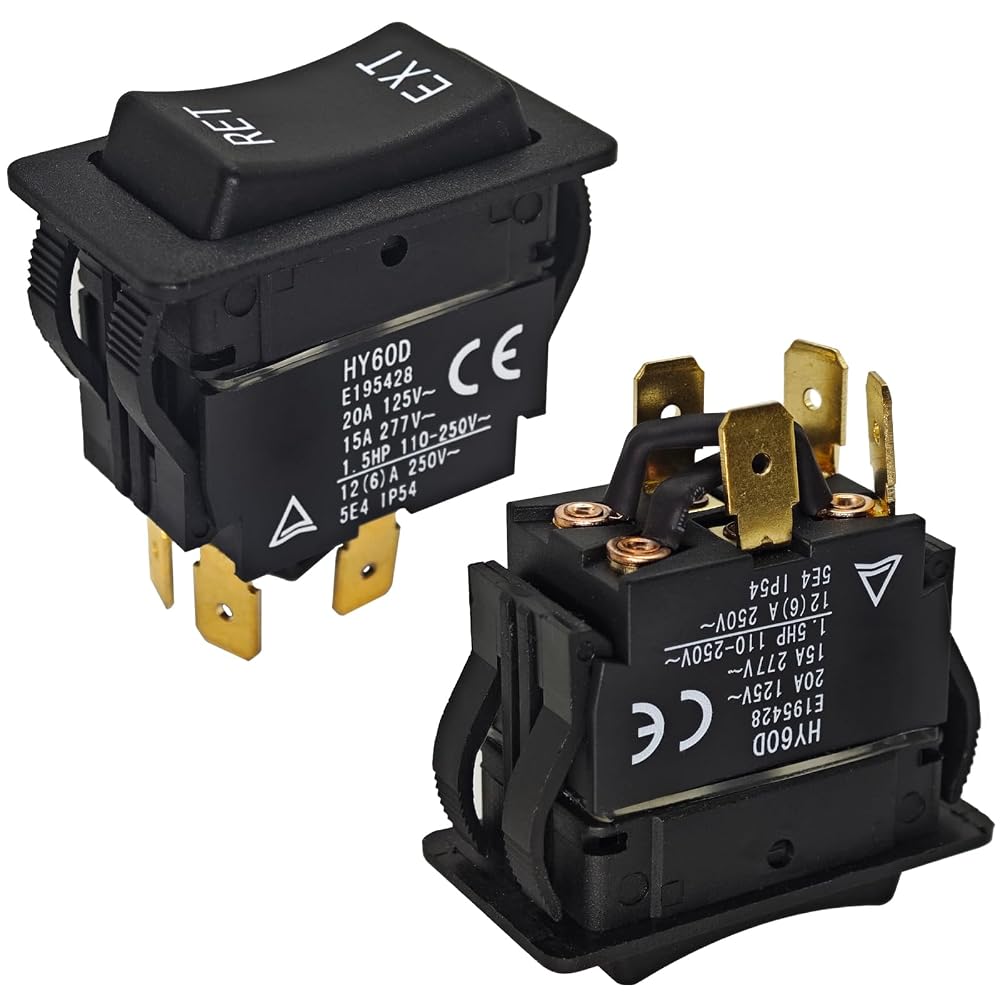

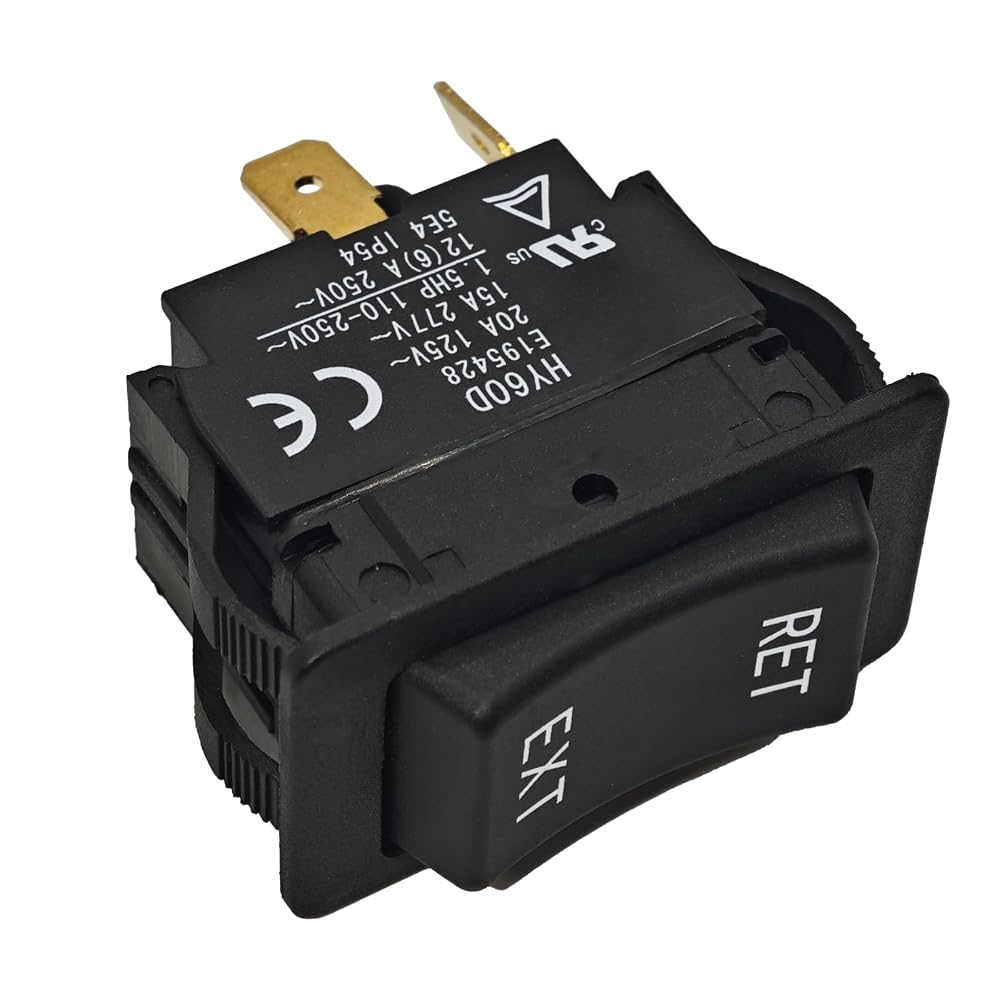

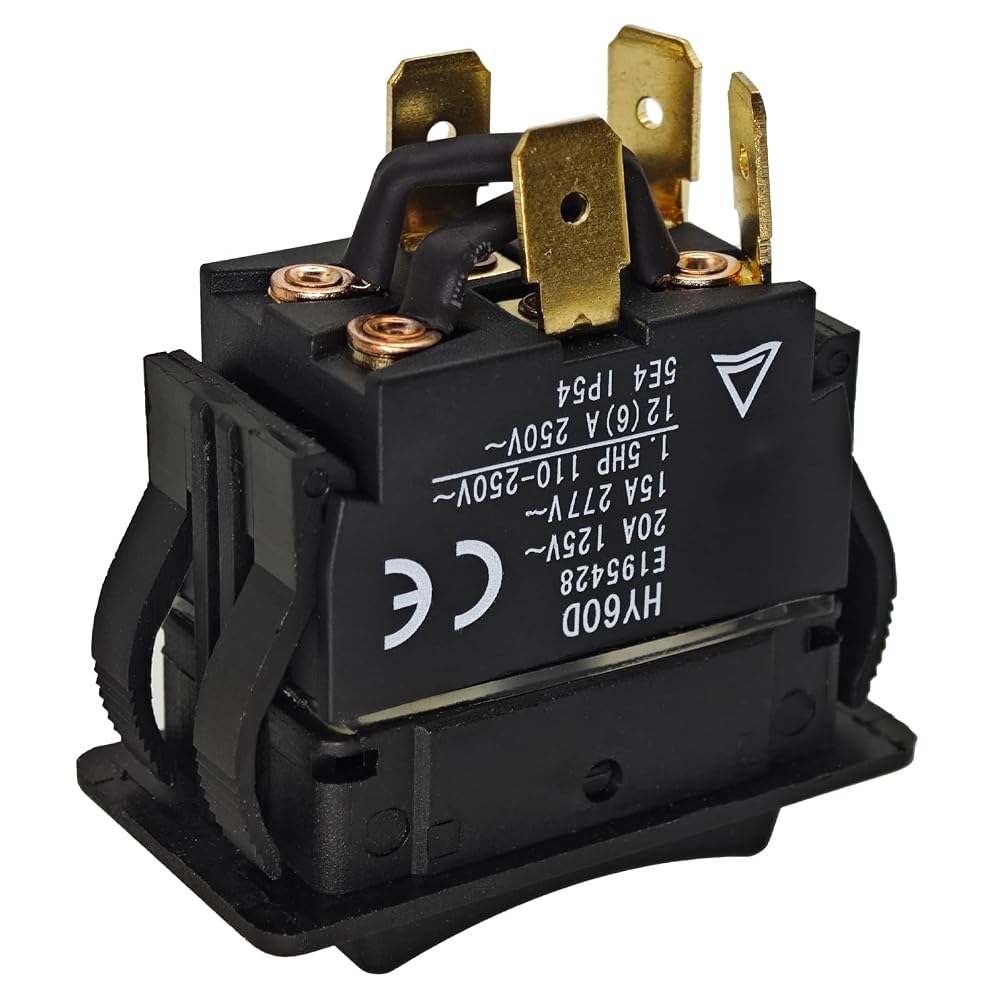

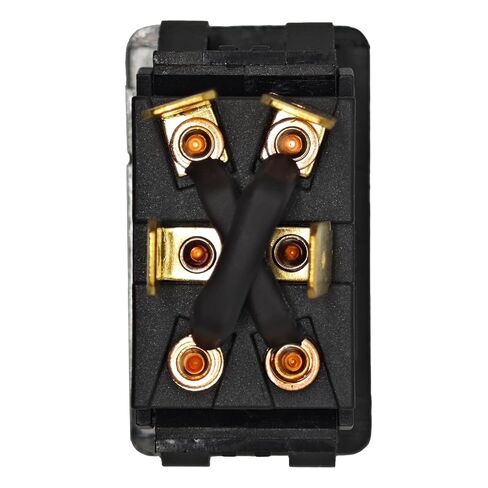

2Pcs HY60D Rocker Switch - ON-Off-ON RET-EXT 20A 125VAC 4-Pin Pushbutton Switch

KWD 6.500
– 1 +

Special Features

  • Electrical Rating: 20A @ 125VAC (operational range 110-250VAC) with 4-pin tab terminals (6.3x0.8mm)
  • Switch Configuration: ON-OFF-ON operation enables bi-directional motor control for reversing applications
  • RET-EXT Function: Automatic reset mechanism for cycling between positions
  • Environmental Protection: IP54-rated housing resists dust ingress and water splashes
  • Durability Validation: Rated for 50,000 mechanical cycles (5E4)

Description

Functional ON-OFF-ON Rocker Switch Assembly
This HY60D switch pack contains two (2) pushbutton rocker switches designed for electrical control systems requiring bidirectional operation.

 Technical Specifications:
Contact Configuration: 4-pin SPDT
Terminal Type: Tab 6.3x0.8mm
Electrical Rating: 20A resistive @ 125VAC
Operational Range: 110-250VAC
Mechanical Life: 50,000 cycles minimum
Protection Standard: IP54 (tested per IEC 60529)

 Key Features:
 RET-EXT Mechanism: Automatic return to center-off position
 Mounting: Panel-mount design with 22.5mm cutout
 Contact Material: Silver alloy (verified conductivity)

 Typical Applications:
Industrial equipment motor reversal
Material handling direction control
Automotive accessory switching
HVAC damper actuators

 Installation Requirements:
 Verify load compatibility (inductive loads derate to 15A)
 Maintain minimum 2mm clearance from grounded surfaces
 Use 16-22 AWG copper conductors
 Torque terminal screws to 0.8 N·m (7 lb-in)
