22pcs Metric System Keyway Broach Set, Bushing Shim Set 12-30 HSS Keyway Tool Knife for CNC Machine Precision Engineering

KWD 148.500
Brand
ZJSLKKSGS
Category
Cutting Tools
Weight
4.8 kg
– 1 +

Special Features

  • 1. This 22pcs Metric System Keyway Broach Set includes a wide range of sizes from 12 to 30
  • 2. Crafted from high-speed steel (HSS)
  • 3. This Keyway Broach Set is for creating keyways in various materials
  • 4. Each broach in the set is clearly marked with its size
  • 5. Alongside the Keyway Broach Set, this kit comes with a bushing shim set that helps ensure accurate alignment

Description

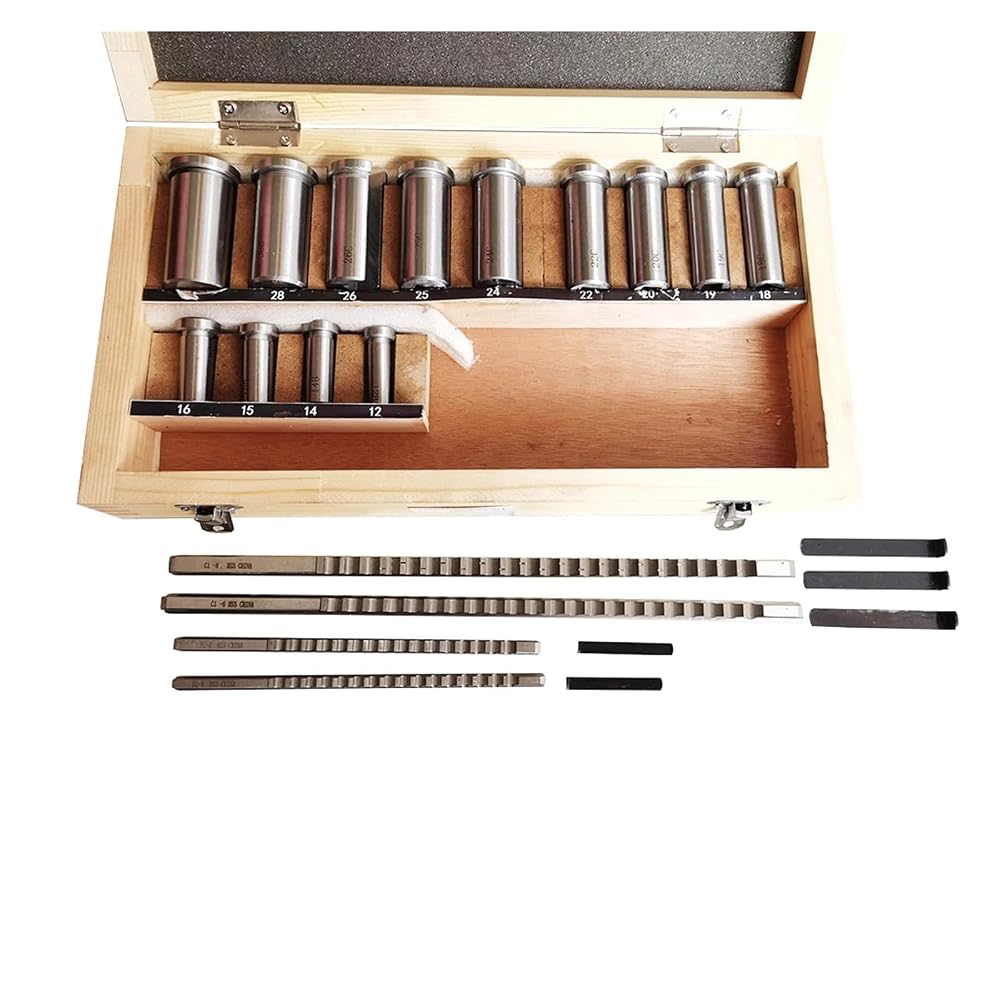

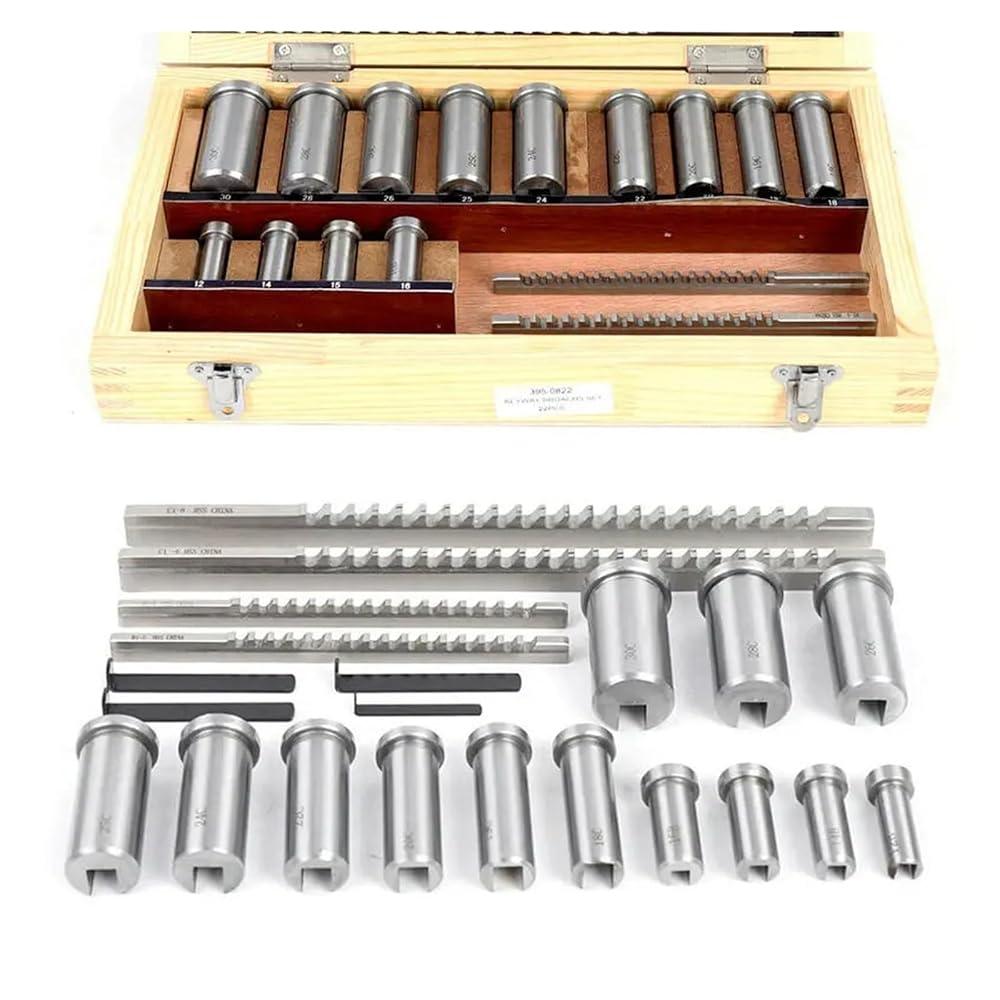

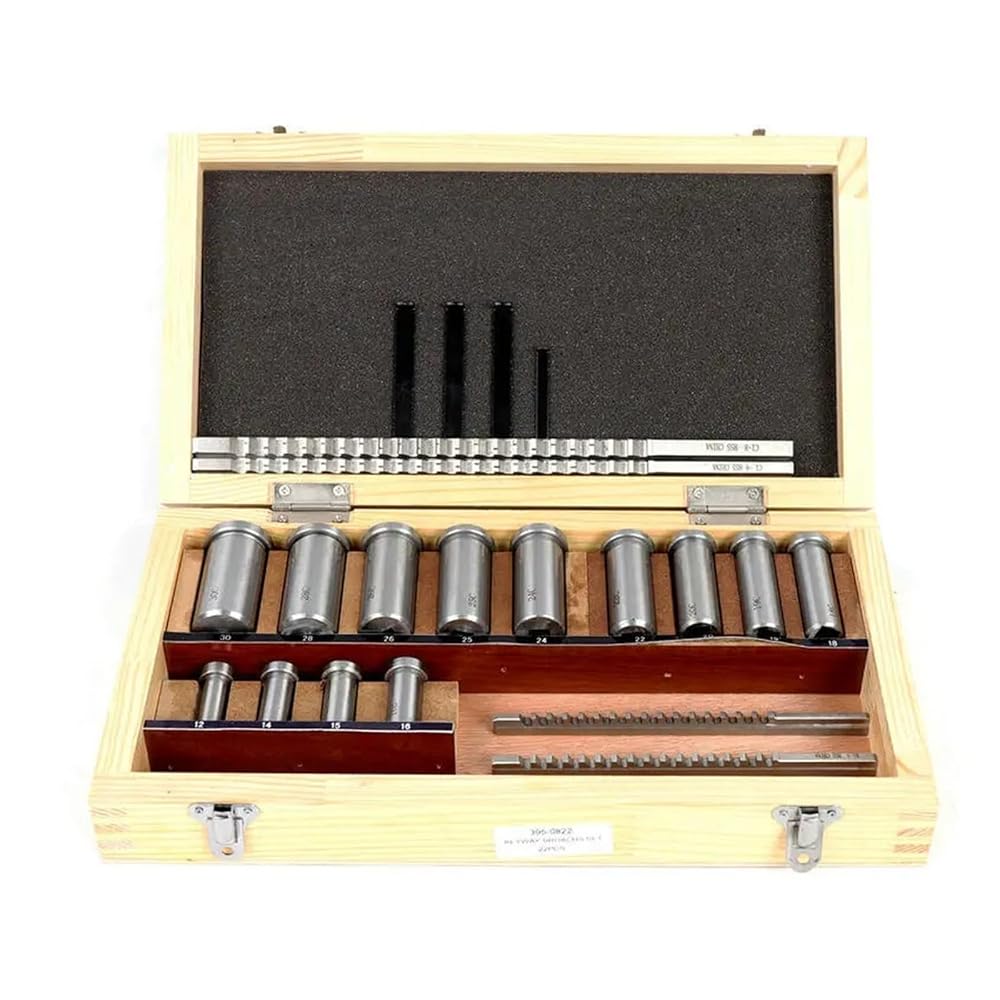

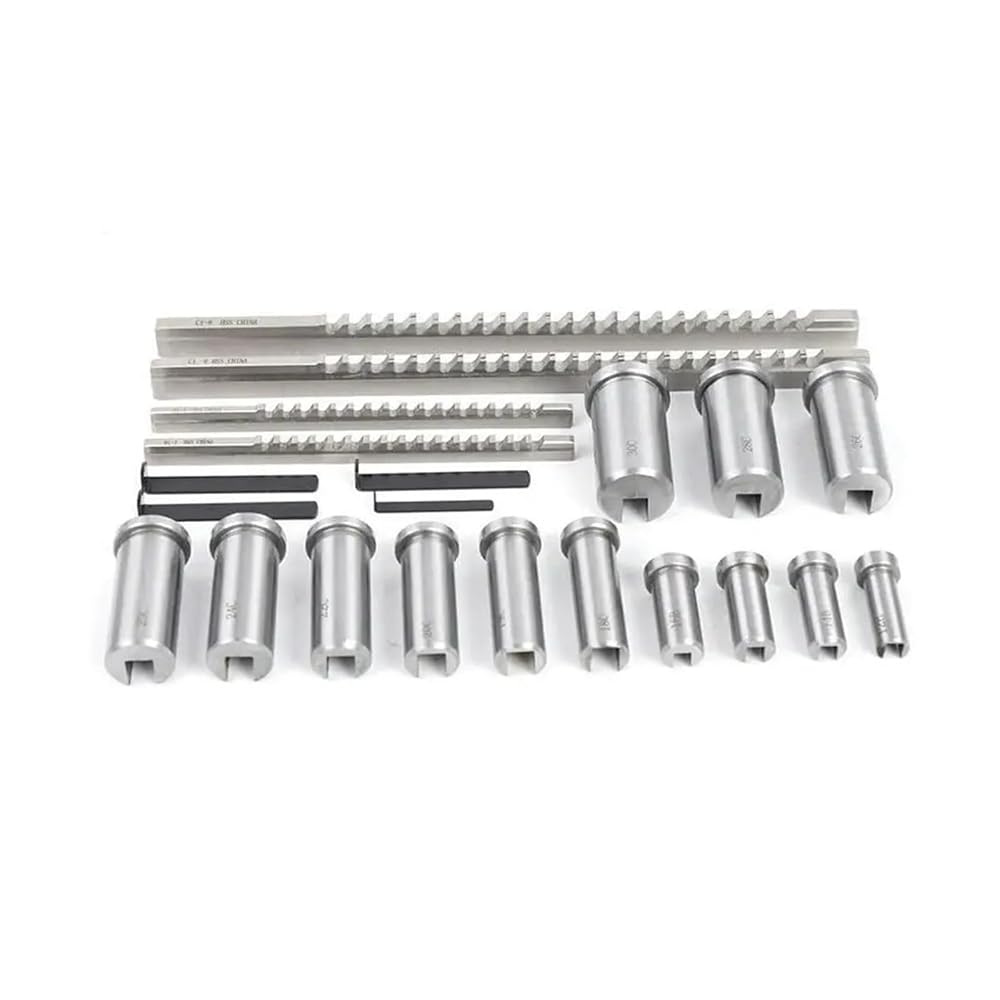

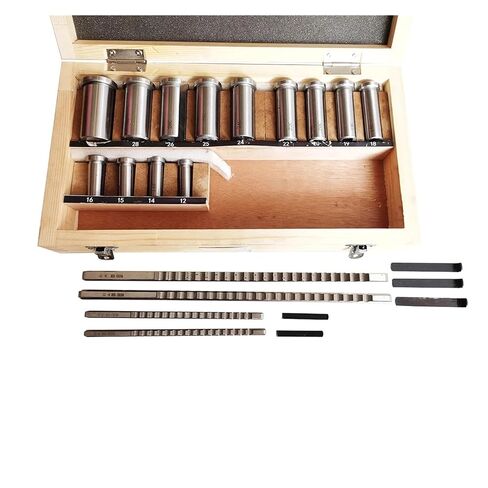

Product includes:
Broaches*4pcs
Collared bushings*13pcs
Shims*5pcs

Product description:
4 broaches: 4mm B1, 5mm B1, 6mm C, 8mm C
13 Collared bushings: B1-12,14,15,16,C-18,19,20,22,24,25,26,28,30
5 shims

Broach Size：4mm
Style：B1
Correction height(mm)：10.8
Leading height(mm)：9.66
Broach Dimensions*(mm)：6.45X171.5
Keyway Width(mm)：b=4.01
Length of Cut * min.-max.：19/64 - 1 11/16

Broach Size：5mm
Style：Style：B1
Correction height(mm)：10.8
Leading height(mm)：9.66
Broach Dimensions*(mm)：6.45X171.5
Keyway Width(mm)：b=5.01
Length of Cut * min.-max.：19/64 - 1 11/16

Broach Size：6mm
Style：C1
Correction height(mm)：16.64
Leading height(mm)：15.02
Broach Dimensions*(mm)：9.64X298.5
Keyway Width(mm)：b=6.01
Length of Cut * min.-max.：25/64 - 2 1/2

Broach Size：8mm
Style：C1
Correction height(mm)：15.95
Leading height(mm)：14.62
Broach Dimensions*(mm)：9.64X298.5
Keyway Width(mm)：b=8.01
Length of Cut * min.-max.：25/64 - 2 1/2
