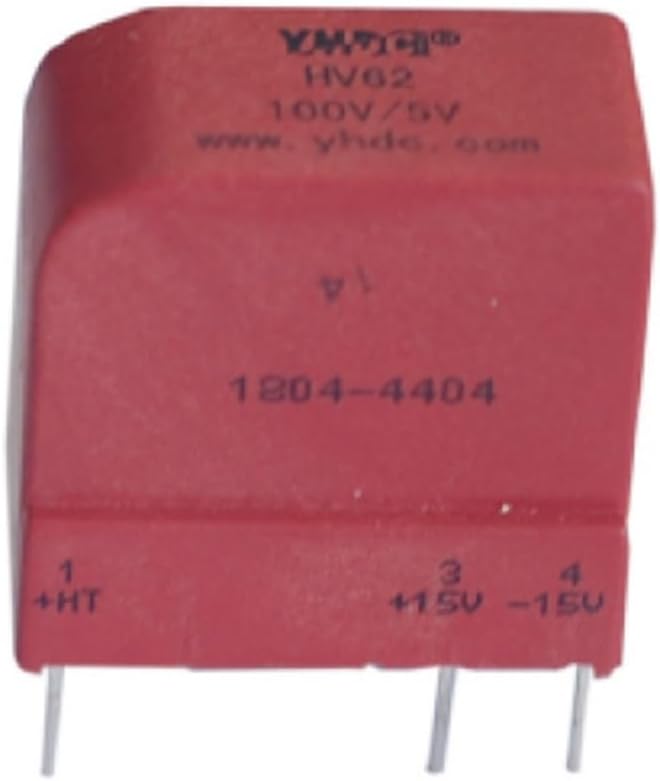

transformer
Rated input: ±50V/±100V/±200V
Input measurement range: ±70V/±150V/±300V
Rated output: ±5V
Accuracy: 1%
Linearity: 0.2%
Power supply voltage (±5%) ±15V/±12V
Flame retardancy: UL94-V0
Working temperature: -10℃-+70℃
Storage temperature: -25℃-+70℃
bandwidth:
Dielectric strength: 2.5KV 50Hz 1min
Current consumption: 15mA+Is
Load impedance: >10K
Zero bias TA=25±30mV
Response time: 40~200s
