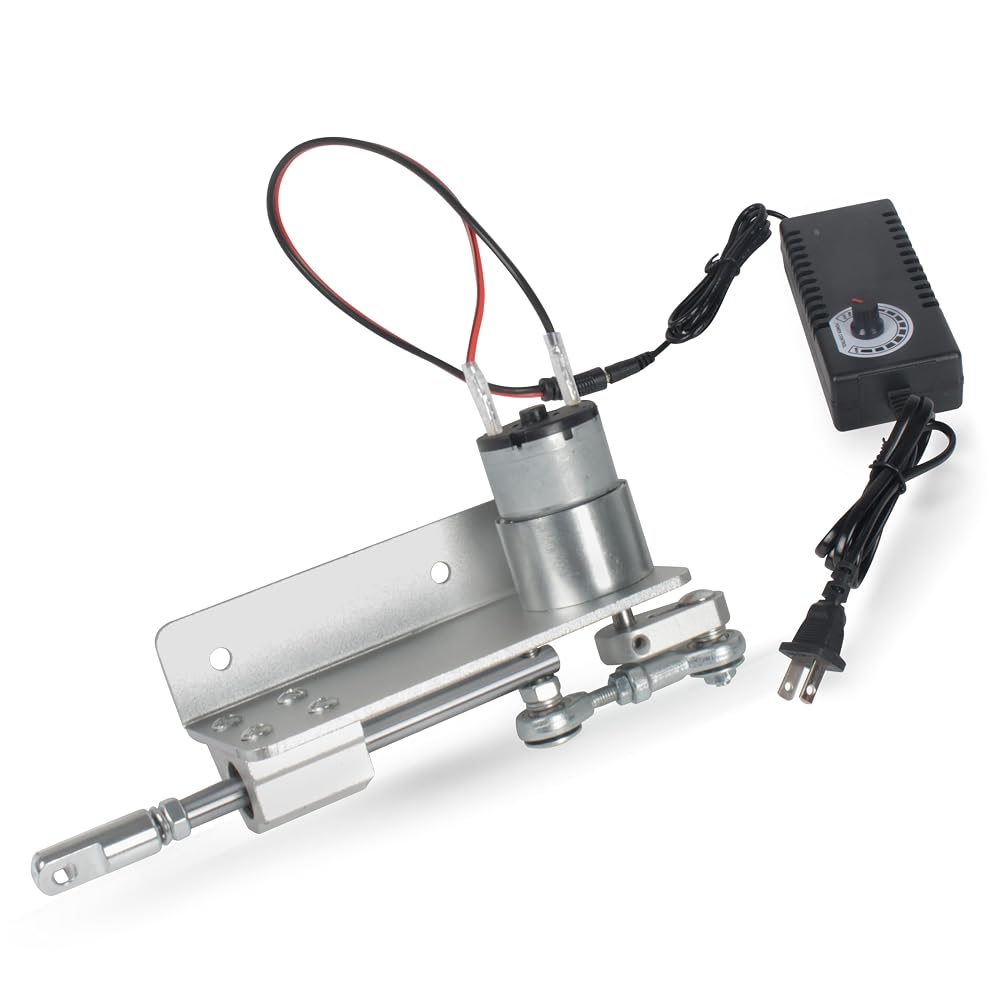

【Specifications】Name:Reciprocating Linear Actuator;Input voltage: AC100-240V,50Hz/60Hz; Working voltage: DC24V;Range of thrust:05kg-2kg.The reciprocating cycle linear actuator can be continuously reciprocating,metal gears make movement more smooth.

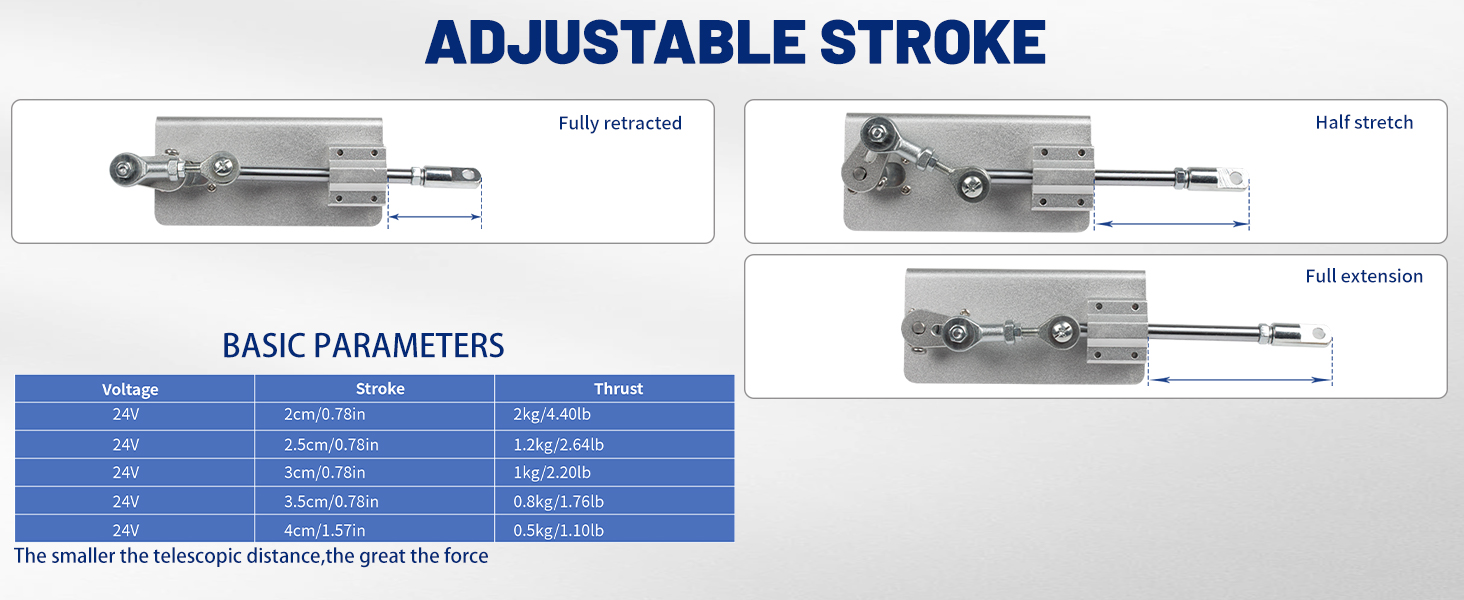

【Stroke:2cm-4cm】The stroke of the reciprocating linear actuator is 0.78"-1.58"（2cm-4cm),within this range,the telescopic stroke can be infinitely adjusted.
【Speed&Torque】The pushing and pulling force is mainly provided by the motor. At the voltage of 24V, the maximum speed is 66/107/200/600rpm, and the Torque is 0.5-2kg (1.1lb-4.4lb). Different strokes and speeds generate different torques. The larger the stroke, the smaller the torque, and the smaller the speed, the lower the torque
【Gear motor】 Adopts high-quality pure copper wire motor and integrated heat-treated gearbox, with low heat generation, high power, multi-stage reduction, metal gears, higher strength and longer service life. Voltage: 24VDC, 66/107/200/600pm, maximum torque 2kg/cm,
【Speed Controller】Upgraded Speed Controller add switch buttons, so that the reciprocating motor can be used or stopped directly through the button, making it more safe and more convenient to use
