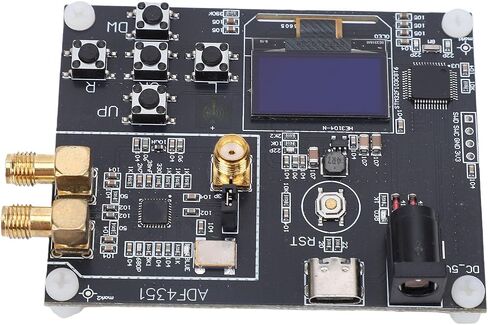

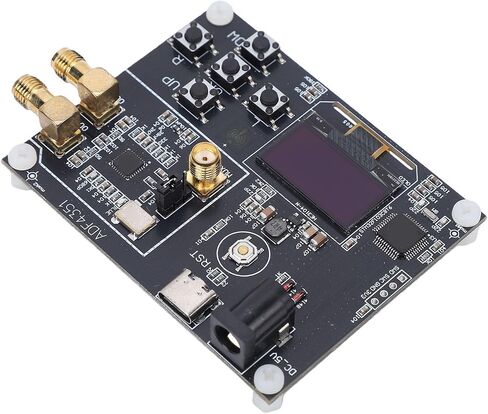

Dpofirs Phase Locked Loop Module for ADF4351 Chip, Cater to Diverse RF Testing & Development Needs, Fixed Frequency, Sweep Frequency, Power Adjustment

KWD 21.500
– 1 +

Special Features

  • Frequency Source: Fit for ADF4351 chip, this frequency synthesizer module delivers high frequency stability and low phase noise, ensuring dependable performance for precise applications
  • Multiple Functions: Offering versatile modes including fixed, sweep, and hop frequency, this module allows adjustable output power to cater to diverse RF testing and development needs
  • Wideband Coverage: With a broad frequency coverage from 35MHz to 4.4GHz, this module is practical for various applications like communication testing and signal analysis

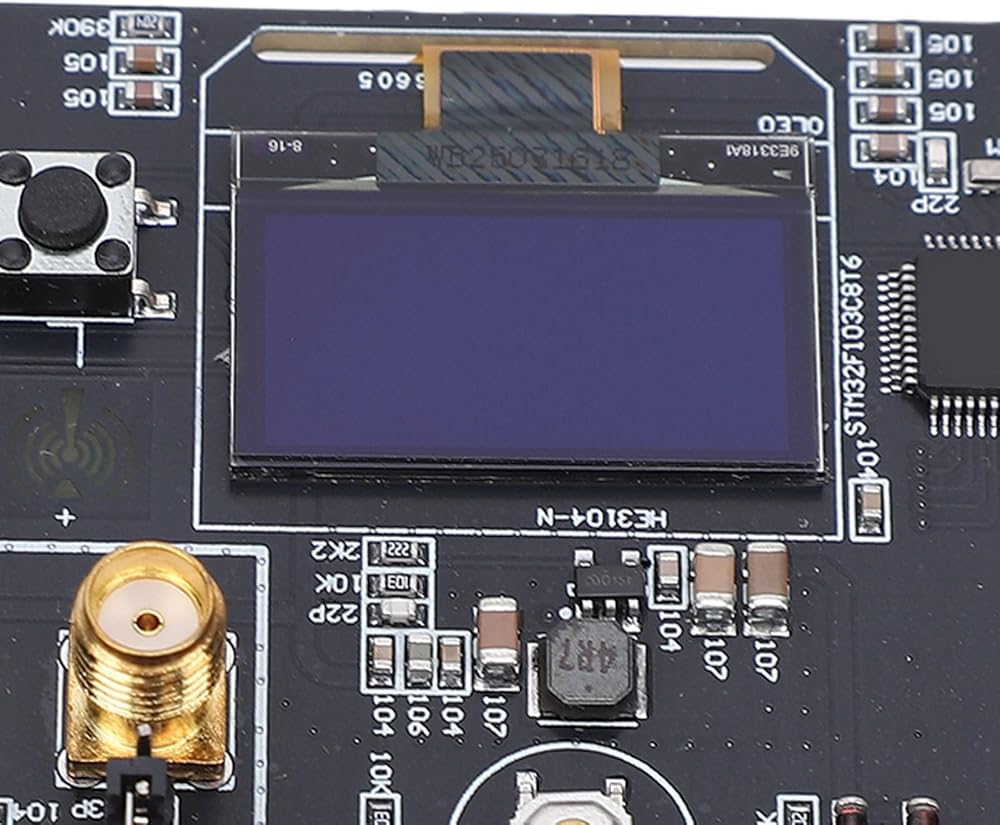

  • User Friendly: Features intuitive organic LED display and physical buttons, support USB host communicating, simplifying operations and real time adjustments without complex setups
  • Signal Source: Equipped with SMA female connector and 50Ω impedance output, this module ensures dependable and stable signal transfer suitable for professional RF systems

Description

4. User Friendly: Features intuitive organic LED display and physical buttons, support USB host communicating, simplifying operations and real time adjustments without complex setups
5. Signal Source: Equipped with SMA female connector and 50Ω impedance output, this module ensures dependable and stable signal transfer suitable for professional RF systems

Spec:
Item Type: Phase Locked Loop Module
Product Material: PCB
Module Type: Wideband Phase Locked Loop Frequency Source
Module Function: Fixed Frequency, Sweep Frequency, Power Adjustment
Module Current: 220mA (Maximum)
Module Reference Frequency: 100MHz
Reference Frequency Signal Amplitude: 700mVpp (Minimum)
Frequency Stability: >25PPM
Phase Noise: Varies by frequency point
Module Output Frequency Range: 35MHz-4.4GHz
Module Output Power: 7dBm (Maximum)
Frequency Control Step: 0.1MHz
Sweep Frequency Step: 0.1MHz-.9MHz
Sweep Time Step: 1mS-9999mS
Output Power Adjustment: 0dB, -3dB, -6dB, -9dB
Module Output Interface: SMA
Module Output Signal: Sine Wave or Square Wave
Module Output Channels: 2 (Differential Channels)
Module Output Impedance: 50Ω

How to Use:
Install and use

PackageList:
1 x Module
1 x Supply Cable
