Package include:

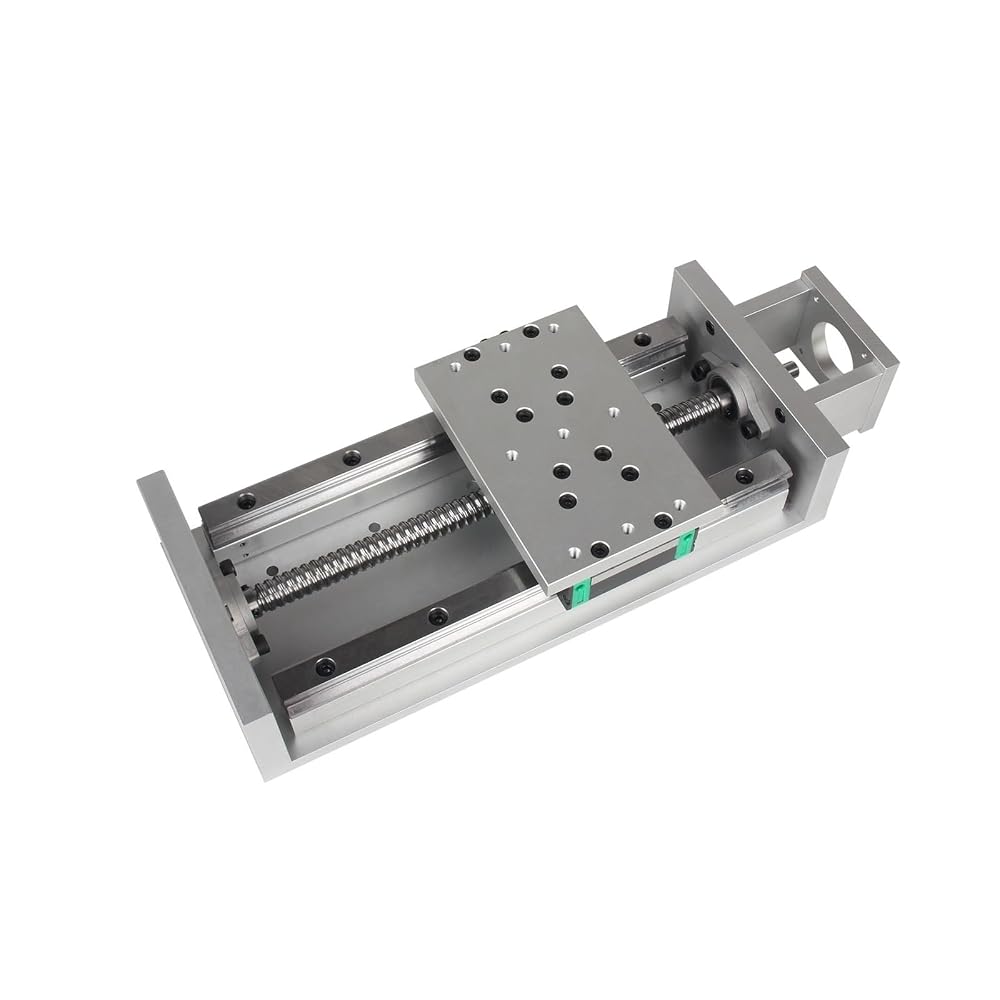

1 x 150mm width Linear Guide Actuator 100 /200mm/300 / 400mm effective stroke
(with 2pcs of limit switch+ 1pc motor support. No motor.)
Specification:
Material: Aluminum Alloy
Effective Stroke: 400mm
Horizontally loadable: 120kg
Vertical carrying: 50kg
Width: 150mm
Guide rail:20 heat-resistant linear rail,
stroke accuracy 0.03
Screw: ball wire rod 1605
Total length of the base plate with 400-stroke:555mm
Features:
aluminum alloy, high strength, light weight, resistance.
SFU-1605 ball screw,Accuracy up to 0.03.
20 heat-resistant linear rail,high-speed silent, smooth running.
With 2 limit switches and motor base, without motor.
Horizontal bearing 120 kg; Vertical bearing 50 kg.
100mm Travel size:
200mm Travel size:
300mm Travel size:
400mm Travel size:
500mm Travel size:
600mm Travel size:
Model Number : ZBX150
Certification : CE
Origin : Mainland China
