HEXEH WDD35D4-5K Conductive Plastic Angular/Linear Sensor for Industrial, Harsh Environments, Position Measurement in Kuwait HEXEH WDD35D4-5K Conductive Plastic Angular/Linear Sensor for Industrial, Harsh Environments, Position Measurement in Kuwait HEXEH WDD35D4-5K Conductive Plastic Angular/Linear Sensor for Industrial, Harsh Environments, Position Measurement in Kuwait

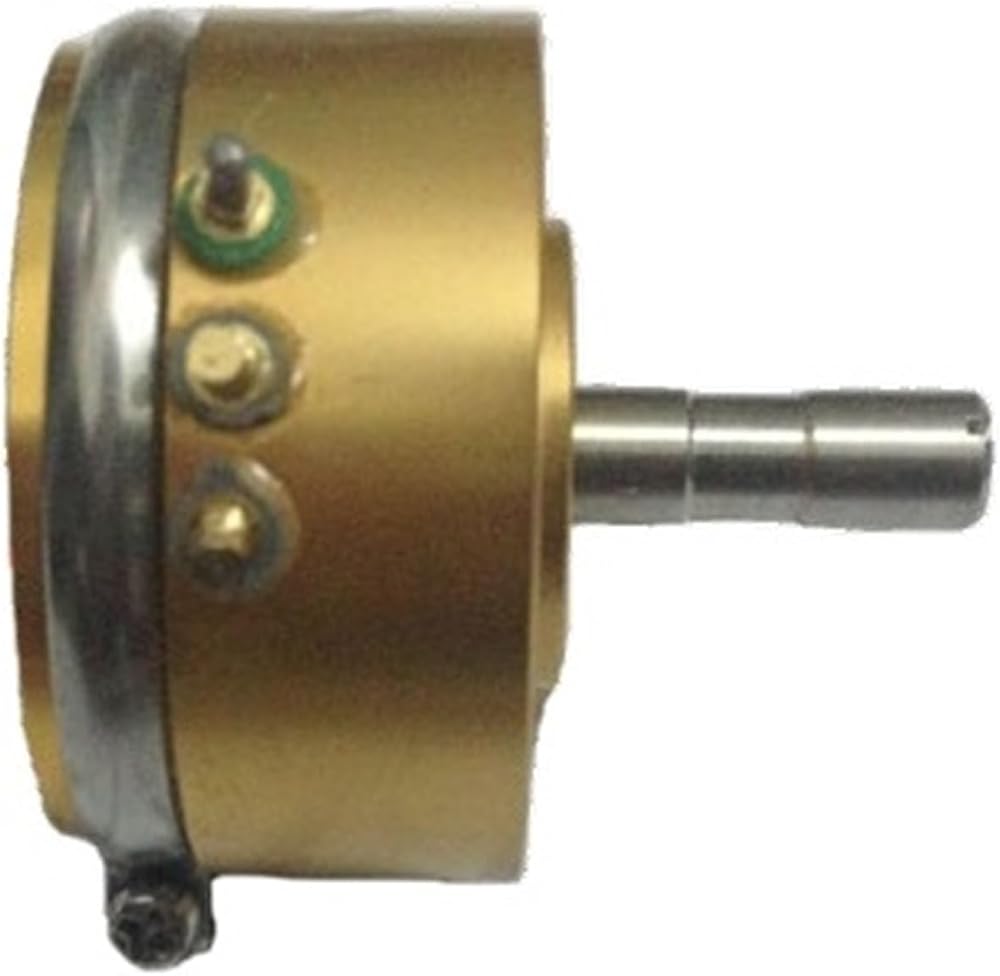

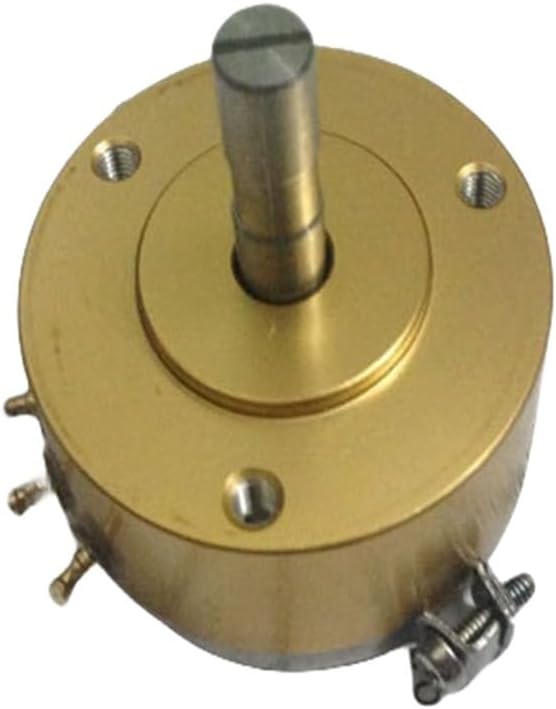

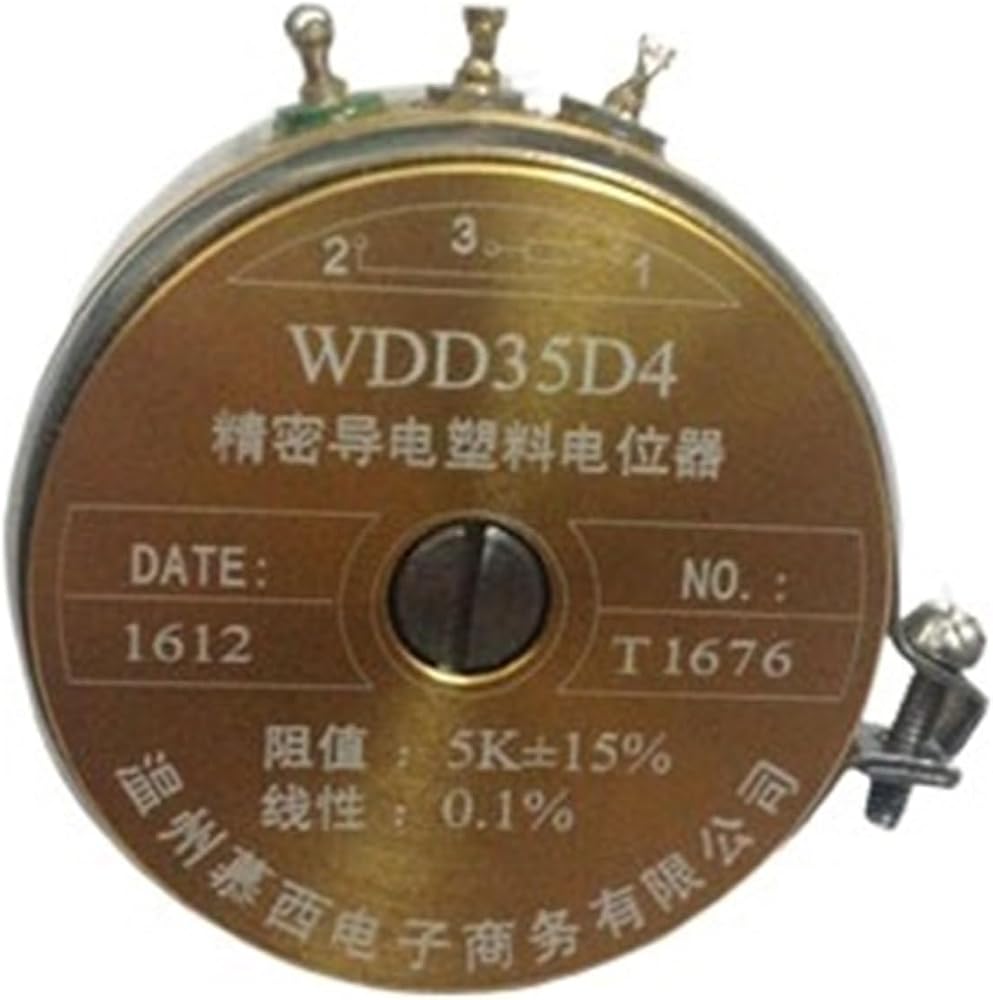

HEXEH WDD35D4-5K Conductive Plastic Angular/Linear Sensor for Industrial, Harsh Environments, Position Measurement

KWD 19.500
Brand
HEXEH
Category
Sensors
Weight
100 g
– 1 +

Special Features

  • Angle sensor adopts the magnetic induction principle (internal non-contact type) to measure the Angle.
  • It has the characteristics of no contact, long life, high resolution, high frequency noise, low temperature drift, excellent linearity, waterproof, dustproof, vibration resistance, anti-interference and so on.
  • Widely used in water, oil, vibration, impact and other harsh industrial environment.
  • osition measurement, is an ideal product to replace optical encoder, rotary transformer, conductive plastic potentiometer
  • If you have any questions, please feel free to contact us. We will do our best to solve it for you.

Description

WDD35D4 series
Standard resistance range: 1K, 2K, 3K, 5K ()
Total Resistance Tolerance: ± 15%
Independent linearity tolerance: O.1%, 0.2%, 0.3%, 0.5%, 1.0%
Rated power: 2W (70C)
Temperature coefficient of resistance: ± 400P.P.M / C
Insulation resistance: 1000M (500V.D.C.)
Dielectric strength: 1000V (AC.RMS) 1 min
Output smoothness: ± 0.10%
Electrical angle: 345 ° ± 2 °
Mechanical angle: 360 ° (continuous)
Starting torque: 10 × 10-4N M
Operating temperature range: -55C ~ + 125C
Vibration: 150G 2000Hz
Shock: 50G 11ms
Mechanical life: axis, turn 50,000,000
