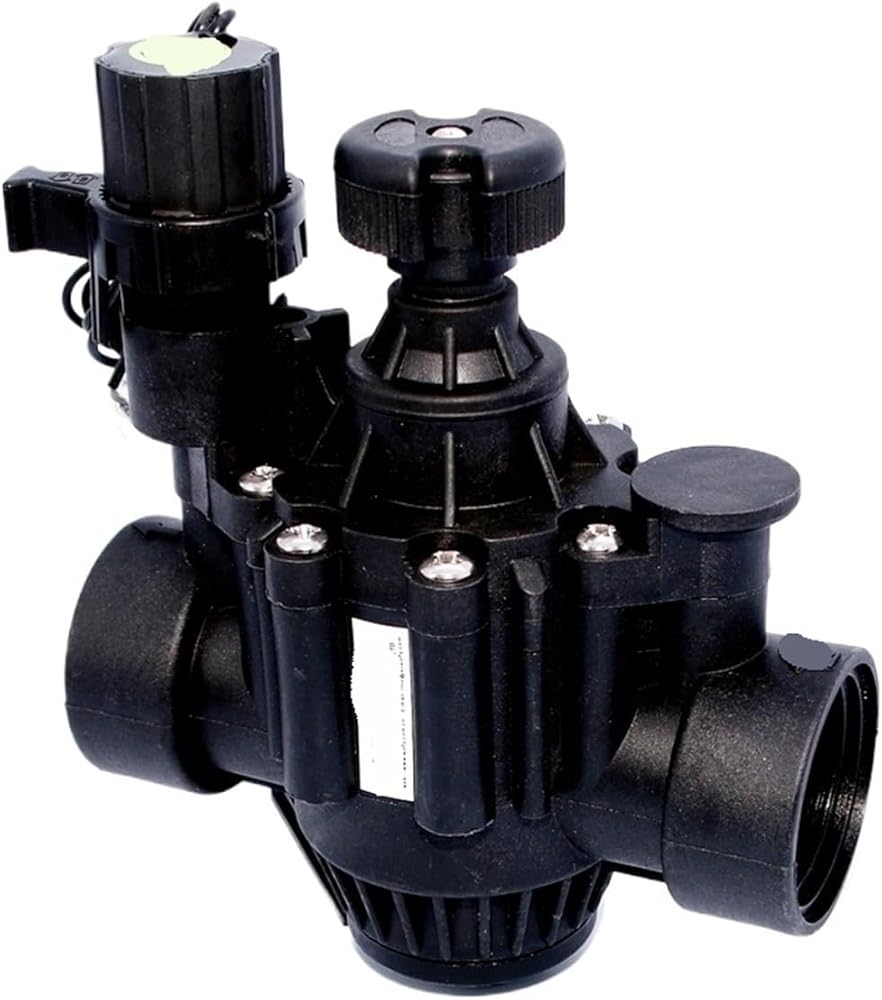

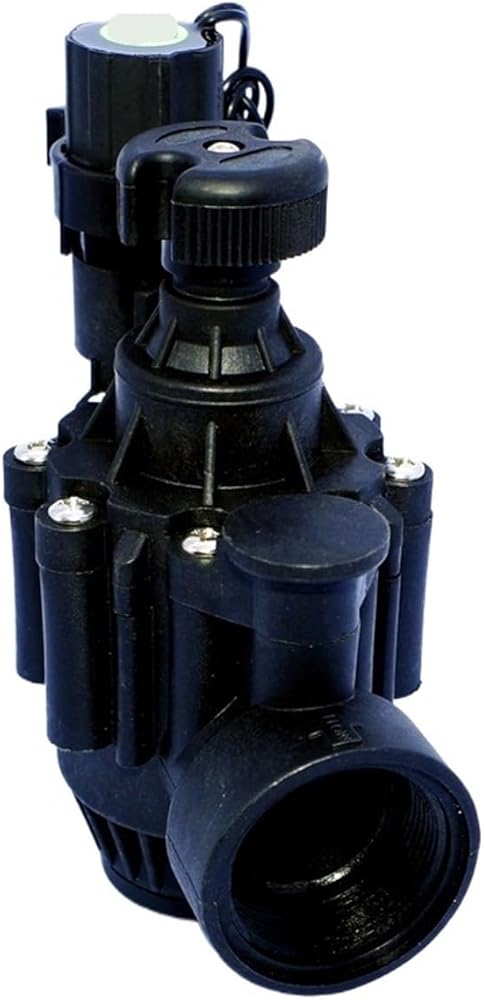

Filter Valves
Technical Parameters
Material
Nylon plastic body, NBR seal
body fluid
water
Fluid temperature
43℃
ambient temperature
52℃
Use voltage
6-20VDC, 24VAC, 24VDC, 110VAC, 220VAC
Pulse Width
20-500mSec (only applicable to self-locking type)
Coil resistance
6
capacitance
4700uF
Coil inductance
12 mh
connect
thread (G thread)
size
1-1/2" 40mm ( female)
work pressure
1-1/2"：1-10.4bar
flow
1-1/2": 0.45-34.05 cubic meters/hour
operating mode
Spool lock position, valve open, release position, valve closed.
