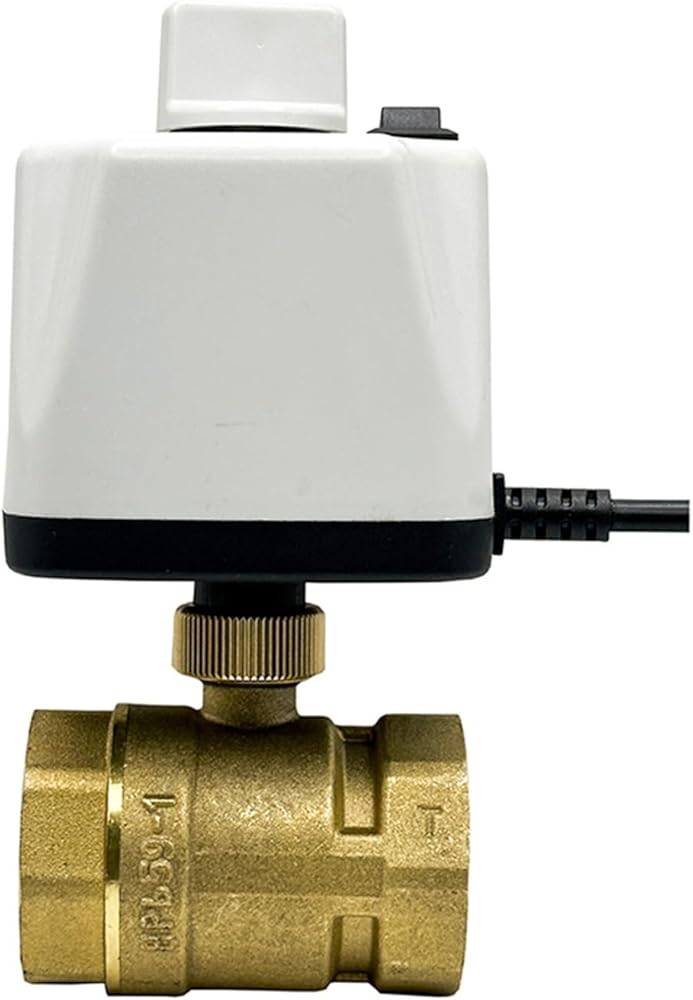

Filter Valves
Specification
Medium: cold/hot water, 60% ethylene glycol
Material: Brass
Power supply: AC220V/DC12V/DC24V/AC24V
Structural form: two ways
Working mode: 2 lines (power off reset mode)
Running time: 5-15 seconds
Power consumption: 6VA
Valve body pressure resistance: 1.6Mpa
Medium temperature: 0°~90°
Manual function description
Before using the manual switch, the actuator button should be adjusted to the "O" position
The purpose is to disconnect the internal capacitor and prevent automatic reset
"O": Turn on the manual switch
"I": Turn on power control
Normally closed: When SW is turned on, the valve opens. When SW is disconnected, the backup power is triggered and the valve returns to the closed state.
Normally open: When SW is turned on, the valve is closed. When SW is disconnected, the backup power is triggered and the valve returns to the open state.
