Safety valves provide safety protection for the system. When the system pressure exceeds the specified value, the safety valve opens.
And discharge part of the gas or fluid of the system into the atmosphere or outside the pipeline so that the system pressure does not exceed the allowable value.
This ensures that the system will not cause accidents due to excessive pressure.

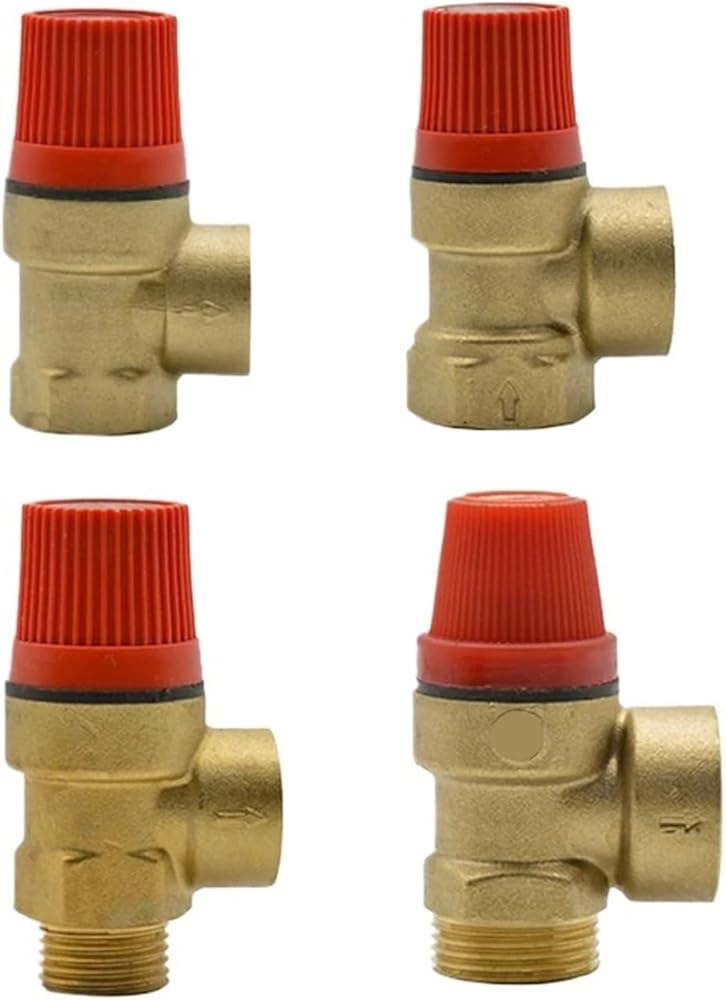

Product name: Safety valve
Handwheel material: nylon
Internal spring material: 72 spring steel
Sealing material: nitrile
Material: HPB57 (57 brass)
Product color: copper color
Nominal pressure: 1.6Mpa
Applicable temperature: - 20° - 120°
Applicable media: water, oil, gas
Product specifications: 1/2" 3/4" (1.5bar - 10bar)
size:
1/2" female x female: length 68mm, width 41mm, thickness 3.2mm
3/4" female x female: length 72mm, width 46mm, thickness 3.0mm
1/2" female x male: length 75mm, width 41mm, thickness 3.0mm
3/4" female x male: length 73mm, width 46mm, thickness 3.4mm
