Filter Valves
Clean the compressed air system before installation.
Pay attention to the direction of the arrow when installing the valve: do not use hoses that are not resistant to air impact at the outlet.
The supply voltage should be the same as the drain valve voltage: when using DC, the positive pole must be connected to connector "1".
When leaving the factory, the drain valve has been connected with cables. Brown is the live wire L, blue is the neutral wire N, and yellow-green is the safety ground wire GND.
Be sure to tighten the long screws on the junction box to prevent water burn.
warn! When installing an drain valve, make sure:
The compressed air is exhausted (i.e. zero pressure).
Power is off.
Package Contents:

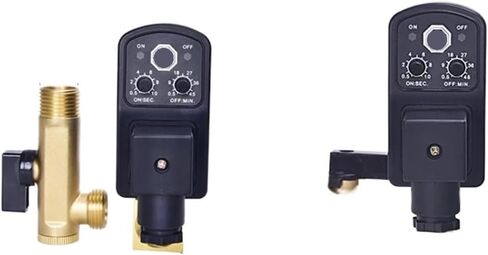

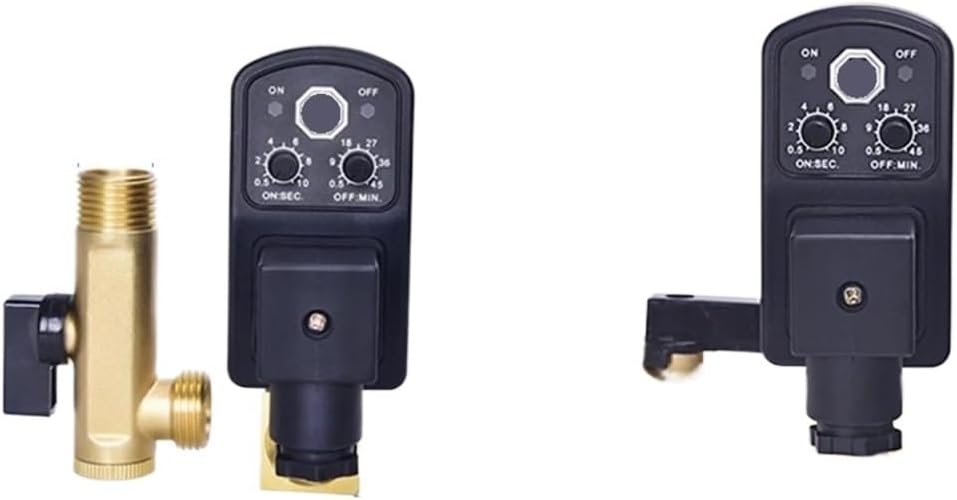

1 x drain valve
