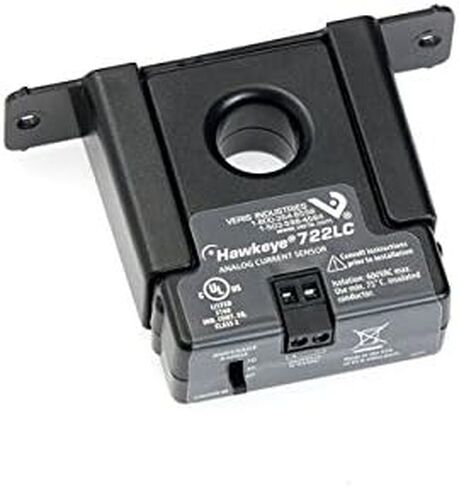

The Hawkeye 722 provides accurate load trending information with a proportional 0-5VDC output signal
Slide-switches provide easy field selection of monitored amperage range without jumpers
APPLICATIONSLoad trendingMotor controlPositive proof of flowSelf-powered analog current sensor simplifies installationNo external power required for sensor
eliminate power suppliesEconomical solid-core models feature adjustable bracket for easy alignmentNo jumpers on unit
Description
Sensor Power Induced from monitored conductorInsulation Class 600VAC RMS (UL) 300VAC RMS (CE)Frequency 50/60Hz nominalTemperature Range -15° to 60°C (5° to 140°F)Humidity Range 10-90% RH non-condensingAccuracy ±2% F.S. from 10% to 100% (selected range)Response Time 2 sec.Terminal Block Maximum Wire Size 14 AWGTerminal Block Torque (nominal) 4 in-lbs (0.45 N-m)Agency Approvals UL 508 open device listing CE:EN61010-1:2001-2 CAT III deg. 2 basic insulation For applications requiring double or reinforced insulation please contact the factory
