Roller Tables

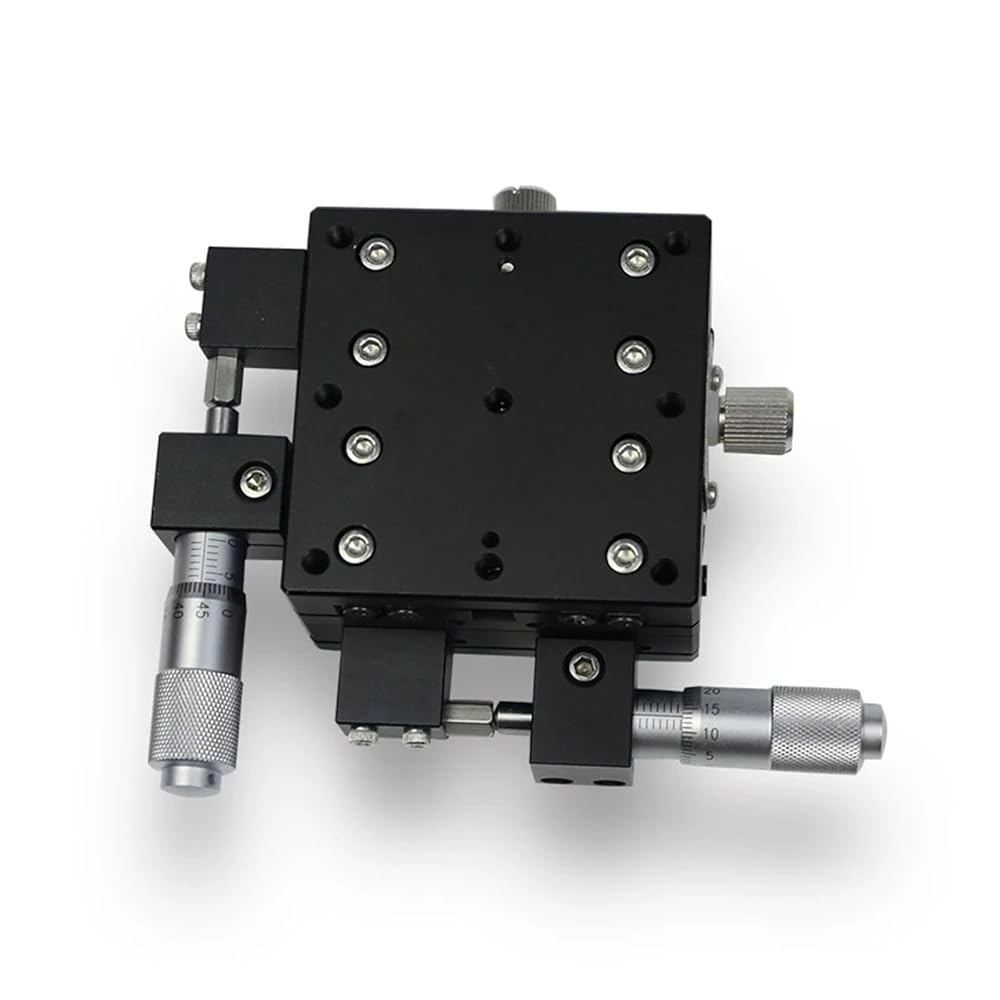

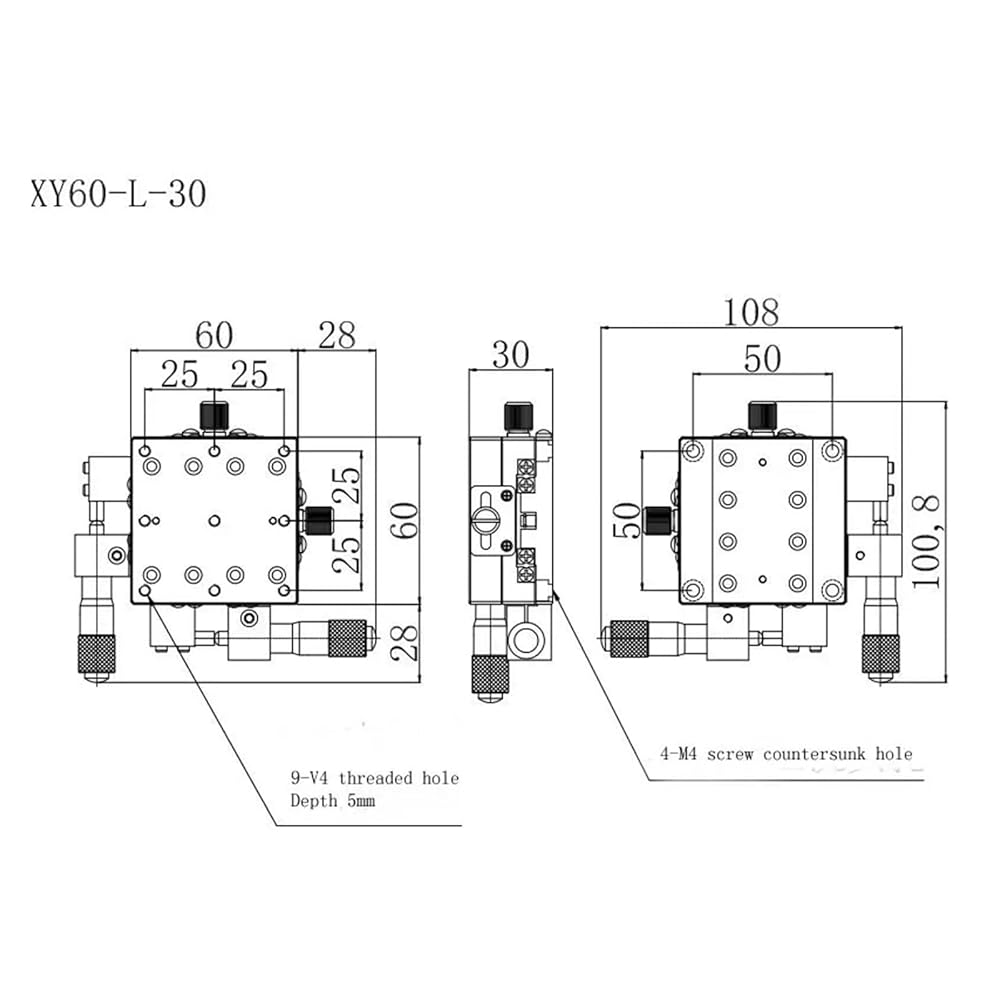

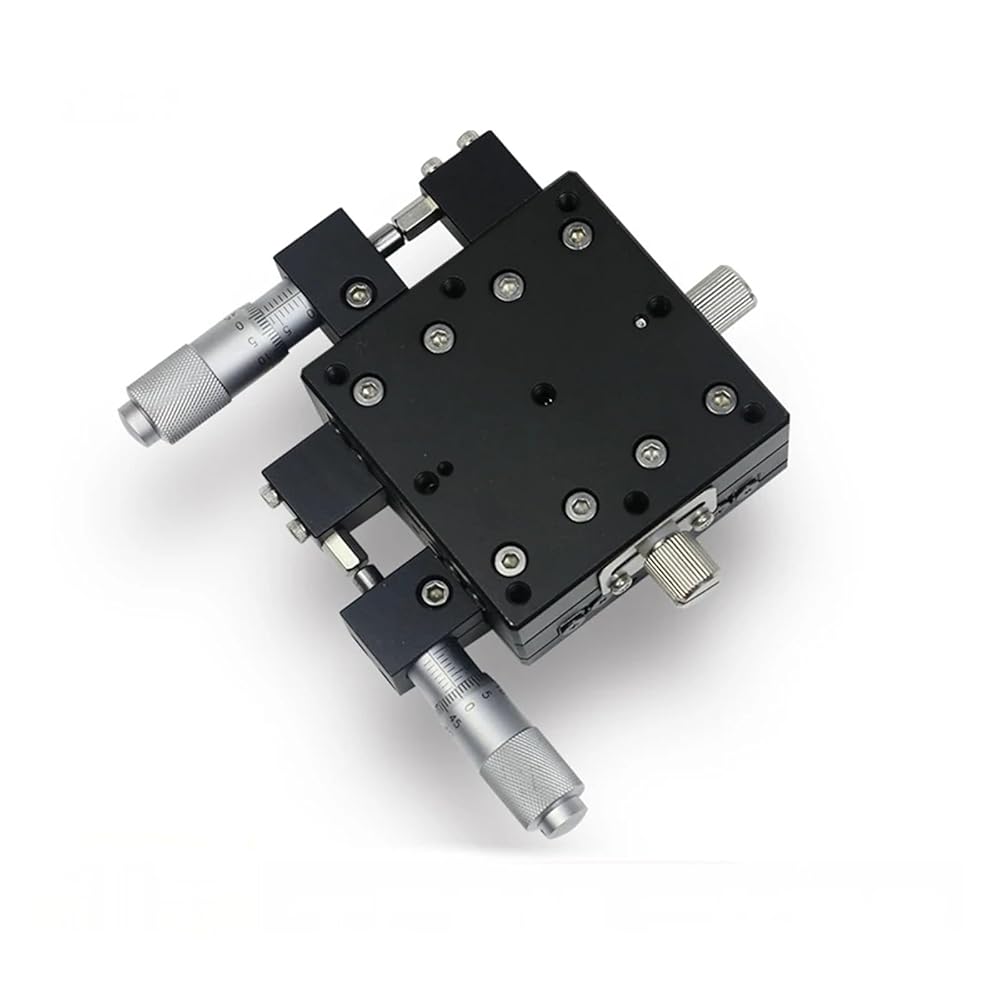

Product model specifications: XY60-L-30
Achievable: Linear adjustment of linear displacement in two directions
Material: Aluminum alloy (surface black anodized)
Guide rail type: V-type precision crossed roller guide rail
Workbench size: 60mm×60mm
Movement amount: X-axis ±6.5mm, Y-axis ±6.5mm
Workbench thickness: 30mm
Driving method: micrometer
Minimum reading of micrometer knob: 10um/scale
Load: 49N (5kgf)
Accuracy: 10um
Straightness: 5um
Weight: 0.51KG
