Roller Tables

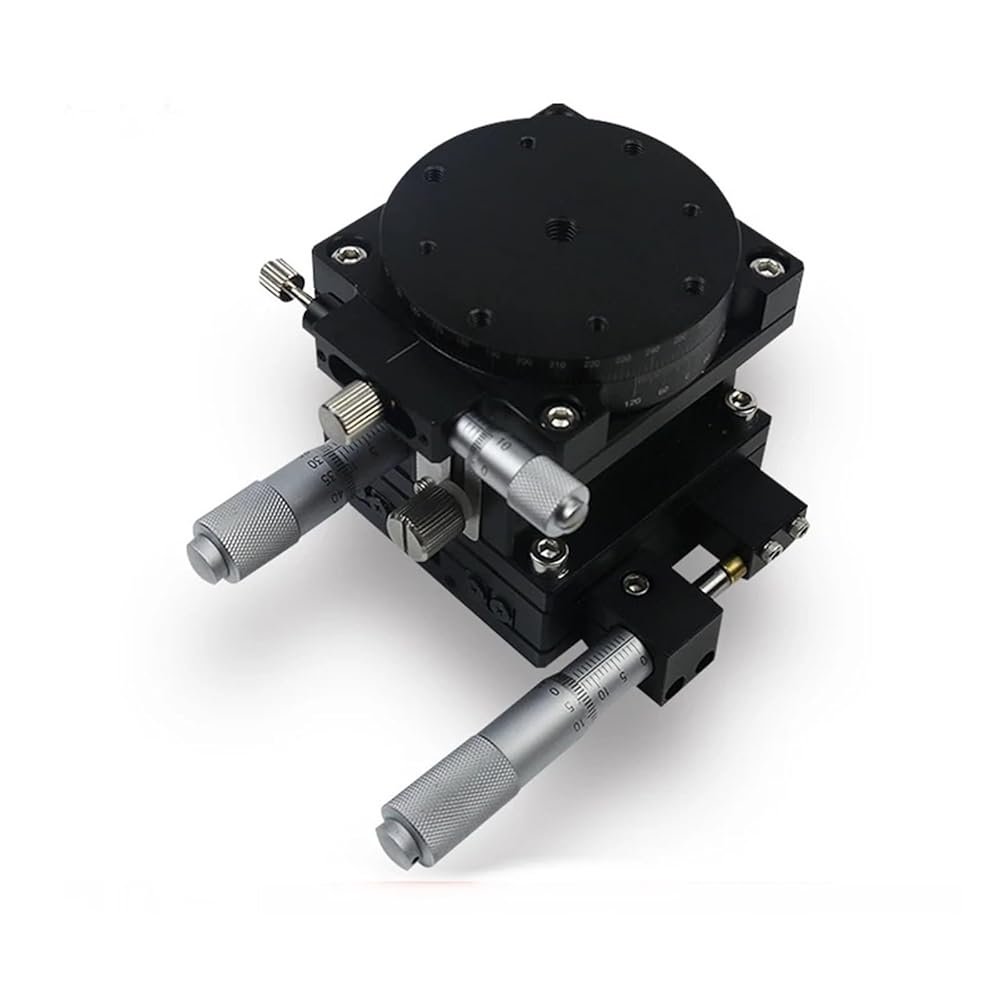

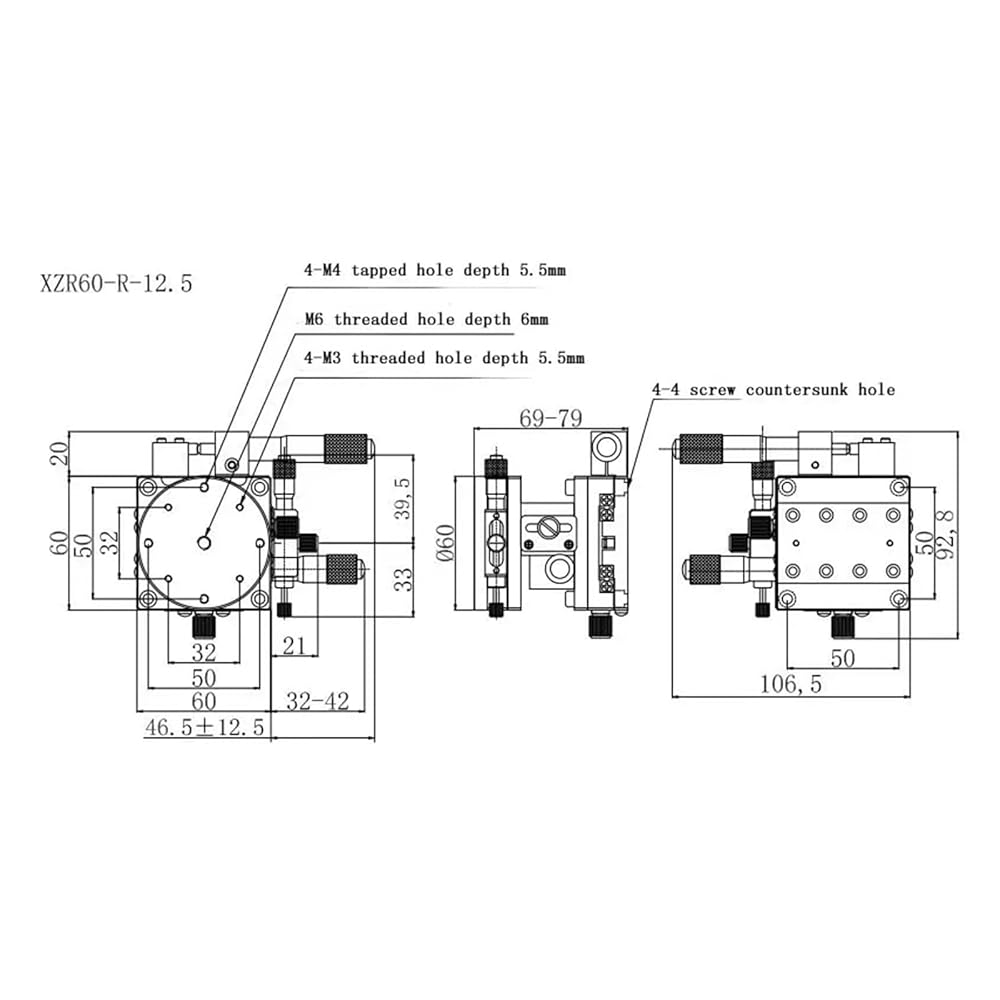

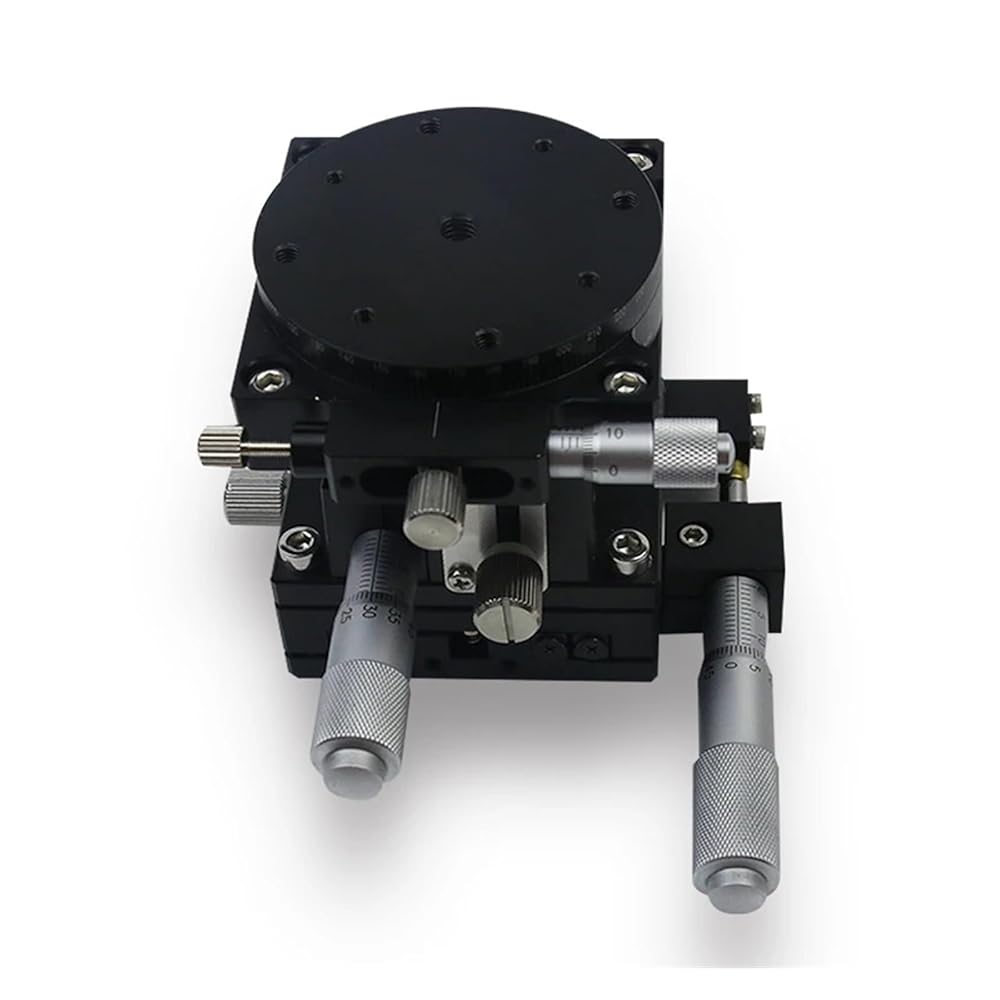

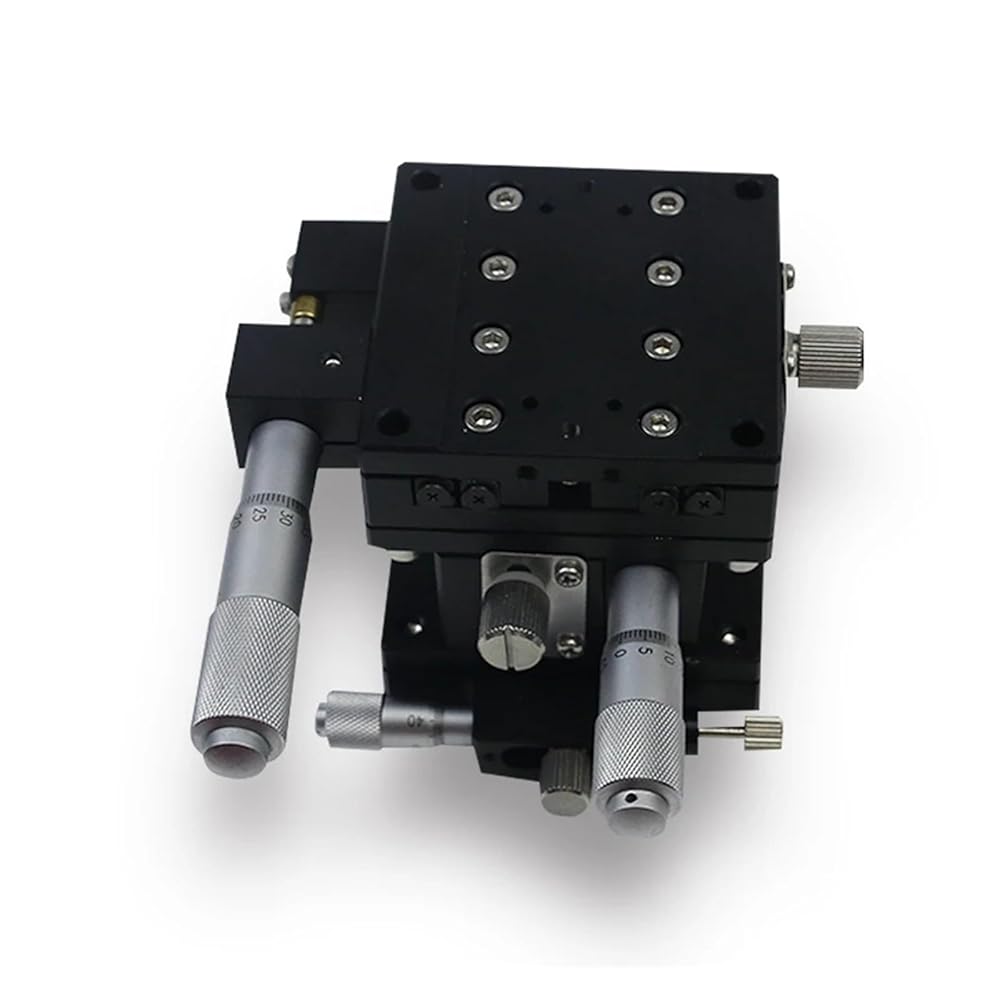

Product model specifications: XZR60-R±12.5
Movement direction: XZR axis three directions
Can be realized: front and rear/left and right, lifting, rotation fine adjustment
Material: Aluminum alloy (surface black anodized)
Workbench size: 60mm×60mm
Guide rail type: V-type precision crossed roller guide rail
Movement amount: X axis ±12.5mm, Z axis 10mm
R axis: coarse adjustment 360° rotation, fine adjustment ±5°
Table thickness: 69mm-79mm
Load: 20.4N (3kgf)
Accuracy: 10um
Straightness: 5um
Weight: 1.03KG
