Roller Tables

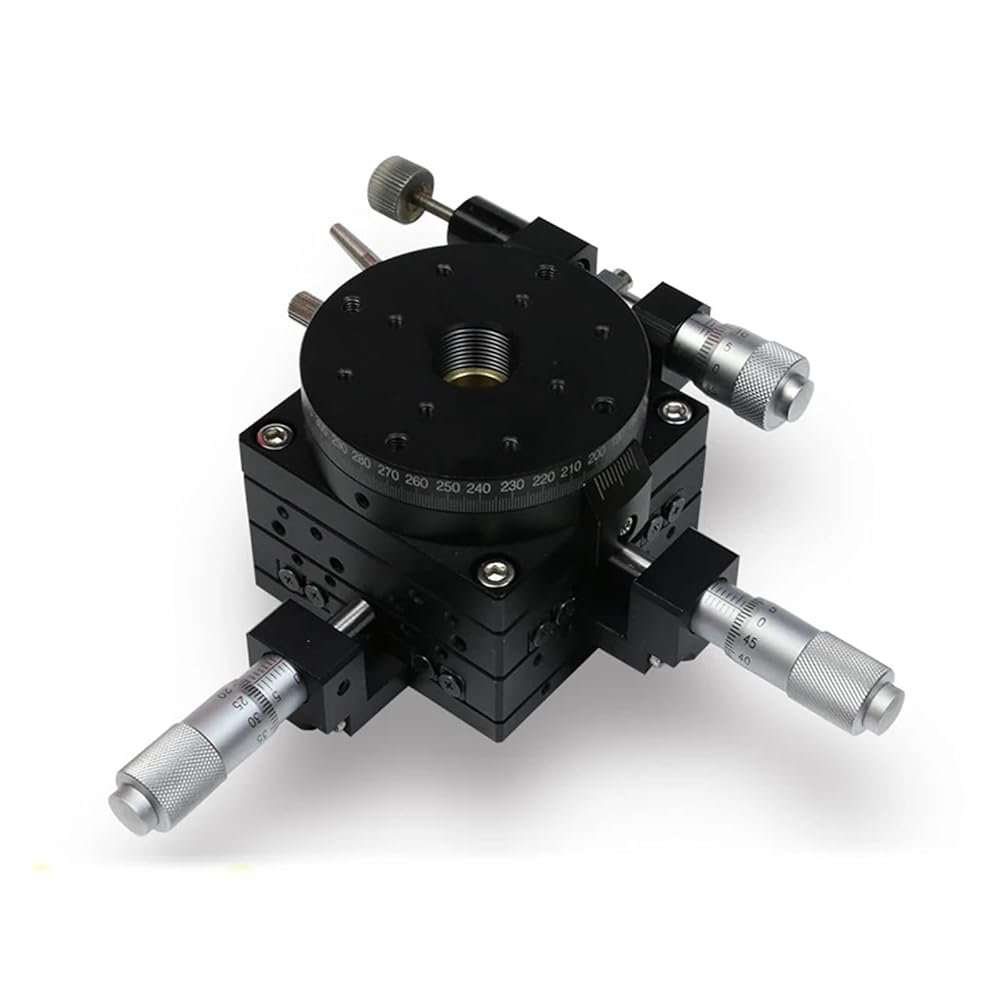

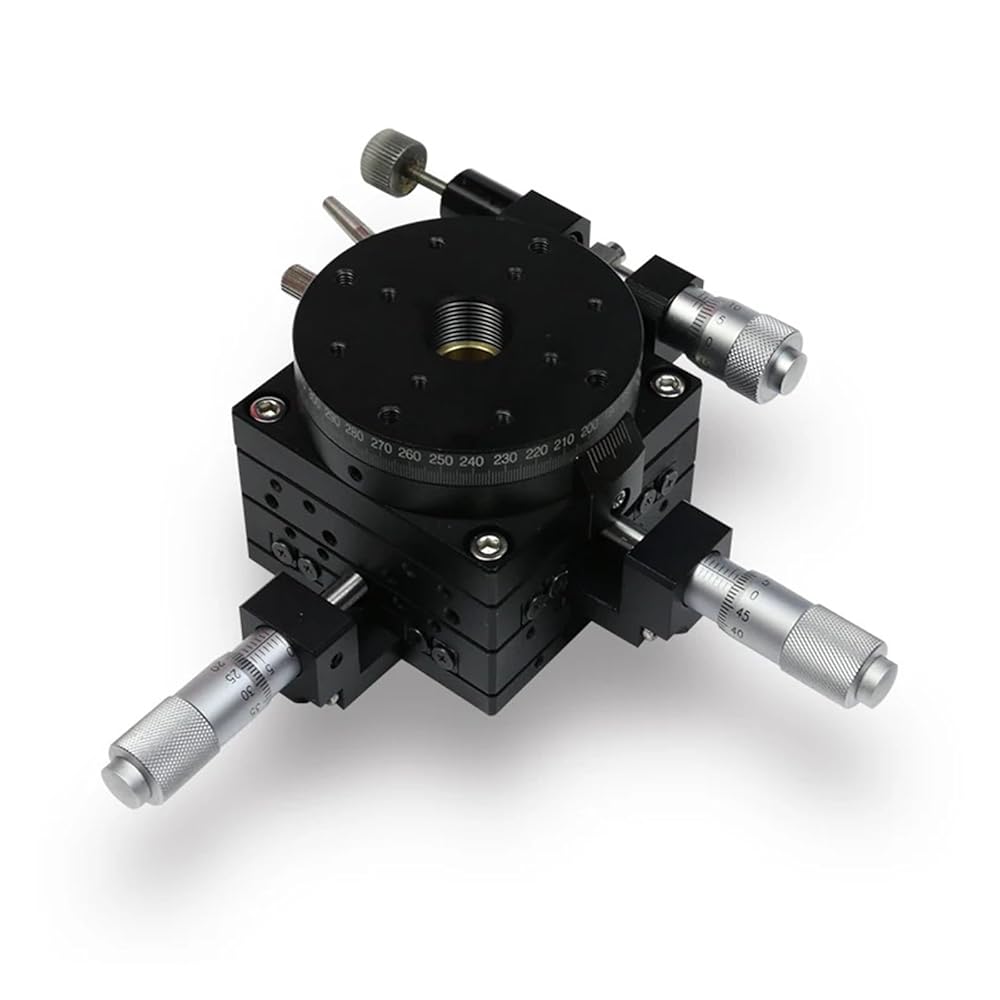

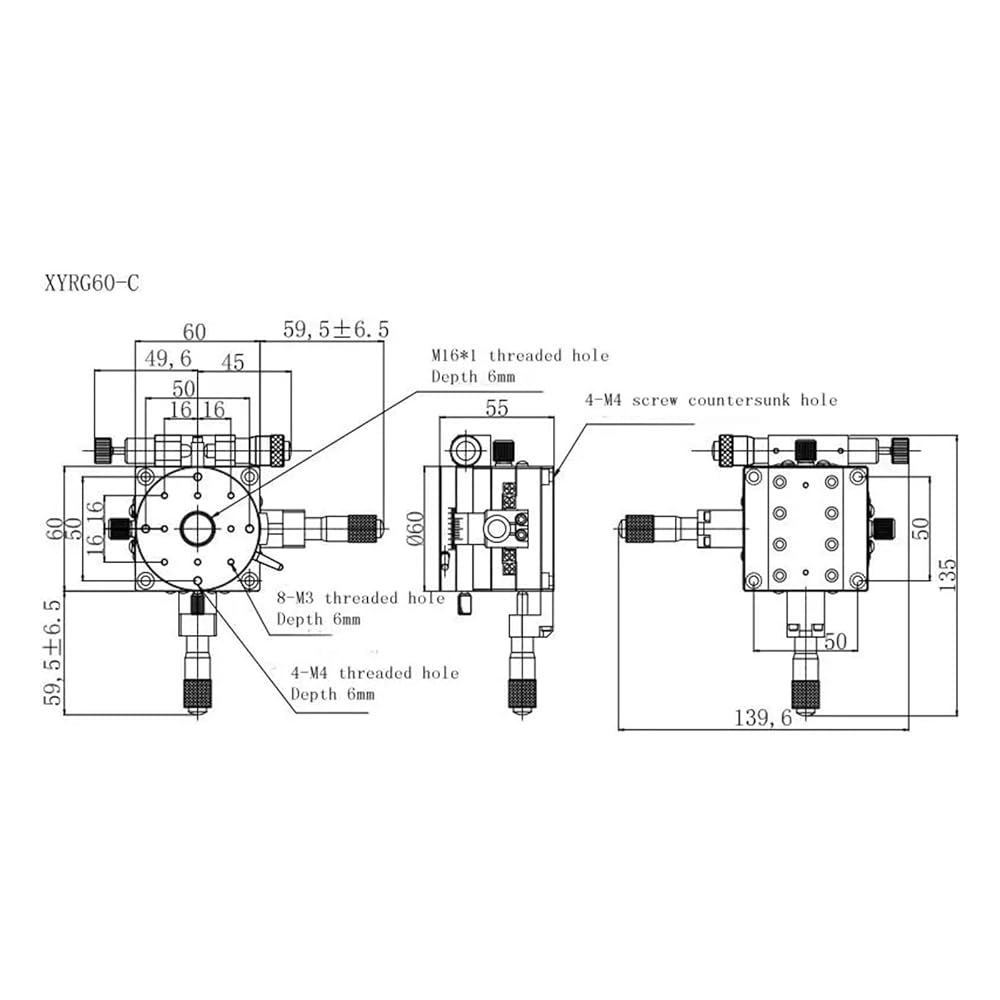

Product model specifications: XYRG60-C
Movement direction: XYR axis three directions
Can be realized: front and rear, left and right, rotation fine adjustment
Material: Aluminum alloy (surface black anodized)
Workbench size: 60mm×60mm
Guide rail type: V-type precision crossed roller guide rail
Movement amount: X-axis ±6.5mm, Y-axis ±6.5mm
R axis: coarse adjustment 360° rotation, fine adjustment ±5°
Minimum reading of micrometer knob: 10um/scale
Load: 29.4N (3kgf)
Accuracy: 10um
Straightness: 5um
Weight: 0.66KG
