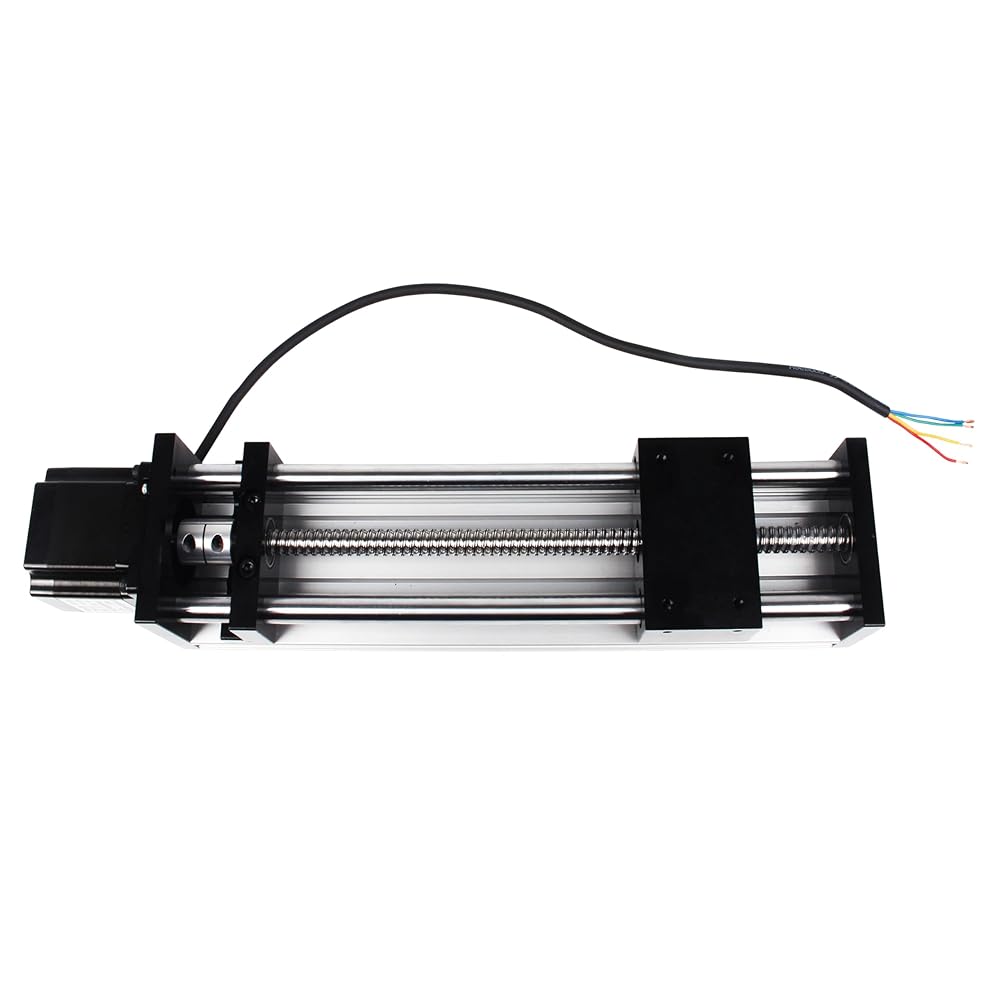

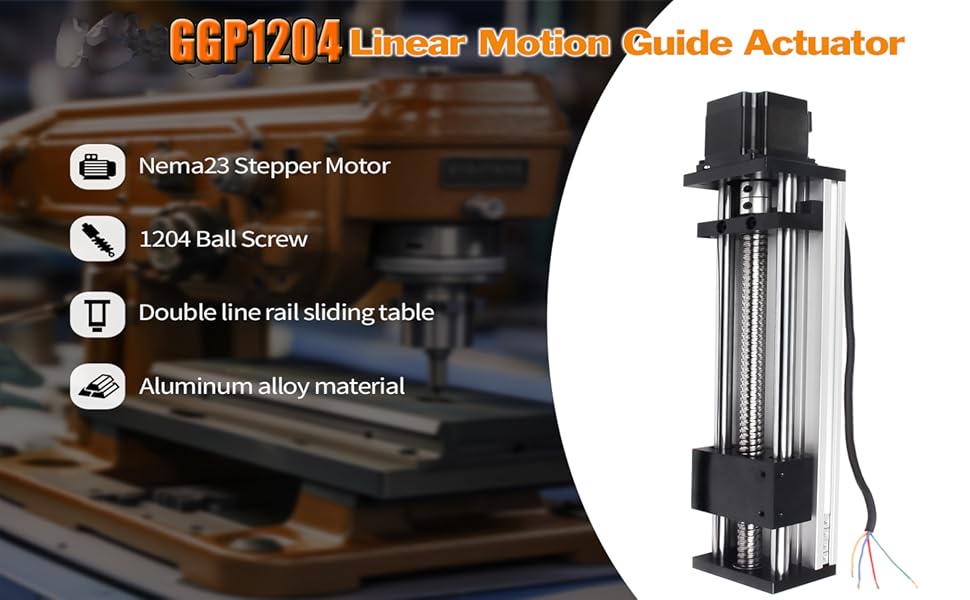

1204 ball screw: made of bearing steel material, with low noise; Effective travel length: 100mm/3.94 inches. Screw accuracy grade: C7. Flange nut screw, accuracy up to 0.03mm/0.0012 '', lead: 4mm/0.013 '' (one turn of screw), diameter: 12mm/0.5 ''
Easy Installation ： 80mm aluminum profile base, M4 movable nut at the bottom, side mounting groove for easy fixation, M3 nut for limited installation, simple and convenient installation. Widely used: can be combined with multi axis, horizontal cross, gantry, three-axis, four axis, etc
Stepper motor: nema23 motor size: 57 * 57 * 56mm; torque: 1.26N. m; Current: 3A; Shaft: Single output shaft; Voltage: 12-36V (typical value 24V); Control mode: pulse control; Output speed: 1000 revolutions per minute (within 600 revolutions per minute). Wiring: Red (A+), Green (A -), Yellow (B+), Blue (B -)
Adopting dual axis guide rail: 12 chrome plated shaft, linear bearing, more stable and durable
