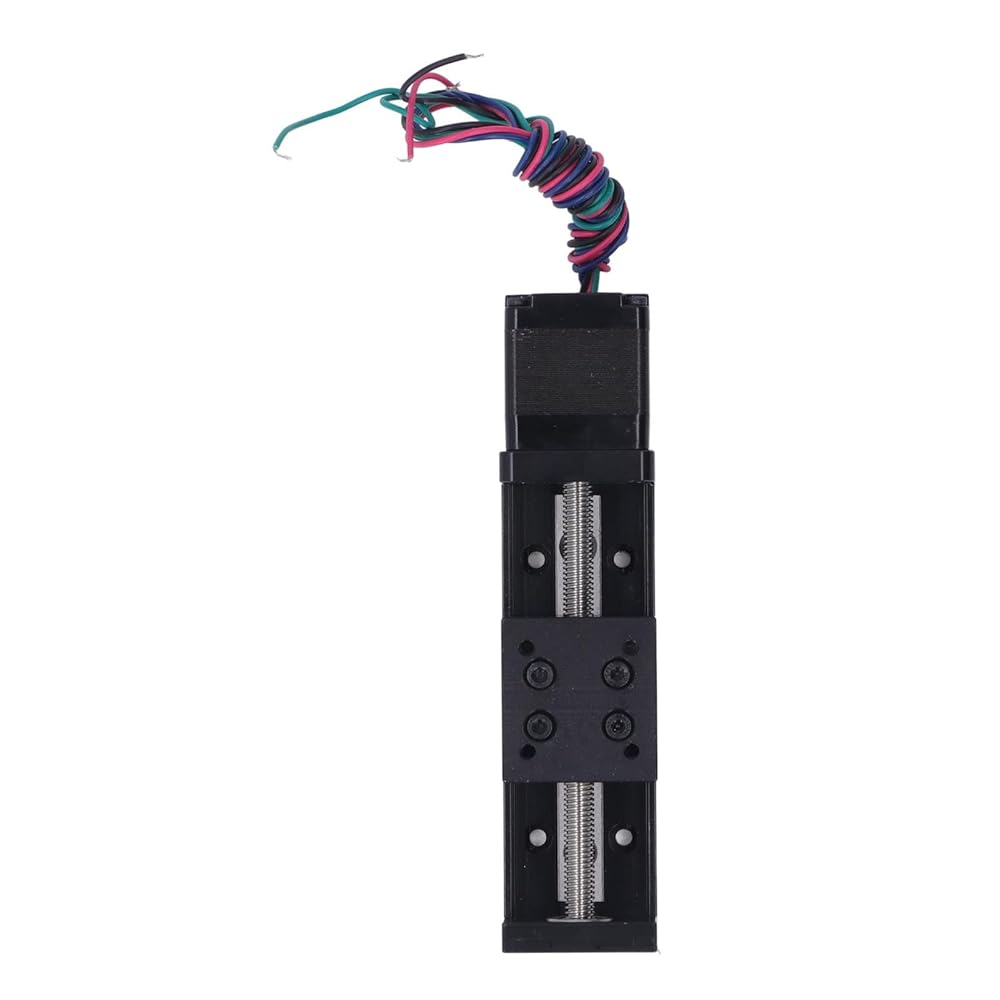

28 Stepper Motor Mini Linear Rail Guide Slide Actuator,Router Linear Motion Stage, 50mm Stroke DIY CNC Router Part with T - Screw Rod for X Y Z Axis

KWD 15
– 1 +

Special Features

  • Precise Parameters for Strong Adaptability: Effective travel 50mm, step angle 1.8 degrees, guide rod diameter 6mm, pitch 1mm (moves 1mm per circle), positioning accuracy ±0.1mm. Precise and standardized parameters, suitable for X, Y, Z axes use, providing reliable parameter guarantee for precision transmission.

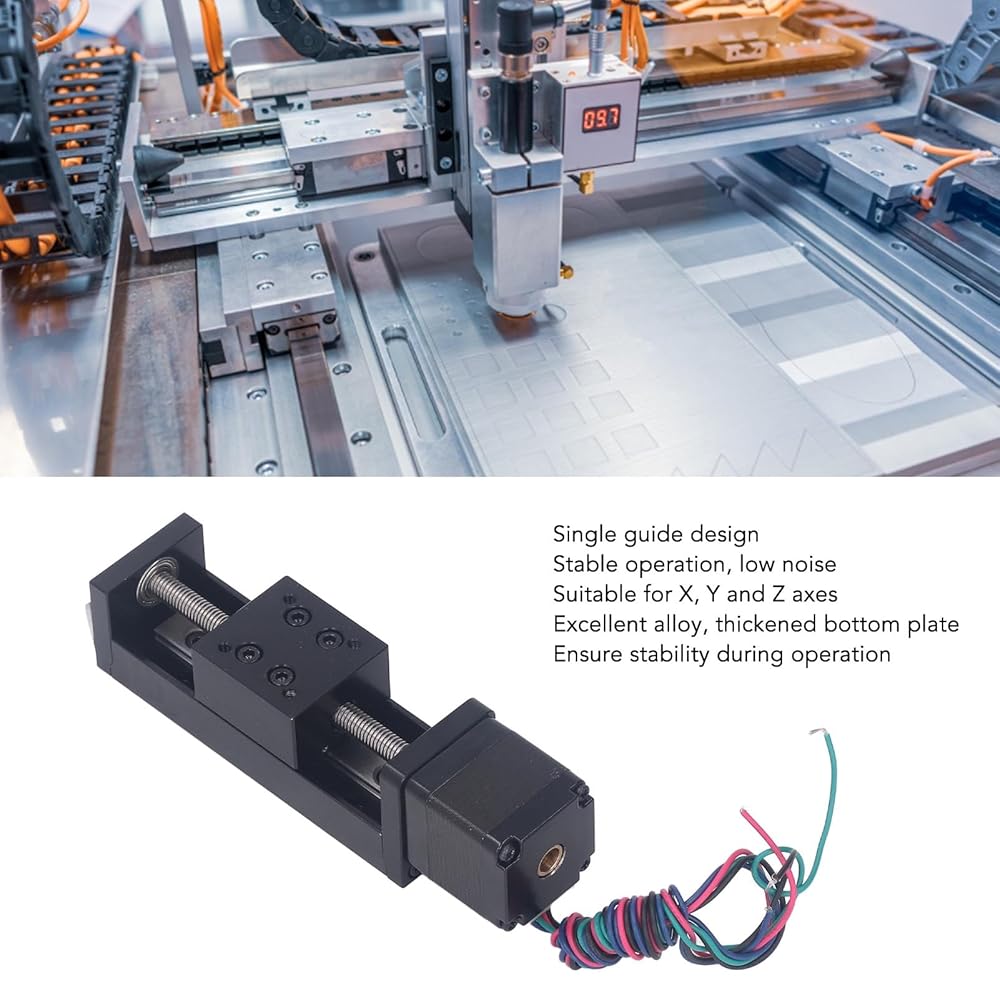

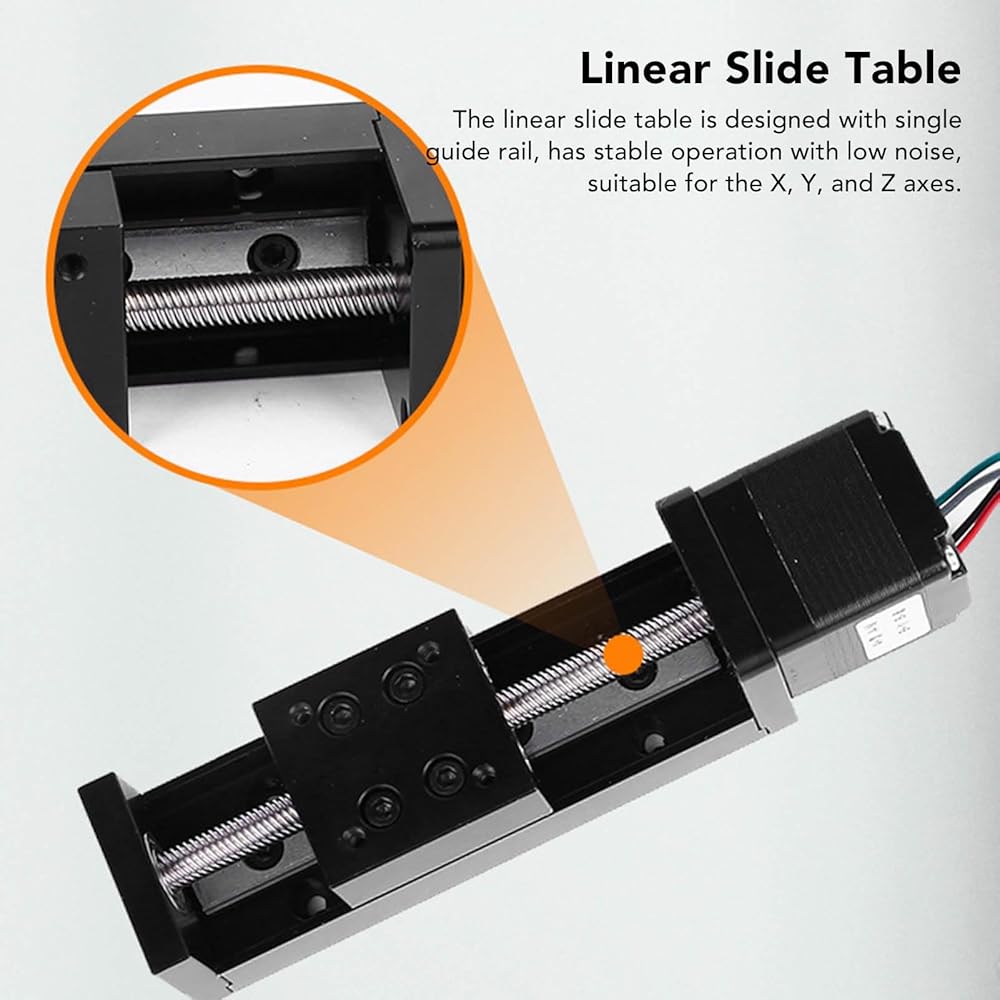

  • Single Rail Design for Quiet & Stable Operation: Adopts single guide rail design, runs stably and smoothly with low noise, not disturbing the working environment. Equipped with 28 stepper motor, stable power output and sensitive start-stop response, effectively improving the fluency and stability of the transmission process.
  • Alloy Structure for Sturdiness & Durability: Made of high-quality alloy material as a whole, with thickened bottom plate design, firm structure and high strength. Horizontal load up to 5KG and vertical load 1KG, can bear certain working pressure, not easy to deform, ensuring long-term stable operation.
  • Precise & Efficient with Excellent Transmission: Features high positioning accuracy and efficient transmission advantages, running speed up to 0-120mm/s, holding torque 6N.cm. Small power transmission loss, can quickly and accurately complete displacement adjustment, improving work efficiency and processing precision.
  • Multi-Scene Compatibility & Versatile Use: Widely applicable to DIY CNC milling machines, inspection equipment, optical measurement, fine-tuning displacement, mechanical positioning and other scenarios. A core accessory for precision mechanical transmission, suitable for professional processing and DIY production needs, with outstanding practicability.

Description

Item Type: Mini Linear Rail Guide Slide Actuator
Material: Alloy

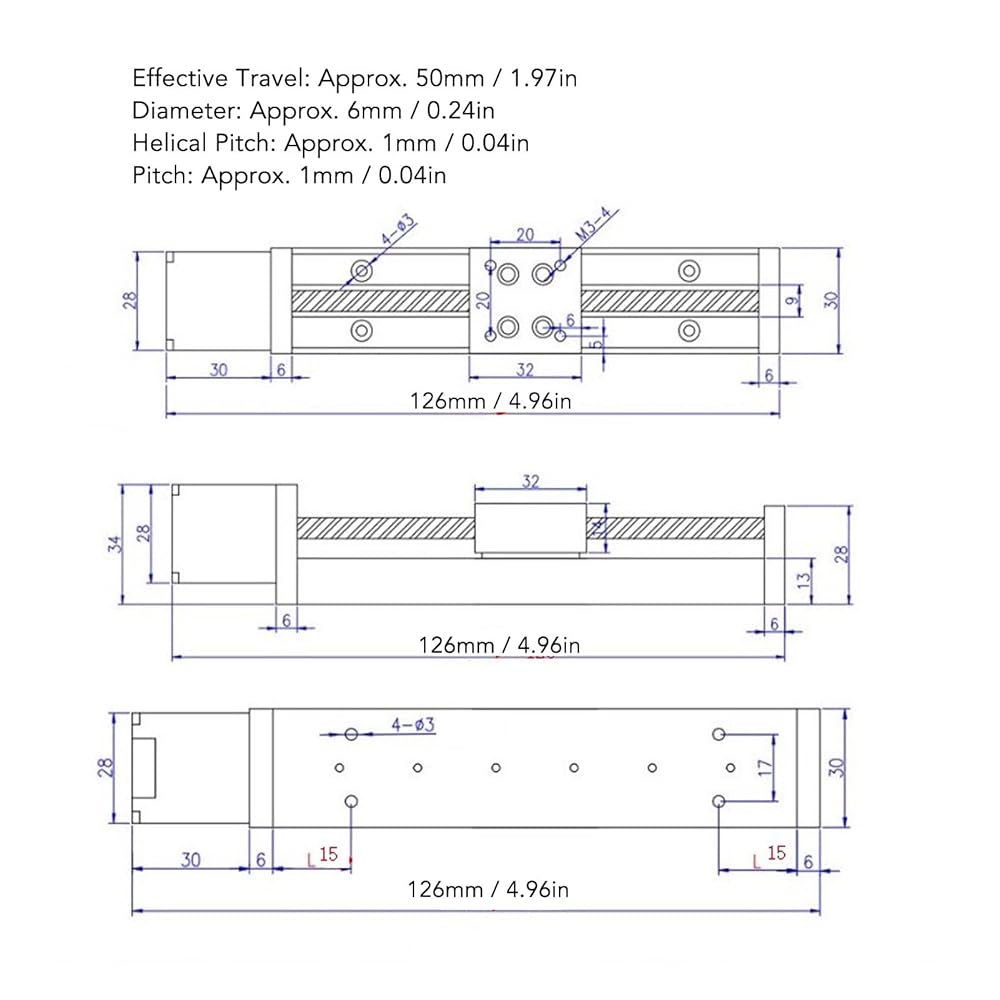

Effective Travel: Approx. 50mm / 1.97in
Load: Horizontal: 5KG; Vertical: 1KG
Positioning Accuracy: ±0.1mm
Holding Torsion: 6N.cm
Current: 0.6A
Resistance: 5.5Ω
Inductance: 3.2MH
Speed: 0-120mm/s
Step Angle: 1.8 Degrees
Diameter: Approx. 6mm / 0.24in
Helical Pitch: Approx. 1mm / 0.04in
Pitch: Approx. 1mm / 0.04in

Package List：
1 x Mini Linear Rail Guide Slide Actuator
