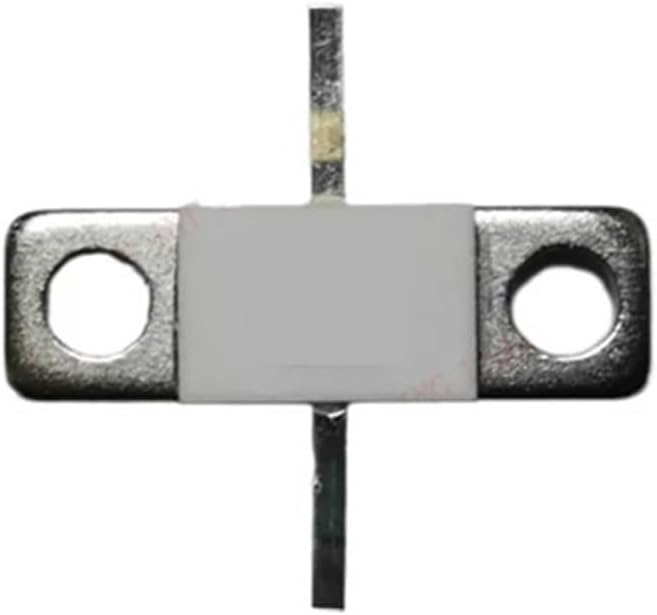

Resistor Networks
Specification
Frequency range: DC-3.0GHz
Rated power: 50W 100W 150W 200W 250W
Attenuation value: 1dB 2dB 3dB 4dB 5dB 6dB 10dB 15dB 20dB
Attenuation tolerance: ±0.8dB
Nominal impedance: 50os±5%
Standing wave ratio: 1.25:1
Substrate material: Beryllium ceramic
Operating temperature: -55 to +150
Temperature coefficient: 150ppm/
