Watflow 2.5" WoltmannHelix Water Meter,Detachable Water Meter,Pulse Output, Epoxy-Coated Cast Iron,Resistant Seals（Cubic,Non-Potable Use）

KWD 112
Brand
Watflow
Weight
12.1 kg
– 1 +

Special Features

  • ACCURATE MONITORING:Cold water meter: ±2% at nominal/intermediate and maximum flow, ±5% at minimum flow rate to transition flow rate
  • Maximum Flow Rate: 350 GPM, Nominal Flow Rate: 50 GPM, Minimum Flow Rate: 8 GPM. Pressure: 200PSIG Temp:-20 to 150 ℉
  • Horizontal Installation: Horizontal position with dial facing upwards or sideways. It is not recommended to have dial facing downwards. It can also be installed vertically with water flowing upwards.

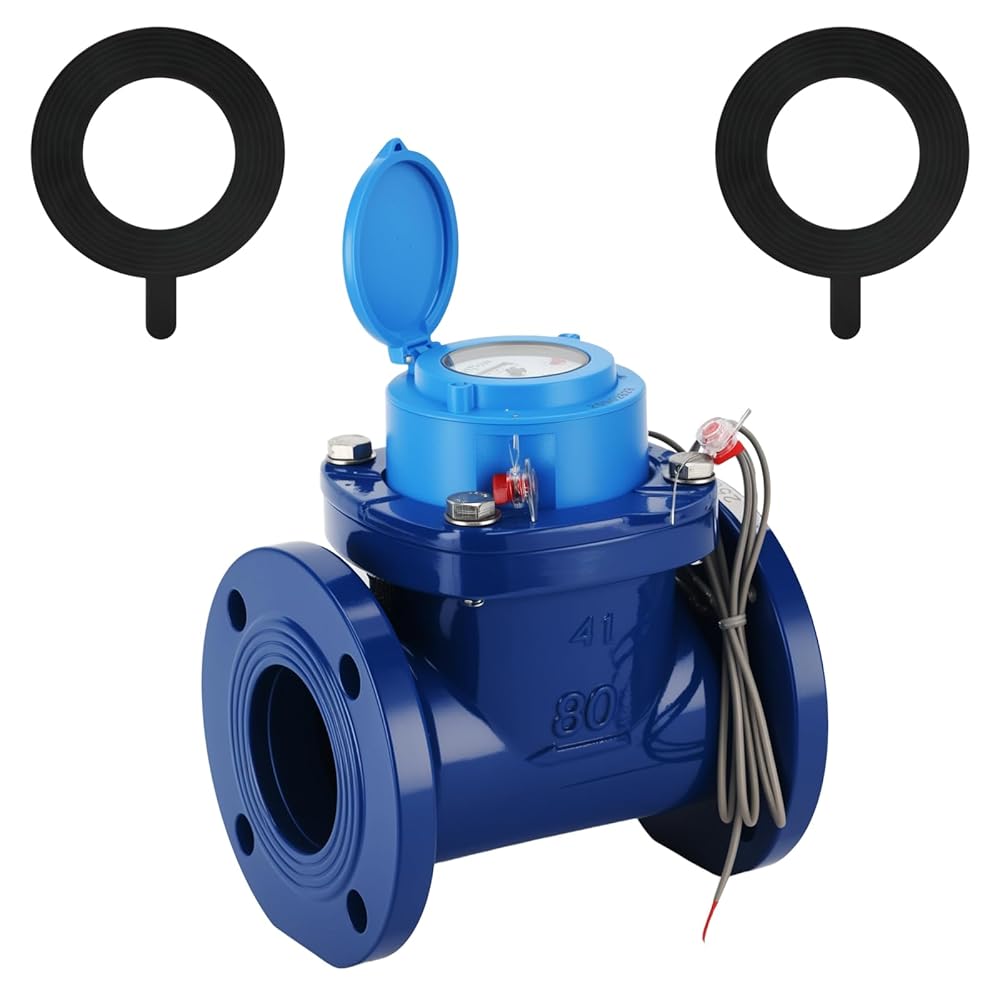

  • High materials: ABS head 360° rotation. The meter body is made of cast or ductile iron and is epoxy coated.The meter register assembly can be removed for repair orreplacement without disrupting the process flow.
  • Pulse Connection:This is a pulse-emitting device that is magnetically actuated: a reed switch inside a plastic housing closes when a magnet mounted on a gear of the meter enters its sensing proximity, producing a pulse signal.
  • A typical 1.5 meter (59") two-conductor cable uses wires with 3.5 mm outer diameter. One conductor is insulated in red and the other in black. Max Voltage: 24V AC/DC Max Current: 0.01 A. 1GA/100GAL

Description

Description
Durable Cast Iron Construction: Designed with a heavy-duty cast iron body and epoxy coating, this water meter is built to withstand the rigors of industrial environments while offering reliable and long-lasting performance.

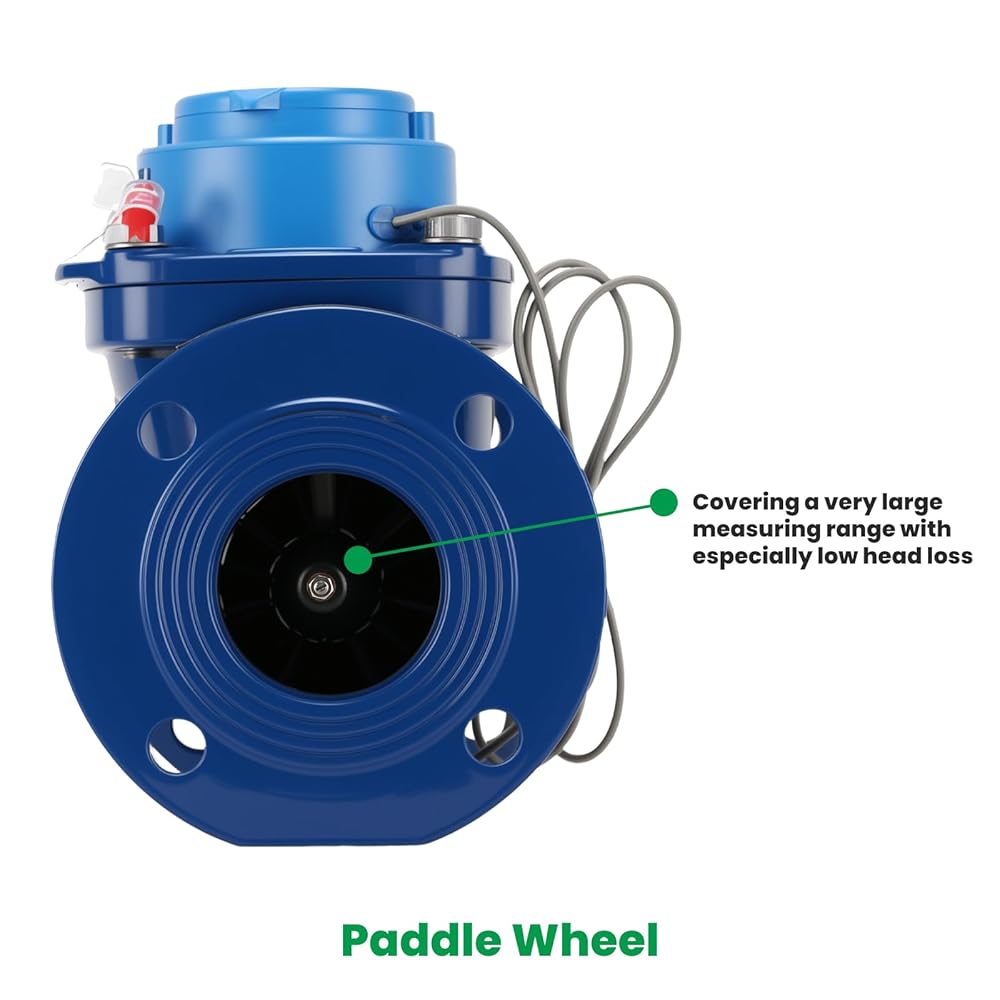

ACCURATE MONITORING:The Woltmann helix style meter ensures accurate readings with an impressive accuracy class B, delivering precise measurements even at transitional and nominal flow rates of ±5% and ±2% respectively.
Pulse Output for Monitoring Systems: Equipped with a pulse output component, this water meter allows for easy integration into automated systems, making it ideal for applications that require remote data collection and analysis.
Flow Rate: Qn=40m3/h,PN=16bar,This meter is perfect for a wide range of industrial applications involving non-potable water.
Horizontal Installation: Horizontal position with dial facing upwards or sideways. It can also be installed vertically with water flowing upwards. It is not recommended to have dial facing downwards.
