Filter Valves

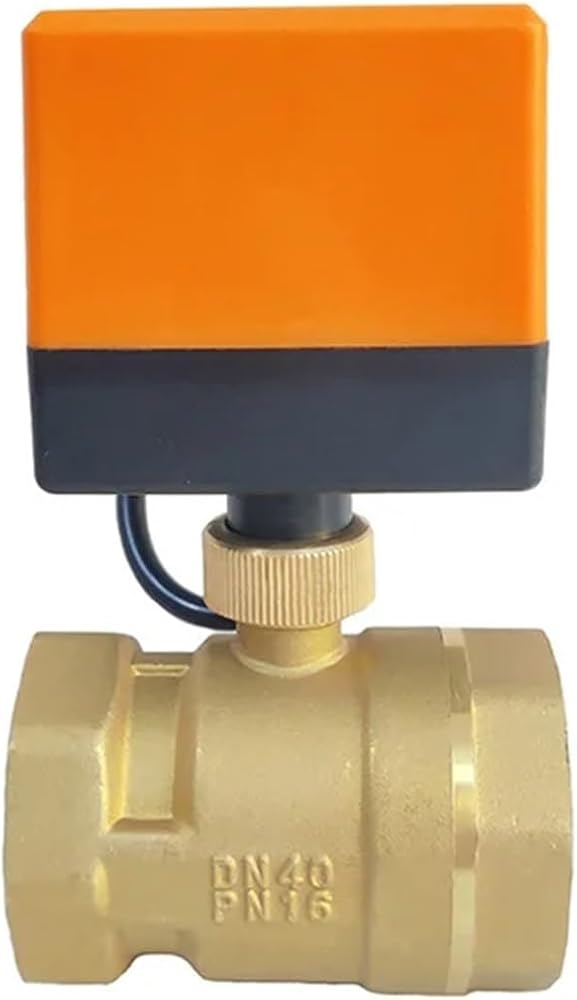

ball valve consists of valve body and actuator. The actuator drives the valve core to rotate 90°. The actuator is driven by a synchronous motor and has a built-in limit contact, which can cut off power when the valve is fully open or fully closed. It has the advantages of simple structure, reliable operation, large through-flow, energy saving, and can replace the solenoid valve. It can be widely used in heating, central air conditioning, solar hot water systems, and water treatment systems for hot and cold water switch control.
product information
Medium: cold water, hot water or 50% ethylene glycol solution
Body material: brass
Wiring method: three wires and two controls
Structural form: two ways
Driving voltage: 220VAC, 24VAC, 24VDC, 12VDC
Power consumption: 6W (only when the valve is open and closed)
Applicable medium temperature: 0-95
Action time: 5-15S
Nominal pressure: 1.6Mpa
Lead length: 30CM
Connection method: G internal thread
