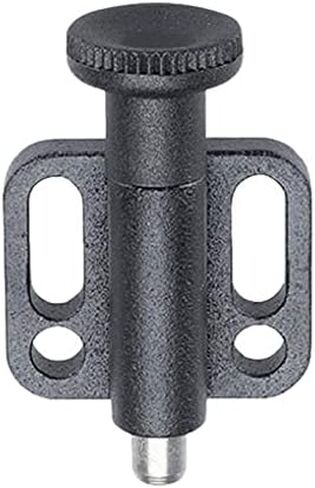

Locking bolts are used in indexing holes and serve for secure locking and precise positioning. Without additional tool insert, components can be reliably positioned or loosened. This means that locking bolts allow fast, repeatable positioning and thus ensures a high level of process reliability.
Locking bolts can be used wherever components need to be positioned or locked quickly, safely and precisely. Typical applications are machine and plant construction, fixture and tool making as well as assembly and production technology. They also ensure smooth processes in transport and packaging systems.
Material:
Casing
Die-cast zinc, plastic coated, black.
Locking pin
Stainless steel 1.4305.
Button
Thermoplastic PA 6, black, matt.
Assembly
Assembly using ISO 7092 discs.
Operation
In the design with lock, the button is pulled out, rotated 90° and secured by the locking notch (if the locking pin must not protrude).
Notes:
Button cannot be removed.
