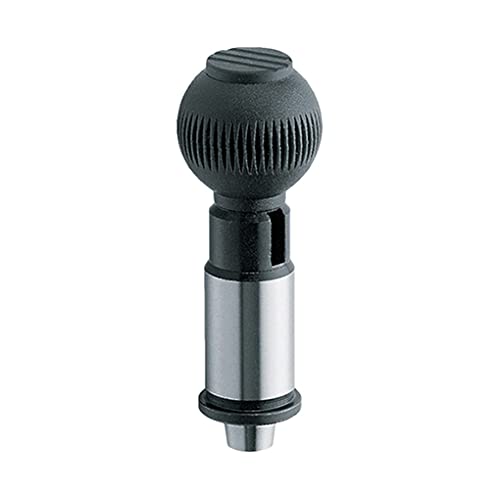

The precision locking bolts with bushings form an optimal combination for quick positioning and fixing.
Due to the precise design of the locking bolt and the bushing, a high repeatability of the two elements is achieved.
Material:
bolts
Insert steel, case-hardened, burnished and ground.
Female
Insert steel, case-hardened, burnished and ground.
sleeve.
Insert steel, case-hardened, burnished and ground.
Grip ball.
Thermoplastic, black-grey.
Assembly
For precise adjustment, the handle ball and bolt should be glued grease-free after installation. Detailed assembly instructions can be found for download as a PDF under "Documents".
Operation
In the design with lock, the button is pulled out and rotated by 90°.
Notes:
Sockets are to be ordered separately.
