Steam Bottle Sleeve Label Shrinking Machine Bottle Sleeve Shrink Wrap Machine 5.6ft Steam Heat Bottle Label Shrink Equipment Automatic Sleeve Labeling with 24kw Generator, AC220V

KWD 2,487.500
Brand
Yokoma
Weight
280.3 kg
– 1 +

Special Features

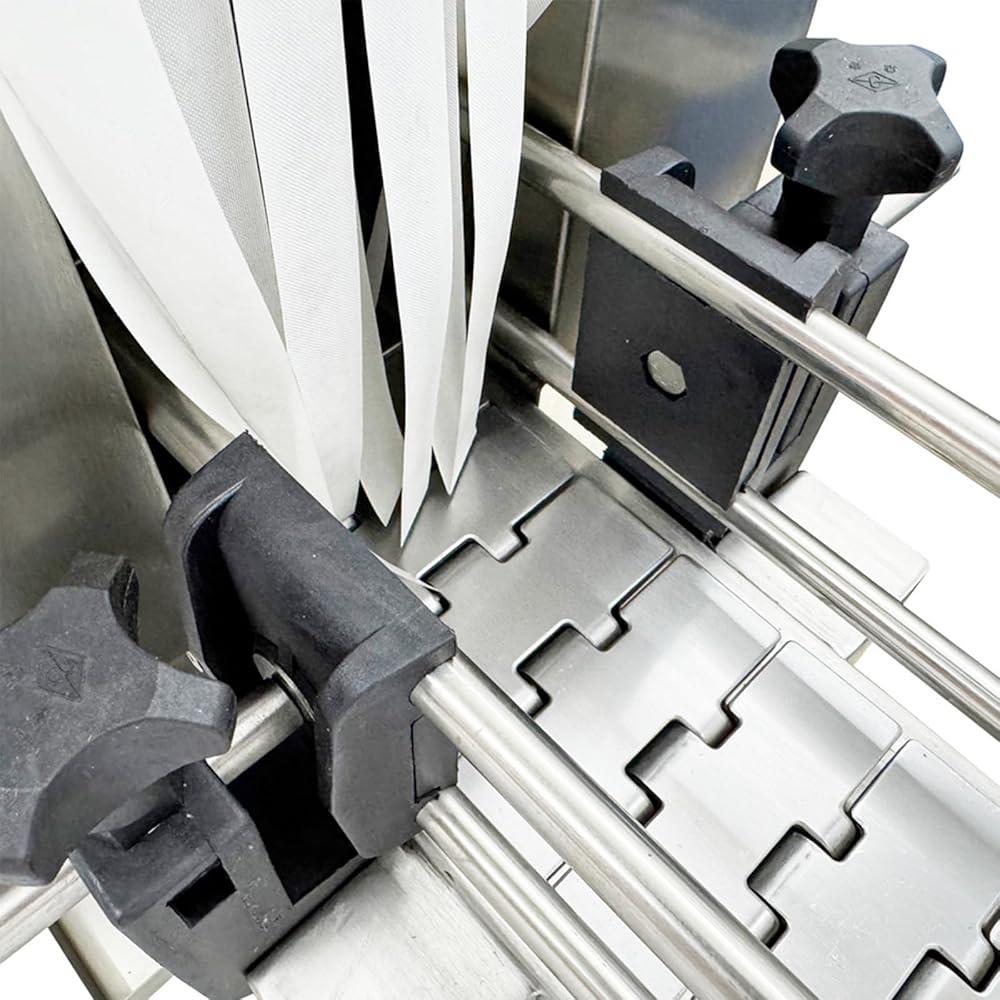

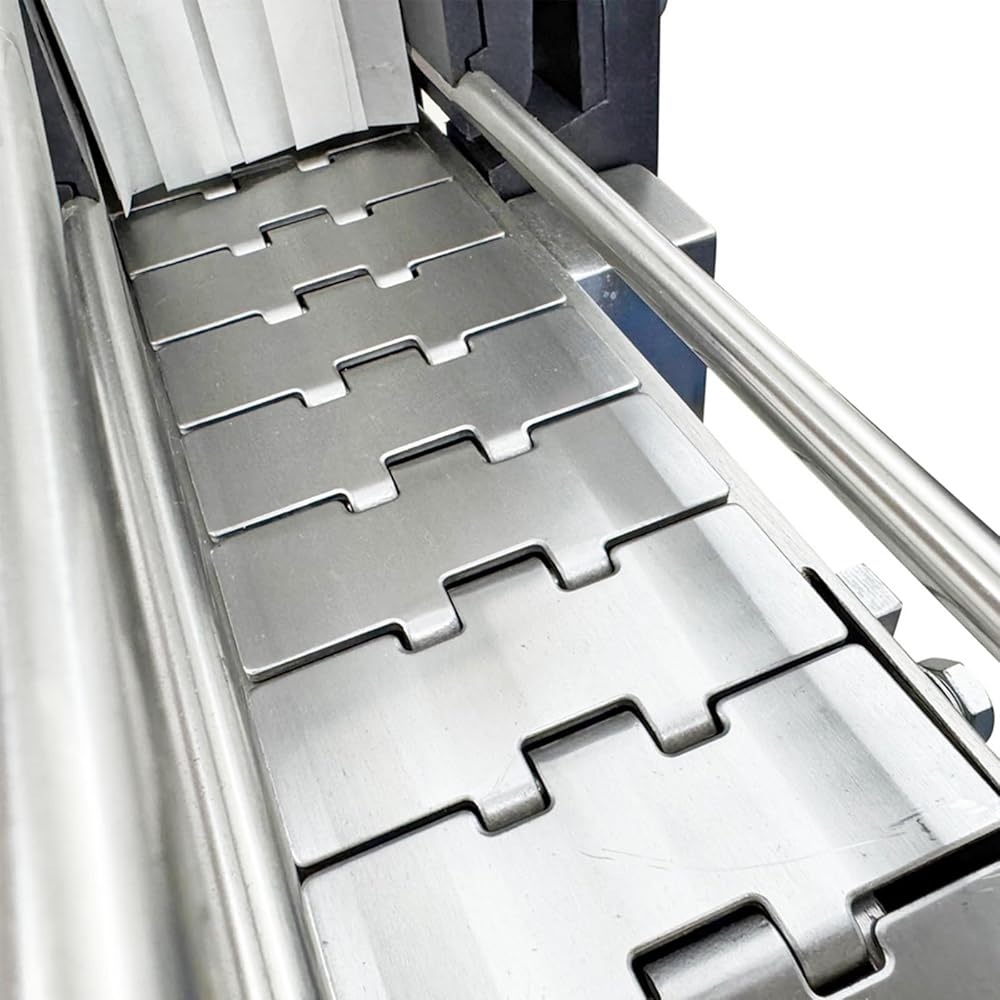

  • Smooth and Safe Conveying: The label shrink machine adopts chain-type mesh conveyor belt, with uniform pores and smooth surface, the conveyor belt has high load-bearing capacity and excellent tensile strength, ensuring no deviation during operation, the guardrails are installed on both sides of the conveyor belt to prevent bottles from tipping over, the spacing between guardrails can be adjusted according to different diameters of the bottles (Maximum width is 4.3"/11cm)

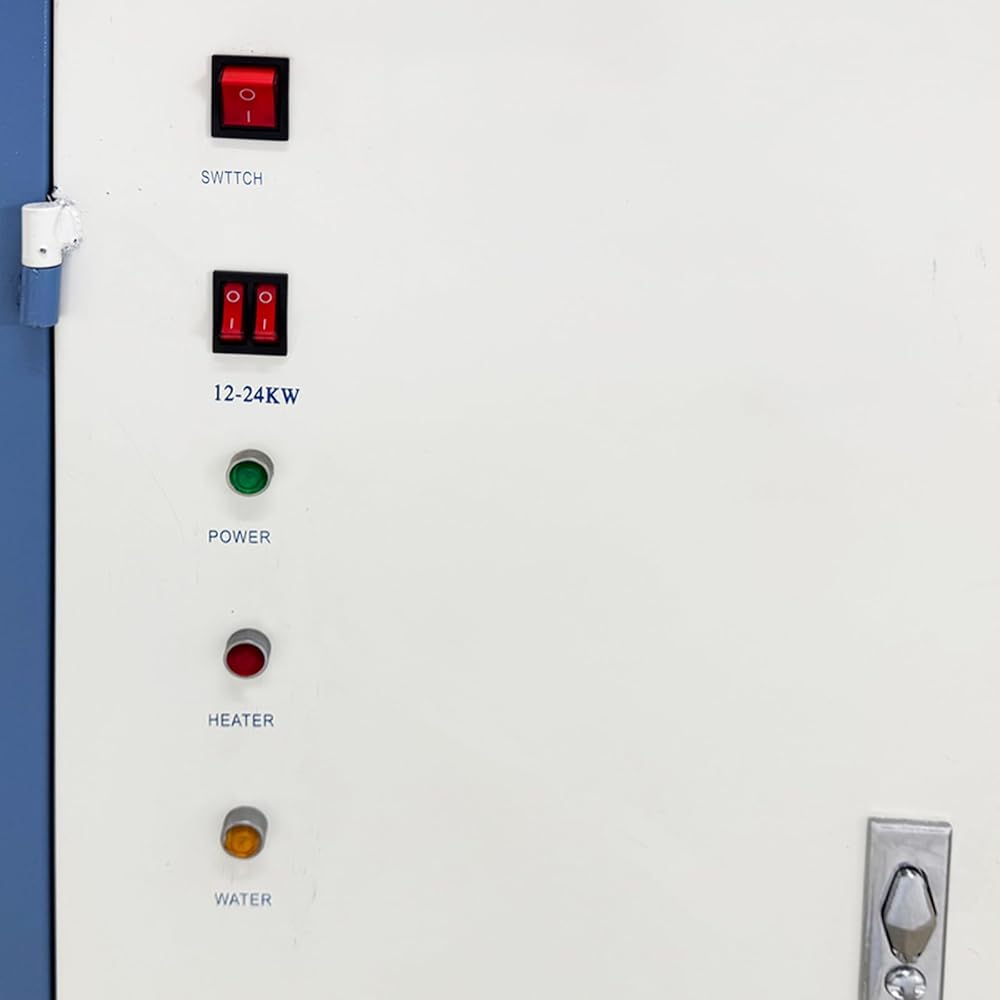

  • Dual Intelligent Control: The control panel adopts independent conveyor speed (0-35m/min stepless) control and temperature adjustment for films/packaging, by using the knob/button,the precise speed adjustment can be achieved to meet various packaging shrinkage needs, the panel screen can clearly display the real-time steam temperature inside the tunnel, accurately monitoring the temperature within 0-150°C, enabling stable and efficient processing

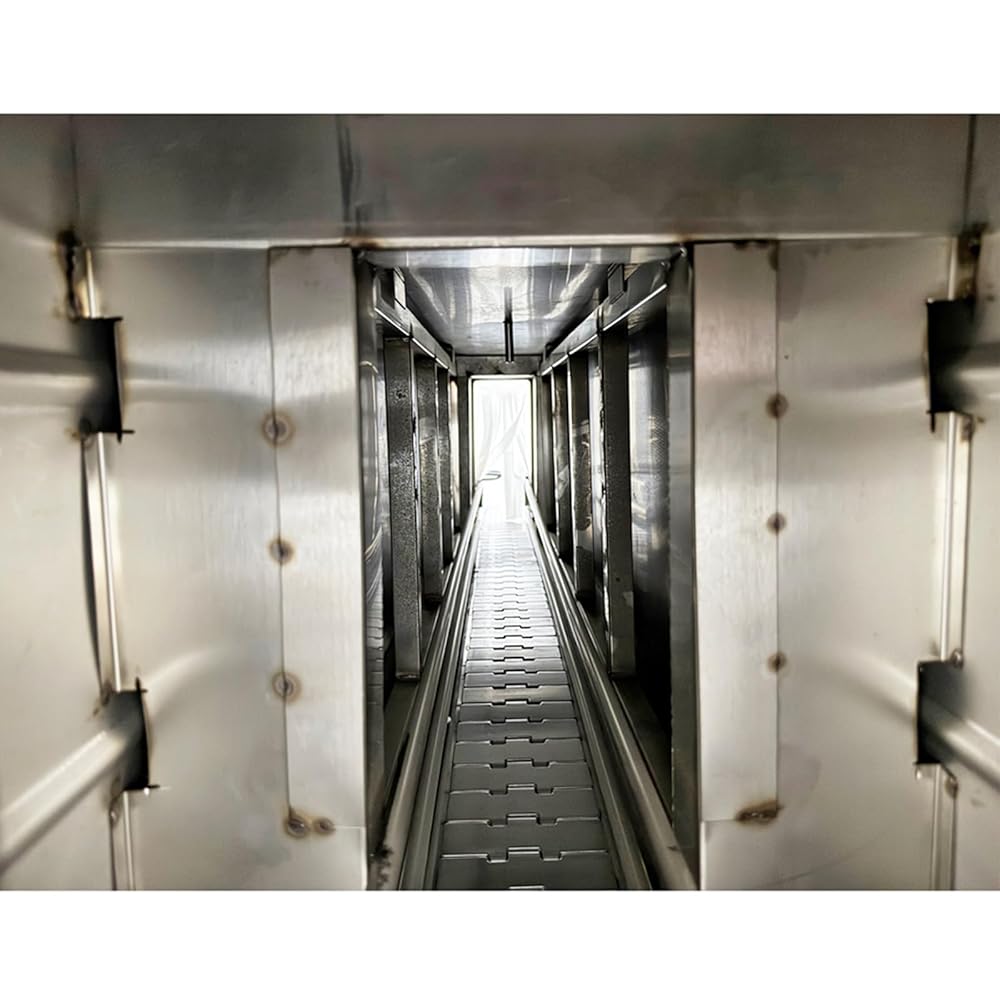

  • Uniform Circulation of Steam and Hot Air: The shrinking packaging device adopts high-temperature and high-pressure materials, to ensure efficient and leak-free steam flow, besides, the stable air supply and uniform air diffusion also guarantees uniform heat distribution within the tunnel, thereby achieving reliable and efficient contraction effects

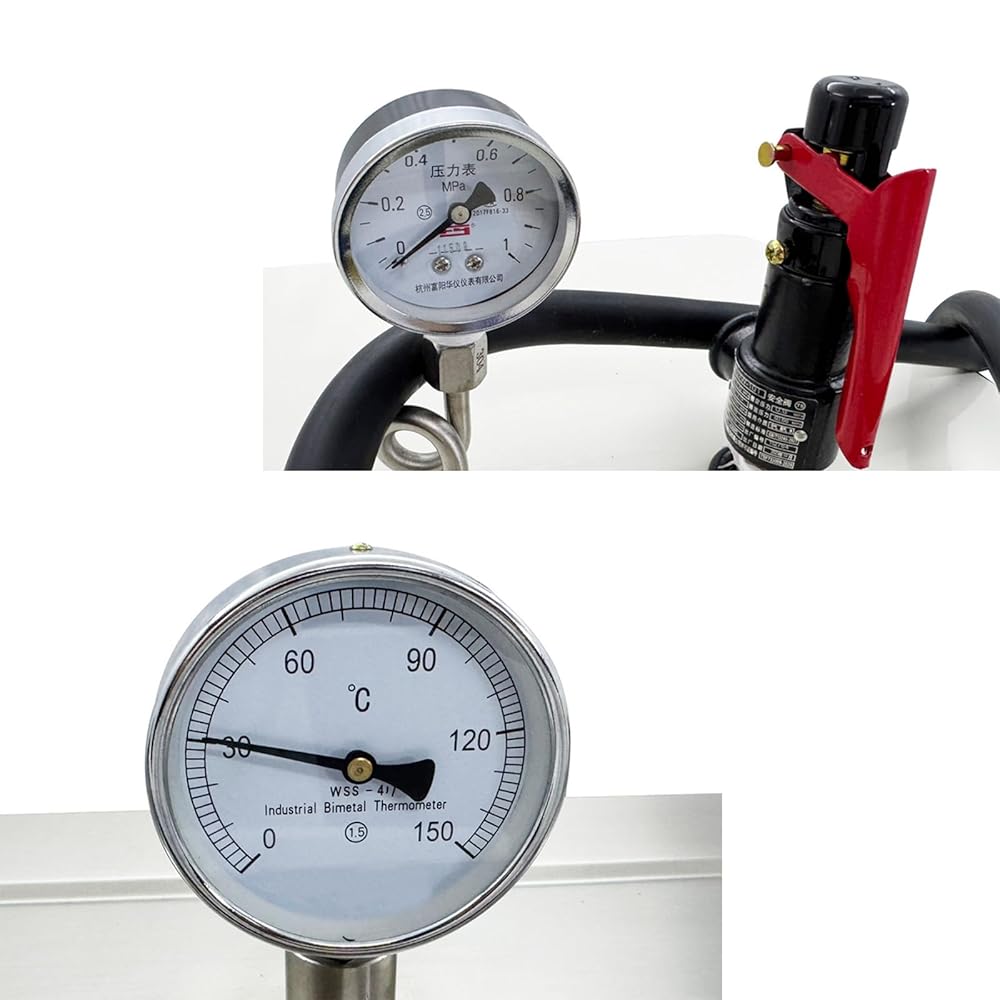

  • Real-Time Data Monitoring: There is a pressure gauge installed above the steam generator, which can provide clear and real-time readings of the steam pressure (0-1 MPa), this pressure gauge can be paired with a highly responsive safety valve for instant automatic venting upon overpressure, the dual protection design effectively prevents overpressure risks, ensuring the safety of the equipment and personnel, and achieving stable and worry-free operation
  • Wide Shrinking Packaging Scope: The split-type steam label shrinking machine is mainly used to attach PVC/ PP/ POF/ PE/ ETC/ PET material labels to bottles by steam heating way, to fully showcase the appearance of the product, thereby enhancing its aesthetic appeal and value perception, the machine is suitable for various places such as daily necessities, beverages and other produces

Description

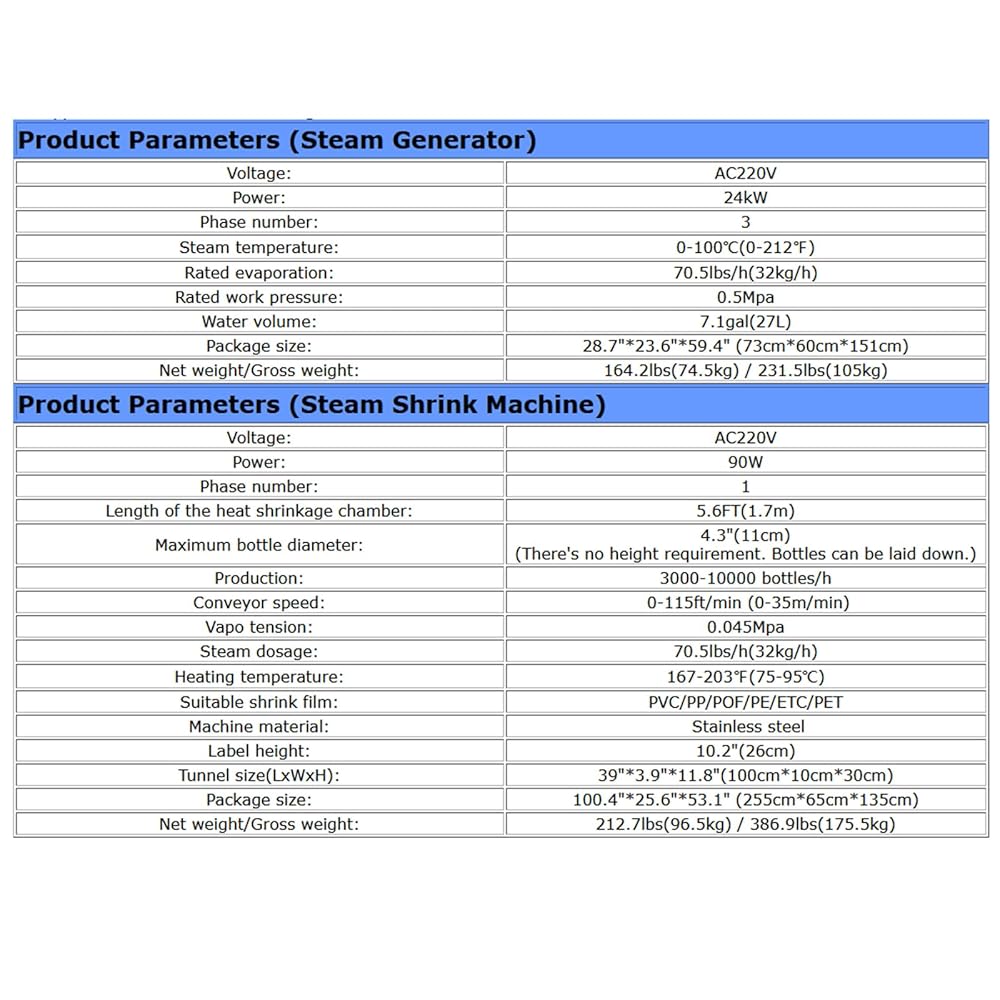

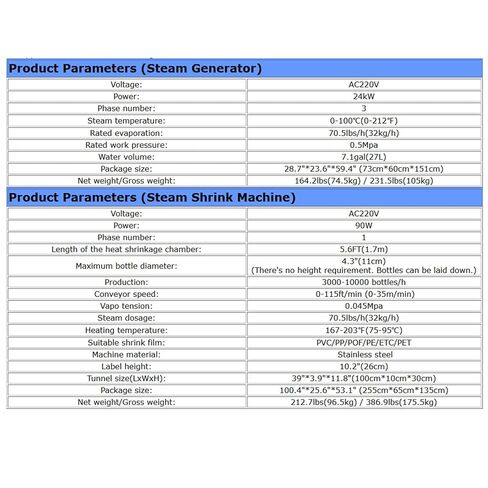

Product Parameters of Steam Generator
Voltage: AC220V triple-phase
Power: 24kW
Steam temperature: 0-100℃ (0-212℉)
Rated evaporation: 70.5lbs/h (32kg/h)
Rated work pressure: 0.5Mpa
Water volume: 7.1gal(27L)
Generator size: 25.2*20*52.7" (64×51×134cm)
Package size: 28.7*23.6*59.4" (73×60×151cm)
Net weight/Gross weight: 164.2lbs(74.5kg) / 231.5lbs(105kg)
Product Parameters of Steam Shrink Machine
Voltage: AC220V single-phase
Power: 90W
Length of the heat shrinkage chamber: 5.6F(1.7m)
Maximum bottle diameter: 4.3" (11cm)
(There's no height requirement, bottles can be laid down)
Production: 3000-10000 bottles/h
Conveyor speed: 0-115ft/min (0-35m/min)
Vapo tension: 0.045Mpa
Steam dosage: 70.5lbs/h (32kg/h)
Heating temperature: 167-203℉(75-95℃)
Suitable shrink film: PVC/ PP/ POF/ PE/ ETC/ PET
Machine material: Stainless steel
Label height: 10.2" (26cm)
Tunnel size: 39*3.9*11.8" (100×10×30cm)

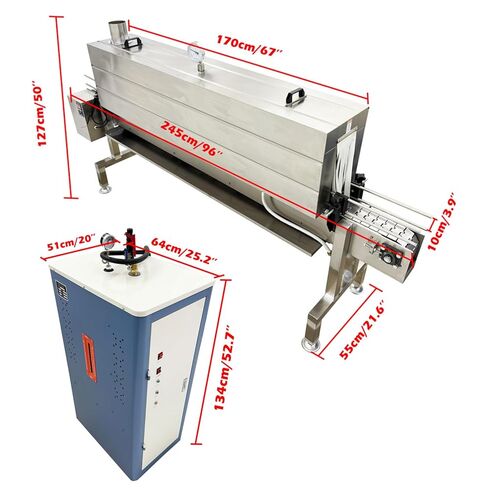

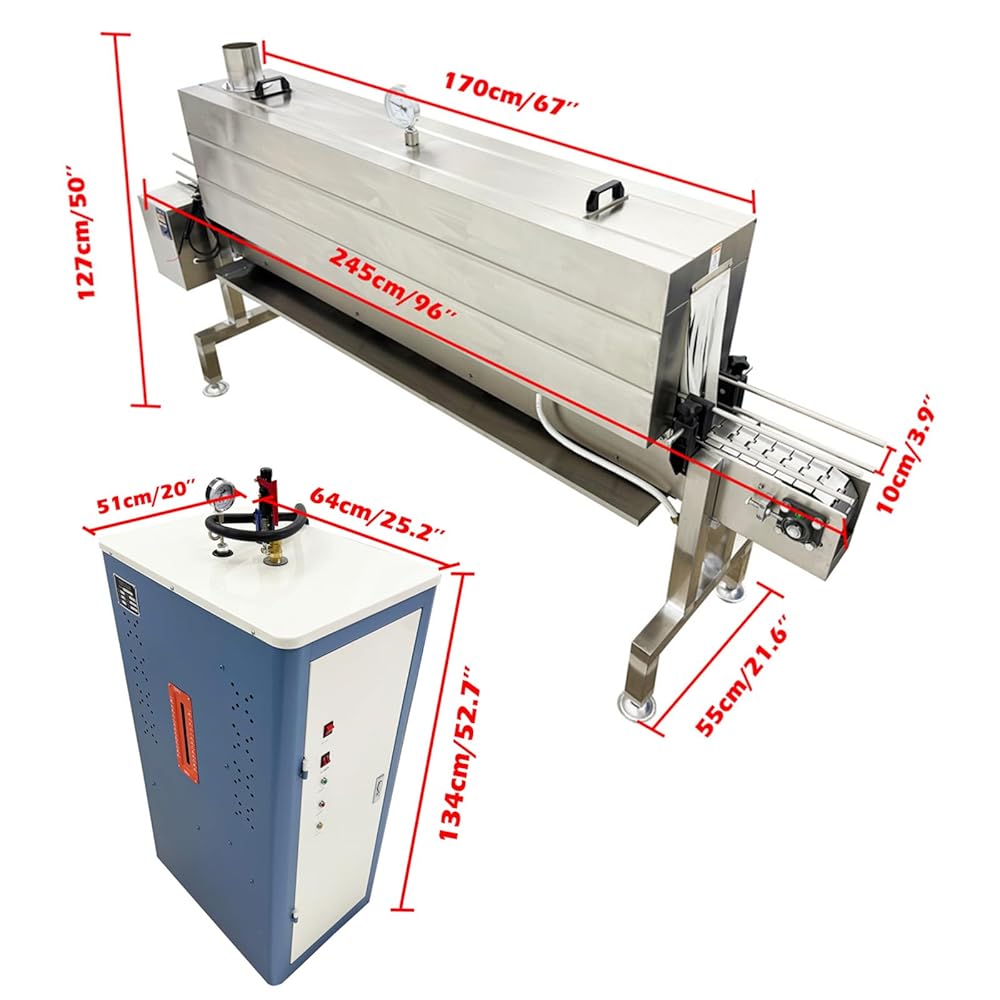

Machine size: 96*50*21.6" (245×127×55cm)
Package size: 100.4*25.6*53.1" (255×65×135cm)
Net weight/Gross weight: 212.7lbs(96.5kg) / 386.9lbs(175.5kg)

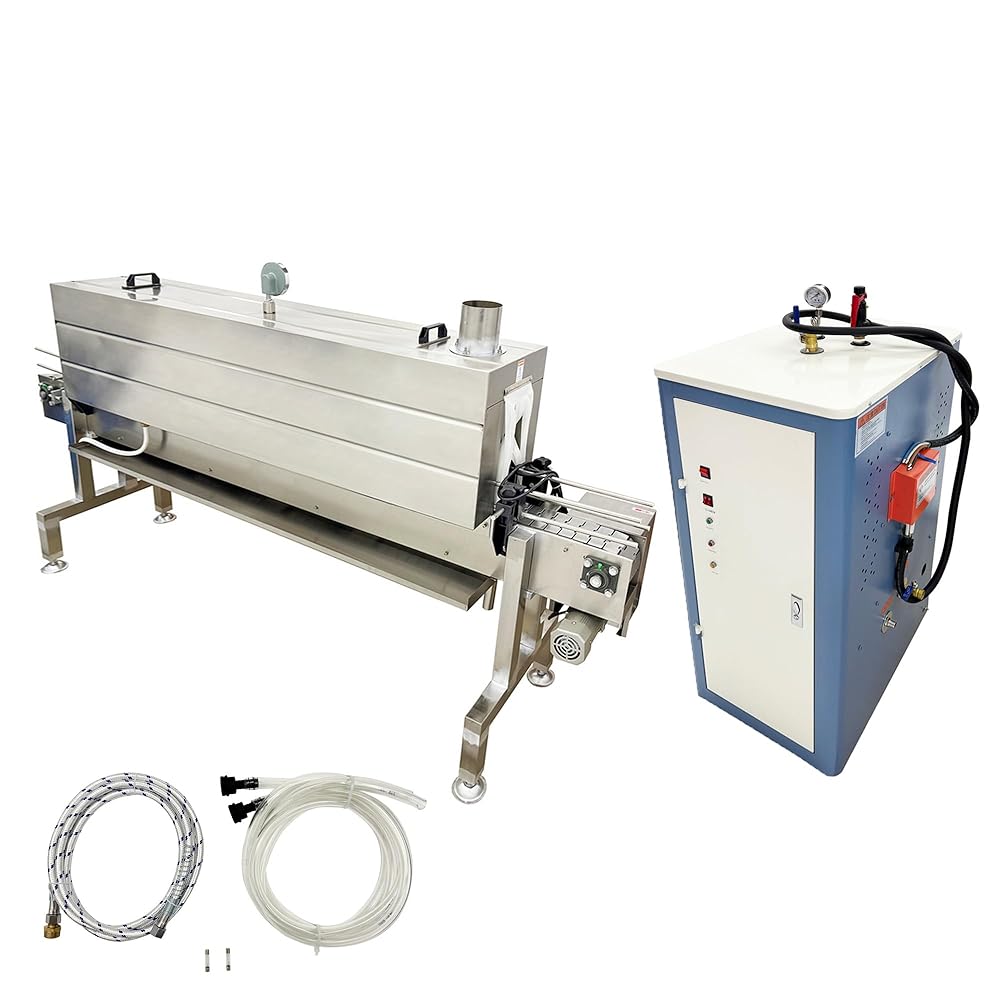

The packages include
Steam Label Shrink Machine *1
Steam Generator *1
Accessory Kit *1
